Abstract

A varnish constant temperature storage device relates to constant temperature storage equipment. It includes a paint storage tank, a water storage tank, a serpentine pipe, and a water pump. The paint storage tank is equipped with multi-layer serpentine pipes, and the paint storage tank is installed in the water storage tank. connect. Before cooling the varnish, add the varnish to the paint storage tank, then fill the storage tank with well water until the paint storage tank is submerged, and then turn on the water pumps, one of which injects well water into the serpentine pipe, and the other pump from the The well water is extracted from the serpentine tube, so that the well water in the serpentine tube is in continuous circulation, so that the temperature of the varnish in the paint storage box will be lowered soon, and because the entire paint storage box is stored The well water in the pool is submerged, because the specific heat of water is large, so the varnish in the paint storage tank can be kept in a relatively constant temperature range. The utility model uses the convenience of underground water to cool down the varnish, which is not only clean and environmentally friendly, but also can reduce energy consumption and save costs.

Description

Varnish constant temperature storage device

technical field

The utility model relates to constant temperature storage equipment, in particular to a varnish constant temperature storage device.

Background technique

Many coil manufacturers need to use a lot of varnish in the process of producing coils. It is very important to store the varnish at a constant temperature every summer. At present, most manufacturers use refrigerators to cool down the varnish and keep it warm. However, although the cooling effect of the refrigerator is good, not only the initial investment is large, but also the later use fee is also high, which unnaturally adds a lot of burden to the manufacturer.

Utility model content

The purpose of this utility model is to provide a constant temperature storage device for varnish, which uses the convenience of underground water to cool down the varnish, which is not only clean and environmentally friendly, but also can reduce energy consumption and save costs.

In order to solve the existing problems in the background technology, the utility model adopts the following technical solutions: it includes a paint storage tank, a water storage tank, a serpentine pipe, and a water pump, and multi-layer serpentine pipes are installed in the paint storage tank. The paint box is installed in the water storage tank, and the inlet and outlet of the serpentine pipe are respectively connected with two water pumps.

Before cooling the varnish, add the varnish to the paint storage tank, then fill the storage tank with well water until the paint storage tank is submerged, and then turn on the water pumps, one of which injects well water into the serpentine pipe, and the other pump from the The well water is extracted from the serpentine tube, so that the well water in the serpentine tube is in continuous circulation, so that the temperature of the varnish in the paint storage box will be lowered soon, and because the entire paint storage box is stored The well water in the pool is submerged, because the specific heat of water is large, so the varnish in the paint storage tank can be kept in a relatively constant temperature range.

The utility model uses the convenience of underground water to cool down the varnish, which is not only clean and environmentally friendly, but also can reduce energy consumption and save costs.

Description of drawings

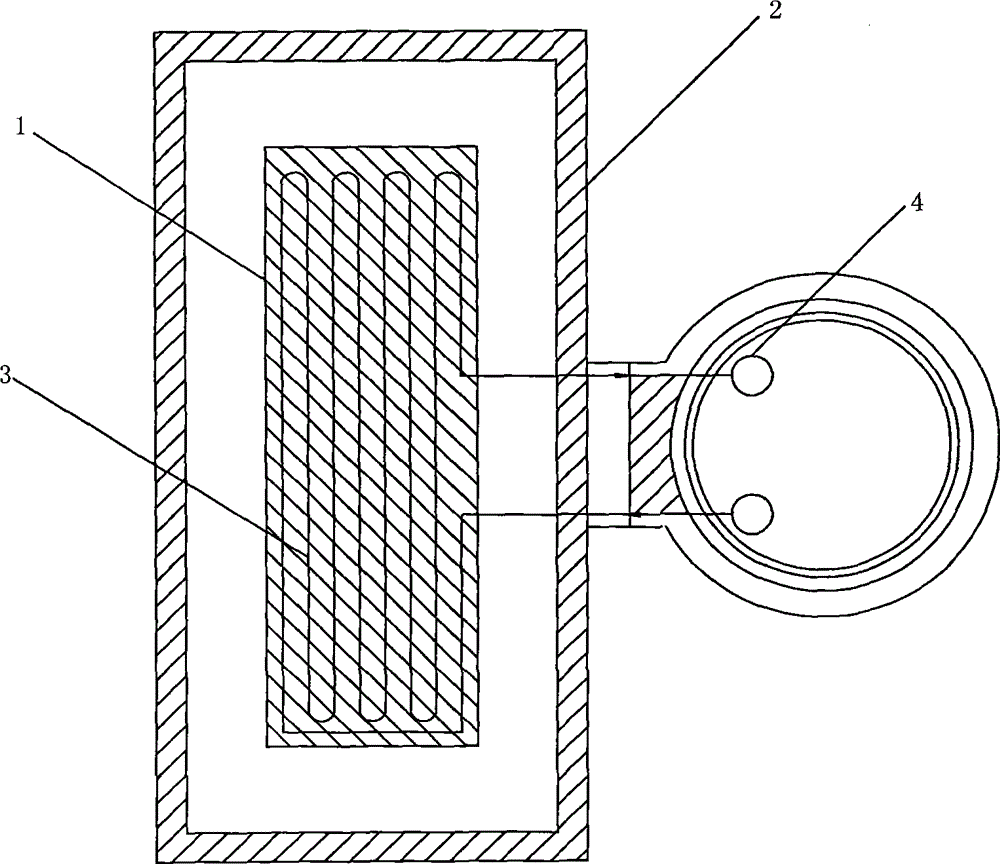

Fig. 1 is the structural representation of the utility model.

Detailed ways

Referring to Fig. 1, a kind of varnish constant temperature storage device, it comprises paint storage box 1, water storage tank 2, serpentine pipe 3, water pump 4, multi-layer serpentine pipe 3 is installed in the described paint storage box 1, paint storage The tank 1 is installed in the water storage tank 2, and the inlet and outlet of the serpentine pipe 3 are connected with two water pumps 4 respectively.

It is necessary to add varnish to the paint storage tank 1 before cooling the varnish, then fill the water storage tank 2 with well water until the paint storage tank 1 is submerged, and then turn on the water pump 4, and one of the water pumps 4 is injected into the serpentine pipe 3 into the well Water, another water pump 4 extracts well water from the serpentine pipe 3, so that the well water in the serpentine pipe 3 is in continuous circulation, and the temperature of the varnish in the paint storage tank 1 will be lowered soon , and because the whole paint storage tank 1 is submerged by the well water in the water storage tank 2, because the specific heat of water is larger, so the varnish in the paint storage tank 1 can be kept in a relatively constant temperature range.

The utility model uses the convenience of underground water to cool down the varnish, which is not only clean and environmentally friendly, but also can reduce energy consumption and save costs.

Claims (1)

1. A constant temperature storage device for varnish, characterized in that it includes a paint storage tank (1), a water storage tank (2), a serpentine pipe (3), a water pump (4), and the described paint storage tank (1) Multi-layer serpentine pipes (3) are installed in the tank, the paint storage box (1) is installed in the water storage tank (2), and the inlets and outlets of the serpentine pipes (3) are respectively connected with two water pumps (4).
