Abstract

The utility model provides a packaging box with a handle, comprising: a box body, and a first lifting arm and a second lifting arm connected to both sides of the box body, and a first lifting arm is provided near the free end of the first lifting arm. Opening, the second opening is provided with a second opening corresponding to the first opening near the free end of the second lifting arm, and the first opening and the second opening are relatively stacked by turning the first and second lifting arms upwards above the box. The packaging box with a handle of the utility model provides a handle for the box body by arranging a lifting arm outside the box body, so that the box body is convenient to carry, and at the same time, the appearance of the box body is beautified, the ornamental value is improved, and the structure Simple and low cost.

Description

box with handle

technical field

The utility model relates to a packing box, in particular to a packing box with a handle.

Background technique

Carton packaging is now a commonly used packaging method for items. Its main functions are two points; one is to decorate and beautify the product. If a good product is not decorated with exquisite packaging, it will greatly affect its quality. Market sales, lowering its own taste, now many products are packaged and decorated through exquisite cartons, which can improve the grade of products and increase consumers' favor; another function is used for isolation and shockproof of products, because paper The finished product has a certain shock-absorbing effect, which is very effective for those products that are afraid of falling and bumping. However, the current paper packaging boxes do not think much about how to make it easy for buyers to carry and pick up, so that many commodities are very inconvenient to carry.

Utility model content

The purpose of the utility model is to provide a packing box with a handle, which is convenient to carry, has a beautiful appearance, and is simple in structure and low in cost.

In order to achieve the above purpose, the utility model provides a packaging box with a handle, including: a box body, and a first lifting arm and a second lifting arm connected to both sides of the box body, the first lifting arm is close to its free The end is provided with a first opening, and the second lifting arm is provided with a second opening close to its free end corresponding to the first opening. By turning up the first and second lifting arms, the first opening and the second The opening is relatively superimposed on the top of the box body.

The free end of the second lifting arm is also extended with a connecting piece, the connecting piece includes a first connecting plate, a second connecting plate and a third connecting plate connected in sequence, and a buckle is provided on the third connecting plate, The second lifting arm is provided with a button hole corresponding to the buckle. When fastened, the first connecting plate is folded downwards and attached to the first lifting arm, and the second connecting plate passes through the In the first and second openings, the third connecting plate passes through the first and second openings and then is folded upwards to fit on the second lifting arm, and the buckle is fastened in the buckle hole.

The width of the second connecting plate is smaller than that of the first connecting plate and the third connecting plate, and the free end of the third connecting plate is arranged in an arc shape.

Both the first opening and the second opening are regular rectangles, the buckles are arranged in a semicircle, and the buttonholes are correspondingly semicircular.

The width of the connecting piece is less than or equal to the width of the first and second openings.

The box body includes a bottom plate, a top plate relatively arranged above the bottom plate, and several side plates connected between the bottom plate and the top plate. The first and second lifting arms are respectively connected to the opposite sides of the bottom plate. The plate encloses a receiving space, wherein the side plate facing the first lifting arm or the second lifting arm can be opened and closed on the receiving space.

The box body includes a base plate, several side plates connected around the base plate, and a cover plate connected to the free end of the side plate. The several side plates and the base plate enclose a storage space, and the cover plate covers the storage space. above the space; the first and second lifting arms are respectively connected to opposite sides of the bottom plate.

The box body is a trapezoidal box or a rectangular box.

The first and second lifting arms and the box body are made of plastic or cardboard.

The first and second lifting arms are made of white cardboard, and the box body is made of double gray cardboard.

Beneficial effects of the utility model: the utility model has a packaging box with a handle, and a handle is provided for the box body by setting a lifting arm outside the box body, so that the box body is convenient to carry, and at the same time, the appearance of the box body is beautified , improve appreciation, and simple structure, low cost.

In order to further understand the features and technical contents of the present utility model, please refer to the following detailed description and accompanying drawings of the present utility model. However, the accompanying drawings are for reference and illustration only, and are not intended to limit the present utility model.

Description of drawings

The technical solution and other beneficial effects of the utility model will be apparent through the detailed description of the specific implementation of the utility model in conjunction with the accompanying drawings.

In the attached picture,

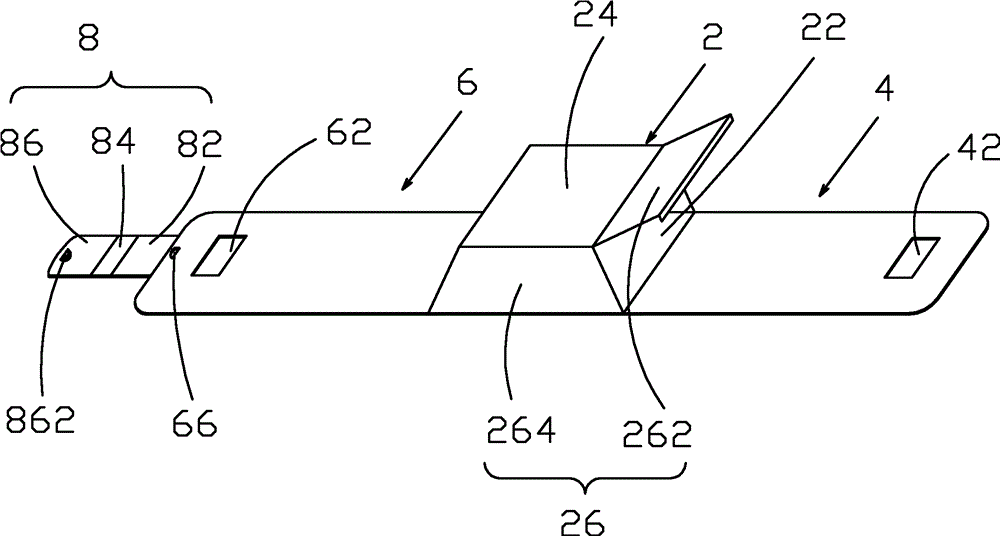

Fig. 1 is a schematic diagram of the unfolded structure of a specific embodiment of a packaging box with a handle of the present invention;

Fig. 2 is a schematic diagram of buckling in Fig. 1;

Fig. 3 is an expanded view of another embodiment of the present invention.

Detailed ways

In order to further illustrate the technical means adopted by the utility model and its effects, a detailed description will be given below in conjunction with preferred embodiments of the utility model and accompanying drawings.

Please refer to Fig. 1 and Fig. 2, the packing box with the handle of one embodiment of the present utility model, comprises: box body 2, and the first lifting arm 4 and the second lifting arm 6 that are connected on both sides of box body 2, so The first lifting arm 4 is provided with a first opening 42 near its free end, and the second lifting arm 6 is provided with a second opening 62 near its free end corresponding to the first opening 42. The arms 4 and 6 are folded upwards, and the first opening 42 and the second opening 62 are stacked on top of the box body 2 , so as to provide a handle for the box body 2 for easy handling of the box body 2 . The first opening 42 and the second opening 62 can be provided in various shapes, such as rectangle, ellipse, etc. In this embodiment, the first opening 42 and the second opening 62 are regular rectangles.

Wherein, the box body 2 can be provided in various shapes, such as trapezoidal body, rectangular body or polygonal body and so on. In this embodiment, the box body 2 includes a bottom plate 22, a top plate 24 arranged above the bottom plate 22, a plurality of side plates 26 connected between the bottom plate 22 and the top plate 24, the bottom plate 22, the top plate 24 and the side plates 26 A storage space is enclosed, and one side plate can be opened and closed on the storage space to form a cover of the box body 2 . The first and second lifting arms 4 and 6 are respectively connected to the opposite sides of the bottom plate 22, which can be integrally connected with the bottom plate 22, or connected with the bottom plate 22 by gluing or snapping. The side panel faces the first lifting arm 4 or the second lifting arm 6 . Preferably, the first and second lifting arms 4 and 6 are integrally formed by extending outward from opposite sides of the bottom plate 22 , so that the lifting of the box body 2 through the first and second lifting arms 4 and 6 is more stable.

The side panels 26 of the box body 2 include two opposite first side panels 262 facing the first and second lifting arms 4 and 6 respectively, and two opposite second side panels adjacent to the two first side panels 262 264, wherein one end of a first side plate 262 is connected to the corresponding side of the top plate 24, and the other end can be opened and closed relative to the bottom plate 22, so that the bottom plate 22, the top plate 24, two second side plates 264 and a first side plate 262 form a A storage space with an opening, the opening of the storage space faces the first arm 4 or the second arm 6, and the other first side plate 262 is folded on the top plate 24 to cover the opening, which can be used as a cover The body covers the receiving space. When the first and second lifting arms 4 and 6 were folded towards the box body 2, the first and second lifting arms 4 and 6 would be attached to the two first side plates 262 on the box body 2, which could prevent the cover from being damaged. The opening and closing of the first side plate 262 further prevents the items placed in the box body 2 from falling out. In this embodiment, the size of the top plate 24 is smaller than that of the bottom plate 22, the first side plate 262 is inclined to the inside of the bottom plate 22, and the second side plate 264 is vertically connected between the top plate 24 and the bottom plate 22, so that the first side plate 262, the second side plate 262 The two side plates 264 and the top plate 24 and the bottom plate 22 form a trapezoidal box. The oblique setting of the first side plate 262 enables the first and second lifting arms 4 and 6 to be folded opposite to each other on the box body 2 and fit better with the first side plate 262, resulting in a better appearance. A folding line can be provided at the connection between the first and second lifting arms 4, 6 and the bottom plate 22, and the first and second lifting arms 4, 6 can be folded along the folding line, which is convenient to operate.

Further, the free end of the second lifting arm 6 is also extended with a connecting piece 8, and the connecting piece 8 includes a first connecting plate 82, a second connecting plate 84 and a third connecting plate 86 connected in sequence, wherein the first connecting plate The width of the second connecting plate 84 is smaller than the width of the first and third connecting plates 82, 86, the third connecting plate 86 is provided with a buckle 862, and the second lifting arm 6 is provided with a buckle 862 corresponding to The button hole 66 , the width of the connecting piece 8 is less than or equal to the width of the first and second openings 42 , 62 , so as to facilitate the connecting piece 8 to pass through the first and second openings 42 , 62 . When fastened, the first connecting plate 82 is folded downwards and attached to the first lifting arm 4, and the second connecting plate 84 is penetrated in the first and second openings 42, 62, so that The third connecting plate 86 passes through the first and second openings 42, 62 and then is folded upwards and attached to the second lifting arm 6, and the buckle 862 is buckled in the buckle hole 66, so that the first The arm 4 and the second arm 6 are relatively buckled together. In this embodiment, the free end of the third connecting plate 86 is arranged in an arc shape to beautify the appearance. The buckle 862 is arranged in a semicircle, and the button hole 66 is correspondingly semicircular.

The first and second lifting arms 4, 6 and the box body 2 can be made of plastic or cardboard. In this embodiment, the first and second lifting arms 4 and 6 are made of white cardboard, which is convenient for printing and silk screen printing to enhance appreciation. The box body 2 is made of gray cardboard. In this embodiment, the box body 2 is made of low-priced double gray cardboard, thereby reducing production costs.

Please refer to Fig. 3, which is an expanded view of another embodiment of the present utility model. In this embodiment, the box body 2' includes a bottom plate 22', several side plates 26' connected around the bottom plate 22', and connecting The cover plate 24' at the free end of the side plate 26', the several side plates 26' and the bottom plate 22' enclose a receiving space, and the cover plate 24' can be opened and closed in the receiving space by being folded on the side plate 26' above. In this embodiment, the box body 2' includes four side plates 26', the bottom plate 22' is square, the four side plates 26' are vertically connected to the bottom plate 22', and form a rectangular shape with the bottom plate 22'. In the storage space, the cover plate 24' covers the storage space to form a rectangular box. The first and second lifting arms 4, 6 are respectively connected to the opposite sides of the base plate 22', which can be integrally connected with the base plate 22', or connected with the base plate 22 by gluing or engaging.

To sum up, the packaging box with a handle of the present utility model provides a handle for the box body by setting a lifting arm outside the box body, so that the box body is convenient to carry, and at the same time, the appearance of the box body is beautified, The ornamental performance is improved, and the structure is simple and the cost is low.

As mentioned above, for those of ordinary skill in the art, various other corresponding changes and deformations can be made according to the technical scheme and technical concept of the present utility model, and all these changes and deformations should belong to the claims of the present utility model. protected range.

Claims (10)

1. handled packing box, it is characterized in that, comprise: box body and be connected to the first handle arm and the second handle arm of box body both sides, nearly its free end of described the first handle arm rest is provided with the first peristome, corresponding the first peristome of nearly its free end of described the second handle arm rest is provided with the second peristome, by the upwards turnover of first, second handle arm, with the relative box body top that is superimposed on the second peristome of the first peristome.

2. handled packing box as claimed in claim 1, it is characterized in that, described the second handle arm free end also extends and is provided with attaching parts, described attaching parts comprises the first connecting panel that connects successively, the second connecting panel and the 3rd connecting panel, described the 3rd connecting panel is provided with a buckle, on described the second handle arm to being provided with a button hole by buckle, during fastening, described the first connecting panel folds downwards and fits in described the first handle arm, described the second connecting panel wears and is described first, in the second peristome, described the 3rd connecting panel passes first, backward upper the folding of the second peristome fits in described the second handle arm, and described buckle is fastened in this button hole.

3. handled packing box as claimed in claim 2 is characterized in that, the width of described the second connecting panel is little than the width of the first connecting panel and the 3rd connecting panel, and the free end of described the 3rd connecting panel is circular-arc setting.

4. handled packing box as claimed in claim 2 is characterized in that, described the first peristome and the second peristome are regular rectangular shape, and described buckle semicircular in shape arranges, the corresponding semicircular in shape of described button hole.

5. handled packing box as claimed in claim 2 is characterized in that, the width of described attaching parts is less than or equal to the width of first, second peristome.

6. handled packing box as claimed in claim 1, it is characterized in that, described box body comprise base plate, relatively be located at base plate top top board, be connected to several side plates between base plate and the top board, described first, second handle arm is connected to the relative both sides of base plate, base plate, top board and side plate surround a receiving space, but wherein towards the side plate folding of the first handle arm or the second handle arm on this receiving space.

7. handled packing box as claimed in claim 1, it is characterized in that, described box body comprises base plate, be connected to several side plates around this base plate and be connected to the free-ended cover plate of side plate, and several side plates and base plate surround a receiving space, and cover plate covers above this receiving space; Described first, second handle arm is connected to the relative both sides of base plate.

8. handled packing box as claimed in claim 1 is characterized in that, described box body is trapezoid body box or cuboid box.

9. handled packing box as claimed in claim 1 is characterized in that, described first, second handle arm and box body are made by plastics or cardboard.

10. handled packing box as claimed in claim 9 is characterized in that, described first, second handle arm is made by white board, and described box body is made by two chipboards.
