Abstract
一种下脚料回收箱，用于机床在切削铜板时，对切削后的下脚料的回收。包括箱体，所述箱体上方设有带下滑面的下料口，箱体底部设有抽屉，所述箱体上部下滑面一侧边缘设有一接收口。以上所述抽屉上设有拉手和锁具。其有益效果是，切削后的铜板下脚料回收到箱体抽屉内，使下脚料得到有效的回收，不但使工作现场整洁干净，而且避免下脚料任意丢弃造成的浪费。
The utility model relates to a recycling box for leftovers, which is used for recycling the leftovers after cutting when a machine tool cuts copper plates. It includes a box body, a material discharge port with a sliding surface is provided on the top of the box body, a drawer is provided at the bottom of the box body, and a receiving port is provided on one side edge of the sliding surface at the upper part of the box body. Above-mentioned drawer is provided with handle and lockset. The beneficial effect is that the scraps of the copper plate after cutting are recycled into the drawer of the box body, so that the scraps are effectively recovered, not only the work site is kept tidy and clean, but also the waste caused by random discarding of the scraps is avoided.
Description
Technical field
The utility model relates to lathe when the cutting copper coin, to the casing of the recovery of the leftover bits and pieces after the cutting.
Background technology
The connection of the electrical equipment of distribution box cabinet generally all is to use copper bar in the electric utility, makes the size that needs after with lathe copper coin being cut, and obtains final products through operations such as punchings again.Copper coin is being carried out to produce the leftover bits and pieces such as copper scale in the process.Past is in process, and leftover bits and pieces directly is discharged to the bottom of lathe, saves bit by bit to a certain degree and clears up.Its shortcoming is that the working site is mixed and disorderly, and yield can't add up, and is unfavorable for cost management.
Summary of the invention
The utility model provides a kind of leftover bits and pieces collection box, and it can be collected the bits shape of the copper coin after the cutting or block copper leftover bits and pieces, makes the working site neatly clean.
In order to achieve the above object, the technical scheme taked of the utility model is:
A kind of leftover bits and pieces collection box comprises casing, it is characterized in that: described casing top is provided with the feed opening with glide slope, and bottom half is provided with drawer, and described casing top glide slope one lateral edges is provided with a receiving port.
Be provided with handle and lockset on the above drawer.
The above drawer is arranged at casing side one end, or is relatively arranged on two ends, casing side.
The beneficial effects of the utility model are that the copper coin leftover bits and pieces after the cutting is recovered in the casing drawer, and leftover bits and pieces is effectively reclaimed, and not only makes the working site neatly clean, and avoids leftover bits and pieces to abandon arbitrarily the waste that causes.
Description of drawings

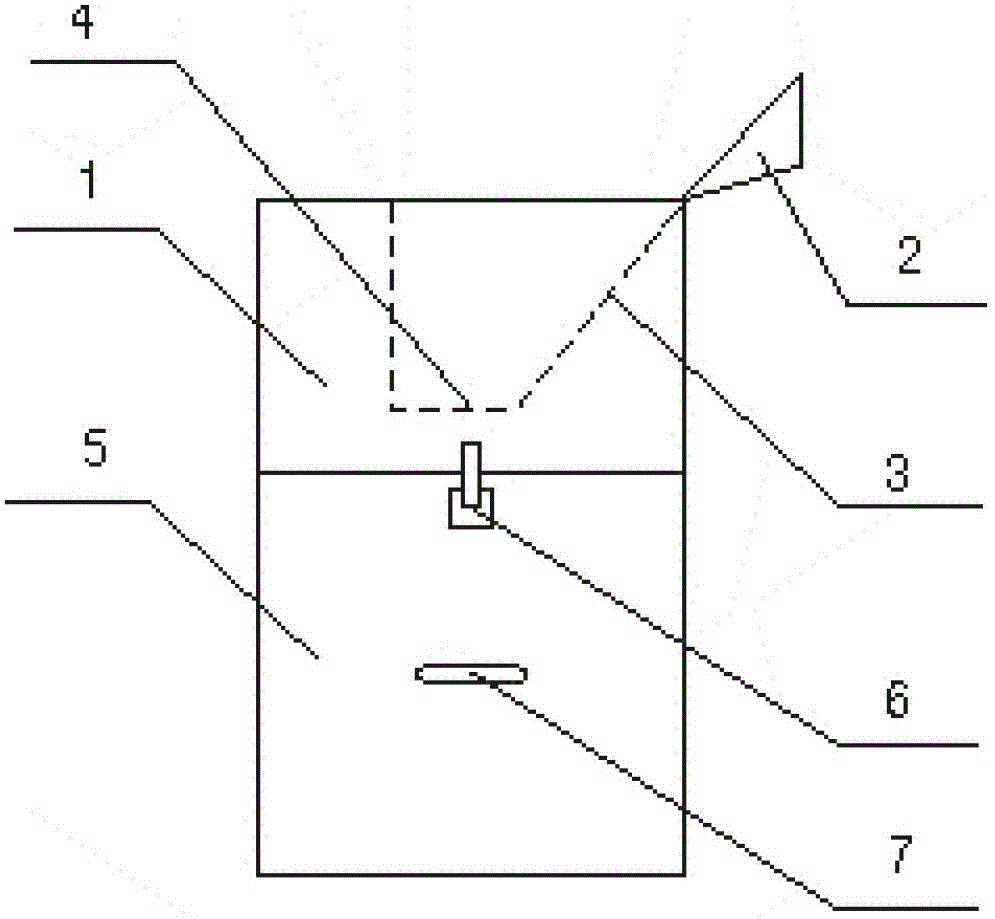

Fig. 1 is the utility model structural representation,
Fig. 2 is the top view of the utility model Fig. 1.
Among the figure: 1. casing; 2. receiving port; 3. glide slope; 4. feed opening; 5. drawer; 6. lockset; 7. shake hands.
The specific embodiment
By accompanying drawing 1 and accompanying drawing 2 as can be known, the utility model comprises casing 1, described casing 1 top is provided with the feed opening 4 with glide slope 3, is provided with drawer 5 in feed opening 4 relative casing 1 bottoms, is provided with a receiving port 2 at described casing 1 top glide slope 3 one lateral edges.The above drawer 5 can only be established one, or arranges respectively at two ends, casing 1 side.Be provided with handle 7 and lockset 6 at the above drawer 5.
When the utility model uses, receiving port 2 is aimed at boring wait lathe one end that produces less chip, the end that lathe cut can produce relatively large shape leftover bits and pieces is aimed at the edge of glide slope 3, lathe adds the leftover bits and pieces that produce man-hour to copper coin, be received in the drawer 5 in the casing 1, can regularly reclaim.
Claims (3)
1. a leftover bits and pieces collection box comprises casing, it is characterized in that: described casing top is provided with the feed opening with glide slope, and bottom half is provided with drawer, and described casing top glide slope one lateral edges is provided with a receiving port.
2. leftover bits and pieces collection box according to claim 1 is characterized in that: be provided with handle and lockset on the described drawer.
3. leftover bits and pieces collection box according to claim 1, it is characterized in that: described drawer is arranged at casing side one end, or relatively is located at two ends, casing side.
