CN202662838U - Splicing sleeve for high-strength steel-core aluminum-alloy stranded wire - Google Patents
Splicing sleeve for high-strength steel-core aluminum-alloy stranded wire Download PDFInfo
- Publication number
- CN202662838U CN202662838U CN 201220207563 CN201220207563U CN202662838U CN 202662838 U CN202662838 U CN 202662838U CN 201220207563 CN201220207563 CN 201220207563 CN 201220207563 U CN201220207563 U CN 201220207563U CN 202662838 U CN202662838 U CN 202662838U
- Authority
- CN
- China
- Prior art keywords
- pipe
- steel
- aluminum
- alloy stranded
- stranded wire
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Non-Insulated Conductors (AREA)
Abstract
The utility model provides a lead splicing sleeve matching with a high-strength steel-core aluminum-alloy stranded wire. The splicing sleeve for the high-strength steel-core aluminum-alloy stranded wire comprises an aluminum pipe and a steel pipe. The aluminum pipe is sleeved on the steel pipe. An aluminum-alloy stranded wire and a steel core of the steel-core aluminum-alloy stranded wire are respectively butted against the aluminum pipe and the steel pipe in a hydraulic manner, thereby making the aluminum pipe and the steel pipe coaxial. The splicing sleeve is simple in structure and convenient to mount, and meets the technical requirements on the splicing sleeve for the steel-core aluminum-alloy stranded wire.
Description
Technical field
The utility model relates to a kind of for the splicing fitting on the large capacity transmission circuit.
Background technology
Electric armour clamp will stand to ice on the transmission line of long-time running, the baptism of snow, storm, strong wind, sleet, icing easily cause the faults such as wire ice-shedding, phase fault, wire collision lightning conducter, so electric armour clamp must possess higher mechanical strength and enough coefficient of safetys.Steel core aluminum alloy stranded wire is applicable to the built on stilts large open-wire transmission line road of crossing over power transmission lines, large span or heavy ice snow, its lead splicing sleeve is used for two terminals of overhead transmission line conductor, except bearing the whole pulling force of wire, also as the electric conductor conduction current, it is the important gold utensil in the transmission line, because all being the strand system, the steel core of steel core aluminum alloy stranded wire part and aluminium alloy part form, and twisted wire internal arrangement mode is complicated, so need a kind of splicing sleeve that matches with steel core aluminum alloy stranded wire to be beneficial to the crimping of twisted wire.
Summary of the invention
The utility model provides a kind of lead splicing sleeve that matches with high-strength steel core aluminum alloy stranded wire.
For achieving the above object, the utility model is taked following technical scheme:
A kind of high-strength steel core aluminum alloy stranded wire splicing sleeve is made of aluminum pipe and steel pipe, aluminium pipe sleeve on steel pipe, the aluminium alloy stranded conductor of steel core aluminum alloy stranded wire and steel core dock with aluminum pipe and steel pipe hydraulic pressure respectively form aluminum pipe and steel pipe coaxial.
The aluminum pipe of splicing sleeve is used for the aluminium alloy stranded conductor part crimping with steel core aluminum alloy stranded wire, steel pipe is used for the steel core part crimping with steel core aluminum alloy stranded wire, and both adopt the mode of hydraulic pressure docking, hydraulic pressure continues and has enough mechanical strengths and good electrical contact performance.Aluminum pipe and steel pipe produce plastic deformation under pressure, thereby are combined as a whole with aluminium alloy stranded conductor and steel core twisted wire respectively.
The taper length at aluminum pipe two ends is 100mm, and the taper angle at aluminum pipe two ends is 4 °.Aluminum pipe length is 1260mm, and external diameter is 76mm, and internal diameter is 43mm; Steel pipe length is 280mm, and external diameter is 28mm, and internal diameter is 12.1mm.Aluminum pipe is made by 6063 aluminium alloys, and steel pipe is made by the Q235A steel.Concentrate for fear of aluminum pipe and steel pipe exit stress, the mouth of pipe of aluminum pipe and steel pipe is provided with circular arc chamfering.
The utility model is simple in structure, easy for installation, has satisfied the specification requirement that is used for the splicing sleeve of steel core aluminum alloy stranded wire.
Description of drawings

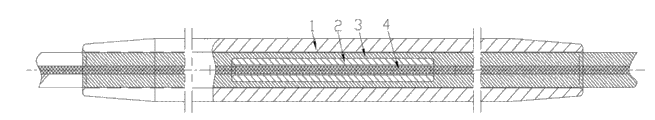

Fig. 1 is installation diagram of the present utility model.
Description of reference numerals: 1-aluminum pipe; The 2-steel pipe; The 3-aluminium alloy stranded conductor; 4-steel core twisted wire.
Embodiment
Below in conjunction with drawings and Examples the utility model content is described further.
The utility model relates to ± the matched splicing sleeve of the high height above sea level heavy icing area of 500KV common-tower double-return DC transmission engineering part of path wire JLHA2X/G1A-1035/75 steel core aluminum alloy stranded wire, JLHA2X/G1A-1035/75 steel core aluminum alloy stranded wire parameter is: aluminium alloy: 70/4.374, steel core: 19/2.24, the twisted wire external diameter
Calculate pull-off force 392930N.Performance index according to splicing sleeve require splicing sleeve should be not less than 95% to the grip of wire with the ratio that wire calculates pull-off force, and splicing sleeve should be not less than 373.3KN to the grip of wire.
As shown in Figure 1, splicing sleeve is made of aluminum pipe 1 and steel pipe 2, and aluminum pipe 1 adopts 6063 aluminium alloys, and aluminium-alloy pipe intensity is not less than 140MPa, and elongation is not less than 20%; Steel pipe adopts the Q235A steel, yield strength 235Mpa, and phosphorus content is not more than 0.15%, and finished product hardness is not more than HB137, and steel pipe 2 adopts hot galvanizings anticorrosion, should return remaining zinc after zinc-plated.Aluminum pipe 1 length is 1260mm, and external diameter is 76mm, and internal diameter is 43mm, and the taper length at aluminum pipe 1 two ends is 100mm, and the taper angle at aluminum pipe 1 two ends is 4 °; Steel pipe 2 length are 280mm, and external diameter is 28mm, and internal diameter is 12.1mm, and the mouth of pipe of aluminum pipe 1 and steel pipe 2 all is provided with circular arc chamfering.Aluminum pipe 1 is enclosed within on the steel pipe 2, aluminium alloy stranded conductor 3 and steel core twisted wire 4 dock with aluminum pipe and steel pipe hydraulic pressure respectively form aluminum pipe 1 and steel pipe 2 coaxial.
Claims (5)
1. high-strength steel core aluminum alloy stranded wire splicing sleeve is characterized in that: consisted of by aluminum pipe and steel pipe, described aluminium pipe sleeve on steel pipe, the aluminium alloy stranded conductor of steel core aluminum alloy stranded wire and steel core dock with aluminum pipe and steel pipe hydraulic pressure respectively form aluminum pipe and steel pipe coaxial.
2. high-strength steel core aluminum alloy stranded wire splicing sleeve as claimed in claim 1, it is characterized in that: described aluminum pipe length is 1260mm, and external diameter is 76mm, and internal diameter is 43mm; Described steel pipe length is 280mm, and external diameter is 28mm, and internal diameter is 12.1mm.
3. high-strength steel core aluminum alloy stranded wire splicing sleeve as claimed in claim 1, it is characterized in that: the taper length at described aluminum pipe two ends is 100mm, the taper angle is 4 °.
4. high-strength steel core aluminum alloy stranded wire splicing sleeve as claimed in claim 1, it is characterized in that: the mouth of pipe of described aluminum pipe and steel pipe is provided with circular arc chamfering.
5. such as the arbitrary described high-strength steel core aluminum alloy stranded wire splicing sleeve of claim 1-4, it is characterized in that: described aluminum pipe is made by 6063 aluminium alloys, and described steel pipe is made by the Q235A steel.
