Abstract

The utility model relates to an open gram-type needle sorting and cleaning support in the field of medical equipment. The difference is that it includes a support body and a top cover, and the top, middle and bottom of the support body are respectively provided with top support plates. , the middle support plate, the fixed base, support rods with a plate-shaped structure are arranged on both sides of the support body, and a plurality of holes are arranged on the support rods, and a plurality of matching holes of different diameters are arranged on the top support plate and the middle support plate. A through hole for the gram needle to pass through, the fixed base is provided with a groove corresponding to the through hole. The utility model enables the gram-type needles to be classified and placed, which is convenient for clinicians to use, and makes the cleaning work more convenient and quick.

Description

Open Gram Needle Sorting Washing Holder

technical field

The utility model relates to an open gram-type needle sorting and cleaning bracket in the field of medical equipment.

Background technique

At present, there are many different types of medical gram needles. After these different types of needles are mixed, it will cause inconvenience for clinicians to use, and the cleaning after use is not convenient and quick enough.

Contents of the invention

The purpose of the utility model is to overcome the disadvantages of the prior art, and provide an open gram-type needle sorting and cleaning bracket, so that the gram-type needles can be placed in categories, which is convenient for clinicians to use, and makes the cleaning work more convenient and quick.

In order to solve the above technical problems, the technical solution of the utility model is: an open gram-type needle sorting and cleaning bracket, which is different in that: it includes a bracket body and a top cover, and the top, middle and bottom of the bracket body are respectively provided with The top support plate, the middle support plate, and the fixed base are provided with plate-shaped support rods on both sides of the support body, and a plurality of holes are arranged on the support rods. The top support plate and the middle support plate are provided with a plurality of mutually matching There are through holes of different diameters for the passage of the C-style needles, and grooves corresponding to the through holes are arranged on the fixed base.

Compared with the prior art, the beneficial features of the utility model are as follows:

1) The open gram-type needle classification cleaning bracket enables gram-type needles to be placed in categories, which is convenient for clinicians to use;

2) The open classification and cleaning bracket for gram needles makes the cleaning work of gram needles more convenient and quick;

3) The open gram-type needle sorting and cleaning bracket has a simple structure and low manufacturing cost.

Description of drawings

Fig. 1 is the three-dimensional structure schematic diagram of the utility model embodiment;

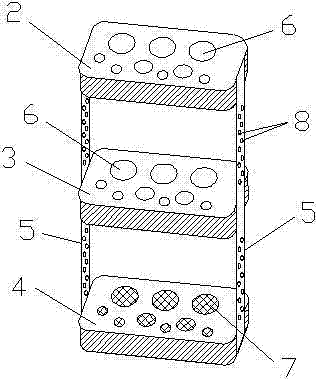

Fig. 2 is the structural schematic diagram of the support body of the utility model embodiment;

Fig. 3 is a schematic view of the front view of the utility model embodiment;

Fig. 4 is the side view structure diagram of the embodiment of the utility model;

Among them: 1-top cover, 2-top support plate, 3-middle support plate, 4-fixed base, 5-support rod, 6-through hole, 7-groove, 8-hole.

Detailed ways

The utility model will be described in further detail below through specific embodiments in conjunction with the accompanying drawings.

Please refer to Fig. 1, Fig. 2, Fig. 3 and Fig. 4, the utility model open type gram-type needle sorting and cleaning support, it comprises support body and top cover 1, and the top, middle part, bottom of described support body are respectively provided with top support Plate 2, middle support plate 3, fixed base 4, support rods 5 with a plate-like structure are arranged on both sides of the support body, a plurality of holes 8 are arranged on the support rods 5, mutual holes are arranged on the top support plate 2 and the middle support plate 3 There are a plurality of matching through holes 6 of different diameters for the passage of the K-style needles, and the fixed base 4 is provided with grooves 7 corresponding to the through holes 6 .

In the utility model, the top support plate, the middle support plate, and the fixed base are respectively arranged on the top, middle, and bottom of the support body, and support rods are arranged on both sides of the support body. When placing the gram needle, it can pass through the through holes of different diameters on the top support plate and the middle support plate according to different specifications, and the top of the gram needle can be placed in the groove on the fixed base. The support rod is provided with a plurality of holes for convenient cleaning, and the top cover can be used to cover when not in use or put into a disinfection cabinet for disinfection. Different types of gram needles can be placed in different categories, which is convenient for clinicians to use and more convenient and quick to clean.

The above content is a further detailed description of the utility model in conjunction with specific implementation methods, and it cannot be determined that the specific implementation of the utility model is only limited to these descriptions. For a person of ordinary skill in the technical field to which the utility model belongs, without departing from the concept of the utility model, some simple deduction or substitutions can also be made, which should be regarded as belonging to the protection scope of the utility model.

Claims (1)

1. support is cleaned in open gram formula pin classification, it is characterized in that: it comprises stake body and top cover, the top of described stake body, middle part, bottom are respectively arranged with top support plate, middle part support plate, firm banking, the stake body both sides are provided with the support bar of platy structure, be provided with a plurality of eyelets on the support bar, be provided with on described top support plate, the middle part support plate mutual coupling a plurality of different-diameters be used for the through hole that gram formula pin passes, be provided with the groove corresponding with described through hole on the described firm banking.
