CN202653124U - Brush roller for fruit cleaning machine - Google Patents

Abstract

The utility model discloses a brush roller for a fruit cleaning machine, which comprises a roller shaft and a brush bundle arranged on the surface of the roller shaft. The outer periphery of the brush bundle connected to the surface of the roller shaft is wave-shaped. The roller The shaft is cylindrical, and the brush bundle is arranged on the outer periphery of the cylindrical roller shaft, and the arrangement direction of the brush bundle is parallel to or at a certain angle with the center line of the roller shaft. The utility model adopts the way that the outer periphery of the brush bundle on the surface of the roller shaft is wavy, which replaces the feature of the same length of the brush bundle in the prior art, and effectively ensures that when the fruit is turned forward, left, and right under the rotation of multiple roller shafts, The brush bundles with different lengths can be in contact with irregular places in the fruit, so that the fruits with irregular shapes can be cleaned; and the structure is simple, convenient and practical, and is popular among consumers.

Description

A brush roller for a fruit cleaning machine

technical field

The utility model relates to the technical field of fruit cleaning machines, in particular to a technical improvement of a brush roller used in a fruit cleaning machine.

Background technique

At present, there are many types of fruit cleaning machines on the market. Most of the cleaning machines are designed for fruits with regular shapes. Clean fruits with relatively regular shapes, but it is difficult to clean fruits with irregular shapes, such as pomelo. bottom of. Thereby design a kind of simple in structure, novel in design, the brush roller of the cleaning machine that can clean shape irregular fruit is the design direction of the present utility model.

Contents of the invention

The purpose of this utility model is to overcome the above-mentioned shortcoming of prior art, provide a kind of simple in structure, novel in conception, can clean the brush roller of the cleaning machine of irregular shape fruit.

The utility model can be realized through the following technical solutions:

The utility model discloses a brush roller for a fruit cleaning machine. The brush roller comprises a roller shaft and a brush bundle arranged on the surface of the roller shaft. The outer periphery of the brush bundle connected to the surface of the roller shaft is wavy.

The roller shaft is cylindrical, and the brush bundle is arranged on the outer periphery of the cylindrical roller shaft, and the arrangement direction of the brush bundle is parallel to the center line of the roller shaft or at a certain angle.

The brush roller can be designed according to the actual required length, and can be set to the length of one wave, two waves or several waves or the like.

The brush roller is one of the main parts of the structure of the fruit cleaning machine. The brush bundle on the outer peripheral surface of the brush roller is in contact with the fruit surface. As the gear drives the brush roller to rotate, the brush bundle on the surface of the brush roller and the fruit Peel contact, because the brush bundle is made of relatively soft wool, so that the fruit peel will not be scratched. The washing machine is equipped with multiple rotating brush rollers to work. When the fruit is cleaned, it is turned forward and left under the rotation of the multiple rotating brush rollers. Both the stalk and the concave bottom can be cleaned, which is very convenient and practical, and is especially suitable for cleaning pomelo.

Compared with the prior art, the utility model has the following advantages:

The utility model adopts the way that the outer periphery of the brush bundle on the surface of the roller shaft is wavy, which replaces the feature of the same length of the brush bundle in the prior art, and effectively ensures that when the fruit is turned forward and left under the rotation of multiple roller shafts, The brush bundles with different lengths can be in contact with the irregular places in the fruit, so that the fruits with irregular shapes can be cleaned; and the structure is simple, convenient and practical, and is popular among consumers.

Description of drawings

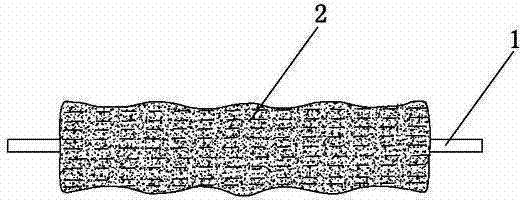

Accompanying drawing 1 is a front view of the utility model;

Accompanying drawing 2 is the perspective view of the utility model.

Detailed ways

The utility model will be further described below in conjunction with the accompanying drawings of the description:

As shown in accompanying drawing 1 and accompanying drawing 2, a kind of brush roller for cleaning machine is disclosed in the present embodiment, and this brush roller comprises roller shaft 1 and the brush bundle 2 that is arranged on the roller shaft surface, is connected on the roller The outer periphery of the brush bundle 2 on the shaft surface is wavy.

The roller shaft 1 is cylindrical, and the brush bundle 2 is arranged on the outer periphery of the cylindrical roller shaft, and the arrangement direction of the brush bundle 2 is parallel to the center line of the roller shaft.

The brush roller is one of the main parts of the structure of the fruit cleaning machine. The brush bundle on the outer peripheral surface of the brush roller is in contact with the fruit surface. As the gear drives the brush roller to rotate, the brush bundle on the surface of the brush roller and the fruit Peel contact, because the brush bundle is made of relatively soft wool, so that the fruit peel will not be scratched. The washing machine is equipped with multiple rotating brush rollers to work. When the fruit is cleaned, it is turned forward and left under the rotation of the multiple rotating brush rollers. Both the stalk and the concave bottom can be cleaned, which is very convenient and practical, and is especially suitable for cleaning pomelo.

The above is only a preferred embodiment of the utility model, and is not intended to limit the utility model in any way; any ordinary skilled person in the industry can smoothly implement it as shown in the accompanying drawings and the above description This utility model; however, any equivalent change, modification and evolution that can be made by using the technical content disclosed above without departing from the scope of the technical solution of the utility model by those familiar with the profession are all equivalent changes of the utility model. New equivalent embodiments; at the same time, all changes, modifications and evolutions of any equivalent changes made to the above embodiments according to the essential technology of the utility model still belong to the protection scope of the technical solution of the utility model.

Claims (3)

1. A brush roller for a fruit cleaning machine, comprising a roller shaft (1) and a brush bundle (2) arranged on the surface of the roller shaft, characterized in that: the brush bundle (2) connected to the surface of the roller shaft The outer perimeter is wavy. 2. The brush roller for fruit washing machine according to claim 1, characterized in that: the roller shaft (1) is cylindrical, and the brush bundle (2) is arranged on the bottom of the cylindrical roller shaft (1). outer perimeter. 3. The brush roller for fruit cleaning machine according to claim 2, characterized in that: the arrangement direction of the brush bundles is parallel to or at a certain angle to the centerline of the roller shaft.
