Abstract

本实用新型公开了一种陶瓷底板的太阳能光伏组件，属太阳能光伏组件技术领域，将原有的太阳能光伏组件的背板通过粘结胶粘结陶瓷底板，使用时，直接将陶瓷底板粘结在建筑墙面、屋顶或地面，节省了安装支架，该组件安装方便、成本低，适用范围广。

Figure 201220323939

The utility model discloses a solar photovoltaic component of a ceramic bottom plate, which belongs to the technical field of solar photovoltaic components. The back plate of the original solar photovoltaic component is bonded to the ceramic bottom plate through adhesive glue. When in use, the ceramic bottom plate is directly bonded to the ceramic bottom plate. The building wall, roof or ground saves the installation bracket, and the component is easy to install, low in cost, and has a wide range of applications.

Figure 201220323939

Description

一种陶瓷底板的太阳能光伏组件A solar photovoltaic module with a ceramic base

技术领域： Technical field:

本实用新型属太阳能光伏组件技术领域，涉及一种以陶瓷作为底板的太阳能光伏组件。The utility model belongs to the technical field of solar photovoltaic components and relates to a solar photovoltaic component with ceramics as a bottom plate.

背景技术： Background technique:

陶瓷被广泛地应用在建筑外墙和地面的装饰和保护上，而且随着陶瓷技术的发展，超薄的陶瓷以及具有良好隔热功能的陶瓷技术也越来越多地被应用，而以玻璃、金属或高分子材料作为背板材料的太阳能光伏组件的发热和热传递，使得其在建筑外墙的应用受到一定限制，因此将太阳能电池与陶瓷材料结合成为人们关注的技术，但如何将其结合又成为人们目前需要解决的问题。Ceramics are widely used in the decoration and protection of building exterior walls and floors, and with the development of ceramic technology, ultra-thin ceramics and ceramic technologies with good heat insulation functions are also increasingly used, while glass The heating and heat transfer of solar photovoltaic modules with metal or polymer materials as the backsheet material restricts their application in building exterior walls. Therefore, the combination of solar cells and ceramic materials has become a technology that people pay attention to, but how to integrate them Combining becomes the problem that people need to solve at present again.

发明内容： Invention content:

本实用新型的发明目的就是要解决存在的如何将太阳能电池与陶瓷结合的问题，发明一种将以陶瓷作为底板的太阳能光伏组件，节能效果好，安装方便，安装成本低。The invention purpose of this utility model is to solve the existing problem of how to combine solar cells and ceramics, and to invent a solar photovoltaic module with ceramics as the base plate, which has good energy-saving effect, convenient installation and low installation cost.

本实用新型为实现发明目的，采用的技术方案是：一种陶瓷底板的太阳能光伏组件，包括太阳能电池、胶膜、背板，其特征是：在背板背面通过粘结胶粘结陶瓷底板。In order to achieve the purpose of the invention, the utility model adopts a technical solution as follows: a solar photovoltaic module with a ceramic bottom plate, including a solar cell, an adhesive film, and a back plate.

所述的背板可以是玻璃、金属薄板、高分子材料。The backplane can be glass, thin metal plate, polymer material.

所述的粘结胶可以是有机硅胶、双组分丙烯酸AB胶。The adhesive glue can be organic silica gel, two-component acrylic AB glue.

所述的陶瓷尺寸可以与背板一致，也可以大于背板尺寸。The size of the ceramic can be the same as that of the back plate, or larger than the size of the back plate.

所述太阳能电池可以是薄膜电池、晶体硅电池。The solar cell may be a thin film cell or a crystalline silicon cell.

本实用新型产生的积极效果：由于采用了陶瓷作为背板材料，使得可以将太阳能光伏组件直接通过粘结陶瓷在墙面上、地面上或屋顶使用，安装方便、减少了安装支架的费用，节省成本，同时拓展了太阳能光伏组件的应用范围。The positive effect of the utility model: due to the use of ceramics as the back plate material, the solar photovoltaic module can be directly used on the wall, the ground or the roof by bonding the ceramics, which is convenient to install, reduces the cost of the installation bracket, and saves Cost, while expanding the application range of solar photovoltaic modules.

附图说明： Description of drawings:

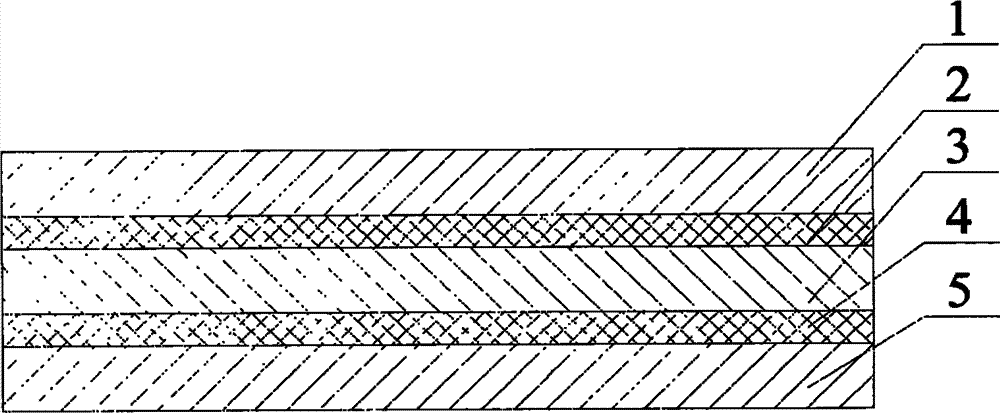

图1：本实用新型剖面结构示意图Figure 1: Schematic diagram of the cross-sectional structure of the utility model

图2：本实用新型应用外观示意图Figure 2: Schematic diagram of the appearance of the application of the utility model

图中：1、太阳能电池，2、胶膜，3、背板，4、粘结胶，5、底板，6、粘结剂，7、墙面。In the figure: 1. Solar cell, 2. Adhesive film, 3. Back plate, 4. Adhesive glue, 5. Bottom plate, 6. Adhesive, 7. Wall surface.

具体实施方式： Detailed ways:

本实用新型结构依次为太阳能电池1、胶膜2、背板3、粘结胶4和底板5组成，其中：太阳能电池1为非晶硅薄膜电池，胶膜2为EVA，背板3为高分子材料PVC，粘结胶4为双组分丙烯酸AB胶，底板5为陶瓷，底板5尺寸大于背板3，使用时，将底板5通过粘结剂6粘结在墙面7或地面或屋顶均可。The structure of the utility model is composed of solar cell 1, adhesive film 2, back plate 3, adhesive glue 4 and bottom plate 5 in turn, wherein: solar cell 1 is an amorphous silicon thin film battery, adhesive film 2 is EVA, and back plate 3 is high The molecular material is PVC, the adhesive glue 4 is two-component acrylic AB glue, the base plate 5 is ceramic, and the size of the base plate 5 is larger than the back plate 3. When in use, the base plate 5 is bonded to the wall 7 or the ground or the roof through the adhesive 6 can be.

Claims (5)

1.一种陶瓷底板的太阳能光伏组件，包括太阳能电池、胶膜、背板，其特征在于：在背板背面通过粘结胶粘结陶瓷底板。1. A solar photovoltaic assembly of a ceramic base plate, comprising a solar cell, an adhesive film, and a back plate, characterized in that: the ceramic base plate is bonded by bonding glue on the back side of the back plate. 2.根据权利要求1所述的一种陶瓷底板的太阳能光伏组件，其特征在于：所述的背板可以是玻璃或金属薄板或高分子材料。2. A solar photovoltaic module with a ceramic bottom plate according to claim 1, characterized in that: said back plate can be made of glass or thin metal plate or polymer material. 3.根据权利要求1所述的一种陶瓷底板的太阳能光伏组件，其特征在于：所述的粘结胶可以是有机硅胶或双组分丙烯酸AB胶。3. A solar photovoltaic module with a ceramic bottom plate according to claim 1, characterized in that: the adhesive glue can be organic silica gel or two-component acrylic AB glue. 4.根据权利要求1所述的一种陶瓷底板的太阳能光伏组件，其特征在于：所述的陶瓷尺寸可以与背板一致，也可以大于背板尺寸。4. A solar photovoltaic module with a ceramic bottom plate according to claim 1, characterized in that: the size of the ceramic can be the same as that of the back plate, or can be larger than the size of the back plate. 5.根据权利要求1所述的一种陶瓷底板的太阳能光伏组件，其特征在于：所述的太阳能电池可以是薄膜电池或晶体硅电池。5. A solar photovoltaic module with a ceramic base plate according to claim 1, characterized in that: said solar cell can be a thin film cell or a crystalline silicon cell.
