Abstract

The utility model provides a novel lamp holder for connecting an LED (Light-Emitting Diode) lamp bulb, comprising a lamp holder body, a plurality of chargeable batteries and a solar battery plate, wherein a plurality of the chargeable batteries are connected in sequence to form a battery pack; the lamp holder body is hollow; one end of the lamp holder body is provided with a screw opening and the other end of the lamp holder body is provided with the solar battery plate; the battery pack is arranged inside the lamp holder body; the outer surface of the lamp holder body is provided with a work switch; a solar battery is arranged on the front face of the solar battery plate and the reverse face of the solar battery plate is provided with an LED driving circuit; the battery pack is electrically connected with the solar battery; and the battery pack is further connected with the LED driving circuit, an LED lamp and the work switch in series. The novel lamp holder disclosed by the utility model adopts two charging manners of electric supply charging and solar charging; meanwhile, the LED driving circuit is distributed on the solar battery plate to reduce the volume of the lamp holder and the novel lamp holder is convenient to carry. An external charging port is arranged to charge external equipment and the novel lamp holder is convenient for outdoor use through arranging a hook or a hanging rope; and the light-emitting efficiency is high and the novel lamp holder can replace an emergency lamp to be used.

Description

A kind of novel lamp base that connects the LED bulb
[technical field]
The utility model relates to a kind of lamp socket, particularly a kind of novel lamp base that connects the LED bulb.
[background technology]
Existing solar energy illuminating light for the open air has solar energy garden lamp, solar energy enclosing wall lamp, their advantage is that the area of solar panel is large, the efficient of photovoltaic conversion is higher, the light fixture that is fit to relatively high power is done the garden illumination, shortcoming is that volume is large and irremovable, can not be used for Portable illumination.And existing generally all be to use solar electric torch when needing the portable outdoor illumination, it is easy to carry, but light efficiency is not high, lighting hours is short and must hand when using, and is not too convenient.And existing lamp socket can only the incoming transport civil power, can not be used for the portable outdoor illumination.
[summary of the invention]
The technical problems to be solved in the utility model is to provide a kind of Novel LED light lamp socket, and it is portable removable, but not only solar recharging but also can be commercial power charged, and the built-in lamp socket of LED bulb control circuit, light efficiency height and power-on time are long.
The utility model is achieved in that
A kind of novel lamp base that connects the LED bulb comprises a lamp socket body, a plurality of rechargeable battery, a solar panel; Described a plurality of rechargeable battery connects into battery pack in turn; Described lamp socket body hollow, an end of described lamp socket body is provided be used to the screw socket that described LED bulb is installed, and the other end of described lamp socket body is provided with described solar panel, and described battery pack is located at described lamp socket body interior; Described this external surface of lamp socket is provided with the operating switch of stating the LED bulb for control; The front of described solar panel is provided with solar cell, its reverse side is laid with led drive circuit, described battery pack is electrically connected to described solar cell, described battery pack also connect described led drive circuit, the described LED of stating bulb and described operating switch for control LED lamp.
Further, described this external surface of lamp socket also is provided with the civil power access port, and the reverse side of described solar panel also is provided with commercial power charged circuit, and described commercial power charged circuit is electrically connected respectively described civil power access port and described battery pack.
Further, described this external surface of lamp socket also is provided with external charge port, and the reverse side of described solar panel also is provided with external charging control circuit, and described external charge port is electrically connected to described battery pack.
Further, described each rechargeable battery all is fixed in the inside of described lamp socket body by a battery case that is complementary with described rechargeable battery.
Further, a through hole is offered at the center of described solar panel, and a hook or a lanyard are passed described through hole and hang described lamp socket body.
Further, be connected in series a diode between described solar cell and the described battery pack, two ends cross-over connection one resistance of described solar cell.
Further, described solar panel is fixed together by screw and described lamp socket body.
Further, the seam crossing of described solar panel and described lamp socket body is provided with marine glue.
Further, an end of described lamp socket body also is provided with two spring tongue pieces, and wherein a spring tongue piece links to each other with the positive pole of described LED lamp, and wherein another spring tongue piece links to each other with the negative pole of described LED lamp.
Further, described external charge port is USB interface.
The utility model has the advantage of: realize commercial power charged and two kinds of charging modes of solar recharging by laying commercial power charged circuit at solar panel, also lay led drive circuit at solar panel simultaneously and dwindled the lamp socket volume, be convenient for carrying.By external charge port is set, realize the charge function to external equipment such as mobile phone etc., by the convenient outdoor camping of hook or the lanyard use of occasion such as have a dinner party is set.The utility model can be powered to the LED bulb below the DC voltage 12V, and its luminous efficiency can substitute the following incandescent lamp of 60W, and luminous efficiency is high, and energy-conservation, safety and environmental protection, and alternative emergency light uses.
[description of drawings]
In conjunction with the embodiments the utility model is further described with reference to the accompanying drawings.

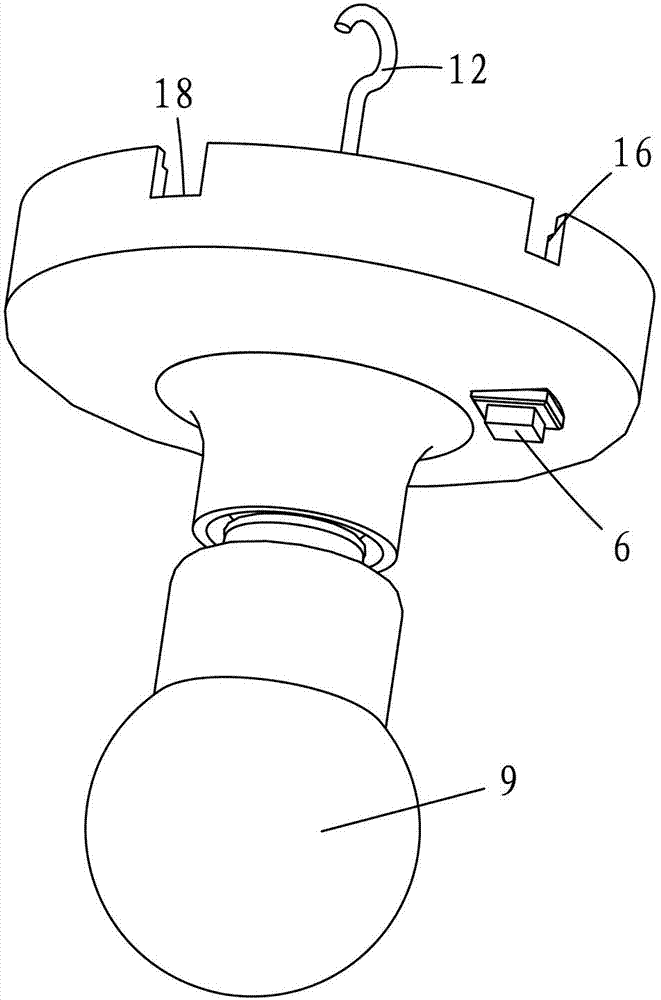

Fig. 1 is structural representation of the present utility model.
Fig. 2 is STRUCTURE DECOMPOSITION figure of the present utility model.
Fig. 3 is the utility model circuit connection diagram.
[specific embodiment]
See also Fig. 1 to shown in Figure 3, embodiment of the present utility model is described in detail.
A kind of Novel LED light lamp socket comprises a lamp socket body 1, a plurality of rechargeable battery 2, a solar panel 3; Described a plurality of rechargeable battery 2 connects in turn and shows three rechargeable batteries among the battery pack 4(figure); Described lamp socket body 1 hollow, an end of described lamp socket body 1 is provided with the screw socket 5 for the mounted LED lamp lamp holder, and the other end of described lamp socket body 1 is provided with described solar panel 3, and described battery pack 4 is located at described lamp socket body 1 inside; Described lamp socket body 1 outer surface is provided with the operating switch 6 for control LED lamp; The front of described solar panel 3 is provided with solar cell 7, its reverse side is laid with led drive circuit 8(and sees also Fig. 3), described battery pack 4 is electrically connected to described solar cell 7, described battery pack 4 also connect described led drive circuit 8, described LED lamp 9 and described operating switch 6 for control LED lamp, circuit connecting relation sees also Fig. 3.
Described solar panel 3 is fixed together by screw 10 and described lamp socket body 1.A through hole 11 is offered at the center of described solar panel 3, a hook 12 or one lanyard (not shown) is passed described through hole 12 hang described lamp socket body 1.Described solar panel 3 is provided with marine glue (not shown) with the seam crossing of described lamp socket body 1, waterproof gear ash.Be connected in series a diode 13 between described solar cell 7 and the described battery pack 4; two ends cross-over connection one resistance 14 of described solar cell 7; described resistance 14 is in order to protect solar cell 7 not destroyed by high-intensity illumination; described diode 13 is in order to prevent that civil power from flowing to solar cell 7 to the charging current of battery pack 4, also prevents the current direction solar cell 7 of battery pack 4.One end of described lamp socket body 1 also is provided with two spring tongue pieces 15, and wherein a spring tongue piece links to each other with the positive pole of described LED lamp, and wherein another spring tongue piece links to each other with the negative pole of described LED lamp.Described each rechargeable battery 2 all is fixed in the inside of described lamp socket body 1 by a battery case (not shown) that is complementary with described rechargeable battery 2.
Described lamp socket body 1 outer surface also is provided with civil power access port 16, and the reverse side of described solar panel 3 also is provided with commercial power charged circuit 17, and described commercial power charged circuit 17 is electrically connected respectively described civil power access port 16 and described battery pack 4.Described lamp socket body 1 outer surface also is provided with external charge port 18, and the reverse side of described solar panel 3 also is provided with external charging control circuit 19, and described external charge port 18 is electrically connected to described battery pack 4.Described external charge port 18 is USB interface.
The utility model is realized commercial power charged and two kinds of charging modes of solar recharging by lay commercial power charged circuit 17 at solar panel 3, also lays led drive circuit 8 at solar panel 3 simultaneously and has dwindled the lamp socket volume, is convenient for carrying.By external charge port 18 is set, realize the charge function to external equipment such as mobile phone etc., by the convenient outdoor camping of hook 12 or the lanyard use of occasion such as have a dinner party is set.The utility model can be powered to the LED bulb below the DC voltage 12V, and its luminous efficiency can substitute the following incandescent lamp of 60W, and luminous efficiency is high, and energy-conservation, safety and environmental protection, and alternative emergency light uses.
The above, it only is the utility model preferred embodiment, so can not limit according to this scope that the utility model is implemented, the equivalence of namely doing according to the utility model claim and description changes and modifies, and all should still belong in the scope that the utility model contains.

Claims (10)

1. a novel lamp base that connects the LED bulb is characterized in that: comprise a lamp socket body, a plurality of rechargeable battery, a solar panel; Described a plurality of rechargeable battery connects into battery pack in turn; Described lamp socket body hollow, an end of described lamp socket body is provided be used to the screw socket that described LED bulb is installed, and the other end of described lamp socket body is provided with described solar panel, and described battery pack is located at described lamp socket body interior; Described this external surface of lamp socket is provided with the operating switch of stating the LED bulb for control; The front of described solar panel is provided with solar cell, its reverse side is laid with led drive circuit, described battery pack is electrically connected to described solar cell, described battery pack also connect described led drive circuit, the described LED of stating bulb and described operating switch for control LED lamp.
2. a kind of novel lamp base that connects the LED bulb according to claim 1, it is characterized in that: described this external surface of lamp socket also is provided with the civil power access port, the reverse side of described solar panel also is provided with commercial power charged circuit, and described commercial power charged circuit is electrically connected respectively described civil power access port and described battery pack.
3. a kind of novel lamp base that connects the LED bulb according to claim 1, it is characterized in that: described this external surface of lamp socket also is provided with external charge port, the reverse side of described solar panel also is provided with external charging control circuit, and described external charge port is electrically connected to described battery pack.
4. a kind of novel lamp base that connects the LED bulb according to claim 1 is characterized in that: described each rechargeable battery all is fixed in the inside of described lamp socket body by a battery case that is complementary with described rechargeable battery.
5. a kind of novel lamp base that connects the LED bulb according to claim 1, it is characterized in that: a through hole is offered at the center of described solar panel, a hook or a lanyard is passed described through hole hang described lamp socket body.
6. a kind of novel lamp base that connects the LED bulb according to claim 1 is characterized in that: be connected in series a diode between described solar cell and the described battery pack, two ends cross-over connection one resistance of described solar cell.
7. a kind of novel lamp base that connects the LED bulb according to claim 1, it is characterized in that: described solar panel is fixed together by screw and described lamp socket body.
8. a kind of novel lamp base that connects the LED bulb according to claim 1, it is characterized in that: the seam crossing of described solar panel and described lamp socket body is provided with marine glue.
9. a kind of novel lamp base that connects the LED bulb according to claim 1, it is characterized in that: an end of described lamp socket body also is provided with two spring tongue pieces, wherein a spring tongue piece links to each other with the positive pole of described LED lamp, and wherein another spring tongue piece links to each other with the negative pole of described LED lamp.
10. a kind of novel lamp base that connects the LED bulb according to claim 3, it is characterized in that: described external charge port is USB interface.
