Abstract

The utility model relates to an LED factory shed lamp; the LED factory shed lamp comprises an LED lamp body and a mounting frame, the mounting frame is connected with the upper surface of the LED lamp body, the mounting frame is an inverted V-shaped bracket, and the middle part of the inverted V-shaped bracket has A section of horizontal bracket, the upper surface of the horizontal bracket is provided with a mounting through hole, the lower surface of the horizontal bracket is fixed with a nut, the size of the mounting through hole and the inner hole of the nut match each other, and the positions correspond to each other, the inverted V-shaped bracket The two ends are fixedly connected with the upper surface of the LED lamp body; the LED lamp body is a flat cylindrical lamp body, and the lower surface of the flat cylindrical lamp body is provided with a lampshade; the shell of the flat cylindrical lamp body includes an upper shell and a lower shell , both the upper shell and the lower shell are bottle cap-shaped, the sides of the lower shell protrude outward to surround the sides of the upper shell, the lampshade is a circular lampshade, and the circular lampshade is arranged on the lower surface of the lower shell; the utility model provides An LED shed light with simple structure and convenient installation.

Description

LED factory lights

(1) Technical field: The utility model relates to a lighting fixture, in particular to an LED factory shed light.

(2) Background technology: With the development of LED technology, more and more lamps are made of high-power LED light-emitting tubes, especially in the lighting of factories, because the environment of factories is relatively harsh and often flammable , Explosive environment, when using ordinary incandescent lamps and fluorescent energy-saving lamps, not only the efficiency of the lamps is low and the life is short (although the efficiency of fluorescent energy-saving lamps is high, but its life is short), and the mechanical strength of the two kinds of lamps are relatively high. It is poor and needs to be replaced frequently, which seriously affects the use of lamps in the factory building, brings a lot of trouble to the enterprise, and reduces the production efficiency of the enterprise. Although the existing LED canopy lights have solved the above problems well, the structure of the existing LED canopy lights is relatively complicated, inconvenient to use, and cannot well meet the needs of enterprises.

(3) Contents of the utility model:

The technical problem to be solved by the utility model is to provide an LED shed light with simple structure and convenient installation for the deficiencies of the prior art.

Technical scheme of the utility model:

An LED factory shed light, comprising an LED lamp body and a mounting frame, the mounting frame is connected to the upper surface of the LED lamp body, the mounting frame is an inverted V-shaped bracket, the middle part of the inverted V-shaped bracket has a section of horizontal bracket, and the upper part of the horizontal bracket is There is a mounting through hole on the surface, and a nut is fixed on the lower surface of the horizontal bracket. The size of the mounting through hole and the inner hole of the nut match each other, and the positions correspond to each other. The two ends of the inverted V-shaped bracket and the upper surface of the LED lamp body Surfaces are fixedly joined together.

The LED lamp body is a flat cylindrical lamp body, and a lampshade is arranged on the lower surface of the flat cylindrical lamp body.

The shell of the flat cylindrical lamp body includes an upper shell and a lower shell. Both the upper shell and the lower shell are in the shape of a bottle cap. It is arranged on the lower surface of the lower case.

Both the upper shell and the lower shell are provided with heat dissipation seams or heat dissipation holes, which can ensure good heat dissipation.

The upper surface of the LED lamp body is provided with a power supply, which is not only beneficial to heat dissipation of the power supply, but also facilitates disassembly and assembly during after-sales maintenance.

The beneficial effects of the utility model:

1. The installation frame of this utility model is an inverted V-shaped bracket, and there is a section of horizontal bracket in the middle of the inverted V-shaped bracket. An installation through hole is provided on the upper surface of the horizontal bracket, and a nut is fixed on the lower surface of the horizontal bracket. The size of the installation through hole and the inner hole of the nut match each other, and the positions correspond to each other; when installing the shed light, a bolt can be used to pass through the nut, which is not only firm in installation, but also convenient and quick in operation.

2. The sides of the lower shell of the utility model protrude outwards to surround the sides of the upper shell, which not only facilitates positioning during installation, but also increases the structural strength of the lower shell and makes the appearance of the entire lamp more beautiful.

(4) Description of drawings:

Figure 1 is a schematic structural diagram of the LED factory shed light;

Fig. 2 is a schematic diagram of the bottom view of Fig. 1;

Fig. 3 is a schematic diagram of the right view structure of Fig. 1;

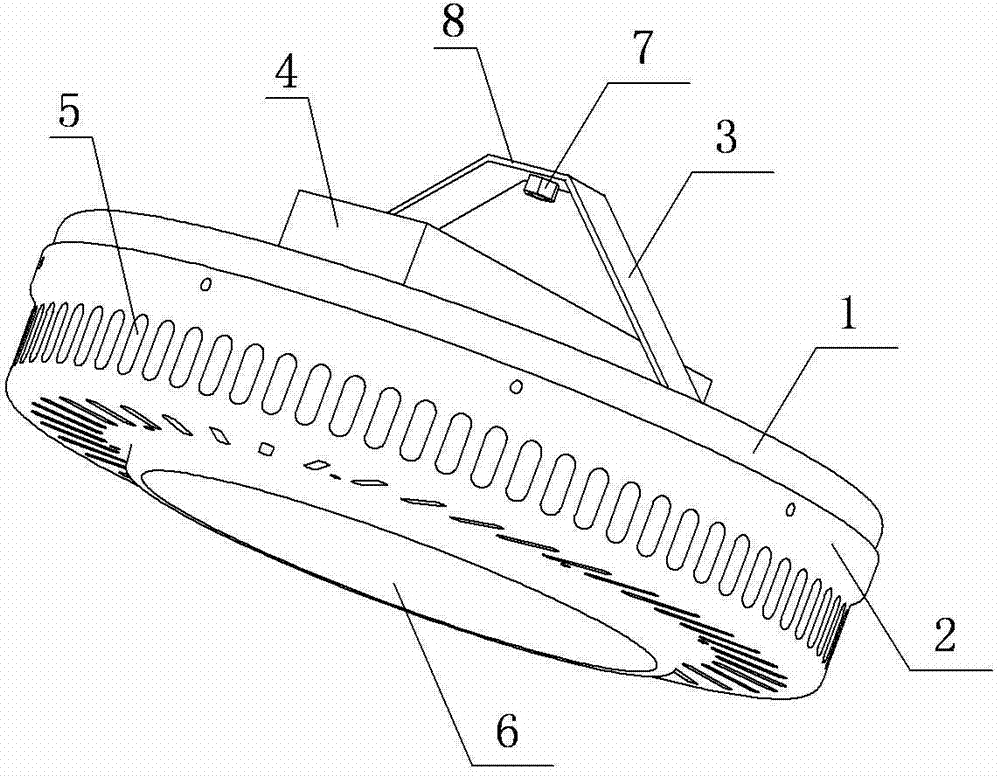

Fig. 4 is a schematic diagram of the three-dimensional structure of the LED factory light.

(5) Specific implementation methods:

Referring to Figures 1 to 4, in the figures, the LED factory shed light includes an LED lamp body and a mounting frame 3, the mounting frame 3 is connected to the upper surface of the LED lamp body, the mounting frame 3 is an inverted V-shaped bracket, and the inverted V-shaped bracket There is a section of horizontal support 8 in the middle, and an installation through hole is provided on the upper surface of the horizontal support 8, and a nut 7 is fixed on the lower surface of the horizontal support 8, and the size of the inner hole of the installation through hole and the nut 7 matches each other, and the positions are mutually matched. Correspondingly, the two ends of the inverted V-shaped support are fixedly connected with the upper surface of the LED lamp body.

The LED lamp body is a flat cylindrical lamp body, and a lampshade 6 is arranged on the lower surface of the flat cylindrical lamp body.

The shell of the oblate cylindrical lamp body includes an upper shell 1 and a lower shell 2, both of which are bottle cap-shaped, and the sides of the lower shell 2 protrude outward to surround the sides of the upper shell 1, and the lampshade 6 is A circular lampshade, the circular lampshade is arranged on the lower surface of the lower case 2 .

Both the upper shell 1 and the lower shell 1 are provided with cooling seams 5 to ensure good heat dissipation.

The upper surface of the LED lamp body is provided with a power supply 4, which is not only beneficial to the heat dissipation of the power supply, but also facilitates disassembly and assembly during after-sales maintenance.

Claims (5)

1. An LED factory shed light, including an LED lamp body and a mounting frame, the mounting frame is connected to the upper surface of the LED lamp body, and its feature is: the mounting frame is an inverted V-shaped bracket, and the middle part of the inverted V-shaped bracket has a section of horizontal The bracket, the upper surface of the horizontal bracket is provided with a mounting through hole, the lower surface of the horizontal bracket is fixed with a nut, the size of the mounting through hole and the inner hole of the nut match each other, and the positions correspond to each other, and the two ends of the inverted V-shaped bracket It is fixedly connected with the upper surface of the LED lamp body. 2. The LED shed lamp according to claim 1, wherein the LED lamp body is a flat cylindrical lamp body, and a lampshade is provided on the lower surface of the flat cylindrical lamp body. 3. The LED shed light according to claim 2, characterized in that: the shell of the oblate cylindrical lamp body includes an upper shell and a lower shell, both of which are in the shape of a bottle cap, and the sides of the lower shell are Protruding outwards surrounds the sides of the upper shell, the lampshade is a circular lampshade, and the circular lampshade is arranged on the lower surface of the lower shell. 4. The LED shed light according to claim 3, characterized in that: the upper shell and the lower shell are provided with cooling seams or cooling holes. 5. The LED shed light according to claim 1, wherein a power supply is provided on the upper surface of the LED light body.
