CN202643930U - Improved grinned cotton cleaning machine - Google Patents
Improved grinned cotton cleaning machine Download PDFInfo
- Publication number
- CN202643930U CN202643930U CN201220197431.8U CN201220197431U CN202643930U CN 202643930 U CN202643930 U CN 202643930U CN 201220197431 U CN201220197431 U CN 201220197431U CN 202643930 U CN202643930 U CN 202643930U
- Authority
- CN
- China
- Prior art keywords
- feeding channel
- feeding
- channel
- fan house
- fan
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02W—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO WASTEWATER TREATMENT OR WASTE MANAGEMENT
- Y02W30/00—Technologies for solid waste management
- Y02W30/50—Reuse, recycling or recovery technologies
- Y02W30/66—Disintegrating fibre-containing textile articles to obtain fibres for re-use
Landscapes
- Preliminary Treatment Of Fibers (AREA)
Abstract
本实用新型公开了改进的皮棉清理机，包括壳体，其特征在于：所述壳体顶部一侧设有入料口，所述入料口连接入料通道，所述入料通道底部设有剥棉辊轮组，所述剥棉辊轮组下侧设有送料通道，所述送料通道与入料通道之间设有弧形导板，所述送料通道连接风机室，所述风机室底部设有多个风机，所述风机室顶部一侧连接毛刷辊轮组，所述毛刷辊轮组连接出料口，所述出料口与风机室之间设有出料通道，所述风机室底部一侧连接出杂通道，所述出杂通道连接设于壳体底部一侧的出杂口，所述送料通道和风机室之间设有单向挡板。本实用新型的优点是：结构简单合理，能耗低，机器运转平稳，减少了故障，延长了寿命，降低了制造成本，提高了劳动生产效率。
The utility model discloses an improved lint cleaning machine, which comprises a casing, and is characterized in that: a feeding port is provided on one side of the top of the casing, the feeding port is connected to a feeding channel, and the bottom of the feeding channel is provided with a Cotton stripping roller group, the lower side of the stripping roller group is provided with a feeding channel, an arc-shaped guide plate is provided between the feeding channel and the feeding channel, the feeding channel is connected to the fan room, and the bottom of the fan room is provided There are a plurality of fans, one side of the top of the fan chamber is connected to a brush roller group, and the brush roller group is connected to a discharge port, and a discharge channel is provided between the discharge port and the fan chamber, and the fan chamber One side of the bottom of the chamber is connected to a miscellaneous discharge channel, and the miscellaneous discharge channel is connected to the miscellaneous outlet on the bottom side of the housing, and a one-way baffle is provided between the feeding passage and the fan chamber. The utility model has the advantages of simple and reasonable structure, low energy consumption, stable machine operation, reduced faults, prolonged life, reduced manufacturing cost, and improved labor production efficiency.
Description
Technical field
The utility model relates to the cotton processing equipment field, relates in particular to a kind of improved lint cotton cleaner.
Background technology
Along with the develop rapidly of textile industry, the demand of cotton raw material is significantly improved, but because China's agricultural production is still very backward, domestic cotton is main mainly with manual the harvesting, and within the following quite a long time still take hand picked cotton as main.Unginned cotton in giving birth to the pass process, through expose to wind and rain, the surface buys attached sand-lime, earth, cotton leaf easily.And be subjected to the unginned cotton of insect bite evil to produce various dissimilar stiff valve cottons, unavoidablely in harvesting process and storage and transportation sneak into a large amount of impurity, such as cotton leaf, cotton stalk, linen thread, feather, hair, synthetic fiber and the grains of sand, blinding etc.
Therefore, be badly in need of a kind of improved technology and solve existing this problem in the prior art.
Summary of the invention
The purpose of this utility model provides a kind of improved lint cotton cleaner.
The technical solution adopted in the utility model is:
Improved lint cotton cleaner, comprise housing, described case top one side is provided with feeding mouth, described feeding mouth connects the pan feeding passage, described pan feeding channel bottom is provided with the card stripper wheels, described card stripper wheels comprise two stripping running rollers, described card stripper wheels downside is provided with feeding channel, be provided with arc-shaped guide plate between described feeding channel and the pan feeding passage, described feeding channel connecting fan chamber, described fan house bottom is provided with a plurality of blower fans, and described fan house top one side connects the brush roll wheels, and described brush roll wheels comprise two hairbrush running rollers, described brush roll wheels connect discharging opening, be provided with tapping channel between described discharging opening and the fan house, described fan house bottom one side connects the impurity removal passage, and described impurity removal passage is connected at the impurity outlet of housing bottom one side.
Be provided with unidirectional baffle plate between described feeding channel and the fan house, described unidirectional baffle plate is fixed in feeding channel and fan house contact position by the bearing activity.
Described unidirectional baffle plate rotates to fan house.
The group number of described card stripper wheels is the 1-3 group.
The group number of described brush roll wheels is the 1-2 group.
The utility model has the advantages that: simple and reasonable, energy consumption is low, and machine run is steady, has reduced fault, has prolonged the life-span, simplifies the structure, and for ease of maintenaince, has reduced manufacturing cost, has improved labor productivity.
Description of drawings
Below in conjunction with the drawings and specific embodiments the utility model is described in further detail.

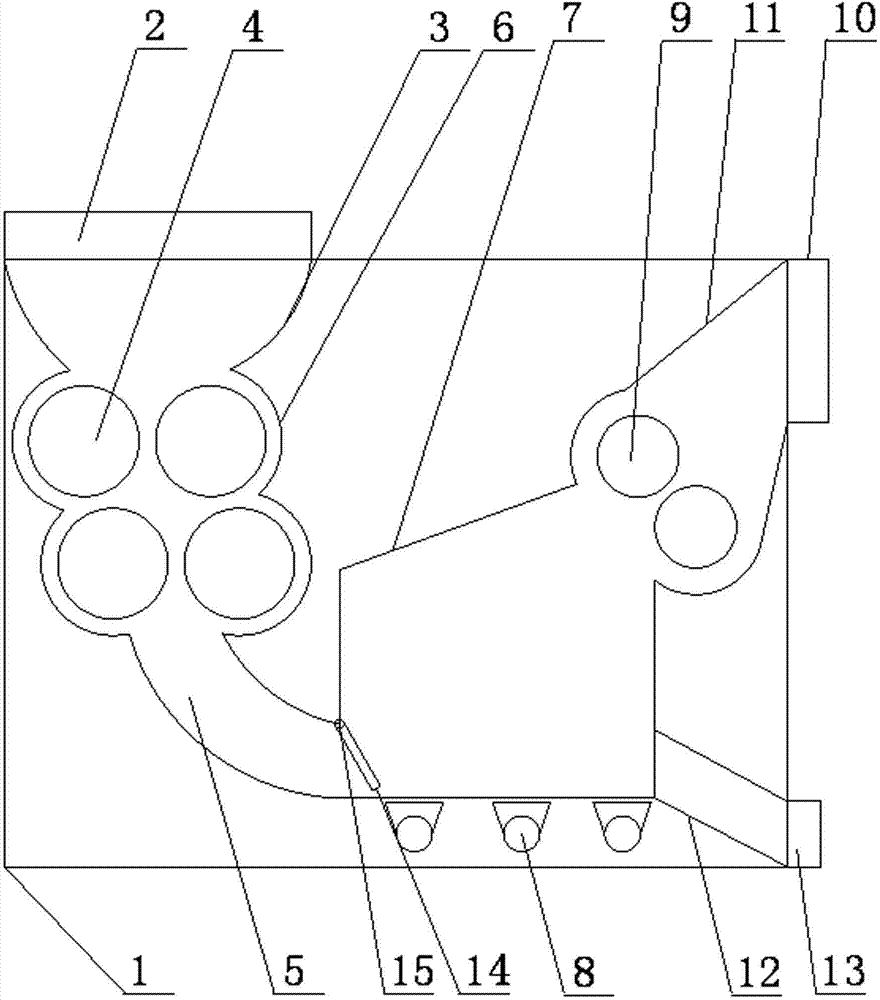

Fig. 1 is structural representation of the present utility model.
Wherein: 1, housing, 2, feeding mouth, 3, the pan feeding passage, 4, the stripping running roller, 5, feeding channel, 6, arc-shaped guide plate, 7, fan house, 8, blower fan, 9, the hairbrush running roller, 10, discharging opening, 11, tapping channel, 12, the impurity removal passage, 13, impurity outlet, 14, unidirectional baffle plate, 15, bearing.
The specific embodiment
As shown in Figure 1, improved lint cotton cleaner of the present utility model, comprise housing 1, described housing 1 top one side is provided with feeding mouth 2, described feeding mouth 2 connects pan feeding passage 3, described pan feeding passage 3 bottoms are provided with two groups of card stripper wheels, described card stripper wheels comprise two stripping running rollers 4, described card stripper wheels downside is provided with feeding channel 5, be provided with arc-shaped guide plate 6 between described feeding channel 5 and the pan feeding passage 3, described feeding channel connecting fan chambers 75, described fan house 7 bottoms are provided with three blower fans 8, described fan house 7 tops one side connects one group of brush roll wheels, described brush roll wheels comprise two hairbrush running rollers 9, described brush roll wheels connect discharging opening 10, be provided with tapping channel 11 between described discharging opening 10 and the fan house 7, described fan house 7 bottoms one side connects impurity removal passage 12, described impurity removal passage 12 is connected at the impurity outlet 13 of housing 1 bottom one side, be provided with unidirectional baffle plate 14 between described feeding channel 5 and the fan house 7, described unidirectional baffle plate 14 is fixed in feeding channel 5 and fan house 7 contact positions by bearing 15 activities, described unidirectional baffle plate 14 is to fan house 7 rotations, simple and reasonable, energy consumption is low, and machine run is steady, reduced fault, prolonged the life-span, simplified the structure, for ease of maintenaince, reduce manufacturing cost, improved labor productivity.
Claims (5)
1. improved lint cotton cleaner, comprise housing, it is characterized in that: described case top one side is provided with feeding mouth, described feeding mouth connects the pan feeding passage, described pan feeding channel bottom is provided with the card stripper wheels, described card stripper wheels comprise two stripping running rollers, described card stripper wheels downside is provided with feeding channel, be provided with arc-shaped guide plate between described feeding channel and the pan feeding passage, described feeding channel connecting fan chamber, described fan house bottom is provided with a plurality of blower fans, and described fan house top one side connects the brush roll wheels, and described brush roll wheels comprise two hairbrush running rollers, described brush roll wheels connect discharging opening, be provided with tapping channel between described discharging opening and the fan house, described fan house bottom one side connects the impurity removal passage, and described impurity removal passage is connected at the impurity outlet of housing bottom one side.
2. improved lint cotton cleaner according to claim 1, it is characterized in that: be provided with unidirectional baffle plate between described feeding channel and the fan house, described unidirectional baffle plate is fixed in feeding channel and fan house contact position by the bearing activity.
3. improved lint cotton cleaner according to claim 2, it is characterized in that: described unidirectional baffle plate rotates to fan house.
4. improved lint cotton cleaner according to claim 1 is characterized in that: the group number of described card stripper wheels is the 1-3 group.
5. improved lint cotton cleaner according to claim 1 is characterized in that: the group number of described brush roll wheels is the 1-2 group.
