Abstract
The utility model discloses a pair of novel knife scissors. The pair of novel knife scissors comprises a lower handle, a blade, an upper handle, a chopping block, a chopping block blade and a central shaft. The lower handle is in rotary connection with the upper handle through the central shaft, the front portion of the upper handle is provided with the chopping block, and the front portion of the lower handle is provided with the blade. The pair of novel knife scissors is structurally characterized in that the chopping block blade arranged on the chopping block can form shearing together with the blade. The pair of novel knife scissors can be used in a combined mode and can be disassembled to be used alone. When combined, the pair of novel knife scissors is a combination of a knife and a pair of scissors and with the chopping block. After the shear blades and the handles are singly disassembled, the blade and one of the handles can be singly used as the knife. The front end of the blade is designed to be provided with a bottle opener, the middle portion of the blade is provided with a paring knife. A body of the paring knife is made of food-grade stainless steel with thickness of 3 millimeters. The appearance of the pair of novel knife scissors is in accordance with the human engineering theory, so that the pair of novel knife scissors is comfortable to hold. The pair of novel knife scissors is portable, designed to be provided with a safe lock which is in a self-tension structure, safe and firm, and easy and convenient to use not only at home but also in a picnic.
Description
Technical field
The utility model relates to a kind of Novel cutter and cuts.
Background technology
Most cuttves is cut at present, comprise lower handle, blade, plastic switch, left stiffener, upper handle, right stiffener, left first sheet, right first sheet, chopping block, spring, chopping block blade, central shaft, switch rivet, its blade function singleness in existing structure, blade thickness only has 1.5mm, and shearing harder thing can be crooked; Chopping block and cutter are cutting mode cutting, and plastics are of long duration can shrinking deformation, blade and Plastic chopping block cooperate that meeting is gapped to cause cutting constantly not agile, shear the thing of jewelry, expensive clothing and other valuables and cut constantly.
Summary of the invention
For the problem that above prior art exists, the purpose of this utility model provides a kind of can cutting by sharper and thin, the soft Novel cutter that all can cut off easily of shearing.
The purpose of this utility model is to realize like this, described Novel cutter is cut, comprise lower handle, blade, upper handle, chopping block, chopping block blade and central shaft, lower handle and upper handle are rotationally connected by central shaft, front portion at upper handle is provided with chopping block, the front portion of lower handle is blade, and its design feature can form the chopping block blade of shearing with blade for being provided with at chopping block.
Described Novel cutter is cut, and its characteristics are provided with for the fixing slope of chopping block blade for the chopping block that is provided with on the front portion of upper handle.
Described Novel cutter is cut, and its characteristics are to be provided with paring knife at the place, top of the front blade of lower handle.
Described Novel cutter is cut, and its characteristics are to be provided with bottle opener at the place, top of the front blade of lower handle.
Described Novel cutter is cut, and its characteristics are that the inboard that described chopping block blade and blade formation are sheared is blade part, are provided with the blade prerotation vane of circular arc type near the blade part place in the rear end of chopping block blade.
Described Novel cutter is cut, its characteristics are to be provided with spring between the rear portion of the rear portion of lower handle and upper handle, spring upper end is fixed on the spring fixed column that is provided with in the spring empty avoiding chamber that the rear inner surface of upper handle has, and the spring lower end is enclosed within on the spring locating dowel that the upper surface at the rear portion of lower handle is provided with.
Described Novel cutter is cut, and its characteristics are that the rotation slot that is provided with of lower handle and the central shaft of upper handle are rotationally connected, and the limit of the rotation slot that is provided with at lower handle is provided with monolateral screens.
Described Novel cutter is cut, and its characteristics are that the blade draft angle of blade is 12 degree.
Described Novel cutter is cut, and its characteristics are that the angle of the table top of slope and chopping block is 4 degree.
Described Novel cutter is cut, and its characteristics are that the edge of a knife spacing of paring knife is 3.5 millimeters.
The beneficial effects of the utility model are:
1, capable of being combined, the dismounting of this product is used separately, fit together be one with the cutter of chopping block and the combination of cutting.There is the slope of a projection chopping block top, and upper Plane Installation has the small blade of a stainless steel, and food is cut short in the cutting knife rubbing action of cutting with cutter in the time of shearing, and the function while of playing kitchen knife and chopping block has again the use of scissor cut to experience.
2, shear-blade with the single dismounting of handle after blade with handle can be separately when knife uses, the Front-end Design of blade has bottle opener, there is paring knife the middle part, blade adopts the thick food-grade stainless steel of 3mm.
3, product design principle of human engineering is held comfortable.
4, whole instrument metal part is all adopted stainless steel, non-corrosive is smooth and bright like a mirror after polishing, shears sharp not residual.
5, plastics partly adopt Chrome-free, unleaded environmental protection, food-grade material, and human body is had no side effect.
6, this product is easy to carry about with one, and is designed with safety lock, and safety lock adopts from tension structure, and though safety firm be at home or picnic can both very easily, convenient use.
Description of drawings
Fig. 1 is explosive decomposition structural representation of the present utility model.
Fig. 2 is structural representation of the present utility model.
Fig. 3 is the structural representation at upper handle of the present utility model rear portion.
Fig. 4 is the upward view of Fig. 3.
Fig. 5 is the structural representation of chopping block blade of the present utility model.

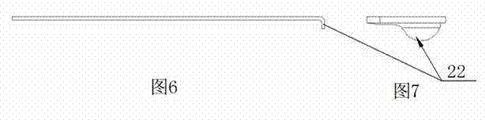

Fig. 6 is the upward view of Fig. 5.
Fig. 7 is that enlarged drawing is looked on the left side of Fig. 5.
Fig. 8 is the structural representation at lower handle of the present utility model rear portion.
Fig. 9 is the top view of Fig. 8.
Figure 10 is the structural representation of blade of the present utility model.
Figure 11 is that enlarged drawing is looked on the right side of Figure 10.
Figure 12 is the top view of Figure 10.
Figure 13 is the structural representation of upper handle of the present utility model front portion.
Figure 14 is the left view of Figure 13.
Figure 15 is the top view of Figure 13.
Among the figure: lower handle 1, blade 2, lower handle encapsulate skin 3, plastic switch 4, left stiffener 5, upper handle 6, right stiffener 7, upper handle encapsulate skin 8, left first sheet 9, right first sheet 10, chopping block 11, spring 12, chopping block blade 13, central shaft 14, long rivet 15, switch rivet 16, paring knife 17, bottle opener 18, spring locating dowel 19, spring fixed column 20, spring empty avoiding chamber 21, the blade prerotation vane 22 of circular arc type, monolateral screens 23, table top 24, slope 25.
The specific embodiment
Below in conjunction with drawings and Examples new 21 types of this practicality are elaborated:
As depicted in figs. 1 and 2, a kind of Novel cutter described in the utility model is cut, comprise lower handle 1, blade 2, upper handle 6, chopping block 11, spring 12, chopping block blade 13 and central shaft 14, lower handle 1 is rotationally connected around central shaft 14 with upper handle 6, be provided with chopping block 11 in the front portion of upper handle 6, the front portion of lower handle 1 is blade, its design feature can form the chopping block blade 13 of shearing with blade 2 for being provided with at chopping block 11, such as Fig. 5, Fig. 6 and shown in Figure 7, the inboard of chopping block blade 13 is blade part, be provided with the blade prerotation vane 22 of circular arc type near the blade part place in the rear end of chopping block blade 13, the guide effect of the blade prerotation vane 22 by circular arc type when blade 2 is sheared with chopping block blade 13 can make blade 2 and chopping block blade 13 be aligned with each other and shear, blade 2 is switched on the face of chopping block blade 13.Such as Fig. 1, Fig. 2, Figure 10, Figure 11, shown in Figure 12, be provided with paring knife 17 and bottle opener 18 at the place, top of the front blade of lower handle 1, the edge of a knife spacing of paring knife 17 is 3.5 millimeters, the blade draft angle of blade is 12 degree.
Such as Fig. 1, Fig. 2, Figure 13, Figure 14 and shown in Figure 15, the chopping block 11 that is provided with on the front portion of upper handle 6 is provided with for the fixing slope 25 of chopping block blade 13, slope 25 is 4 degree with the angle of the table top 24 of chopping block 11, be convenient to like this blade 2 and form shearing with chopping block blade 13, rather than the blade 2 of prior art and the impact cutting of chopping block 11.
Such as Fig. 8, shown in Figure 9, the central shaft 14 of the rotation slot that lower handle 1 is provided with and upper handle 6 is rotationally connected, and the limit of the rotation slot that is provided with at lower handle 1 is provided with monolateral screens 23, is convenient to like this engaging or disengaging of rotation slot and central shaft 14.
Tail end at lower handle 1 is provided with plastic switch 4, and corresponding afterbody at upper handle 6 is provided with the switch groove that can fasten with plastic switch 4.
As shown in Figure 1, Figure 2, Figure 3 and Figure 4, between the rear portion of the rear portion of lower handle 1 and upper handle 6, be provided with spring 12, spring 12 upper ends are fixed on the spring fixed column 20 that is provided with in the spring empty avoiding chamber 21 that the rear inner surface of upper handle 6 has, and spring 12 lower ends are enclosed within on the spring locating dowel 19 that the upper surface at the rear portion of lower handle 1 is provided with.When upper handle 6 was thrown off with lower handle 1, spring 12 lower ends and spring locating dowel 19 can break away from; When 1 pair of folder of upper handle 6 and lower handle, and the lower end of spring 12 is not when being inserted in spring locating dowel 19, can be subjected to lower handle 1 the rear portion the upper surface compressing and be pressed onto and avoid damaging by pressure spring in the spring empty avoiding chamber 21, reach the effect of protection spring.
The utility model is not stated part and is prior art.
Claims (10)
1. a Novel cutter is cut, comprise lower handle (1), blade (2), upper handle (6), chopping block (11), chopping block blade (13) and central shaft (14), lower handle (1) is rotationally connected by central shaft (14) with upper handle (6), be provided with chopping block (11) in the front portion of upper handle (6), the front portion of lower handle (1) is blade (2), it is characterized in that being provided with and forming the chopping block blade (13) of shearing with blade (2) at chopping block (11).
2. Novel cutter according to claim 1 is cut, and it is characterized in that the chopping block that is provided with on the front portion of upper handle (6) is provided with for the fixing slope (25) of chopping block blade (13).
3. Novel cutter according to claim 1 and 2 is cut, and it is characterized in that being provided with paring knife (17) at the place, top of the front blade of lower handle (1).
4. Novel cutter according to claim 1 and 2 is cut, and it is characterized in that being provided with bottle opener (18) at the place, top of the front blade of lower handle (1).
5. Novel cutter according to claim 1 and 2 is cut, and it is characterized in that it is blade part that described chopping block blade (13) forms the inboard of shearing with blade (2), is provided with the blade prerotation vane of circular arc type near the blade part place in the rear end of chopping block blade (13).
6. Novel cutter according to claim 1 and 2 is cut, it is characterized in that between the rear portion of the rear portion of lower handle (1) and upper handle, being provided with spring (12), spring (12) upper end is fixed on the spring fixed column (20) that is provided with in the spring empty avoiding chamber (21) that the rear inner surface of upper handle (6) has, and spring (12) lower end is enclosed within on the spring locating dowel (19) that the upper surface at the rear portion of lower handle (1) is provided with.
7. Novel cutter according to claim 1 and 2 is cut, and it is characterized in that rotation slot that lower handle (1) is provided with and the central shaft (14) of upper handle are rotationally connected, and the limit of the rotation slot that is provided with at lower handle (1) is provided with monolateral screens (23).
8. Novel cutter according to claim 1 and 2 is cut, and the blade draft angle that it is characterized in that blade (2) is 12 degree.
9. Novel cutter according to claim 2 is cut, and it is characterized in that slope (25) and the angle of the table top (24) of chopping block (11) are 4 degree.
10. Novel cutter according to claim 3 is cut, and the edge of a knife spacing that it is characterized in that paring knife (17) is 3.5 millimeters.
