CN202640059U - Plate glass sander - Google Patents

Plate glass sander Download PDF

Info

Publication number
CN202640059U
CN202640059U CN201220258948.3U CN201220258948U CN202640059U CN 202640059 U CN202640059 U CN 202640059U CN 201220258948 U CN201220258948 U CN 201220258948U CN 202640059 U CN202640059 U CN 202640059U
Authority
CN
China
Prior art keywords
brush
transmission shaft
plate glass
glass
sand milling
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Expired - Fee Related
Application number
CN201220258948.3U
Other languages
Chinese (zh)
Inventor
常青
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
BENGBU YICHENG GLASS CO LTD
Original Assignee
BENGBU YICHENG GLASS CO LTD
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by BENGBU YICHENG GLASS CO LTD filed Critical BENGBU YICHENG GLASS CO LTD
Priority to CN201220258948.3U priority Critical patent/CN202640059U/en
Application granted granted Critical
Publication of CN202640059U publication Critical patent/CN202640059U/en
Anticipated expiration legal-status Critical
Expired - Fee Related legal-status Critical Current

Links

Images

Classifications

    • Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
    • Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
    • Y02W—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO WASTEWATER TREATMENT OR WASTE MANAGEMENT
    • Y02W30/00—Technologies for solid waste management
    • Y02W30/50—Reuse, recycling or recovery technologies
    • Y02W30/60—Glass recycling

Landscapes

  • Finish Polishing, Edge Sharpening, And Grinding By Specific Grinding Devices (AREA)

Abstract

一种平板玻璃砂磨机，涉及玻璃加工机械技术领域，包括设置在传送支架上的传送带，传送带上方设置有龙门架，龙门架的横梁中段安装有传动轴，传动轴上端通过皮带传动装置连接电动机，所述传动轴下端固定连接圆形的刷盘，刷盘周围固定有打磨刷头，所述刷盘和打磨刷头外侧罩有砂磨箱，打磨刷头为钢丝刷，砂磨箱无底，砂磨箱下部设置有裙边，砂磨箱上端设置有箱盖，箱盖上端设置有加料斗。本实用新型结构简单、设计合理，制造成本低，可对有划痕的次品平板玻璃进行砂磨，进一步加工成磨光玻璃，以消除平板玻璃上有划伤的缺陷。

Figure 201220258948

A flat glass sand mill, relating to the technical field of glass processing machinery, comprising a conveyor belt arranged on a conveyor bracket, a gantry frame is arranged above the conveyor belt, a transmission shaft is installed in the middle section of the beam of the gantry frame, and the upper end of the transmission shaft is connected to a motor through a belt transmission device , the lower end of the transmission shaft is fixedly connected to a circular brush plate, and a grinding brush head is fixed around the brush plate, and the outer side of the brush plate and the grinding brush head is covered with a sanding box, and the grinding brush head is a wire brush, and the sanding box has no bottom , The lower part of the sanding box is provided with a skirt, the upper end of the sanding box is provided with a box cover, and the upper end of the box cover is provided with a feeding hopper. The utility model has the advantages of simple structure, reasonable design and low manufacturing cost, and can sand-grind the defective plate glass with scratches, and further process it into polished glass, so as to eliminate the defect of scratches on the plate glass.

Figure 201220258948

Description

The plate glass sand mill
Technical field:
The utility model relates to the glass working machine technical field, relates in particular to a kind of plate glass sand mill.
Background technology:
Plate glass also claims white glass or clear glass, and plate glass often has in process of production the substandard products that are scratched and occurs.At present, the plate glass that is scratched is scrapped as substandard products, causes very large waste.
The utility model content:
Technical problem to be solved in the utility model is to overcome the defective of prior art, and a kind of plate glass sand mill that can process the substandard products glass scratch is provided.
Technical problem to be solved in the utility model realizes by the following technical solutions.
A kind of plate glass sand mill, it is characterized in that: comprise being arranged on the conveyer belt that transmits on the support, the conveyer belt top is provided with portal frame, the crossbeam stage casing of portal frame is equipped with power transmission shaft, the power transmission shaft upper end connects motor by belt drive unit, described power transmission shaft lower end is fixedly connected with circular brush, is fixed with the polishing brush around the brush, and described brush and polishing brush outside mask have the sand milling case.
Described polishing brush is wire brush.
Described sand milling case is bottomless, and the sand milling lower box part is provided with the shirt rim, and sand milling case upper end is provided with case lid, and the case lid upper end is provided with loading hopper, so that add diamond dust and water in the sand milling case.
This equipment can be connected in series two or more as required successively, and can form automatic production line with washing equipment.
The utility model is simple in structure, reasonable in design, low cost of manufacture, can carry out sand milling to the substandard products plate glass that cut is arranged, further be processed into polished glass, to eliminate the defective that scuffing is arranged on the plate glass, adopt the mode that adds the water sand milling, can not produce dust pollution, the waste water that produces flows into sedimentation basin, and is reusable.
Description of drawings:

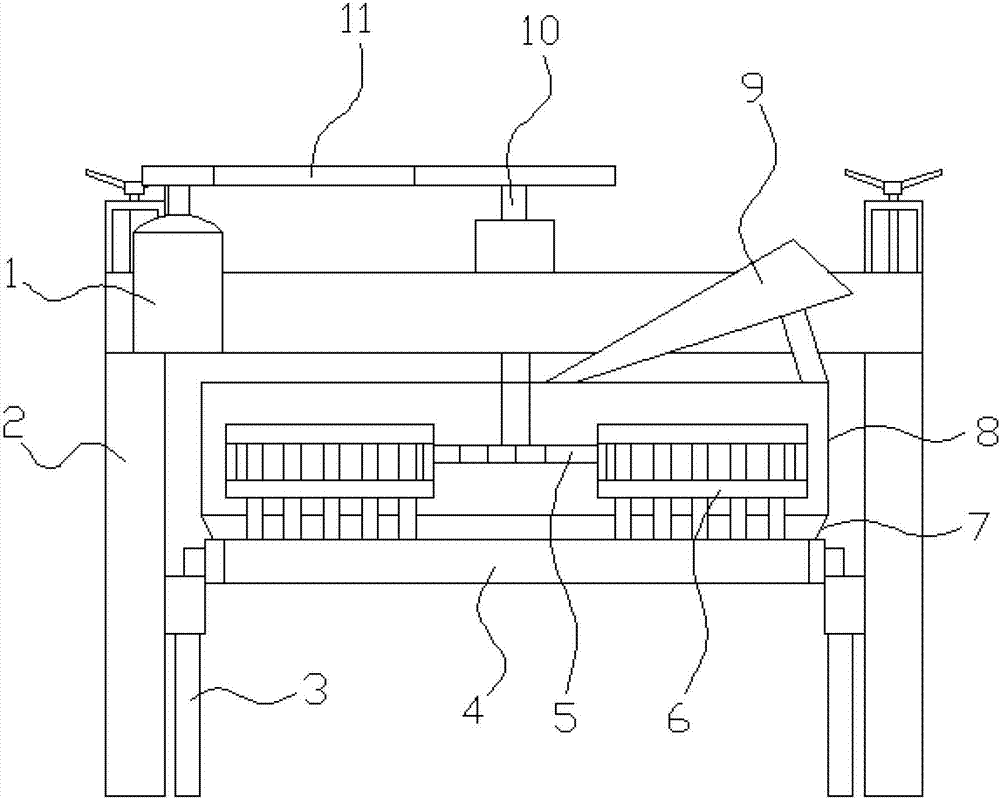

Fig. 1 is structural representation of the present utility model.
The specific embodiment:
For technological means, creation characteristic that the utility model is realized, reach purpose and effect is easy to understand, below in conjunction with concrete diagram, further set forth the utility model.
As shown in Figure 1, a kind of plate glass sand mill, comprise and be arranged on the conveyer belt 4 that transmits on the support 3, conveyer belt 4 tops are provided with portal frame 2, the crossbeam stage casing of portal frame 2 is equipped with power transmission shaft 10, power transmission shaft 10 upper ends connect motor 1 by belt drive unit 11, described power transmission shaft 10 lower ends are fixedly connected with circular brush 5, are fixed with polishing brush 6 around the brush 5, and described brush 5 and polishing brush 6 outsides are covered with sand milling case 8, polishing brush 6 is wire brush, sand milling case 8 is bottomless, and sand milling case 8 bottoms are provided with shirt rim 7, and sand milling case 8 upper ends are provided with case lid, the case lid upper end is provided with loading hopper 9, so that add fine sand and water in the sand milling case.
Above demonstration and described basic principle of the present utility model and principal character and advantage of the present utility model.The technical staff of the industry should understand; the utility model is not restricted to the described embodiments; that describes in above-described embodiment and the specification just illustrates principle of the present utility model; under the prerequisite that does not break away from the utility model spirit and scope; the utility model also has various changes and modifications, and these changes and improvements all fall in claimed the utility model scope.The claimed scope of the utility model is defined by appending claims and equivalent thereof.

Claims (3)

1. plate glass sand mill, it is characterized in that: comprise being arranged on the conveyer belt that transmits on the support, the conveyer belt top is provided with portal frame, the crossbeam stage casing of portal frame is equipped with power transmission shaft, the power transmission shaft upper end connects motor by belt drive unit, described power transmission shaft lower end is fixedly connected with circular brush, is fixed with the polishing brush around the brush, and described brush and polishing brush outside mask have the sand milling case.
2. plate glass sand mill according to claim 1, it is characterized in that: described polishing brush is wire brush.
3. plate glass sand mill according to claim 1, it is characterized in that: described sand milling case is bottomless, and the sand milling lower box part is provided with the shirt rim, and sand milling case upper end is provided with case lid, and the case lid upper end is provided with loading hopper.
