CN202637593U

CN202637593U - Multifunctional medical transfusion chair

Info

Publication number: CN202637593U
Application number: CN 201220230008
Authority: CN
Inventors: 尹倩倩
Original assignee: Anhui University of Science and Technology
Current assignee: Anhui University of Science and Technology
Priority date: 2012-05-22
Filing date: 2012-05-22
Publication date: 2013-01-02
Anticipated expiration: 2022-05-22

Abstract

A multifunctional medical infusion chair, relating to the technical field of medical devices, comprising a chair frame, the chair frame is provided with a seat surface and a backrest, both sides of the chair frame are provided with armrests, and the front part of the chair frame is provided with a foot pedal , the seat surface is movably connected with the backrest through a rotating shaft, and it is characterized in that: the backrest is provided with an elastic cushion body, the side of the armrest is provided with an infusion hanging rod, and the infusion hanging rod is provided with a hook. The utility model is simple in structure and reasonable in design. The patient can sit or lie down during infusion, and a foot surface is arranged in front of the chair frame to support the patient's calf, so that the patient can reach the best comfortable state and lie down. It feels very comfortable on it, and the body will not be stiff or paralyzed even if it is sitting or lying for a long time, and it is completely designed according to the human body.

Description

A multifunctional medical transfusion chair

技术领域 technical field

本实用新型涉及医疗器械技术领域，具体涉及一种多功能医用输液椅。 The utility model relates to the technical field of medical instruments, in particular to a multifunctional medical transfusion chair. the

背景技术 Background technique

目前，在医院和诊所，有时门诊输液病人比较多，在许多紧急情况下输液设备不够用，输液时间又比较漫长，对于病情较轻的患者或者床位比较紧张时，常对患者采用坐姿输液，即患者坐在板凳或者椅子上进行输液治疗。现有的输液椅包括输液椅椅座，输液椅椅座后端固定连接有输液椅椅背，输液椅椅座的两侧固定连接有扶手，有时由于输液的时间较长，使用这种结构的输液椅病人只能保持一个坐姿，且脚部也没有支承点只能放在地上，时间久了会很难受，甚至会加重病人的病情，使用效果比较差。 At present, in hospitals and clinics, sometimes there are many outpatient transfusion patients. In many emergency situations, the infusion equipment is not enough, and the infusion time is relatively long. For patients with milder conditions or when the beds are relatively tight, patients are often used for infusion in a sitting position, that is, The patient sits on a bench or a chair for infusion therapy. The existing infusion chair includes an infusion chair seat, the back end of the infusion chair seat is fixedly connected with the back of the infusion chair, and the two sides of the infusion chair seat are fixedly connected with armrests. The patient in the infusion chair can only maintain a sitting posture, and the feet have no supporting points and can only be placed on the ground. It will be uncomfortable after a long time, and even aggravate the patient's condition, and the use effect is relatively poor. the

实用新型内容 Utility model content

本实用新型所要解决的技术问题在于提供一种结构简单，设计合理，使用舒适的多功能医用输液椅。 The technical problem to be solved by the utility model is to provide a multifunctional medical transfusion chair with simple structure, reasonable design and comfortable use. the

本实用新型所要解决的技术问题采用以下技术方案来实现， The technical problem to be solved by this utility model adopts following technical scheme to realize,

一种多功能医用输液椅，包括椅架，所述椅架上设置有坐面及靠背，所述椅架两边设置有扶手，所述椅架前部设置有脚踏板，所述坐面通过一转轴与靠背活动连接，其特征在于：所述靠背上设有弹性垫体，所述扶手一侧设有输液挂杆，所述输液挂杆上设有挂钩。 A multifunctional medical infusion chair, comprising a chair frame, the chair frame is provided with a seat surface and a backrest, the chair frame is provided with armrests on both sides, and the front part of the chair frame is provided with a pedal, and the seat surface passes through A rotating shaft is movably connected with the backrest, and it is characterized in that an elastic pad is provided on the backrest, an infusion hanging rod is arranged on one side of the armrest, and a hook is arranged on the infusion hanging rod. the

所述脚踏板通过轴连接在椅架前部。 The pedal is connected to the front part of the chair frame through a shaft. the

所述的弹性垫体由海绵材质制成。 The elastic cushion body is made of sponge material. the

本实用新型的有益效果是：本实用新型结构简单、设计合理，病人在输液时可坐亦可躺，且在椅架框前设置一脚踏面，使病人的小腿部得到支承，使病人达到最佳的舒适状态，躺在上面感觉非常舒适，即使长久坐卧身体也不会出现僵硬、麻痹现象，完全依据人体设计。 The beneficial effects of the utility model are: the utility model is simple in structure and reasonable in design, and the patient can sit or lie down during infusion, and a foot tread is set in front of the chair frame, so that the patient's calf can be supported, and the patient can To achieve the best comfortable state, it feels very comfortable to lie on it, even if the body sits and lies for a long time, the body will not appear stiff or paralyzed, and it is completely designed according to the human body. the

附图说明 Description of drawings

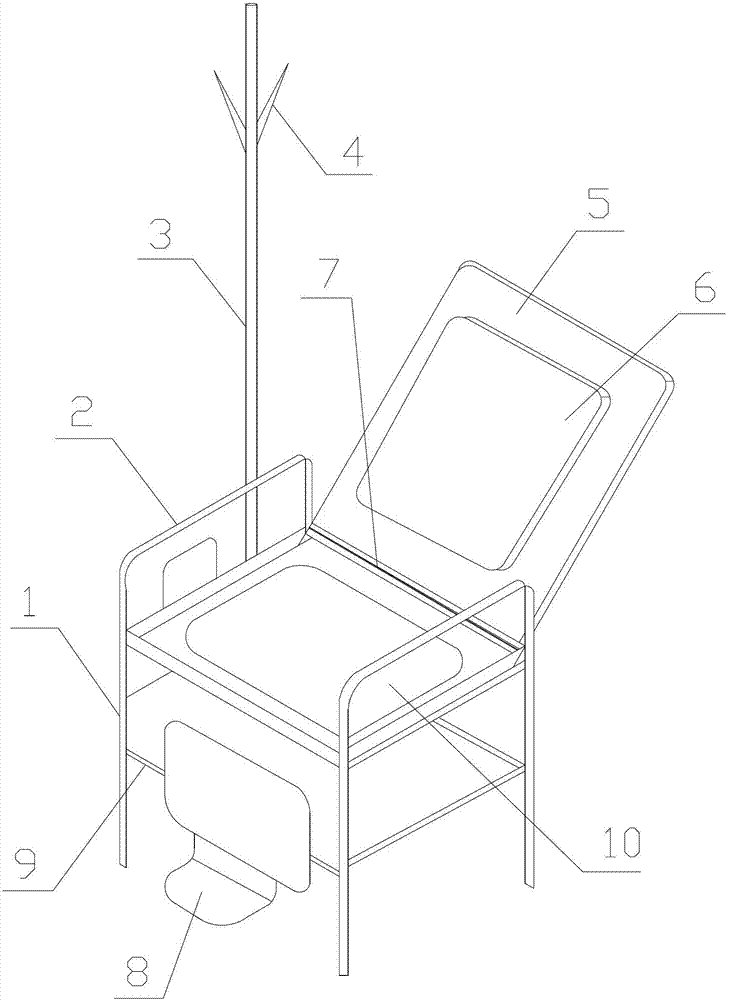

图1是本实用新型结构示意图。 Fig. 1 is the structural representation of the utility model. the

具体实施方式 Detailed ways

为了使本实用新型实现的技术手段、创作特征、达成目的与功效易于明白了解，下面结合具体图示，进一步阐述本实用新型。 In order to make the technical means, creative features, goals and effects achieved by the utility model easy to understand, the utility model will be further elaborated below in conjunction with specific illustrations. the

如图1所示，一种多功能医用输液椅，包括椅架1，椅架1上设置有坐面10及靠背5，椅架1两边设置有扶手2，椅架1前部设置有脚踏板8，坐面10通过一转轴7与靠背5活动连接，靠背5上设有弹性垫体6，扶手2一侧设有输液挂杆3，输液挂杆3上设有挂钩4，脚踏板8通过轴9连接在椅架1前部，弹性垫体6由海绵材质制成。 As shown in Figure 1, a multifunctional medical infusion chair includes a chair frame 1, a seat surface 10 and a backrest 5 are arranged on the chair frame 1, armrests 2 are arranged on both sides of the chair frame 1, and a footrest is arranged on the front of the chair frame 1. Board 8, seat surface 10 are movably connected with backrest 5 through a rotating shaft 7, elastic cushion body 6 is arranged on backrest 5, infusion hanging rod 3 is arranged on one side of armrest 2, hook 4 is arranged on infusion hanging rod 3, pedals 8 is connected to the front part of the chair frame 1 through the shaft 9, and the elastic cushion body 6 is made of sponge material. the

以上显示和描述了本实用新型的基本原理和主要特征和本实用新型的优点。本行业的技术人员应该了解，本实用新型不受上述实施例的限制，上述实施例和说明书中描述的只是说明本实用新型的原理，在不脱离本实用新型精神和范围的前提下，本实用新型还会有各种变化和改进，这些变化和改进都落入要求保护的本实用新型范围内。本实用新型要求保护范围由所附的权利要求书及其等效物界定。 The basic principles and main features of the present utility model and the advantages of the present utility model have been shown and described above. Those skilled in the art should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the utility model. Without departing from the spirit and scope of the utility model, the utility model The new model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents. the

Claims

1. multifunctional medical transfusion chair, comprise chair frame, be provided with seat face and backrest on the described chair frame, described chair frame both sides are provided with handrail, described chair frame front portion is provided with pedal, and described seat face is connected with movable backrest by a rotating shaft, and it is characterized in that: described backrest is provided with elastic pad, described handrail one side is provided with infusion hanging bar, and described infusion hanging bar is provided with hook.

2. a kind of multifunctional medical transfusion chair according to claim 1, it is characterized in that: described pedal is connected to the chair frame front portion by axle.

3. a kind of multifunctional medical transfusion chair according to claim 1, it is characterized in that: described elastic pad is made by the sponge material.
