Abstract
本实用新型公开了一种手机电池盖及手机，旨在提供一种不容易误触，且非常方便操作的手机电池盖。所述手机电池盖上设置有一特殊功能按键。本实用新型还公开了一种具有上述手机电池盖的手机。本实用新型可用于具有特殊功能的手机。
The utility model discloses a mobile phone battery cover and a mobile phone, aiming to provide a mobile phone battery cover which is not easy to touch by mistake and is very convenient to operate. A special function button is arranged on the battery cover of the mobile phone. The utility model also discloses a mobile phone with the battery cover of the mobile phone. The utility model can be used for mobile phones with special functions.
Description
Technical field
The utility model relates to mobile phone, especially relates to a kind of battery of mobile phone lid.
Background technology
Mobile phone key all can design in the front generally speaking, and general concentrating distributes.The effect of battery cover is mostly just played at the back side of mobile phone, and any button is not set on it.When existing mobile phone will be called, can only transfer to number input back one by one through button.Yet these dial modes are very inconvenient when in particular cases needing to transfer to fast, when transfering to the emergency phone like needs; The number input is not only random time-consuming one by one; Even the whole number that maybe the user has little time to be totally lost, delayed emergency, especially for some special populations; Like blind person, the elderly etc., use especially inconvenient.Therefore; Be necessary on mobile phone, to be provided for realizing the special function keys of function in particular cases, still, existing special function keys all is arranged on the mobile phone front usually; Be easy to generate false touch, and use inconvenient for specific groups such as blind person, the elderlys.
The utility model content
The utility model is easy to generate false touch for the special function keys that solves the prior art mobile phone all is arranged on the mobile phone front usually, and uses inconvenient technical problem for specific groups such as blind person, the elderlys, and a kind of battery of mobile phone lid and mobile phone are provided.
For solving the problems of the technologies described above, the technical scheme that the utility model adopts is a kind of battery of mobile phone lid of design, and said battery of mobile phone covers and is provided with a special function keys.
Said special function keys is provided with the elastic arm that is connected with said battery of mobile phone lid.
Said battery of mobile phone covers and is provided with the hot melt post, and said elastic arm melts with the hot melt post heat of said battery of mobile phone lid and is connected.
Said elastic arm comprises two.
The utility model also provides a kind of mobile phone, and said mobile phone has above-mentioned battery of mobile phone lid.
The utility model is provided with special function keys and realizes specific function through covering at battery of mobile phone, because special function keys is arranged on the back side of mobile phone, therefore, can not produce false touch, and specific groups such as very convenient blind person, the elderly use.
Description of drawings
Below in conjunction with embodiment and accompanying drawing the utility model is elaborated, wherein:

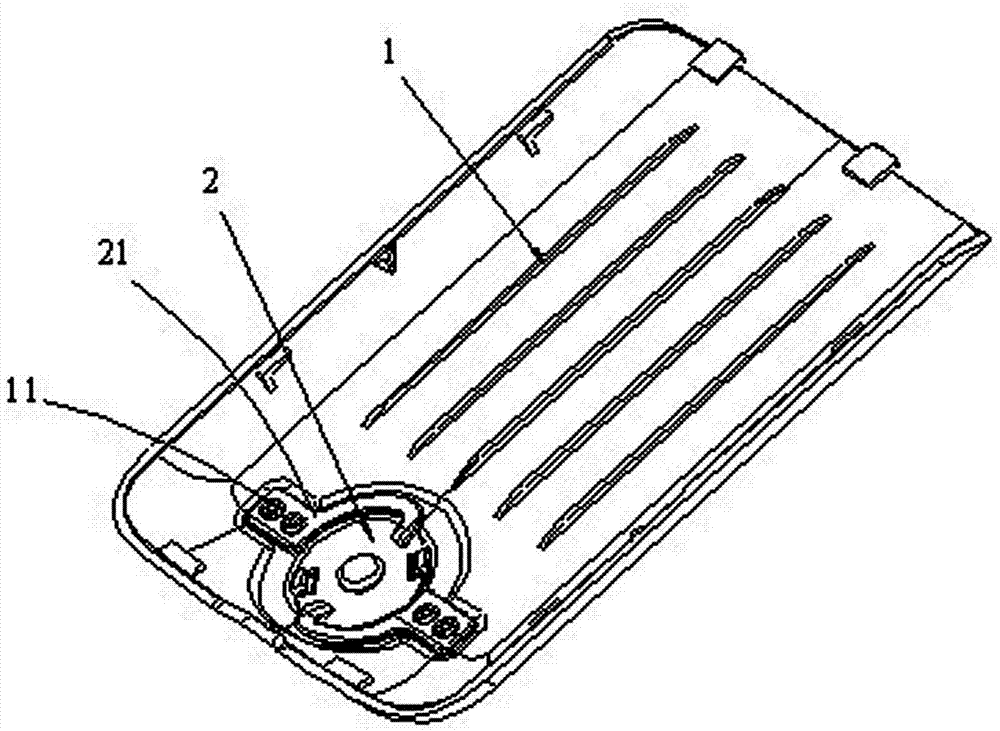

Fig. 1 is the structural representation of the utility model battery of mobile phone lid;
Fig. 2 is another visual angle structural representation of the utility model battery of mobile phone lid.
Embodiment
See also Fig. 1 and Fig. 2.The utility model battery of mobile phone lid 1 is provided with special function keys 2.Special function keys is mainly used in to be pressed realizing specific function under special circumstances, like SOS etc.When the utility model battery of mobile phone lid was applied on the mobile phone, the circuit design of matching with mobile phone mainboard can be defined as various special function keys, and the handled easily person uses.With respect to general mobile phone button is arranged on the front of mobile phone, the utility model covers at battery of mobile phone special function keys is set, and makes special function keys be not easy by false touch, operation more easily, and can also save the positive space of mobile phone.
Battery of mobile phone lid 1 is provided with hot melt post 11.Special function keys 2 is provided with the elastic arm 21 that is connected with said battery of mobile phone lid.Elastic arm 21 melts with hot melt post 11 heat of said battery of mobile phone lid and is connected.In this specific embodiment, said elastic arm comprises two.Button because elastic arm and can be up and down press special function keys and just can realize specific function.
The utility model battery of mobile phone lid can be used for mobile phone, only needs the circuit design of matching with mobile phone mainboard, can realize realizing specific function through pushing special function keys, like SOS etc.
The utility model is provided with special function keys and realizes specific function through covering at battery of mobile phone; Because special function keys is arranged on the back side of mobile phone, therefore, can not produce false touch; Specific groups such as very convenient blind person, the elderly use; Simultaneously, special function keys is arranged on battery of mobile phone and covers, and can also save the positive space of mobile phone.Other buttons of the utility model special function keys and mobile phone separate fully, can bear special function, as send an SOS etc.
The above is merely the preferred embodiment of the utility model; Not in order to restriction the utility model; Any modification of being done within all spirit and principles at the utility model, be equal to replacement and improvement etc., all should be included within the protection range of the utility model.
Claims (5)
1. a battery of mobile phone covers, and it is characterized in that: said battery of mobile phone covers and is provided with a special function keys.
2. battery of mobile phone lid according to claim 1 is characterized in that: said special function keys is provided with the elastic arm that is connected with said battery of mobile phone lid.
3. battery of mobile phone according to claim 1 lid, it is characterized in that: said battery of mobile phone covers and is provided with the hot melt post, and said elastic arm melts with the hot melt post heat that said battery of mobile phone covers and is connected.
4. battery of mobile phone lid according to claim 2, it is characterized in that: said elastic arm comprises two.
5. mobile phone is characterized in that: said mobile phone has each described battery of mobile phone lid of claim 1 to 4.
