Abstract
本实用新型涉及双包缝笼头，包括第一出布套体、第二出布套体、固定板，所述第一出布套体倾斜设置在固定板上，所述第二出布套体倾斜设置在第一出布套体上并固定在固定板上所述第一出布套体的两侧边分别向第一出布套体中心折叠，所述第二出布套体的两侧边分别向第二出布套体中心折叠，所述第一出布套体的进布口与第二出布套体的进布口的横截面均为C形，所述第一出布套体的出布口与第二出布套体的出布口的横截面均为扁平状。沿进布方向所述第一出布套体、第二出布套体均逐渐变窄；本实用新型的优点：通过第一出布套体、第二出布套体分别对不同布料进行出料，使用缝纫机进行双包缝缝纫时可以很容易地将布料折叠同时保证走线的整齐。
The utility model relates to a double overlock halter, comprising a first cloth outlet cover body, a second cloth outlet cover body and a fixing plate, the first cloth outlet cover body is obliquely arranged on the fixing plate, and the second cloth outlet cover body Obliquely arranged on the first cloth outlet body and fixed on the fixed plate, the two sides of the first cloth outlet body are respectively folded toward the center of the first cloth outlet body, and the two sides of the second cloth outlet body The sides are respectively folded towards the center of the second cloth outlet cover body, the cross-sections of the cloth inlet of the first cloth outlet cover body and the cloth inlet of the second cloth outlet cover body are both C-shaped, and the first cloth outlet cover body The cross sections of the cloth outlet of the body and the cloth outlet of the second cloth outlet body are flat. The first cloth outlet cover body and the second cloth outlet cover body are gradually narrowed along the cloth feeding direction; the utility model has the advantages that different cloths are discharged through the first cloth outlet cover body and the second cloth outlet cover body respectively. When using a sewing machine for double overlock sewing, the fabric can be easily folded while keeping the stitches neat.
Description
Technical field
The utility model relates to a kind of double-contracting seam halter.
Background technology
To cloth be alignd on the one hand when using Sewing machines to carry out the sewing of double-contracting seam, will guarantee the neat of cabling on the one hand, be not easy operation and inefficiency like this.
The utility model content
The utility model technical problem to be solved is that Sewing machines carries out double-contracting when sewing seam inefficiency, thereby double-contracting seam halter is provided.
For solving the problems of the technologies described above; The utility model adopts following technical scheme: double-contracting seam halter; Comprise that first goes out cloth body, second and go out cloth body, fixed head; Said first goes out the cloth body is obliquely installed on fixed head; Said second go out the cloth body be obliquely installed first go out on the cloth body and be fixed on fixed head the above first go out the cloth body dual-side to go out cloth body center to first respectively folding, said second go out the cloth body dual-side to go out cloth body center to second respectively folding, said first go out the cloth body fabric input mouth and second cross section that goes out the fabric input mouth of cloth body be C shape; Said first go out the cloth body exit slot and second cross section that goes out the exit slot of cloth body be flat, go out cloth body, second and go out the cloth body and all narrow down gradually along advancing cloth direction said first.
Preferably, said first goes out the cloth body becomes 5 °～25 ° settings with fixed head, help the discrepancy of cloth, and result of use is good, and is simple in structure.
Preferably, said first goes out the cloth body becomes 15 ° of settings with fixed head, go out the best results of cloth.
Preferably, said second goes out cloth body and first goes out the cloth body and becomes 15 °～40 ° settings, helps the discrepancy of cloth, and result of use is good, and is simple in structure.
Preferably, said second goes out cloth body and first goes out the cloth body and becomes 25 ° of settings, goes out the best results of cloth.
Preferably, said fixed head is provided with horizontal bar hole, and is simple in structure, easy to process, easy for installation, and practicality is good.
Preferably, also comprise baffle plate, said baffle plate one end is fixedly connected second and goes out the cloth body, and the said baffle plate other end is fixedly connected on the fixed head, also can be convenient to connect fixing mode through other and fix, and baffle plate is provided with simple and practical, is connected firmly.
Preferably, said first go out the cloth body fabric input mouth and the second fabric input mouth place that goes out the cloth body be equipped with into cloth guide plate, simple in structure, make things convenient for the entering of cloth, easy to use.
The advantage of the utility model goes out cloth body, second through first and goes out the cloth body and respectively different clothes are carried out discharging, can at an easy rate cloth folding be guaranteed the neat of cabling simultaneously when using Sewing machines to carry out the sewing of double-contracting seam.
Description of drawings

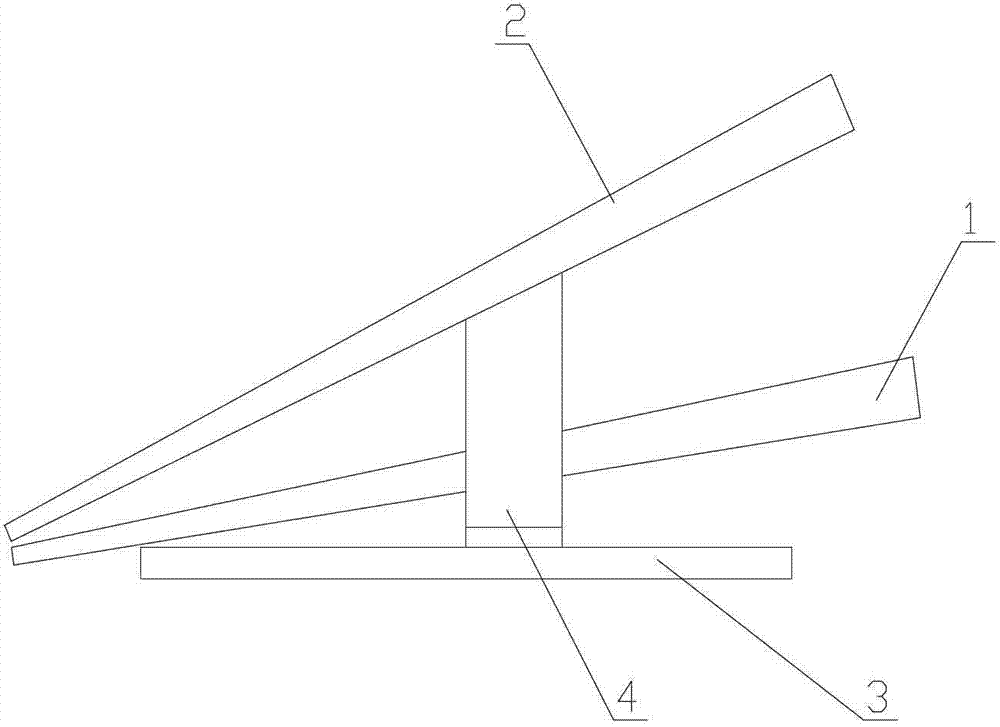

Fig. 1 is the structural representation of the utility model double-contracting seam halter;
Fig. 2 is the vertical view of Fig. 1;
Fig. 3 is the structural representation of the utility model double-contracting seam halter fabric input mouth;
Fig. 4 is the structural representation of the utility model double-contracting seam halter exit slot.
The specific embodiment
Like Fig. 1, Fig. 2, Fig. 3, shown in Figure 4, double-contracting seam halter comprises that first goes out cloth body 1, second and go out cloth body 2, fixed head 3, and said first goes out cloth body 1 is obliquely installed on fixed head 3; Said second goes out cloth body 2 is obliquely installed first to go out on the cloth body 1 and be fixed on the fixed head 3, said first go out cloth body 1 dual-side to go out cloth body 1 center to first respectively folding, said second go out cloth body 2 dual-side to go out cloth body 5 centers to second respectively folding, said first go out cloth body 1 fabric input mouth and second cross section that goes out the fabric input mouth of cloth body 2 be C shape; Said first go out cloth body 1 exit slot and second cross section that goes out the exit slot of cloth body 2 be flat,, go out cloth body 1, second and go out cloth body 2 and all narrow down gradually along advancing cloth direction said first; Said first goes out 3 one-tenth 5 °～25 ° settings of cloth body 1 and fixed head, helps the discrepancy of cloth, and result of use is good; Simple in structure, said first goes out 3 one-tenth 15 ° of settings of cloth body 1 and fixed head, goes out the best results of cloth; Said second goes out cloth body 2 and first goes out 1 one-tenth 15 °～40 ° setting of cloth body, helps the discrepancy of cloth, and result of use is good; Simple in structure, said second goes out cloth body 2 and first goes out 1 one-tenth 25 ° of setting of cloth body, goes out the best results of cloth; Said fixed head 3 is provided with horizontal bar hole 31, and is simple in structure, easy to process; Easy for installation, practicality is good, also comprises baffle plate 4; Said baffle plate 4 one ends are fixedly connected second and go out cloth body 2, and said baffle plate 4 other ends are fixedly connected on the fixed head 3, also can be convenient to connect fixing mode through other and fix; Baffle plate 4 is provided with simple and practical, is connected firmly, said first go out cloth body 1 fabric input mouth and the second fabric input mouth place that goes out cloth body 2 be equipped with into cloth guide plate; Simple in structure, make things convenient for the entering of cloth, easy to use.
During use; Fixed head 3 is fixed on the Sewing machines; With cloth one end pass respectively first go out cloth body 1 fabric input mouth and second go out cloth body 2 fabric input mouth and from first go out cloth body 1 exit slot and second go out cloth body 2 exit slots and pass, when sewing, two clothes go out cloth body 1 and second from first and go out in the cloth body 2 to pass; Be built under the sewing-machine foot and sew, can be at an easy rate with folding the neat of cabling that guarantee simultaneously of cloth.
Go out cloth body, second through first and go out the cloth body and respectively different clothes are carried out discharging, can at an easy rate cloth folding be guaranteed the neat of cabling simultaneously when using Sewing machines to carry out the sewing of double-contracting seam.
Claims (8)
1. halter is stitched in double-contracting; It is characterized in that: comprise that first goes out cloth body (1), second and go out cloth body (2), fixed head (3); Said first goes out cloth body (1) is obliquely installed on fixed head (3); Said second goes out cloth body (2) is obliquely installed to go out cloth body (1) first and go up and be fixed on the fixed head (3); Said first go out cloth body (1) dual-side to go out cloth body (1) center to first respectively folding; Said second go out cloth body (2) dual-side to go out cloth body (5) center to second respectively folding; Said first go out cloth body (1) fabric input mouth and second cross section that goes out the fabric input mouth of cloth body (2) be C shape, said first go out cloth body (1) exit slot and second cross section that goes out the exit slot of cloth body (2) be flat, go out cloth body (1), second and go out cloth body (2) and all narrow down gradually along advancing cloth direction said first.
2. double-contracting seam halter according to claim 1, it is characterized in that: said first goes out cloth body (1) becomes 5 °～25 ° settings with fixed head (3).
3. double-contracting seam halter according to claim 2, it is characterized in that: said first goes out cloth body (1) becomes 15 ° of settings with fixed head (3).
4. double-contracting according to claim 1 seam halter is characterized in that: said second goes out cloth body (2) and first goes out cloth body (1) and becomes 15 °～40 ° settings.
5. double-contracting according to claim 4 seam halter is characterized in that: said second goes out cloth body (2) and first goes out cloth body (1) and becomes 25 ° of settings.
6. double-contracting seam halter according to claim 1, it is characterized in that: said fixed head (3) is provided with horizontal bar hole (31).
7. double-contracting seam halter according to claim 1 is characterized in that: also comprise baffle plate (4), said baffle plate (4) one ends are fixedly connected second and go out cloth body (2), and said baffle plate (4) other end is fixedly connected on the fixed head (3).
8. double-contracting according to claim 1 seam halter is characterized in that: said first go out cloth body (1) fabric input mouth and the second fabric input mouth place that goes out cloth body (2) be equipped with into cloth guide plate.
