CN202626384U - Flax fiber pretreatment device - Google Patents
Flax fiber pretreatment device Download PDFInfo
- Publication number
- CN202626384U CN202626384U CN201220248669.9U CN201220248669U CN202626384U CN 202626384 U CN202626384 U CN 202626384U CN 201220248669 U CN201220248669 U CN 201220248669U CN 202626384 U CN202626384 U CN 202626384U
- Authority
- CN
- China
- Prior art keywords
- brad
- roller
- curtain
- casing
- convoying curtain
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Lifetime
Links
- 239000000835 fiber Substances 0.000 title claims abstract description 27
- 235000004431 Linum usitatissimum Nutrition 0.000 title abstract description 4
- 240000006240 Linum usitatissimum Species 0.000 title 1
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 claims abstract description 4
- 238000007599 discharging Methods 0.000 claims description 8
- 229920000742 Cotton Polymers 0.000 abstract description 6
- 241000208202 Linaceae Species 0.000 abstract description 3
- 238000011031 large-scale manufacturing process Methods 0.000 abstract description 3
- 238000009987 spinning Methods 0.000 description 7
- 238000000034 method Methods 0.000 description 3
- 238000004519 manufacturing process Methods 0.000 description 2
- 239000012752 auxiliary agent Substances 0.000 description 1
- 230000004888 barrier function Effects 0.000 description 1
- 230000002950 deficient Effects 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 239000004744 fabric Substances 0.000 description 1
- 238000002203 pretreatment Methods 0.000 description 1
- 239000002994 raw material Substances 0.000 description 1
- 239000007921 spray Substances 0.000 description 1
- 238000005507 spraying Methods 0.000 description 1
- 239000004753 textile Substances 0.000 description 1
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02W—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO WASTEWATER TREATMENT OR WASTE MANAGEMENT
- Y02W30/00—Technologies for solid waste management
- Y02W30/50—Reuse, recycling or recovery technologies
- Y02W30/66—Disintegrating fibre-containing textile articles to obtain fibres for re-use
Landscapes
- Treatment Of Fiber Materials (AREA)
Abstract
本实用新型提供一种亚麻纤维预处理装置，特征是：包括设有喂料口的箱体、洒水管、收集箱以及安装在箱体内的水平输送帘、角钉输送帘、均棉罗拉和剥取罗拉，其中均棉罗拉和剥取罗拉上均设有耙齿，水平输送帘靠近箱体底部，且承接在喂料口的下方，角钉输送帘倾斜安装在收集箱内，底部位于水平输送帘输出端的前下方，剥取罗拉安装在角钉输送帘上端远离喂料口的一侧，箱体位于剥取罗拉远离喂料口一侧的下方设有出料口，收集箱承接在出料口的下方，均棉罗拉平行靠近角钉输送帘向上运行的一侧，且位于角钉输送帘的中下部，撒水管位于均棉罗拉的上方，出水口对着角钉输送帘向上运行的一侧。本装置结构简单、操作方便、易于规模化生产、工作性能优良。
The utility model provides a flax fiber pretreatment device, which is characterized in that it includes a box body with a feeding port, a sprinkler pipe, a collection box, and a horizontal conveying curtain installed in the box body, a corner nail conveying curtain, a cotton equalizing roller and a stripping machine. The take-off rollers, among which rake teeth are set on the cotton equalizing roller and the stripping roller, the horizontal conveying curtain is close to the bottom of the box body, and it is under the feeding port, the brad conveying curtain is installed obliquely in the collecting box, and the bottom is located in the horizontal conveying Below the output end of the curtain, the stripping roller is installed on the side of the upper end of the brad nail conveying curtain away from the feeding port. The box is located at the bottom of the stripping roller away from the feeding port. Below the opening, the cotton equalizing roller is parallel to the upward running side of the brad nail conveying curtain, and is located in the middle and lower part of the brad nail conveying curtain, the sprinkler is located above the cotton equalizing roller, and the water outlet faces the upward running side of the brad nail conveying curtain side. The device has the advantages of simple structure, convenient operation, easy large-scale production and excellent working performance.
Description
Technical field
The utility model provides a kind of linen fibre pretreatment unit, belongs to technical field of textile machine.
Background technology
Linen fibre is enjoyed the good reputation of " natural fabric queen ", and flax series products more and more receives consumers in general's favor.When linen fibre carries out the dry method spinning on cotton spinning apparatus; Because nothing is curling between the linen fibre, cohesive force is poor, its spinning property is relatively poor, brings certain difficulty for the dry method spinning of flax; So must carry out preliminary treatment such as humidification, softness to linen fibre; Make that linen fibre softly, powerful improves, fibre-fibre friction power strengthens, solve that linen fibre is hard, crisp, elasticity is little and on cotton spinning apparatus, be difficult for the technical barrier of spinning, improve its spinnability.The conventional pretreatment method adopts artificial treatment, and efficient is low, sprinkling is inhomogeneous, fiber pervasion property is poor, and production on-site environment is abominable, is unfavorable for enterprise employee health.
The utility model content
The purpose of the utility model provides and a kind ofly can overcome above-mentioned defective, simple in structure, easy to operate, the linen fibre pretreatment unit that is easy to large-scale production, excellent working performance.Its technical scheme is:
A kind of linen fibre pretreatment unit is characterized in that: comprise casing, sprinkler pipe, motor, the collecting box that is provided with spout and be installed in horizontal feed curtain, brad convoying curtain, evener roller and the stripper roller in the casing, wherein motor-driven brad convoying curtain, evener roller and stripper roller rotate in the same way; Be equipped with rake teeth on evener roller and the stripper roller; The horizontal feed curtain is near bottom half, and is undertaken on the below of spout, and the brad convoying curtain tilts to be installed in the collecting box; The bottom is positioned at the front lower place of horizontal feed curtain output; Stripper roller is installed in the brad convoying curtain upper end side away from spout, and casing is positioned at stripper roller and is provided with discharging opening away from the below of spout one side, and collecting box is undertaken on the below of discharging opening; The parallel side of upwards moving near the brad convoying curtain of evener roller; And be positioned at the middle and lower part of brad convoying curtain, spread the top that water pipe is positioned at evener roller, the side that delivery port upwards moves facing to the brad convoying curtain.
Described linen fibre pretreatment unit, the two ends of evener roller are installed in casing in opposite directions in the horizontal elongated slot on the sidewall through bearing.
Its operation principle is: linen fibre feeds in the casing, falls on the horizontal feed curtain through spout; Then drop on the inclination brad convoying curtain, upwards carried by inclination brad convoying curtain, evener roller is used to control the thickness of linen fibre on inclination brad convoying curtain; Sprinkler pipe aims at linen fibre watering and other auxiliary agent uniformly; Linen fibre is effectively handled, after the linen fibre after spraying is transported to inclination brad convoying curtain top, peeled off by stripper roller; And fall into collecting box along discharging opening, accomplish the preliminary treatment work of linen fibre.
The utility model compared with prior art has following advantage:
1, device structure is simple, easy to operate, and saves between manual work and stockpile emptying, and the production scene sanitation and hygiene are easy to large-scale production.
2, equipment carries out humidification and soft preliminary treatment to linen fibre, and fibrous raw material is handled evenly, and good penetrability can obviously be improved the linen fibre performance, improves its dry method spinning spinnability.
Description of drawings

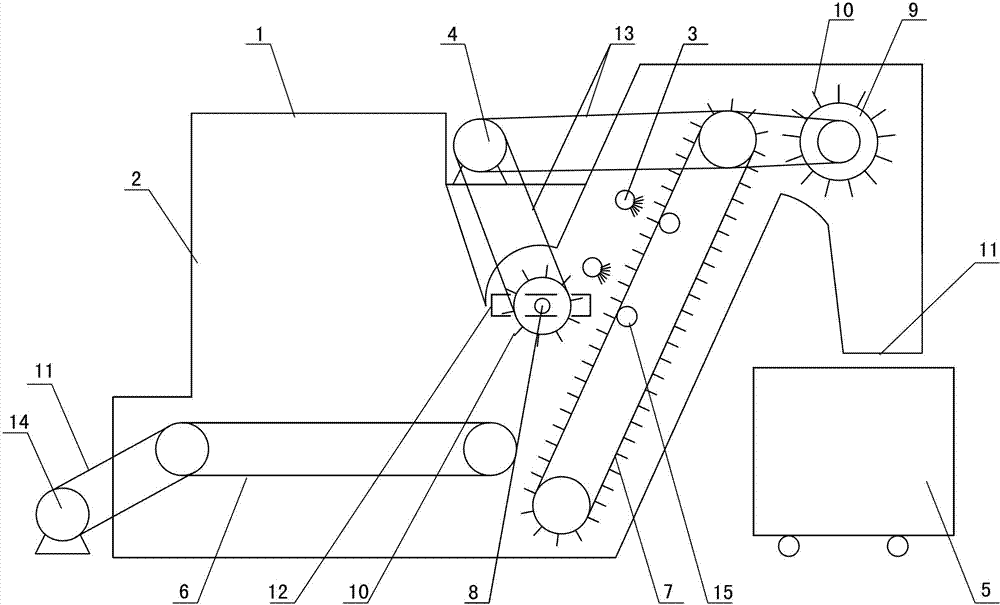

Fig. 1 is the structural representation of the utility model embodiment.
Among the figure: 1, spout 2, casing 3, sprinkler pipe 4, motor 5, collecting box 6, horizontal feed curtain 7, brad convoying curtain 8, evener roller 9, stripper roller 10, rake teeth 11, discharging opening 12, horizontal elongated slot 13, belt 14, motor 15, backing roll
The specific embodiment
In the embodiment shown in fig. 1: casing 2 tops are provided with spout 1; The horizontal feed curtain 6 that is installed in the casing 2 is driven by motor 14; The brad convoying curtain 7, evener roller 8 and the stripper roller 9 that are installed in the casing 2 drive rotation in the same way by motor 4, are equipped with rake teeth 10 on evener roller 8 and the stripper roller 9; Horizontal feed curtain 6 is near casing 2 bottoms, and is undertaken on the below of spout 1, and brad convoying curtain 7 tilts to be installed in the collecting box 5, and the bottom is positioned at the front lower place of horizontal feed curtain 6 outputs; Stripper roller 9 is installed in the side of brad convoying curtain 7 upper ends away from spout 1, and casing 2 is positioned at stripper roller 9 and is provided with discharging opening 11 away from the below of spout 1 one sides, and collecting box 5 is undertaken on the below of discharging opening 11; Evener roller 8 parallel sides of upwards moving near brad convoying curtain 7; And be positioned at the middle and lower part of brad convoying curtain 7; The two ends of evener roller 8 are installed in casing 2 in opposite directions in the horizontal elongated slot 12 on the sidewall through bearing; Be convenient to regulate the distance between evener roller 8 and the brad convoying curtain 7, and then regulate the thickness of linen fibre; Spread water pipe 3 and be positioned at the top of evener roller 8, delivery port is facing to brad convoying curtain 7 side of operation upwards, and the linen fibre that is used on brad convoying curtain 7 sprays.
Claims (2)
1. linen fibre pretreatment unit; It is characterized in that: comprise casing (2), sprinkler pipe (3), motor (4), the collecting box (5) that is provided with spout (1) and be installed in horizontal feed curtain (6), brad convoying curtain (7), evener roller (8) and the stripper roller (9) in the casing (2); Wherein motor (4) driving brad convoying curtain (7), evener roller (8) and stripper roller (9) rotate in the same way; Be equipped with rake teeth (10) on evener roller (8) and the stripper roller (9); Horizontal feed curtain (6) is near casing (2) bottom, and is undertaken on the below of spout (1), and brad convoying curtain (7) tilts to be installed in the collecting box (5); The bottom is positioned at the front lower place of horizontal feed curtain (6) output; Stripper roller (9) is installed in brad convoying curtain (7) the upper end side away from spout (1), and casing (2) is positioned at stripper roller (9) and is provided with discharging opening (11) away from the below of spout (1) one side, and collecting box (5) is undertaken on the below of discharging opening (11); The parallel side of upwards moving near brad convoying curtain (7) of evener roller (8); And be positioned at the middle and lower part of brad convoying curtain (7), spread the top that water pipe (3) is positioned at evener roller (8), the side that delivery port upwards moves facing to brad convoying curtain (7).
2. linen fibre pretreatment unit according to claim 1 is characterized in that: the two ends of evener roller (8) are installed in casing (2) in opposite directions in the horizontal elongated slot (12) on the sidewall through bearing.
