Abstract

The utility model provides an automobile interior decoration mounting bracket, which belongs to the technical field of automobiles. The utility model solves the technical problems of cumbersome installation process and high installation cost when the existing automobile interior decoration mounting bracket is used to install the automobile interior decoration panel. The automobile interior decoration mounting bracket comprises a strip-shaped plate, and the two ends of the strip-shaped plate are respectively bent to the same side to form a connecting plate, and the described strip-shaped plate is fixed on the vehicle body through the above-mentioned connecting plate. Several mounting holes for connecting trim panels are also provided. The utility model has the advantages of convenient installation of interior panels, low installation cost and the like.

Description

A car interior mounting bracket

technical field

The utility model belongs to the technical field of automobiles and relates to an automobile interior decoration mounting bracket.

Background technique

With the development of science and technology and the improvement of people's living standards, cars have entered thousands of households and become the most important means of transportation for people's daily travel. In addition to power, economy and safety, people's requirements for automobile performance are also higher and higher for comfort.

The automotive interior system is an important part of the car body. The interior design of the car is one of the most critical factors affecting the comfort of the car. Compared with the appearance, because the interior design involves a relatively large number of components, the current automobile production In the process, it takes a long time for the design of the interior and the installation of the interior parts, which greatly restricts the improvement of production efficiency. Therefore, how to improve the installation process of automobile interiors to reduce installation costs and improve the installation efficiency of automobile interiors has become an issue of increasing concern to automobile manufacturers.

Usually the interior trim panels of automobiles are installed on the automobile body through the interior trim mounting brackets. The interior trim mounting brackets used in automobiles are shown in Figure 1. The mounting part 7 is welded and fixed on the automobile body 3, and an interior trim panel mounting hole is provided on the sheet metal mounting part 7, and the automotive interior trim panel is snapped into the mounting hole by a buckle 8 to fix it on the sheet metal mounting part 7 superior. This interior decoration mounting bracket has a characteristic, that is, a single interior decoration panel mounting hole corresponds to a single sheet metal mounting part 7, resulting in that one interior decoration installation panel needs many interior decoration installation brackets to be fixed, and this installation method will increase more More molds, more production processes, not only wasting production time, but also greatly increasing costs.

Contents of the invention

The purpose of the utility model is to solve the above-mentioned problems in the prior art, and propose an automobile interior decoration mounting bracket which is convenient for the installation of the automobile interior trim panel and has low installation cost.

The purpose of the utility model can be achieved through the following technical solutions: a mounting bracket for automobile interior decoration, including a strip-shaped plate, the two ends of the strip-shaped plate are respectively bent to the same side to form a connecting plate, and the described strip-shaped plate passes through The above-mentioned connecting plate is fixed on the vehicle body, and several mounting holes for connecting the trim panels are also provided on the strip plate.

The interior trim panel of the automobile is fastened in the installation hole by snap-fitting to fix the interior trim panel on the strip plate. Since the interior decoration installation bracket has multiple installation holes on a strip plate, the number of assembly parts can be greatly reduced when the automobile interior decoration panel is installed, the installation process becomes convenient, and the overall vehicle performance is greatly improved. assembly efficiency. In addition, the interior decoration mounting bracket has a simple structure and can be molded at one time, which not only improves the production efficiency, but also greatly reduces the cost.

In the above-mentioned installation bracket for automobile interior decoration, the installation holes are arranged on the above-mentioned strip plate at intervals along the length direction of the strip plate.

In the above-mentioned installation bracket for automobile interior decoration, the strip plate is fixed on the vehicle body by welding the connecting plate and the vehicle body.

In the above-mentioned installation bracket for automobile interior decoration, there are several convex plates connected and positioned with the vehicle body on one long side edge of the strip-shaped plate. The convex plate fixes the strip plate on the car body from the middle of the strip plate, which can further increase the fixing effect of the strip plate, thereby also making the installation of the interior trim panel more firm.

In the above-mentioned installation bracket for automobile interior decoration, there are two convex plates, and the convex plates are distributed at intervals.

In the above-mentioned installation bracket for automobile interior decoration, the convex plate is welded and fixed on the vehicle body.

In the above-mentioned installation bracket for automobile interior decoration, several reinforcing ribs are also provided on the strip plate along the length direction of the strip plate. Ribs ensure sufficient mechanical strength of the strip panels.

In the above-mentioned installation bracket for automobile interior decoration, the reinforcing rib is a strip-shaped reinforcing rib, and the reinforcing rib is placed along the length direction of the strip plate.

In the above-mentioned installation bracket for automobile interior decoration, there are four reinforcing ribs, two of which are respectively located on the connecting plates at the two ends of the strip-shaped plate. A reinforcing rib is provided on the connecting plate to ensure that the strip plate will not be compressed and deformed during the installation of the interior trim panel.

In the above-mentioned installation bracket for automobile interior decoration, the strip plate is a sheet metal part.

Compared with the prior art, the automotive interior mounting bracket has the following advantages:

1. Since one mounting bracket of the automobile interior decoration mounting bracket corresponds to multiple mounting holes, the number of assembly parts can be greatly reduced during the installation of the automobile interior decoration panel, the installation process becomes convenient, and the assembly efficiency of the whole vehicle is greatly improved. .

2. The automobile interior decoration mounting bracket has a simple structure, can be molded at one time, and has low production cost.

3. The car interior mounting bracket is provided with reinforcing ribs, so it has sufficient mechanical strength, reliability and durability.

Description of drawings

Fig. 1 is a three-dimensional structural schematic diagram of an existing automotive interior mounting bracket.

FIG. 2 is a schematic diagram of the assembly structure of the automotive interior mounting bracket.

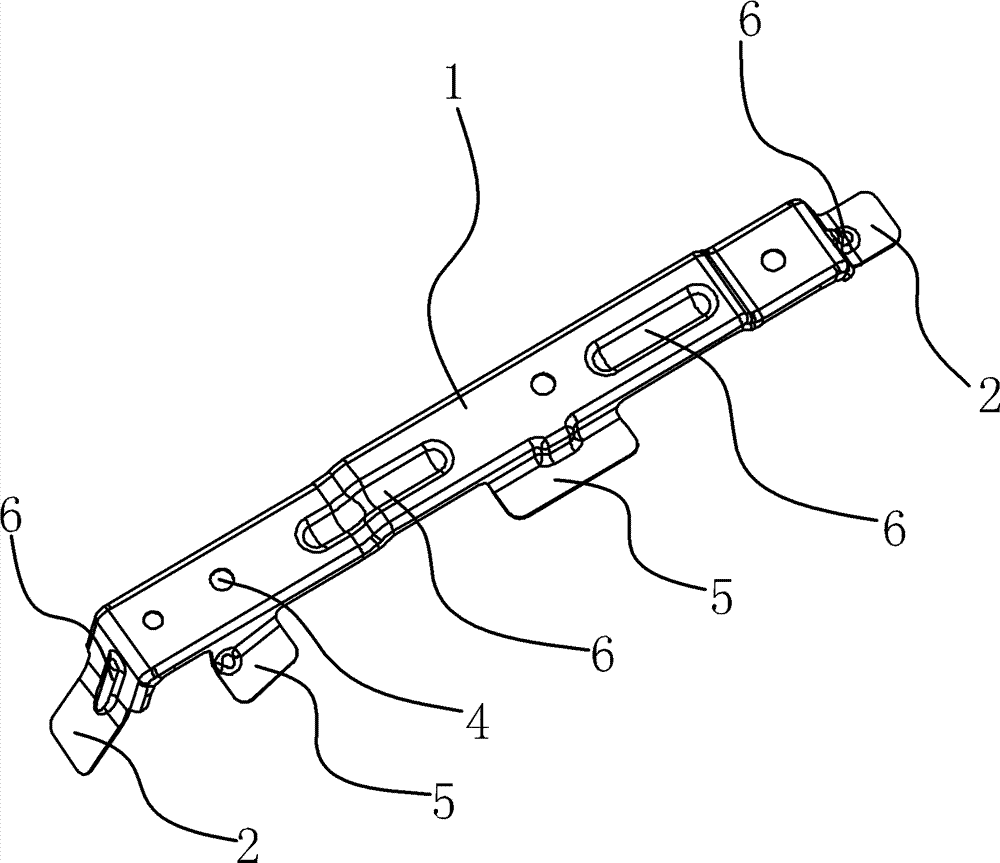

Fig. 3 is a three-dimensional structural schematic diagram of the mounting bracket for the automobile interior decoration.

Fig. 4 is a top view structural diagram of the automotive interior mounting bracket.

In the figure, 1. Strip plate; 2. Connecting plate; 3. Body; 4. Mounting hole; 5. Convex plate; 6. Reinforcing rib; 7. Sheet metal mounting part;

Detailed ways

The following are specific embodiments of the utility model and in conjunction with the accompanying drawings, the technical solution of the utility model is further described, but the utility model is not limited to these embodiments.

As shown in Figure 2, the automotive interior mounting bracket is installed on the automobile body 3, which includes a strip plate 1, which is a sheet metal part, and the two ends of the strip plate 1 are respectively bent to the same side to form a The connecting plate 2, the strip plate 1 is fixed on the vehicle body 3 by welding the connecting plate 2 and the vehicle body 3. A plurality of installation holes 4 for connecting interior trim panels are also opened on the strip plate 1 , and the installation holes 4 are arranged on the strip plate 1 at intervals along the length direction of the strip plate 1 . The trim panel is fastened in the mounting hole 4 through the buckle 8 and fixed on the strip plate 1. The buckle 8 can be directly purchased in the market, and the number of the mounting holes 4 can be set according to different trim panels.

In order to make the fixing of the strip plate 1 more firm, as shown in Figure 3 and Figure 4, there are also several convex plates 5 connected and positioned with the vehicle body 3 on one long side edge of the strip plate 1, as preferably, the convex plate 5 is provided with two and the convex plate 5 is distributed at intervals, and the convex plate 5 is welded and fixed on the vehicle body 3 .

In order to ensure that the strip plate 1 has sufficient mechanical strength and improve the reliability and durability of the strip plate 1, several elongated reinforcing ribs 6 are also provided on the strip plate 1 along the length direction of the strip plate 1 , and the reinforcing rib 6 is placed along the length direction of the strip plate 1 . Preferably, there are four reinforcing ribs 6 , two of which are respectively located on the connecting plates 2 at both ends of the strip plate 1 .

The specific embodiments described herein are only examples to illustrate the spirit of the present invention. Those skilled in the technical field to which the utility model belongs can make various modifications or supplements to the described specific embodiments or adopt similar methods to replace them, but they will not deviate from the spirit of the utility model or go beyond the appended claims defined range.

Although terms such as strip plate 1 , connecting plate 2 , vehicle body 3 , mounting hole 4 , convex plate 5 , and reinforcing rib 6 are frequently used in this paper, the possibility of using other terms is not excluded. These terms are only used to describe and explain the essence of the utility model more conveniently; interpreting them as any kind of additional limitation is contrary to the spirit of the utility model.

Claims (10)

1. automotive trim mounting bracket; Comprise a stripe board (1); It is characterized in that; The two ends of said stripe board (1) are bent to form connecting panel (2) to the same side respectively, and described stripe board (1) is fixed on the vehicle body (3) through above-mentioned connecting panel (2), on stripe board (1), also offer several mounting holes that is used to connect trim panel (4).

2. automotive trim mounting bracket according to claim 1 is characterized in that, described mounting hole (4) is spaced on above-mentioned stripe board (1) along the length direction of stripe board (1).

3. automotive trim mounting bracket according to claim 1 is characterized in that, described stripe board (1) is fixed on the vehicle body (3) through connecting panel (2) and vehicle body (3) welding.

4. according to claim 1 or 2 or 3 described automotive trim mounting brackets, it is characterized in that having several are connected the location with vehicle body (3) flange (5) on the edge, a long limit of said stripe board (1).

5. automotive trim mounting bracket according to claim 4 is characterized in that, described flange (5) is provided with two, and this flange (5) is spaced apart.

6. automotive trim mounting bracket according to claim 5 is characterized in that, described flange (5) is weldingly fixed on the vehicle body (3).

7. according to claim 1 or 2 or 3 described automotive trim mounting brackets, it is characterized in that, also be provided with several reinforced ribs (6) at the length direction of stripe board (1) upper edge stripe board (1).

8. automotive trim mounting bracket according to claim 7 is characterized in that, described reinforced rib (6) is the reinforced rib (6) of a strip, and described reinforced rib (6) is placed along the length direction of stripe board (1).

9. automotive trim mounting bracket according to claim 8 is characterized in that, the quantity of described reinforced rib (6) has four, and wherein two reinforced ribs (6) lay respectively on the connecting panel (2) at above-mentioned stripe board (1) two ends.

10. according to claim 1 or 2 or 3 described automotive trim mounting brackets, it is characterized in that described stripe board (1) is a sheet metal component.
