The utility model discloses a floor mopping device capable of being used for cleaning automatically. The floor mopping device capable of being used for cleaning automatically is characterized by comprising a car body. Wheels are arranged at the bottom of the car body, a first motor is in linkage with the wheels, a floor mopping roller is arranged in front of the car body, the floor mopping roller is connected with a rotating shaft of a support frame, the rotating shaft of the support frame is mounted on the car body, a second motor is in linkage with the rotating shaft of the support frame, a limiting rod is fixedly arranged on the car body on the inner side of the rotating shaft of the support frame, the distance between the limiting rod and the rotating shaft of the support frame is shorter than the distance between the rotating shaft of the support frame and the floor mopping roller, a clean water basin is arranged on the top of the car body, and a spray nozzle is connected with the clean water basin. A water source controller is mounted on the car body, and a cleaning brush wheel is arranged below the spray nozzle. A third motor is in linkage with the cleaning brush wheel, the distance between the cleaning brush wheel and the rotating shaft of the support frame is equal to or shorter than the distance between the rotating shaft of the support frame and the floor mopping roller. The floor mopping device capable of being used for cleaning automatically can be applied in airports, railway stations and other public places for cleaning, and has the advantages of being high in work efficiency, automatic in cleaning and the like.
Description
Technical field:
The utility model relates to a kind of mop of automated cleaning, belongs to the floor-cleaning machinery technical field that has swabbing action to come draw dirty liquid.
Background technology:
When most of families or public place mop floor to floor cleaning; What adopt is conventional flat mop or roller mop; Though and some machine operating efficiencies that mop floor are fast; Yet the same with common mop, needing just to reuse the loaded down with trivial details and waste water source of whole process behind artificial flushing, the extruding effluent sewerage after the use.
Have based on this, the applicant makes the utility model.
The utility model content:
It is high that the purpose of the utility model provides a kind of cleaning efficiency, can clean automatically, extract, and can realize the collection and the filtration of waste water, the mop of the automated cleaning of the recycle of realization water.
The technical scheme of taking for the above-mentioned purpose that realizes the utility model is following:
A kind of mop of automated cleaning is characterized in that: comprise car body, wheel is installed on the bottom of car body; First motor and wheel are connected, and the roller that mops floor is arranged at the place ahead of car body, and the roller that mops floor links to each other with the bracing frame rotating shaft; The bracing frame rotating shaft is installed on the car body, and second motor and bracing frame rotating shaft are connected, and gag lever post is fixedly set on the inboard car body of bracing frame rotating shaft; Less than the distance of bracing frame rotating shaft to the roller that mops floor, the top of car body is provided with clear water reserviors to gag lever post to the distance of bracing frame rotating shaft, and shower nozzle links to each other with clear water reserviors; The water source controller is installed on the car body; Below shower nozzle, be provided with cleaning brush wheel, the 3rd motor and cleaning brush wheel are connected, and cleaning brush wheel is equal to or less than the distance of bracing frame rotating shaft to the roller that mops floor to the distance of bracing frame rotating shaft.
Further be provided with and be:
Below cleaning brush wheel, be provided with wastewater disposal basin, wastewater disposal basin is arranged on the bottom of car body, in the bottom of wastewater disposal basin filter screen is installed.
The two ends of bracing frame rotating shaft are installed with the first roller bracing frame and the second roller bracing frame respectively, and the other end of the first roller bracing frame and the second roller bracing frame is installed in the both sides of the roller that mops floor respectively.
When cleaning mopped floor roller, the roller that mops floor rotated and bears against on the gag lever post through the first roller bracing frame and the second roller bracing frame, and cleaning brush wheel contacts with the roller that mops floor.
The roller that mops floor comprises the axis of rolling; The axis of rolling outside coats the cleaning sponge sleeve is installed, and is matched in clearance between roller shaft and the cleaning sponge sleeve, is provided with shoulder hole in the axis of rolling; First rotating shaft, the 4th motor, second rotating shaft are installed in the shoulder hole of the axis of rolling; For being fixedly connected to form back shaft, an end of first rotating shaft is installed on the first roller support bar between first rotating shaft, the 4th motor, second rotating shaft, and an end of second rotating shaft is installed on the second roller support bar through spring bearing; Be separately installed with unilateral bearing and bearing at the two ends of the axis of rolling; Unilateral bearing is fixedly mounted on the axis of rolling, and bearing is connected with the 4th motor linkage through electronic coupling bearing, and unilateral bearing all is fixedly connected with the cleaning sponge sleeve with bearing.
Compared with prior art, the beneficial effect of the utility model is following:
1, cleaning efficiency is high.Clear water reserviors, shower nozzle and cleaning brush wheel are set in the car body, through second motor and bracing frame rotating shaft, can regulate the position of the roller that mops floor, automatic replacement with cleaning realizes mopping floor.
2, the mop volume is little, and is easy to use.As cleaning mop, then to wringing out after cleaning, it is less to take up room, and need not manually carry out, convenient and swift for unilateral bearing and bearing at the outside cleaning sponge sleeve of installing of the axis of rolling of the roller that mops floor.
3, economize on resources, can realize the recycle of water.Be provided with wastewater disposal basin and filter screen in the car body bottom, the waste water after cleaning is collected and filtered, through the water source controller, the water after the processing can be used for cleaning mop once more, and the cleannes requirement to water in yet can be used for living is not very high field.
4, simple in structure, easy to maintenance.Adopt bearing arrangement, the first roller bracing frame, the second roller bracing frame are installed with the roller that mops floor be connected, the parts handling ease is installed also simple.
Description of drawings:

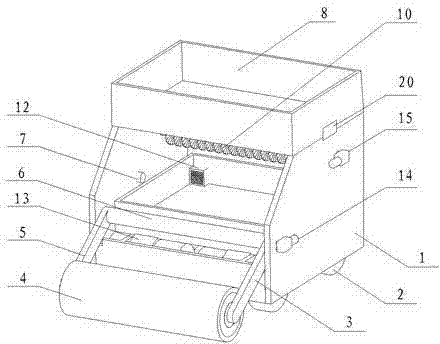

Fig. 1 is the structural representation of a kind of embodiment of the mop of a kind of automated cleaning of the utility model;
Fig. 2 is the side view of a kind of embodiment of the mop of a kind of automated cleaning of the utility model when working;
Fig. 2 is that a kind of embodiment of the mop of a kind of automated cleaning of the utility model cleans the side view when mopping floor roller with water;
Fig. 4 is the mop floor structural representation of a kind of embodiment of roller of the utility model.
Label among the figure: 1, car body; 2, wheel; 3, the first roller bracing frame; 4, the roller that mops floor; 5, the second roller bracing frame; 6, bracing frame rotating shaft; 7, gag lever post; 8, clear water reserviors; 9, shower nozzle; 10, cleaning brush wheel; 11, wastewater disposal basin; 12, filter screen; 13, first motor; 14, second motor; 15, the 3rd motor; 16, the 4th motor; 17, first rotating shaft; 18, second rotating shaft; 19, spring bearing; 20, water source controller; 21, the axis of rolling; 22, cleaning sponge sleeve; 23, unilateral bearing; 24, bearing; 25, electronic connection bearing.
The specific embodiment:
Like Fig. 1, Fig. 2 and shown in Figure 3, the mop of a kind of automated cleaning of the utility model comprises car body 1; Wheel 2 is installed on the bottom of car body 1, and first motor 13 is connected with wheel 2, is used to control advancing of car body; The roller 4 that mops floor is arranged at the place ahead of car body 1, and the roller 4 that mops floor links to each other with bracing frame rotating shaft 6, and bracing frame rotating shaft 6 is installed on the car body 1; Second motor 14 is connected with bracing frame rotating shaft 6, and the roller 4 that mops floor rotates with bracing frame rotating shaft 6, in the present embodiment; The other end that the two ends of bracing frame rotating shaft 6 are installed with the first roller bracing frame 3 and the second roller bracing frame, 5, the first roller bracing frames 3 and the second roller bracing frame 5 respectively is installed in the both sides of the roller 4 that mops floor respectively, and gag lever post 7 is fixedly set on the inboard car body 1 of bracing frame rotating shaft 6; Gag lever post 7 to the distance of bracing frame rotating shaft 6 less than bracing frame rotating shaft 6 to the distance of roller 4 that mops floor, thereby make when mopping floor roller 4 rotations, the first roller bracing frame 3 and the second roller bracing frame 5 bear against on the gag lever post 7; The top of car body 1 is provided with clear water reserviors 8, and shower nozzle 9 links to each other with clear water reserviors 8, and water source controller 20 is installed on the car body 1; Be used to control the unlatching of shower nozzle 9 or close, below shower nozzle 9, be provided with cleaning brush wheel 10, the three motors 15 and be connected with cleaning brush wheel 10; Cleaning brush wheel 10 is equal to or slightly less than the distance of bracing frame rotating shaft 6 to the roller 4 that mops floor to the distance of bracing frame rotating shaft 6; Thereby the roller 4 that guarantees to mop floor bears against 7 last times of gag lever post, and cleaning brush wheel 10 contacts with the roller 4 that mops floor, and the below of cleaning brush wheel 10 is provided with wastewater disposal basin 11; Wastewater disposal basin 11 is arranged on the bottom of car body 1, in the bottom of wastewater disposal basin 11 filter screen 12 is installed.
In conjunction with shown in Figure 4; The roller 4 that mops floor comprises the axis of rolling 41, and the axis of rolling 41 outsides coat cleaning sponge sleeve 42 is installed, and are matched in clearance between roller shaft 41 and the cleaning sponge sleeve 42; Be provided with shoulder hole in the axis of rolling 41; First rotating shaft 17, the 4th motor 16, second rotating shaft 18 are installed in the shoulder hole of the axis of rolling 41, and for being fixedly connected to form back shaft, the axis of rolling 41 can rotate around the back shaft that first rotating shaft 17, the 4th motor 16 and second rotating shaft 18 are formed between first rotating shaft 17, the 4th motor 16, second rotating shaft 18; One end of first rotating shaft 17 is installed on the first roller support bar 3; One end of second rotating shaft 18 is installed on the second roller support bar 5 through spring bearing 19, is separately installed with unilateral bearing 43 and bearing 44 at the two ends of the axis of rolling 41, and unilateral bearing 44 is fixedly mounted on the axis of rolling 41; Bearing 44 is connected through electronic coupling bearing 45 and the 4th motor 16, and unilateral bearing 43 all is fixedly connected with cleaning sponge sleeve 42 with bearing 44.
The operation principle of the utility model is following:
1, cleaning floor: like Fig. 1, shown in Figure 3, under the driving of second motor 14, bracing frame rotating shaft 6 is rotated counterclockwise; Through the first roller support bar 3 and the second roller support bar 5, roller 4 rotations that mop floor that link, the roller 4 that mops floor rotates to the place ahead of car body 1; And contact with ground; Under the driving of first motor 13, wheel 2 drives car body 1 and advances, and begins to carry out floor cleaning work then.
2, clean the roller that mops floor: after the ground cleaning is accomplished, when the roller 4 that mops floor needs cleaning, in conjunction with Fig. 2 and shown in Figure 4; Second motor 14 drives bracing frame rotating shafts 6 and turns clockwise, and through the first roller bracing frame 3 and the second roller bracing frame 5, the roller 4 that mops floor of linking turns clockwise; When the roller 4 that mops floor rotated to an angle, two roller bracing frames contacted and bear against on the gag lever post 7 with gag lever post 7, and the roller 4 that mops floor this moment contacts with cleaning brush wheel 10; At this moment, open water source controller 20, the clear water in the clear water reserviors 8 sprays on the cleaning brush wheel 10 of shower nozzle 9 belows through shower nozzle 9; The 3rd motor 15 starts; Drive cleaning brush wheel 10 and clockwise rotate, in the effect of cleaning brush wheel 10, the roller 4 that mops floor rotates counterclockwise; The axis of rolling 41 drives cleaning sponge sleeve 42 and is rotated counterclockwise together, and 10 pairs of cleaning sponge sleeves 42 of cleaning brush wheel are scrubbed; Scrub and finish, close water source controller 20 and the 3rd motor 15.After cleaning sponge sleeve 42 was cleaned totally, the 4th motor 16 started, and drove bearings 44 through electronic connection bearing 45 and turned clockwise; Linkage cleaning sponge sleeve 42 turns clockwise with bearing 44; Because the unilateral bearing that is connected with cleaning sponge sleeve 42 of the axis of rolling 41 other ends does not rotate (only when cleaning floor, rotating) 43 this moments, thus an end cleaning sponge sleeve 42 that is fixedly connected with unilateral bearing 43 do not rotate, therefore; Rotation along with the 4th motor 16; Cleaning sponge sleeve 42 is slowly wrung out, and the waste water of cleaning is collected by the wastewater disposal basin 11 of below with the waste water of wringing out, and filters the back through filter screen 12 and discharge.
3, periodic duty: after cleaning sponge sleeve 42 is wrung out; Second motor 14 drives 6 rotations of bracing frame rotating shaft; And through the first roller bracing frame 3 and the second roller bracing frame 5, the roller 4 that mops floor being rotated to the place ahead of car body 1, the cleaning of carrying out next round circulates.
Claims (5)
1. the mop of an automated cleaning, it is characterized in that: comprise car body, wheel is installed on the bottom of car body; First motor and wheel are connected, and the roller that mops floor is arranged at the place ahead of car body, and the roller that mops floor links to each other with the bracing frame rotating shaft; The bracing frame rotating shaft is installed on the car body, and second motor and bracing frame rotating shaft are connected, and gag lever post is fixedly set on the inboard car body of bracing frame rotating shaft; Less than the distance of bracing frame rotating shaft to the roller that mops floor, the top of car body is provided with clear water reserviors to gag lever post to the distance of bracing frame rotating shaft, and shower nozzle links to each other with clear water reserviors; The water source controller is installed on the car body; Below shower nozzle, be provided with cleaning brush wheel, the 3rd motor and cleaning brush wheel are connected, and cleaning brush wheel is equal to or less than the distance of bracing frame rotating shaft to the roller that mops floor to the distance of bracing frame rotating shaft.
2. the mop of a kind of automated cleaning according to claim 1, it is characterized in that: below cleaning brush wheel, be provided with wastewater disposal basin, wastewater disposal basin is arranged on the bottom of car body, in the bottom of wastewater disposal basin filter screen is installed.
3. the mop of a kind of automated cleaning according to claim 1; It is characterized in that: the two ends of bracing frame rotating shaft are installed with the first roller bracing frame and the second roller bracing frame respectively, and the other end of the first roller bracing frame and the second roller bracing frame is installed in the both sides of the roller that mops floor respectively.
4. the mop of a kind of automated cleaning according to claim 3; It is characterized in that: when cleaning mops floor roller; The roller that mops floor rotates and bears against on the gag lever post through the first roller bracing frame and the second roller bracing frame, and cleaning brush wheel contacts with the roller that mops floor.
5. according to the mop of claim 1 or 2 or 3 described a kind of automated cleanings; It is characterized in that: the roller that mops floor comprises the axis of rolling; The axis of rolling outside coats the cleaning sponge sleeve is installed, and is matched in clearance between roller shaft and the cleaning sponge sleeve, is provided with shoulder hole in the axis of rolling; First rotating shaft, the 4th motor, second rotating shaft are installed in the shoulder hole of the axis of rolling; For being fixedly connected to form back shaft, an end of first rotating shaft is installed on the first roller support bar between first rotating shaft, the 4th motor, second rotating shaft, and an end of second rotating shaft is installed on the second roller support bar through spring bearing; Be separately installed with unilateral bearing and bearing at the two ends of the axis of rolling; Unilateral bearing is fixedly mounted on the axis of rolling, and bearing is connected with the 4th motor linkage through electronic coupling bearing, and unilateral bearing all is fixedly connected with the cleaning sponge sleeve with bearing.
