Abstract

The utility model relates to lighting equipment, in particular to a wind-solar complementary street lamp. It includes a solar power generation device, a wind power generation device, a current converter, a storage battery, a lamp stand, and a lamp. There are two sets of the wind power generation device, the impeller shaft of one set of wind power generation device is parallel The impeller shaft is perpendicular to the horizontal plane. The wind-solar complementary street lamp of the utility model adopts two sets of wind energy generating devices, and through two arrangement modes of vertical and horizontal, the utilization rate of wind energy is effectively improved, and it is especially suitable for use in areas with insufficient sunlight.

Description

Wind-solar hybrid street light

technical field

The utility model relates to lighting equipment, in particular to a wind-solar complementary street lamp.

Background technique

At present, due to the characteristics of energy saving and environmental protection, wind-solar hybrid street lamps are being widely promoted. However, because the existing wind-solar hybrid street lamps only use a set of wind power generation devices, the use of wind energy is insufficient. In areas where the sun is not strong, they are often used As a result, the battery is short of power and cannot be illuminated.

Utility model content

The purpose of the utility model is to provide a wind-solar complementary street lamp which can utilize wind energy more effectively.

The purpose of this utility model is achieved through the following approaches: a wind-solar hybrid street lamp, which includes a solar power generation device, a wind power generation device, a current converter, a storage battery, a lamp holder, and a lamp. The wind power generation device has two sets, one The impeller axis of one set of wind energy generating device is parallel to the horizontal plane, and the impeller axis of the other set of wind energy generating device is perpendicular to the horizontal plane.

As a further preferred solution, the tail of the wind energy generating device whose impeller axis is parallel to the horizontal plane is equipped with a rudder.

As a further preferred solution, the wind power generation device has 1-5 impellers.

As a further preferred solution, the lamp is an LED lamp.

The wind-solar complementary street lamp of the utility model adopts two sets of wind energy generating devices, and through two arrangement modes of vertical and horizontal, the utilization rate of wind energy is effectively improved, and it is especially suitable for use in areas with insufficient sunlight.

Description of drawings

Below in conjunction with accompanying drawing, the utility model is described in further detail:

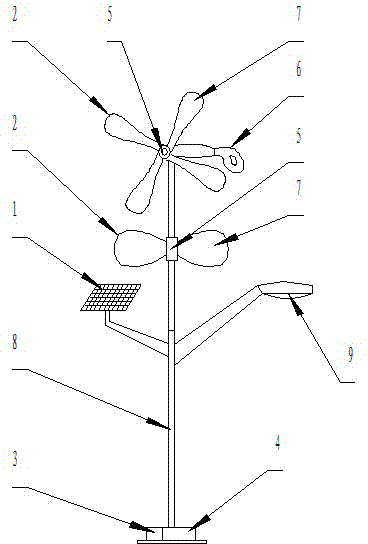

Fig. 1 is a structural representation of the utility model;

In the figure, a solar power generation device 1 , a wind power generation device 2 , a current converter 3 , a storage battery 4 , an impeller shaft 5 , a rudder 6 , an impeller 7 , a lamp holder 8 , and a lamp 9 .

Detailed ways

As shown in Figure 1, the wind-solar complementary street lamp of the present utility model comprises a solar power generating device 1, a wind power generating device 2, a current converter 3, and a storage battery 4. There are two sets of the wind power generating device 2, and a set of wind power generating device 2 The impeller shaft 5 of one set is parallel to the horizontal plane, and the impeller shaft 5 of the other set of wind energy generating device 2 is perpendicular to the horizontal plane. When working, the two sets of wind energy generating devices 2 charge the storage battery 4 through the current converter 3 at the same time.

The tail of the wind energy generating device 2 whose impeller axis 5 is parallel to the horizontal plane is equipped with a rudder 6, which improves the sensitivity of the wind energy generating device 2 to the wind direction, thereby making full use of wind energy.

The impeller 7 of the wind energy generating device 2 has 1-5 pieces.

The lamp 9 is an LED lamp.

Claims (4)

1. wind and light complementary road lamp; It comprises device of solar generating (1), wind electricity generating system (2), current converter (3), battery (4), lamp bracket (8), light fixture (9); It is characterized in that: described wind electricity generating system (2) has two covers; The impeller shaft (5) of one cover wind electricity generating system (2) is parallel to horizontal plane, and the impeller shaft (5) of another set of wind electricity generating system (2) is perpendicular to horizontal plane.

2. wind and light complementary road lamp as claimed in claim 1 is characterized in that: its afterbody of wind electricity generating system (2) that impeller shaft (5) is parallel to horizontal plane is equipped with rudder (6).

3. according to claim 1 or claim 2 wind and light complementary road lamp, it is characterized in that: the impeller (7) of described wind electricity generating system (2) has the 1-5 sheet.

4. wind and light complementary road lamp as claimed in claim 1 is characterized in that: described light fixture (9) is the LED lamp.
