CN202598321U - LED (Light Emitting Diode) foot pad lamp - Google Patents
LED (Light Emitting Diode) foot pad lamp Download PDFInfo
- Publication number
- CN202598321U CN202598321U CN201220214914.4U CN201220214914U CN202598321U CN 202598321 U CN202598321 U CN 202598321U CN 201220214914 U CN201220214914 U CN 201220214914U CN 202598321 U CN202598321 U CN 202598321U
- Authority
- CN
- China
- Prior art keywords
- foot pad
- led lamp
- led
- lamp
- controller
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
- Y02B20/00—Energy efficient lighting technologies, e.g. halogen lamps or gas discharge lamps
- Y02B20/40—Control techniques providing energy savings, e.g. smart controller or presence detection
Landscapes
- Circuit Arrangement For Electric Light Sources In General (AREA)
Abstract
本实用新型涉及一种LED脚垫灯，包括LED灯以及连接LED灯的控制电路，所述的LED灯嵌设在一脚垫体表面，所述的控制电路设置在所述的脚垫体内，所述的控制电路包括控制器，所述的控制器的输入端连接有控制LED灯通断的振动传感器或压力传感器，所述的控制器的输出端连接所述的LED灯。本实用新型通过将LED灯设置在脚垫体上，将控制电路设置在脚垫体内，通过感应人体的振动或者压力来开启LED灯，并具有延时功能，LED灯进行照明，以方便用户夜晚起身行动。
The utility model relates to an LED foot pad lamp, which comprises an LED lamp and a control circuit connected to the LED lamp. The LED lamp is embedded on the surface of a foot pad, and the control circuit is arranged in the body of the foot pad. The control circuit includes a controller, the input end of the controller is connected with a vibration sensor or pressure sensor for controlling the LED light on and off, and the output end of the controller is connected with the LED light. The utility model arranges the LED light on the foot pad body, sets the control circuit in the foot pad body, and turns on the LED light by sensing the vibration or pressure of the human body, and has a time-delay function, and the LED light is illuminated to facilitate users at night Get up and act.
Description
Technical field
The utility model relates to a kind of foot pad lamp.
Background technology
When standing up night, turn on light and will grope a period of time, switch not nearby time the particularly, inconvenient especially for child old man etc., bump against thing easily or fall down.
Summary of the invention
In order to overcome the above-mentioned deficiency of prior art, the utility model provides the foot pad lamp that can light automatically after a kind of contact, makes things convenient for the user to stand up night.
The technical scheme that the utility model solves its technical problem is:
A kind of LED foot pad lamp; Comprise LED lamp and the control circuit that connects the LED lamp; Described LED lamp is embedded in a foot pad surface, and described control circuit is arranged in the described foot pad body, and described control circuit comprises controller; The input of described controller is connected with the vibrating sensor or the pressure sensor of control LED lamp break-make, and the output of described controller connects described LED lamp.
As improvement, be provided with a time delay module in the controller, described time delay module connects the input of described LED lamp.
As improvement, the LED lamp is provided with more than one, and is arranged on the described foot pad body.
The LED lamp is arranged on the foot pad body, and the control circuit setting of LED lamp is hidden in the foot pad body, and control circuit is connected with vibrating sensor or pressure sensor, and the LED lamp is through vibrating sensor and pressure sensor control switching.When the user stood up night, when pin was trampled on the foot pad, foot pad vibrated, and then vibrating sensor receives vibration signal, and control LED lamp was opened after the input of controller received vibration signal, and the LED lamp is luminous, throws light on.Or after pressure sensor experienced pressure, it is luminous that controller receives pressure signal control LED lamp, makes things convenient for user's action; And a time delay module is set in the controller, though after the user left the foot pad body, controller can't receive vibration or pressure signal; Because the setting of time delay module; LED lamp ability time-delay closing can ensure to the certain lighting hours of user, convenient action.The LED lamp is provided with more than one, to guarantee brightness.
The beneficial effect of the utility model is: the utility model is through being arranged on the LED lamp on the foot pad body; Control circuit is arranged in the foot pad body, opens the LED lamp through the vibration or the pressure of induction human body, and have delay function; The LED lamp throws light on, and stands up night to take action to make things convenient for the user.
Description of drawings

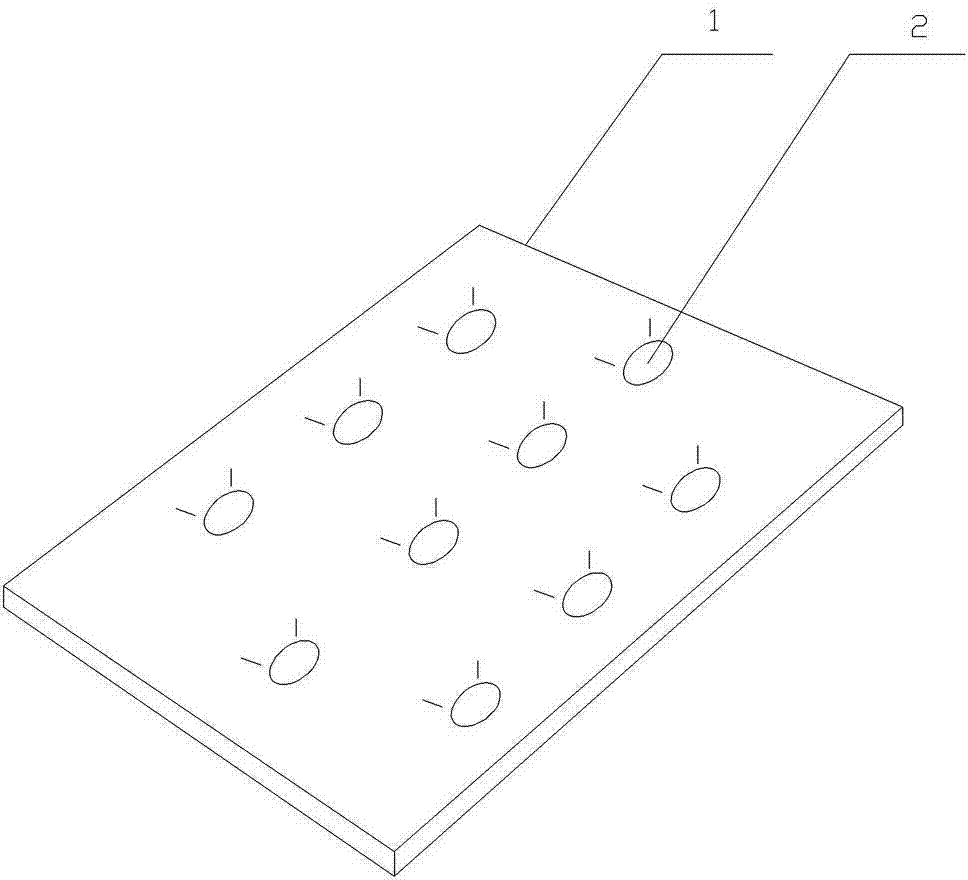

Fig. 1 is the structural representation of the utility model.
Fig. 2 is the electrical block diagram of the utility model.
The specific embodiment
Below in conjunction with the accompanying drawing and the specific embodiment the utility model is done further explain.
As shown in Figure 1, a kind of LED foot pad lamp comprises LED lamp 2 and the control circuit that connects the LED lamp; The LED lamp is embedded on a foot pad body 1 surface, and control circuit is arranged in the described foot pad body 1, and described control circuit comprises controller 4; The input of controller is connected with the vibrating sensor or the pressure sensor 5 of control LED lamp break-make, and controller connects power supply 3, and power supply 3 is a dc source; Can be dry cell or storage battery power supply, the output of controller connects described LED lamp 2.In controller, be provided with a time delay module, time delay module connects the input of LED lamp.LED lamp 2 is provided with more than one, and is arranged on the described foot pad body.
Claims (3)
1. LED foot pad lamp; Comprise LED lamp and the control circuit that connects the LED lamp; It is characterized in that: described LED lamp is embedded in a foot pad surface, and described control circuit is arranged in the described foot pad body, and described control circuit comprises controller; The input of described controller is connected with the vibrating sensor or the pressure sensor of control LED lamp break-make, and the output of described controller connects described LED lamp.
2. LED foot pad lamp according to claim 1 is characterized in that: be provided with a time delay module in the described controller, described time delay module connects the input of described LED lamp.
3. LED foot pad lamp according to claim 1 and 2 is characterized in that: described LED lamp is provided with more than one, and is arranged on the described foot pad body.
