一种普通推拉窗边封型材，涉及建材领域，包括中间板，中间板两端连接向上伸出的挡封板，所述中间板两端还连接向下伸出的直角折边，两个直角折边相对设置，所述中间板上端设置有向上伸出的伸出板，伸出板末端连接密封槽。本实用新型结构简单，设计巧妙，使用安全环保，生产效率高、成本低，密封性好，噪音小，且不易使构件变形，可广泛应用于铝合金窗扇。
A common sliding window edge sealing profile, relating to the building materials field, includes a middle plate with upward-extending sealing plates connected to both ends. The middle plate also has downward-extending right-angled flanges connected to both ends, with the two right-angled flanges arranged opposite each other. An upward-extending extension plate is provided at the upper end of the middle plate, with a sealing groove connected to its end. This utility model features a simple structure, ingenious design, safe and environmentally friendly use, high production efficiency, low cost, good sealing performance, low noise, and is not prone to component deformation. It can be widely used in aluminum alloy window sashes.
Description
技术领域： Technical field:
本实用新型涉及建材领域，尤其涉及一种普通推拉窗边封型材。The utility model relates to the field of building materials, in particular to a common push-pull window edge sealing profile.
背景技术： Background technique:
铝型材就是铝棒通过热熔，挤压，从而得到不同截面形状的铝材料。在建筑装饰，装潢行业，人们广泛应用铝型材来制作窗户，门以及各种隔断，铝型材也以其比钢材、木材更轻便、美观、防火而广受用户喜爱，但使用中存在铝合金物件之间密封不严，特别是一些设计不合理的型材，用于制作窗扇时，不但密封不严，移动时噪音大，而且存在构件易发生变形。Aluminum profiles are aluminum rods that are hot-melted and extruded to obtain aluminum materials with different cross-sectional shapes. In the architectural decoration and decoration industry, people widely use aluminum profiles to make windows, doors and various partitions. Aluminum profiles are also popular among users because they are lighter, more beautiful, and fireproof than steel and wood. However, there are aluminum alloy objects in use. The seal between them is not tight, especially some unreasonable profiles, when used to make window sashes, not only the seal is not tight, but the noise is loud when moving, and there are components that are prone to deformation.
实用新型内容： Utility model content:
本实用新型所要解决的技术问题在于克服现有技术的缺陷，提供一种组装效率高的普通推拉窗边封型材。The technical problem to be solved by the utility model is to overcome the defects of the prior art and provide a common push-pull window edge seal profile with high assembly efficiency.
本实用新型所要解决的技术问题采用以下技术方案来实现。The technical problems to be solved by the utility model are realized by the following technical solutions.
一种普通推拉窗边封型材，其特征在于：包括中间板，中间板两端连接向上伸出的挡封板，所述中间板两端还连接向下伸出的直角折边，两个直角折边相对设置，所述中间板上端设置有向上伸出的伸出板，伸出板末端连接密封槽。An ordinary sliding window edge seal profile, characterized in that: it includes a middle plate, the two ends of the middle plate are connected to the upwardly protruding sealing plate, the two ends of the middle plate are also connected to the downwardly protruding right-angled folds, and the two right-angled The folded edges are set opposite to each other, and the upper end of the middle plate is provided with an upward protruding plate, and the end of the protruding plate is connected with the sealing groove.
所述型材为铝合金型材。The profiles are aluminum alloy profiles.
所述折边向内弯折。The folded edge is bent inward.
本实用新型结构简单，设计巧妙，使用安全环保，生产效率高、成本低，密封性好，噪音小，且不易使构件变形，可广泛应用于铝合金窗扇。The utility model has the advantages of simple structure, ingenious design, safe and environment-friendly use, high production efficiency, low cost, good sealing performance, low noise, and not easy to deform components, and can be widely used in aluminum alloy window sashes.
附图说明： Description of drawings:
图1为本实用新型的结构示意图。Fig. 1 is the structural representation of the utility model.
具体实施方式： Detailed ways:
为了使本实用新型实现的技术手段、创作特征、达成目的与功效易于明白了解，下面结合具体图示，进一步阐述本实用新型。In order to make the technical means, creative features, goals and effects achieved by the utility model easy to understand, the utility model will be further elaborated below in conjunction with specific illustrations.

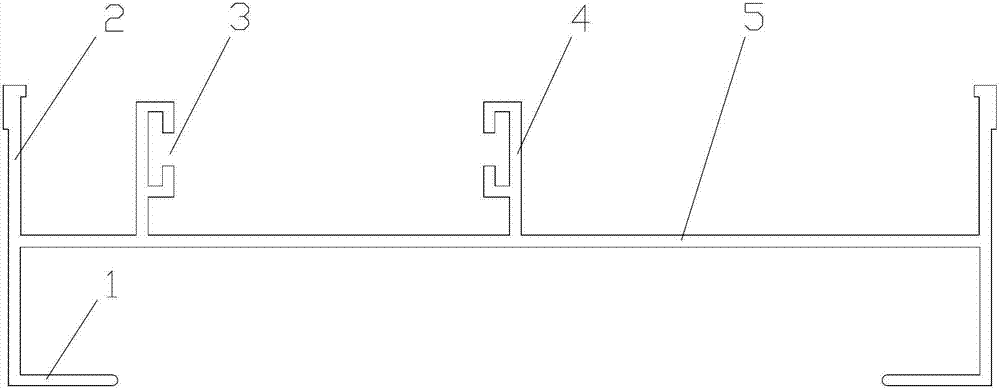

如图1所示，一种普通推拉窗边封型材，包括中间板5，中间板5两端连接向上伸出的挡封板2，所述中间板5两端还连接向下伸出的直角折边1，两个直角折边1相对设置，所述中间板5上端设置有向上伸出的伸出板4，伸出板4末端连接密封槽3。As shown in Figure 1, a common sliding window edge seal profile includes a middle plate 5, the two ends of the middle plate 5 are connected to the upwardly protruding sealing plate 2, and the two ends of the middle plate 5 are also connected to the downwardly protruding right-angled Flange 1, two right-angle flanges 1 are arranged opposite to each other, the upper end of the middle plate 5 is provided with an upwardly protruding protruding plate 4, and the end of the protruding plate 4 is connected to the sealing groove 3.
以上显示和描述了本实用新型的基本原理和主要特征和本实用新型的优点。本行业的技术人员应该了解，本实用新型不受上述实施例的限制，上述实施例和说明书中描述的只是说明本实用新型的原理，在不脱离本实用新型精神和范围的前提下，本实用新型还会有各种变化和改进，这些变化和改进都落入要求保护的本实用新型范围内。本实用新型要求保护范围由所附的权利要求书及其等效物界定。The basic principles and main features of the present utility model and the advantages of the present utility model have been shown and described above. Those skilled in the art should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the utility model. Without departing from the spirit and scope of the utility model, the utility model The new model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.
