Abstract

The utility model relates to an installation structure of a combined curtain wall made of clay panels, which comprises a column, a ceramic panel, a pre-embedded part and an adapter part. The pre-embedded part is fixed on a concrete wall surface, and a waterproof layer and a thermal insulation layer are arranged on the outer side of the wall surface. An adapter is provided on the outer surface of the embedded part, and the adapter is connected to the vertically placed column through two column bolts. There is a crossbeam corner bracket on the top, and a hook is hung on the upper end of the beam corner bracket; the upper and lower ends of the ceramic plate are respectively provided with hanging ears that match the hook. The beneficial effects of the utility model are: the full-length beam system is suitable for high-rise and super-high-rise ceramic panel curtain walls, can meet the relevant load specification requirements of ceramic panel curtain walls, and overcomes the defect that the pendant in the current general system does not have the adjustment function of up and down, front and rear , so that higher precision requirements can be achieved in construction, and the construction speed is also improved.

Description

An installation structure of clay panel composite curtain wall

technical field

The utility model relates to the field of building curtain walls, in particular to an installation structure of a clay board composite curtain wall.

Background technique

Under the advocacy of the country's policy of creating a harmonious society and energy conservation and environmental protection, there is an increasing demand for new energy-saving building curtain wall materials. The traditional stone curtain wall has many defects such as heavy weight, monotonous color, poor sound insulation and energy saving effect, complicated on-site processing, and radioactive pollution, so it must be replaced by new energy-saving curtain wall materials.

The clay panel composite curtain wall is a new type of curtain wall using clay materials. The raw material of the ceramic plate is natural clay, without adding any other ingredients, and it is made by extrusion and high-temperature calcination. Clay material is a new type of energy-saving building curtain wall material. It is non-polluting, green and environmentally friendly, light in weight, high in strength, corrosion resistant, good in earthquake resistance and frost resistance, and has sound insulation and noise reduction, which meets the national requirements for building energy conservation. The clay panel composite curtain wall can play the role of sunshade, and itself has the function of heat absorption and heat insulation. The full-length beam system is suitable for high-rise and super-high-rise ceramic panel curtain walls, and can meet the relevant load specification requirements of ceramic panel curtain walls. However, the pendant in the current general system does not have the adjustment function of up and down, front and back.

Utility model content

The purpose of the utility model is to provide an installation structure for a clay panel composite curtain wall, which is used for installing a clay panel composite curtain wall.

The purpose of this utility model is achieved through the following technical solutions:

An installation structure for a combined curtain wall made of clay panels, including columns, ceramic panels, embedded parts and adapters, the embedded parts are fixed on the concrete wall surface, and a waterproof layer and an insulating layer are provided on the outer side of the wall surface, characterized in that: An adapter is provided on the outer surface of the embedded part, and the adapter is connected to the vertically placed column through two column bolts. There is a beam corner bracket on the top, and the corner bracket, the beam and the beam corner bracket are fixedly connected by several beam bolts, and the upper end of the beam corner bracket is hung with a hook connected with the beam corner bracket through the hook bolt. An adjustment screw is provided at the joint between the top of the piece and the top of the corner code of the beam; the upper and lower ends of the ceramic plate are respectively provided with hanging ears that match the hook.

Further, the hanging piece includes a hanging piece main body, a hanging piece hook and two hanging piece rubber strips, and the hanging piece main body and the hanging piece hook are fixed on the corner brackets of the beam through hanging bolts.

Further, the vertical gaps of the terracotta panels are provided with seam strips, and the seam strips are fixed to the outside of the columns by self-tapping screws.

The beneficial effects of the utility model are: all the components in the installation structure are pre-processed and formed in the factory, and the construction site only needs to be connected and assembled to ensure the installation requirements of the curtain wall and greatly improve the construction efficiency on site; and the long beam system is suitable for In high-rise and super-high-rise ceramic panel curtain walls, it can meet the relevant load specification requirements of ceramic panel curtain walls, and overcome the defects that the pendants in the current general system do not have the adjustment function of up and down, front and back, so that higher precision requirements can be achieved in construction, and at the same time Also increased construction speed.

Description of drawings

Below according to accompanying drawing, the utility model is described in further detail.

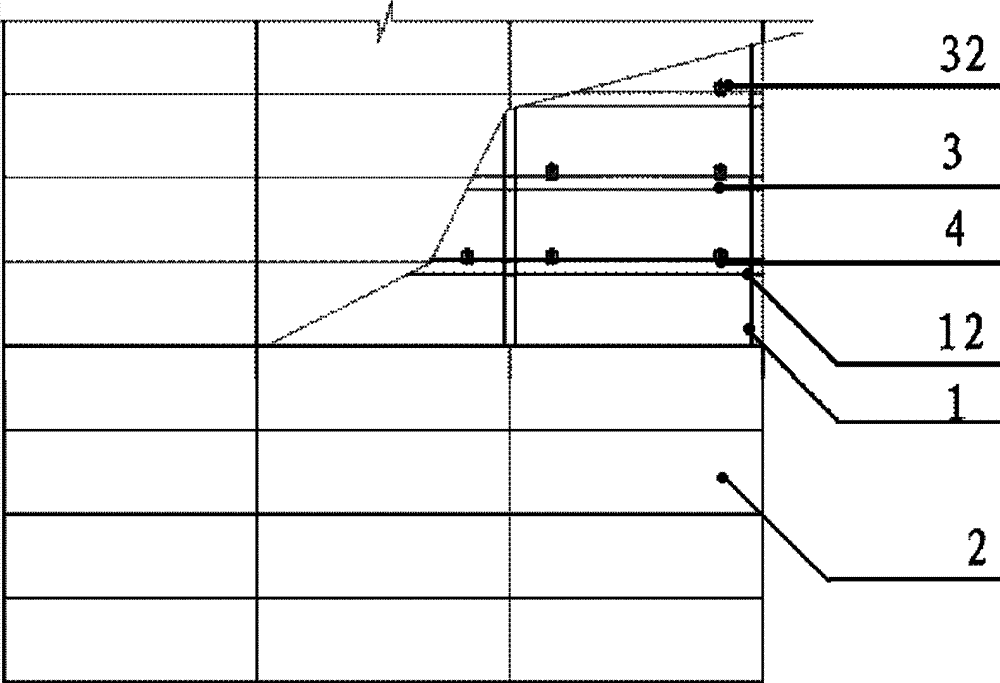

Fig. 1 is a structural schematic diagram of an installation structure of a clay panel composite curtain wall described in an embodiment of the present invention;

Fig. 2 is a schematic cross-sectional view of the horizontal installation node of the installation structure of a clay panel composite curtain wall described in the embodiment of the present invention;

Fig. 3 is a schematic cross-sectional view of the vertical installation node of the installation structure of a clay panel composite curtain wall described in the embodiment of the present invention;

Fig. 4 is a structural schematic diagram of the beam corner code of the installation structure of a clay panel composite curtain wall described in the embodiment of the present invention;

Fig. 5 is a structural schematic diagram of the hooks of the installation structure of a clay panel composite curtain wall described in the embodiment of the present invention;

Fig. 6 is a side view of the main body of the hook of a clay panel composite curtain wall installation structure described in the embodiment of the present invention;

Fig. 7 is a schematic structural view of the main body of the hook of the installation structure of the clay panel composite curtain wall described in the embodiment of the present invention;

Fig. 8 is a structural schematic diagram of the hook of the articulated part of the installation structure of the clay panel composite curtain wall described in the embodiment of the present invention;

Fig. 9 is a structural schematic diagram of the adhesive strips of the hooking parts of the installation structure of the clay panel composite curtain wall described in the embodiment of the present invention;

Fig. 10 is a schematic structural view of the ceramic panels of the installation structure of the clay panel composite curtain wall described in the embodiment of the present invention.

In the picture:

1. Column; 11. Column bolt; 12. Corner code; 2. Terracotta plate; 21. Joint strip; 22. Self-tapping screw; 3. Beam; 31. Beam bolt; 32. Beam corner code; 4. Mounting 41, the main body of the mount; 42, the hook of the mount; 43, the rubber strip of the mount; 44, the adjusting screw; 45, the mount bolt; 5, the embedded part; 51, the adapter.

Detailed ways

As shown in Figures 1-4, an installation structure of a clay panel composite curtain wall includes a column 1, a ceramic panel 2, an embedded part 5 and an adapter 51, and the embedded part 5 is fixed on the concrete wall surface, and the wall surface The outer side is provided with a waterproof layer and an insulating layer. An adapter 51 is provided on the outer surface of the embedded part 5. The adapter 51 is connected to the vertically placed column 1 through two column bolts 11. The outer surface of the column 1 is provided with a welding With the corner code 12 on the column 1, a beam 3 is arranged above the corner code 12, and a beam corner code 32 is arranged above the beam 3, and the corner code 12, the beam 3 and the beam corner code 32 are fixedly connected by several beam bolts 3, The upper end of the crossbeam corner code 32 is suspended with a hitch 4 connected with the crossbeam corner code 32 through a hitch bolt 45 . The hitch 4 includes a hitch main body 41 , a hitch hook 42 and two hitch rubber strips 43 , and the hitch main body 41 and the hitch hook 42 are fixed on the crossbeam corner bracket 32 by hook bolts 45 . An adjustment screw 44 is provided at the junction between the top of the hanging piece 4 and the top of the beam corner bracket 32 . The upper and lower ends of the terracotta plate 2 are respectively provided with hanging lugs that match the hooks 4, and the vertical gaps of the terracotta plate 2 are provided with joint strips 21, and the joint strips 21 are fixed on Outer column 1.

The column 1 of the installation structure can be a steel column or an aluminum column, and the adapter 51 is made of hot-dip galvanized material. The column 1 is connected with the adapter 51 through a number of column bolts 11, and the column bolts 11 can be made of stainless steel; the corner code of the beam is 32 Made of aluminum alloy.

As shown in Figure 5-9, the beam angle bracket 32, the hook 42 of the hook and the main body 41 of the hook are fixed by the bolt 45, and the main body 41 of the hook is provided with two rubber strips 43; The piece hook 42 and the main body 41 of the hanging piece are made of aluminum alloy, and the hanging rubber strip 43 is made of EPDM rubber. the

Fig. 10 is a cross-sectional view of the ceramic panel 2 in the installation structure of the composite curtain wall of the utility model. The ceramic panel 2 is made of clay material, and the upper and lower ends of the ceramic panel 2 are respectively provided with hanging lugs that match the hanging parts 4. A joint strip 21 is arranged between the vertical gaps, and the joint strip 21 is fixed on the outside of the column 1 by a plurality of self-tapping screws 22, and the joint strip 21 is made of EPDM rubber.

In specific use, an adapter 51 is used to connect the embedded part 5 and the column 1 . Fix the crossbeam 3 and the crossbeam corner code 32 on the corner code 12 with the crossbeam bolt 31 , and screw the assembled hook 4 and the crossbeam corner code 32 with the hook bolt 45 . Insert the hanging lugs of the ceramic plate 2 into the corresponding U-shaped opening of the hook, and the ceramic plates 2 should be installed layer by layer from bottom to top. The vertical gap of the terracotta plate 2 uses a seam-parting rubber strip 21 to prevent rainwater leakage and displacement and collision of the terracotta plate.

The utility model is not limited to the above-mentioned best implementation mode, anyone can draw other various forms of products under the enlightenment of the utility model, but no matter make any changes in its shape or structure, all have the same features as the application Or similar technical schemes all fall within the protection scope of the present utility model.

Claims (4)

1. the mounting structure of a potter's clay plate combined curtain wall; Comprise column (1), pottery plate (2), built-in fitting (5) and adaptor (51); Said built-in fitting (5) is fixed on the concrete wall surface; The metope outside is provided with waterproofing course and insulation layer; It is characterized in that: built-in fitting (5) outer surface is provided with adaptor (51), and adaptor (51) is connected with the column of vertically placing (1) through 2 column bolts (11), and column (1) outer surface is provided with the angle sign indicating number (12) on welding and the column (1); Angle sign indicating number (12) top is provided with crossbeam (3); Crossbeam (3) top is provided with crossbeam angle sign indicating number (32), and said angle sign indicating number (12), crossbeam (3) and crossbeam angle sign indicating number (32) are fixedly connected through some transom bolts (3), and crossbeam angle sign indicating number (32) upper end is hung with the hanging part (4) that is connected with crossbeam angle sign indicating number (32) through articulated bolt (45); Said pottery plate (2) two ends up and down is respectively equipped with the hangers that matches with hanging part (4).

2. the mounting structure of a kind of potter's clay plate combined curtain wall according to claim 1 is characterized in that: said hanging part (4) top and crossbeam angle sign indicating number (32) joint, top are provided with set screw (44).

3. the mounting structure of a kind of potter's clay plate combined curtain wall according to claim 1 and 2; It is characterized in that: said hanging part (4) comprises hanging part main body (41), hanging part hook (42) and two hanging part adhesive tape (43), and hanging part main body (41) and hanging part hook (42) are fixed on the crossbeam angle sign indicating number (32) through articulated bolt (45).

4. the mounting structure of a kind of potter's clay plate combined curtain wall according to claim 3; It is characterized in that: be provided with parting adhesive tape (21) between the vertical slit of said pottery plate (2), parting adhesive tape (21) is fixed in column (1) outside through some tapping screws (22).
