Abstract
本实用新型涉及一种密封胶膜成型设备胶带挤压机匀速卷带装置。由减速电机经套筒滚子链和主轴带动变径螺旋杆旋转实现均匀输出胶膜。旋转编码器根据测到的走带线速度反馈给卷带变频电机以保证卷带线速度始终一致，卷带变频电机通过套筒滚子链、一对齿轮带动卷带轴自动匀速卷带。本实用新型采用了先进变频电机和旋转编码器控制技术，卷带电机无级变速，可通过操作面板上的电位器根据胶膜质量选择合适的卷带速度；采用减速器和电机一体化结构，安装维修方便，缩小了安装空间。
The utility model relates to a uniform-speed tape winding device of a tape extruder of sealing film forming equipment. The reducer motor drives the variable-diameter screw rod to rotate through the sleeve roller chain and the main shaft to realize the uniform output of the film. The rotary encoder feeds back to the tape winding frequency conversion motor according to the measured tape running speed to ensure that the tape winding speed is always consistent. The tape winding frequency conversion motor drives the tape winding shaft to automatically wind at a uniform speed through the sleeve roller chain and a pair of gears. The utility model adopts advanced frequency conversion motor and rotary encoder control technology, and the tape winding motor has stepless variable speed, and the appropriate tape winding speed can be selected according to the quality of the film through the potentiometer on the operation panel; the integrated structure of the reducer and the motor is adopted, The installation and maintenance are convenient, and the installation space is reduced.
Description
Technical field
The utility model relates to a kind of non-metal former, relates in particular at the uniform velocity Webbing take-up device of a kind of sealed Cellophane former adhesive tape extrusion press.
Background technology
The aviation fuel tank is welded with the aluminum alloy sheet metal component, and the sealing strip pellicle of extrusion forming is pasted in each sheet metal component junction, baking oven to fuel tank glued membrane cured after, glued membrane becomes the solid-state anti-fluid seepage effect of sealing that plays.Existing glued membrane former comprises device for squeezing glue, driving system, manual Webbing take-up device etc.The uniform theoretical basis of glued membrane thickness is that winding linear velocity V maintenance is constant, and manually winding has guaranteed not the constant of linear velocity V, so can not guarantee to be squeezed in the homogeneity of the glued membrane thickness on the adhesive tape, influences aviation fuel tank airtight quality.The practical automatic at the uniform velocity Webbing take-up device of design is a key of successfully developing the novel adhesive tape extrusion press.Design uniform and automatic Webbing take-up device and can consider to select converter technique, automatic feedback technique etc.
Summary of the invention
The purpose of the utility model provides a kind of at the uniform velocity sealed Cellophane former of winding rational in infrastructure, automatic, and it can improve the homogeneity of glued membrane thickness greatly.
The technical scheme of the utility model is, the adhesive tape extrusion press is Webbing take-up device at the uniform velocity, and the upper fixed of lathe bed is equipped with the main shaft casing, lathe bed one side be separately installed with bearing A and bearing B up and down, bearing A upper fixed is equipped with strut member, adhesive tape is located on the strut member; Bearing B upper fixed is equipped with variable-frequency motor, and variable-frequency motor is equipped with sprocket wheel B, and reducing motor is connected with lathe bed through sprocket wheel degree of tightness regulating part; It is characterized in that reducing motor is equipped with sprocket wheel C and is connected with the sprocket wheel A of main shaft casing through roller chain, sprocket wheel A is installed on an end of main shaft; The other end of main shaft is equipped with bearing, and is connected with an end of diameter progressive screw through bearing pin, and diameter progressive screw is provided with the screw rod cavity; The other end of diameter progressive screw is provided with glue discharging mouth, and glue discharging mouth is connected as a single entity through nut and screw rod cavity, and bearing A below is installed with velometer; Velometer is equipped with rotary encoder; The adhesive tape substrate places in the water tank, and passes rotary encoder and connect glue discharging mouth, and sprocket wheel B is connected through roller chain with sprocket wheel on the winding part.
The utility model has the advantages that: advanced variable-frequency motor and rotary encoder control technology have been adopted in (1), and the tape feed motor stepless change can be selected suitable take-up speed according to the glued membrane quality through the potential device on the guidance panel; (2) adopt retarder and motor integration structure, installation and maintenance are convenient, dwindled installing space.
Description of drawings

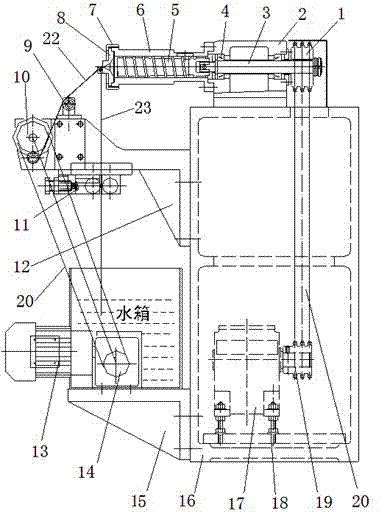

Fig. 1 is the front view of the utility model.
Fig. 2 is the left view of the utility model.
Among the figure: 1, sprocket wheel A, 2, the main shaft casing, 3, main shaft, 4, bearing, 5, diameter progressive screw, 6, the screw rod cavity; 7, nut, 8, glue discharging mouth, 9, strut member, 10, the winding part, 11, velometer, 12, bearing A; 13, variable-frequency motor, 14, sprocket wheel B, 15, bearing B, 16, lathe bed, 17, reducing motor, 18, sprocket wheel degree of tightness regulating part; 19, sprocket wheel C, 20, roller chain, 21, rotary encoder, 22, adhesive tape, 23, the adhesive tape substrate.
The specific embodiment
Below in conjunction with accompanying drawing the utility model is described further; Referring to Fig. 1 and Fig. 2; The adhesive tape extrusion press is Webbing take-up device at the uniform velocity, and the upper fixed of lathe bed 16 is equipped with main shaft casing 2, lathe bed 16 1 sides be separately installed with bearing A12 and bearing B15 up and down; Bearing A12 upper fixed is equipped with strut member 9, and adhesive tape 22 is located on the strut member 9; Bearing B15 upper fixed is equipped with variable-frequency motor 13, and variable-frequency motor 13 is equipped with sprocket wheel B14, and reducing motor 17 is connected with lathe bed 16 through sprocket wheel degree of tightness regulating part 18; It is characterized in that reducing motor 17 is equipped with sprocket wheel C19 and is connected with the sprocket wheel A1 of main shaft casing 2 through roller chain 20, sprocket wheel A1 is installed on an end of main shaft 3; The other end of main shaft 3 is equipped with bearing 4, and is connected with an end of diameter progressive screw 5 through bearing pin, and diameter progressive screw 5 is provided with screw rod cavity 6; The other end of diameter progressive screw 5 is provided with glue discharging mouth 8, and glue discharging mouth 8 is connected as a single entity through nut 7 and screw rod cavity 6, and bearing A12 below is installed with velometer 11; Velometer 11 is equipped with rotary encoder 21; Adhesive tape substrate 23 places in the water tank, and passes rotary encoder 21 and connect glue discharging mouths 8, and sprocket wheel B14 is connected through roller chain 20 with sprocket wheel on the winding part 10.
Embodiment:The adhesive tape extrusion press is Webbing take-up device at the uniform velocity; Reducing motor 17 is through drive main shaft 3 rotations under the support of main shaft casing 2 and bearing 4 of sprocket wheel C19, sprocket wheel A1 and roller chain 20; Main shaft 3 drives diameter progressive screw 5 through bearing pin and moves along screw rod cavity 6; Glue is evenly spread upon through glue discharging mouth 8 on the adhesive tape 22 of strut member 9 supports, accomplish the plastic squeeze action.Glue discharging mouth 8 is connected with screw rod cavity 6 through nut 7, and glue discharging mouth 8 is according to technological requirement design different specifications.Adhesive tape substrate 23 places in the water tank, and passes rotary encoder 21 and connect glue discharging mouths 8, and sprocket wheel B14 is connected through roller chain 20 with sprocket wheel on the winding part 10.Adhesive tape 22 is through velometer 11, and rotary encoder 21 records the tape transport linear velocity, feeds back to the rotating speed of variable-frequency motor 13 frequency conversion outputs and linear velocity coupling, makes the tape transport linear velocity not change because of the winding diameter variation.Variable-frequency motor 13 is through sprocket wheel 14; Single bush roller chaiin; Sprocket wheel on the winding part 10 and a pair of gear; The take-up spool that the adhesive tape that has been coated with glued membrane 22 at the uniform velocity is wrapped in winding part 10 puts, and the winding axle sleeve is connected with the take-up spool spline, and refrigerator for cold is taken off and put into to the winding axle sleeve (being contained on the winding part 10) that has twined adhesive tape 22 easily on the slave unit.During use glued membrane is taken off from adhesive tape 22 gently.The degree of tightness of bush roller chaiin can be regulated through sprocket wheel degree of tightness regulating part 18.Variable-frequency motor 13 is connected with lathe bed 16 through bearing 15; Winding part 10, velometer 11, strut member 9 are connected with lathe bed 16 through bearing 12; Main shaft casing 2 is connected with lathe bed 16 through bolt; The support assemblies that main shaft 3 passes through bearing 4 is on main shaft casing 2, and screw rod cavity 6 is connected (screw rod cavity 6 will conveniently be installed and removed) through locating dowel pin, bolt and main shaft casing 2, and glue discharging mouth 8 is connected as a single entity through nut 7 and screw rod cavity 6.
In sum, the adhesive tape extrusion press of the utility model at the uniform velocity Webbing take-up device mainly by driving system, plastic squeeze head, at the uniform velocity parts such as Webbing take-up device are formed.The plastic squeeze head is made up of sprocket wheel A1, main shaft casing 2, main shaft 3, bearing 4, diameter progressive screw 5, screw rod cavity 6, nut 7, glue discharging mouth 8; The plastic squeeze head passes through reducing motor 17 through bush roller chaiin 20 driving main shaft 3, and drives the even glued membrane of exporting of Reducing screw bar 5 rotation realizations.At the uniform velocity the principle of the Webbing take-up device automatic coiling of tape is: according to V=π dn, make the glued membrane thickness even, linear velocity V must remain unchanged during winding.If keep variable-frequency motor 13 rotation speed n constant, linear velocity V increases along with the increase of winding diameter d, and the glued membrane thickness can not keep evenly.Want retention wire speed V constant, along with the increase of winding diameter d, variable-frequency motor 13 rotation speed n are wanted corresponding reduction, introduce variable-frequency motor 13 for this reason and solve this problem.Principle is that rotary encoder 21 feeds back to winding variable-frequency motor 13 to guarantee that the winding linear velocity is consistent all the time according to the tape transport linear velocity that measures, and winding variable-frequency motor 13 is through bush roller chaiin 20, the at the uniform velocity winding automatically of a pair of gear driven take-up spool.
Claims (1)
1. adhesive tape extrusion press Webbing take-up device at the uniform velocity; It is characterized in that; The upper fixed of lathe bed (16) is equipped with main shaft casing (2); Lathe bed (16) one sides be separately installed with bearing A (12) and bearing B (15) up and down, bearing A (12) upper fixed is equipped with strut member (9), adhesive tape (22) is located on the strut member (9); Bearing B (15) upper fixed is equipped with variable-frequency motor (13); Variable-frequency motor (13) is equipped with sprocket wheel B (14); Reducing motor (17) is connected with lathe bed (16) through sprocket wheel degree of tightness regulating part (18), and reducing motor (17) is equipped with sprocket wheel C (19) and is connected with the sprocket wheel A (1) of main shaft casing (2) through roller chain (20), and sprocket wheel A (1) is installed on an end of main shaft (3); The other end of main shaft (3) is equipped with bearing (4); And be connected with an end of diameter progressive screw (5) through bearing pin, diameter progressive screw (5) is provided with screw rod cavity (6), and the other end of diameter progressive screw (5) is provided with glue discharging mouth (8); Glue discharging mouth (8) is connected as a single entity through nut (7) and screw rod cavity (6); Bearing A (12) below is installed with velometer (11), and velometer (11) is equipped with rotary encoder (21), and adhesive tape substrate (23) places in the water tank; And pass rotary encoder (21) and connect glue discharging mouth (8), sprocket wheel B (14) is connected through roller chain (20) with sprocket wheel on the winding part (10).
