Abstract

The utility model relates to an auxiliary reading appliance for daily necessities, a reading stand with a foldable page holder, which is mainly composed of an upper page holder, a lower page holder, an adjustable support arm, a bottom plate, a support foot, a spring pressing piece, a hinge, and an extended book holder. , characterized in that: the upper leaf holder and the lower leaf holder are hinged through the hinge, the lower leaf holder is in an "L" shape, the upper end of the adjustment support arm is rotatably hinged to the upper leaf holder, The lower end is inserted into the round hole on the base plate, and there is a row of round holes on the base plate. One side of the base plate is hinged to the lower end of the lower page holder, and the other side is bent to form a supporting foot. The utility model has a simple structure and is easy to implement, can be placed stably, and is not prone to mechanical failures. The upper book leaf holder and the lower book leaf holder can be folded at the hinge and are convenient to carry. Adjusts the size to support a variety of reading materials and turns pages easily.

Description

Foldable reading stand

technical field

The utility model relates to an auxiliary reading tool for daily necessities, in particular to a foldable reading support for carrying and convenient book pages which can be used to support various reading materials and meet people's different viewing angle requirements.

Background technique

In recent years, some inventions related to foldable reading stands mainly focus on how to clamp the opened books, how to support the stand, and how to fold them, such as the utility model patent "Bracket Folding Reading Bookshelf" (Patent No. 200820007606.8) proposed to design a page clamping bending rod on both sides of the bracket for clamping the book, and at the same time use the bottom of the page clamping bending rod and the bottom of the rear support structure to support the bracket on the desktop, and each part passes through the hinge and the shaft. Connected and foldable when not in use. However, there are still several problems affecting the performance of this type of reading stand: one is that taller and thicker books cannot be placed; especially difficult. There is an urgent need in the market for an auxiliary reading appliance that does not require high flatness of the placed table top, can place books of different sizes, can turn pages with one hand, and has a smaller volume after folding. a question.

Contents of the invention

In order to solve the above problems, especially the problem of inconvenient page turning, the foldable reading stand provided by the utility model can be placed on various table tops, the page holder can be adjusted to a reasonable angle, and books and magazines with different widths and thicknesses can be placed , and can turn pages with one hand, so it is especially suitable for readers with impaired hand function. A special hinge is installed between the upper and lower page holders, which is convenient for folding and carrying.

The scheme that the utility model adopts is:

The foldable reading stand of the page holder is mainly composed of an upper page holder, a lower page holder, an adjustable support arm, a bottom plate, a supporting foot, a spring pressing piece, a hinge, and an extended book holder. The upper page holder and the lower page holder pass through The hinge is hinged, the lower leaf holder is in an "L" shape, the upper end of the adjustment support arm is rotatably hinged with the upper leaf holder, and the lower end is inserted into the round hole on the bottom plate, which has a A row of round holes, one side of the bottom plate is hinged to the lower end of the lower page holder, and the other side is bent to form a supporting foot. The upper and lower leaf holders have flanges and grooves, and the extended book holders have grooves.

The beneficial effects of the utility model are:

The structure of the foldable reading stand with the page holder is simple and easy to realize, it can be placed stably and is not easy to shake, and it is not easy to cause mechanical failure during use. The upper page holder and the lower page holder can be folded at the hinge for easy carrying, and the expanded book holder can be adjusted in size according to book specifications to support various reading materials and make page turning easy.

Description of drawings

Below in conjunction with the figure of the present utility model further explanation:

Fig. 1 is a schematic side view of the foldable reading stand of the page holder;

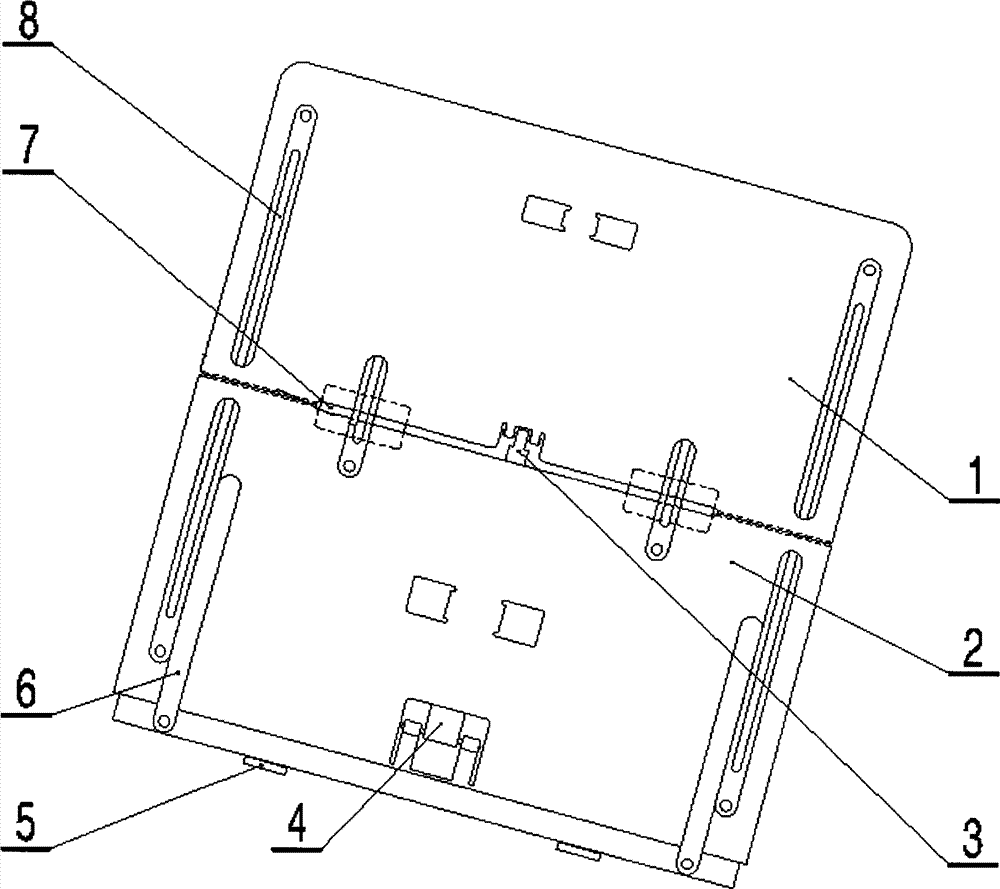

Fig. 2 is a schematic front view of the reading stand with a foldable page holder.

In the figure, 1. Upper page holder, 2. Lower page holder, 3. Adjustable support arm, 4. Bottom plate, 5. Support foot, 6. Spring pressing piece, 7. Hinge, 8. Extended book holder.

Detailed ways

Figure 1 is a schematic side view of the foldable reading bracket of the page holder, which mainly consists of an upper page holder (1), a lower page holder (2), an adjustable support arm (3), a base plate (4), a supporting foot (5), It consists of a spring pressing piece (6), a hinge (7), and an extended book holder (8). The upper book holder and the lower book holder are hinged through the hinge, and the lower book holder is in an "L" shape. The upper end of the adjustment support arm is rotatably hinged with the upper page holder, and the lower end is inserted into the round hole on the bottom plate. There is a row of round holes on the bottom plate, and the lower end of the adjustment support arm can be inserted into the one In any round hole of the row of round holes, in order to realize the function of adjustment, a stable bracket with adjustable inclination angle is formed as a whole. One side of the bottom plate is hinged with the lower end of the lower page holder, and the other side is bent into a supporting foot.

Figure 2 is a schematic diagram of the front of the foldable reading stand of the book holder, which is a schematic diagram when it is in a specific position, the upper and lower page holders have flanges and grooves, and the extended book holder has grooves .

When in use, first remove the adjustable support arm from the upper leaf support buckle, remove the bottom plate from the lower leaf support buckle, turn the upper leaf support and the lower page support into a plane and fix them, and insert the lower end of the adjustable support arm into the A round hole on the base plate is properly rotated to adjust the threaded button in the middle to form a stable bracket.

When not in use, the adjustable support arm and the bottom plate can be easily stuck between the two steel buckles obtained by punching and folding on the back of the upper and lower leaf holders respectively to realize folding. The book page holder can be folded through hinges. The bottom of the supporting feet on the lower page holder and the base plate is glued with a soft PVC anti-skid pad, which plays the role of preventing the support from sliding and protecting the desktop.

Claims (1)

1. folding reading stand of page holder; Mainly form by last page holder, page holder down, adjustable support arm, base plate, feet, spring pressuring plate, hinge, expansion bookshelf; It is characterized in that: said to go up the page holder hinged through said hinge with said page holder down, and said the page holder is L-shaped down, and said adjustable support arm upper end is gone up the page holder and turned hinged with said; The circular hole on the said base plate is inserted in the lower end; Have row's circular hole above the said base plate, said base plate one side and said following page holder lower end are hinged, and opposite side bends to feet.
