CN202588724U - Novel portable toothbrush - Google Patents

Abstract

The utility model discloses a novel portable toothbrush among daily necessities. The toothbrush includes a toothbrush cap and four toothbrush sections, wherein the toothbrush sections include a toothbrush head and a toothbrush handle. The toothbrush cap has internal threads; the toothbrush section has external threads and internal threads; the toothbrush handle part of the toothbrush section is hollow inside and can accommodate a toothbrush head. The toothbrush cap can be connected with the external thread knob of any toothbrush section through its internal thread; any toothbrush section can be connected with the external thread knob of other toothbrush sections through its internal thread. The utility model is simple and reasonable in design, easy to use, and provides a choice with high practical value for people on business trips and tourism.

Description

A new type of portable toothbrush

technical field

The utility model belongs to the field of daily necessities, in particular to a novel portable toothbrush.

Background technique

Toothbrush is a kind of common necessities of life, and in order to meet the needs of people on business trips and tourism, many portable toothbrushes have also appeared on the market. However, existing portable toothbrushes do not consider well in terms of ensuring personal hygiene and reducing toothbrush volume and weight. The utility model starts from these aspects and proposes a novel portable toothbrush, which satisfies people's daily needs well.

Utility model content

The purpose of the utility model is to overcome the deficiencies in the existing design and provide a novel portable toothbrush.

A new type of portable toothbrush, the toothbrush includes a toothbrush cap 1 and four toothbrush sections 2, wherein the toothbrush section includes a toothbrush head 3 and a toothbrush handle 4, the inside of the toothbrush handle 4 is hollow, and accommodates a toothbrush head 3; the toothbrush cap 1 has an inner The toothbrush section 2 has an external thread 5 on the outside and an internal thread 6 on the inside; the toothbrush cap 1 is screwed together with the external thread of any toothbrush section 2 through its internal thread, thereby connecting; any toothbrush section 2 passes through its internal thread The threads 6 and the external threads 5 of other toothbrush segments 2 are screwed together, thereby being connected.

The above four toothbrush sections 2 are all the same in size, and the colors of the toothbrush sections are the same or different.

The utility model is simple and reasonable in design, easy to use, and provides a choice with high practical value for people on business trips and tourism.

Description of drawings

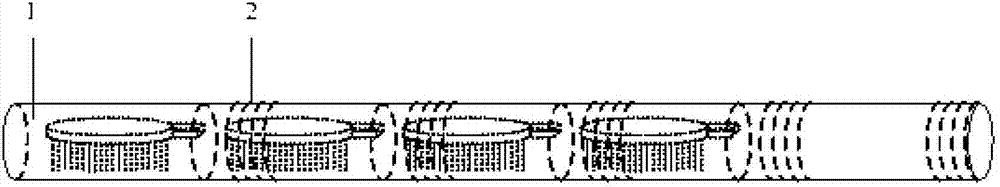

Fig. 1 is a toothbrush appearance;

Fig. 2 is the external view of the toothbrush section;

Fig. 3 is the external view of the toothbrush cap;

Among them, 1-toothbrush cap, 2-toothbrush section, 3-toothbrush head, 4-toothbrush handle, 5-external thread, 6-internal thread.

Detailed ways

The utility model will be described below in conjunction with the accompanying drawings and specific examples.

As shown in Figures 1, 2 and 3, the toothbrush includes a toothbrush cap 1 and four toothbrush sections 2, wherein the toothbrush section includes a toothbrush head 3 and a toothbrush handle 4, and the toothbrush handle 4 is hollow inside to accommodate a toothbrush head 3; The toothbrush cap 1 has an internal thread, the toothbrush section 2 has an external thread 5 outside, and the interior has an internal thread 6; the toothbrush cap 1 is screwed together with the external thread of any toothbrush section 2 through its internal thread, thereby connecting; any The toothbrush section 2 is screwed together by its internal thread 6 and the external thread 5 of other toothbrush sections 2, thereby being connected.

When using a toothbrush, first take off the toothbrush cap 1, then select the toothbrush section 2 belonging to oneself, if the selected toothbrush section 2 is at the top of the entire toothbrush, then directly use the toothbrush to brush teeth. If the selected toothbrush section 2 is not at the top of the whole toothbrush, then the selected toothbrush section 2 is removed by rotating the thread, and then the toothbrush section 2 is reassembled so that the selected toothbrush section 2 is at the top of the entire toothbrush. After the user finishes using, the toothbrush cap can be set on the top toothbrush head of the whole toothbrush to keep the whole toothbrush clean.

Claims (2)

1. A new type of portable toothbrush, characterized in that the toothbrush includes a toothbrush cap (1) and four toothbrush segments (2), wherein the toothbrush segments include a toothbrush head (3) and a toothbrush handle (4), the toothbrush handle (4 ) is hollow inside to accommodate a toothbrush head (3); the toothbrush cap (1) has internal threads, the toothbrush section (2) has external threads (5) on the outside, and internal threads (6) on the inside; the toothbrush cap (1) passes through its The internal thread is screwed together with the external thread of any toothbrush section (2); any toothbrush section (2) is screwed together through its internal thread (6) and the external thread (5) of other toothbrush sections (2), thereby connecting. 2. A new type of portable toothbrush according to claim 1, characterized in that the dimensions of the four toothbrush sections (2) are exactly the same, and the colors of the toothbrush sections are the same or different.
