CN202588260U - Multifunctional ashtray - Google Patents

Abstract

The utility model discloses a multifunctional ashtray, which belongs to the technical field of daily necessities. The multifunctional ashtray is composed of a cylinder body, a combined cylinder cover, a spring, a lighter and a battery. Among them, the upper end of the cylinder is provided with an LED light, the battery is installed at the bottom of the cylinder, and the lighter is embedded in the right side of the cylinder; It consists of a cover, a tobacco cutter, a torsion spring and a knob. Four cigarette butt holes are respectively arranged on the fixed cover and the movable cover, and the cigarette cutting scissors are installed above the fixed cover and close to the outer side of the fixed cover. Compared with the prior art, the multi-functional ashtray of the utility model can effectively prevent soot from flying, safely extinguish cigarette butts, and simultaneously has the functions of lighting, illuminating and cutting cigarette butts, and has the advantages of simple structure, convenient use, environmental protection and sanitation.

Description

A multifunctional ashtray

technical field

The utility model relates to a multifunctional ashtray, which belongs to the technical field of daily necessities.

Background technique

In the prior art, common ashtrays do not have the functions of preventing soot from flying and wet-method extinguishing and flame retardant. When people snuff out the cigarette butts, they need to squeeze and rub the cigarette butts with their hands; most of the time, the cigarette butts cannot be completely snuffed out, and they still have to burn for a long time. The smog produced affects the indoor air and even causes a fire. Often drip water into the ashtray temporarily to extinguish the smoke; when extinguishing the cigarette butts, it is easy to get a lot of soot on the hands, which affects hygiene. How to handle the cigarette butts that have been smoked conveniently has become a difficult point that puzzles people. In addition, the ashtrays in the prior art have relatively single functions and do not have the functions of lighting cigarettes, lighting and cutting cigarette ends.

Contents of the invention

In order to overcome the above disadvantages, the utility model provides a multi-functional ashtray, which can achieve the purpose of environmental protection and sanitation, and safely extinguish cigarette butts, and has the functions of lighting cigarettes, illuminating and cutting cigarette butts at the same time.

The technical problems to be solved by the utility model are realized by the following technical solutions.

A multifunctional ashtray is composed of a cylinder body, a combined cylinder cover, a spring, a lighter and a battery. Wherein, the upper end of the cylinder body is provided with an LED lamp, which can be used for lighting at night or for decoration; the inner cavity wall of the cylinder body is provided with three evenly distributed card slots. The battery is installed at the bottom of the cylinder to provide power to the LED lamp; the LED lamp and the battery are connected through wires. The combined cylinder head is placed in the inner cavity of the cylinder body, one end of the spring is connected with the top of the cylinder body, and the other end of the spring is connected with the combined cylinder head. The lighter is embedded in the right side of the cylinder block.

The upper end of the cylinder body is provided with an LED lamp, and the inner cavity wall of the cylinder body is provided with three evenly distributed card slots, the battery is installed at the bottom of the cylinder body, and the LED lamp and the battery are connected by wires; In the inner cavity of the cylinder body, one end of the spring is connected with the top of the cylinder body, and the other end of the spring is connected with the combined cylinder head; the lighter is embedded in the right side of the cylinder body.

The combined cylinder head is composed of a fixed cover, a movable cover, a cigarette cutting scissors, a torsion spring and a knob. The fixed cover and the movable cover are respectively provided with four cigarette butt holes; the fixed cover is provided with three evenly distributed clips, and the clips are placed in the slots of the cylinder body; the cigarette cutter is installed above the fixed cover, And near the outside edge of the fixed cap, it can be used to cut off the top of the cigar or repair the burning end of the incompletely smoked cigar or cigarette. The movable cover is located under the fixed cover, and is connected with the fixed cover through a knob; the knob is fixedly connected with the movable cover. One end of the torsion spring is connected with the knob, and the other end is connected with the fixed cover.

The beneficial effects of the utility model are: simple structure, multiple functions, convenient use, environmental protection and sanitation, can effectively prevent soot from flying, and completely extinguish cigarette ends.

Description of drawings

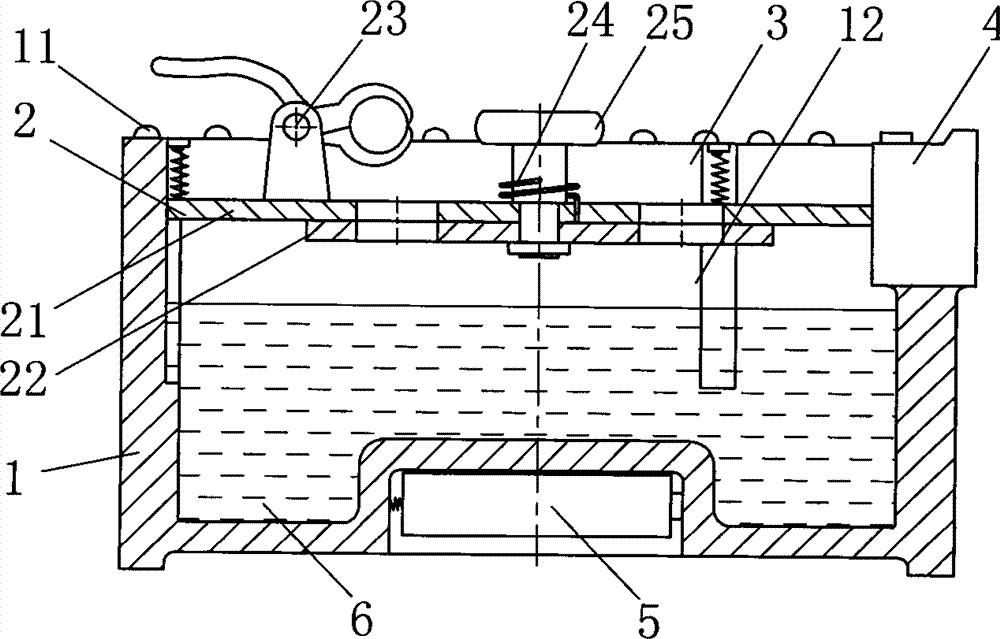

Fig. 1 is the structural representation of the utility model;

Fig. 2 is a schematic diagram of the structure of the fixed cover.

In the figure: 1. cylinder block; 2. combined cylinder head; 3. spring; 4. lighter; 5. battery; 6. water; 11. LED light; 12. card slot; 21. fixed cover; 22. movable cover ; 23. Cutting cigarette scissors; 24. Torsion spring; 25. Knob; 26. Chuck head.

Detailed ways

In order to make the technical means, creative features, goals and effects achieved by the utility model easy to understand, the utility model will be further elaborated below in conjunction with specific embodiments and illustrations.

As shown in Figure 1, a kind of multifunctional ashtray is made up of cylinder body 1, combined type cylinder cover 2, spring 3, lighter 4 and battery 5. Wherein, the upper end of the cylinder body 1 is provided with an LED lamp 11, which can be used for lighting at night or for decoration; the inner cavity wall of the cylinder body 1 is provided with three evenly distributed card slots 12. The battery 5 is installed at the bottom of the cylinder body 1 to provide power to the LED lamp 11; the LED lamp 11 and the battery 5 are connected by wires. The combined cylinder head 2 is placed in the inner chamber of the cylinder body 1 , one end of the spring 3 is connected with the top of the cylinder body 1 , and the other end of the spring 3 is connected with the combined cylinder head 2 . The lighter 4 is embedded in the right side of the cylinder body 1 .

As shown in FIGS. 1 and 2 , the combined cylinder head 2 is composed of a fixed cover 21 , a movable cover 22 , a tobacco cutter 23 , a torsion spring 24 and a knob 25 . The fixed cover 21 and the movable cover 22 are respectively provided with four cigarette butt holes; the fixed cover 21 is provided with three evenly distributed clips 26, and the clips 26 are placed in the slot 12 of the cylinder body; the cigarette cutting scissors 23 Installed on the top of the fixed cover 21, and close to the outer side of the fixed cover 21, it can be used to cut off the top of the cigar or repair the burning end of the incompletely smoked cigar or cigarette. The movable cover 22 is located below the fixed cover 21 and is connected with the fixed cover 21 through the knob 25; the knob 25 is fixedly connected with the movable cover 22. One end of the torsion spring 24 is connected with the knob 25 , and the other end is connected with the fixed cover 21 .

Before use, it is necessary to inject water 6 into the inner cavity of the cylinder body 1, then install the combined cylinder head 2 and connect the spring 3. When in use, you need to rotate the knob 25 by hand to align the four cigarette butt holes on the fixed cover 21 and the movable cover 22, then align the cigarette ash or the whole cigarette butt with the cigarette butt holes and throw it into the water in the inner cavity of the cylinder body 1, and finally loosen the knob 25. The movable cover 22 is restored to its original state under the action of the torsion spring 24, so that the cigarette butt hole is closed.

The basic principles, main features and advantages of the present utility model have been shown and described above. Those skilled in the art should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the utility model. Without departing from the spirit and scope of the utility model, the utility model The new model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The protection scope required by the utility model is defined by the appended claims and their equivalents.

Claims (2)

1. A multifunctional ashtray is characterized in that: it is composed of a cylinder body, a combined cylinder head, a spring, a lighter and a battery, the upper end of the cylinder body is provided with an LED lamp, and the inner cavity wall of the cylinder body is provided with three The battery is installed at the bottom of the cylinder body, and the LED light and the battery are connected by wires; the combined cylinder head is placed in the inner cavity of the cylinder body, one end of the spring is connected to the top of the cylinder body, and the other end of the spring is connected to the top of the cylinder body. One end is connected to the combined cylinder head; the lighter is embedded in the right side of the cylinder block. 2. A multifunctional ashtray according to claim 1, characterized in that: the combined cylinder cover is composed of a fixed cover, a movable cover, a cigarette cutting scissors, a torsion spring and a knob, and the fixed cover and the There are four cigarette butt holes on the movable cover; three evenly distributed clips are provided on the fixed cover, and the clips are placed in the slots of the cylinder body; the cigarette cutting scissors are installed above the fixed cover and close to the outside side; the movable cover is located under the fixed cover and is connected with the fixed cover through a knob; the knob is fixedly connected with the movable cover; one end of the torsion spring is connected with the knob, and the other end is connected with the fixed cover.
