CN202577484U - Water-saving wash basin - Google Patents
Water-saving wash basin Download PDFInfo
- Publication number
- CN202577484U CN202577484U CN 201220269672 CN201220269672U CN202577484U CN 202577484 U CN202577484 U CN 202577484U CN 201220269672 CN201220269672 CN 201220269672 CN 201220269672 U CN201220269672 U CN 201220269672U CN 202577484 U CN202577484 U CN 202577484U
- Authority
- CN
- China
- Prior art keywords
- water
- washbasin
- pipeline
- storage tank
- saving
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 claims abstract description 23
- 230000001105 regulatory effect Effects 0.000 claims abstract description 4
- 238000011010 flushing procedure Methods 0.000 description 2
- 238000000034 method Methods 0.000 description 2
- 230000009286 beneficial effect Effects 0.000 description 1
- 239000000463 material Substances 0.000 description 1
- 238000005406 washing Methods 0.000 description 1
- 239000002699 waste material Substances 0.000 description 1
Images
Landscapes
- Sanitary Device For Flush Toilet (AREA)
Abstract
本实用新型公开了一种节水面盆，包括面盆，面盆下端设有管道，管道连接下水道管道，面盆边设有储水罐，储水罐上端通过管道连通到面盆下端管道上，在管道连接处设圆形手动调节阀。本实用新型解决了面盆水不能按需要区分收集利用的问题，设计简单，结构合理，可将日常面盆中的水区分收集二次或多次利用。
The utility model discloses a water-saving washbasin, which comprises a washbasin, a pipeline is arranged at the lower end of the washbasin, and the pipeline is connected to a sewer pipeline, and a water storage tank is arranged on the side of the washbasin, and the upper end of the water storage tank is connected to the pipeline at the lower end of the washbasin through the pipeline. A circular manual regulating valve is provided. The utility model solves the problem that basin water cannot be collected and utilized according to needs, has simple design and reasonable structure, and can separate and collect the water in daily basins for secondary or multiple use.
Description
技术领域 technical field
本实用新型涉及生活节水用品技术领域，具体属于一种节水面盆。The utility model relates to the technical field of domestic water-saving articles for use, in particular to a water-saving basin.
背景技术 Background technique
面盆一般放置于卫生间内，主要用于日常生活洗涤，现有的面盆种类很多，在材质、形状方面各有不同，但都是直接与下水道管道连接，用水之后直接排出。对节水设计考虑较少，这样的方式都是一次性用水，不论是干净水或脏水均未得到二次或多次利用，水资源浪费严重。Washbasins are generally placed in the bathroom and are mainly used for washing in daily life. There are many types of washbasins available, which are different in material and shape, but they are all directly connected to the sewer pipes and discharged directly after water. Less consideration is given to water-saving design. This method is for one-time use of water. No matter whether it is clean water or dirty water, it has not been used twice or multiple times, and the waste of water resources is serious.
本实用新型内容Contents of this utility model
本实用新型的目的是提供一种节水面盆，解决了面盆水不能按需要区分收集利用的问题，设计简单，结构合理，可将日常面盆中的水区分收集二次或多次利用。The purpose of the utility model is to provide a water-saving washbasin, which solves the problem that the washbasin water cannot be collected and utilized according to needs. The design is simple and the structure is reasonable.
本实用新型采用的技术方案如下：The technical scheme that the utility model adopts is as follows:
一种节水面盆，包括面盆，面盆下端设有管道，管道连接下水道管道，所述的面盆边设有储水罐，储水罐上端通过管道连通到面盆下端管道上，在管道连接处设圆形手动调节阀。A water-saving washbasin, comprising a washbasin, the lower end of the washbasin is provided with a pipeline, and the pipeline is connected to a sewer pipe, the side of the washbasin is provided with a water storage tank, the upper end of the water storage tank is connected to the pipeline at the lower end of the washbasin through a pipeline, and a circle is arranged at the connection of the pipeline. Shaped manual regulating valve.
所述储水罐通过管道连接到马桶上。The water storage tank is connected to the toilet through a pipeline.
与已有技术相比，本实用新型的有益效果如下：Compared with the prior art, the beneficial effects of the utility model are as follows:
本实用新型设计采用在面盆下端设置两条连接管道，在管道连接处设置圆形控制阀，面盆中的水比较脏不能二次利用时，直接将阀门打开到下水道通道，水直接到下水道，当可以二次利用时，将开关打到集水槽中，再次利用，同时和马桶连接，便于马桶冲洗，节约水资源。The design of the utility model adopts two connecting pipes at the lower end of the basin, and a circular control valve is arranged at the connection of the pipes. When the water in the basin is dirty and cannot be reused, the valve is directly opened to the sewer channel, and the water goes directly to the sewer. When it can be reused, turn the switch into the sump for reuse, and connect it with the toilet at the same time, which is convenient for toilet flushing and saves water resources.
附图说明 Description of drawings

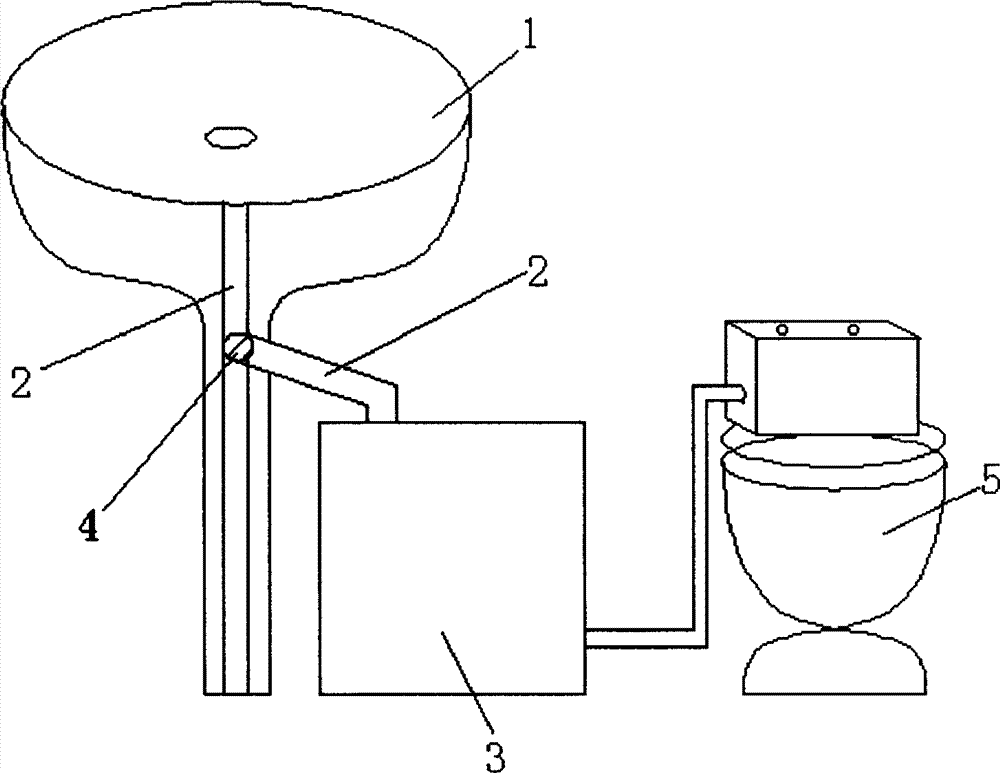

图1为本实用新型的结构示意图。Fig. 1 is the structural representation of the utility model.
具体实施方式 Detailed ways
参见附图，一种节水面盆，包括面盆1，面盆1下端设有管道2，管道2连接下水道管道，面盆1边设有储水罐3，储水罐3上端通过管道2连通到面盆下端管道2上，在管道2连接处设圆形手动调节阀4，储水罐3通过管道连接到马桶5上，便于马桶冲洗，节约水资源。Referring to the accompanying drawings, a water-saving washbasin includes a washbasin 1, a
