Abstract
一种幕墙设备层雨水收集装置，包括设在幕墙百叶下部的铝单板接水槽，铝单板接水槽与不锈钢排水槽连通，不锈钢排水槽下部有虹吸式雨水斗，虹吸式雨水斗通过水管和第一水泵接储水箱，储水箱上部有溢水管，储水箱下部通过分流阀装置与雨水净化装置相接，净化装置通过水管和第二水泵接净化水箱。利用该雨水收集装置可以将幕墙百叶表面流下的雨水进行有效的收集和净化处理，作为非饮用水用于各种用水场合。
A curtain wall equipment layer rainwater collection device, comprising an aluminum veneer water receiving tank arranged at the lower part of the curtain wall louvers, the aluminum veneer water receiving tank is connected to the stainless steel drainage tank, and the lower part of the stainless steel drainage tank has a siphon rainwater bucket, which passes through the water pipe and The first water pump is connected to the water storage tank, the upper part of the water storage tank has an overflow pipe, the lower part of the water storage tank is connected to the rainwater purification device through a diverter valve device, and the purification device is connected to the purified water tank through the water pipe and the second water pump. The rainwater collecting device can effectively collect and purify the rainwater flowing down from the surface of the curtain wall louvers, and use it as non-drinking water for various water use occasions.
Description
技术领域 technical field
本实用新型涉及利用建筑物进行雨水收集，具体为一种位于幕墙设备层下部的雨水收集装置。The utility model relates to rainwater collection by using buildings, in particular to a rainwater collection device located at the lower part of a curtain wall equipment layer.
背景技术 Background technique
随着我国城市用水量的增加，水资源日益紧缺，节约用水已越来越受到人们的重视。我国南方地区雨水充沛，年降雨量约1100毫米，在雨水收集利用方面有着得天独厚的条件。将收集的雨水经过处理后，用于补充水景用水，改善环境用水，冲刷厕所，洗涤衣服，浇灌花园草地，清洁道路，空调冷却及某些工业用水等，具有可观的节水效果。With the increase of water consumption in cities in our country, water resources are increasingly scarce, and people pay more and more attention to saving water. The southern part of my country has abundant rainfall, with an annual rainfall of about 1100 mm, which has unique conditions for rainwater collection and utilization. After the collected rainwater is treated, it is used to replenish water for water features, improve environmental water, flush toilets, wash clothes, water garden grass, clean roads, air-conditioning cooling and some industrial water, etc., which has considerable water-saving effect.
作为城市现代高层建筑，目前普遍采用外装饰幕墙，收集并利用从大面积外装饰幕墙上流下的雨水是雨水收集的一条重要途径。As a modern high-rise building in the city, external decorative curtain walls are widely used at present. Collecting and utilizing the rainwater flowing from large-area external decorative curtain walls is an important way of rainwater collection.
对于高层、超高层建筑的外装饰幕墙，为满足防风雨及可观赏性，很多都设有由幕墙百叶构成的设备层，如何收集从幕墙设备层流下的雨水是幕墙雨水收集的技术课题之一。For the exterior decorative curtain walls of high-rise and ultra-high-rise buildings, in order to meet the weatherproof and ornamental requirements, many of them are equipped with equipment layers composed of curtain wall louvers. How to collect rainwater flowing from the curtain wall equipment layer is one of the technical issues of curtain wall rainwater collection. .
实用新型内容 Utility model content
本实用新型的任务是针对上述技术课题提供一种幕墙设备层雨水收集装置，实现对幕墙设备层雨水的有效收集和利用，以达到节约城市用水的目的。The task of this utility model is to provide a curtain wall equipment layer rainwater collection device for the above-mentioned technical issues, to realize the effective collection and utilization of curtain wall equipment layer rainwater, so as to achieve the purpose of saving urban water.
为实现上述任务，本实用新型提供的幕墙设备层雨水收集装置，包括设在幕墙百叶下部的铝单板接水槽，铝单板接水槽的与不锈钢排水槽连通，不锈钢排水槽下部有虹吸式雨水斗，虹吸式雨水斗通过水管和第一水泵接储水箱，储水箱上部有溢水管，储水箱下部通过分流阀装置与雨水净化装置相接，雨水净化装置通过水管和第二水泵接净化水箱。In order to achieve the above tasks, the rainwater collection device for curtain wall equipment layer provided by the utility model includes an aluminum veneer water receiving tank located at the lower part of the curtain wall louvers, the aluminum veneer water receiving tank is connected with the stainless steel drainage tank, and the lower part of the stainless steel drainage tank has a siphon type rainwater The bucket, the siphon type rainwater bucket is connected to the water storage tank through the water pipe and the first water pump, the upper part of the water storage tank has an overflow pipe, the lower part of the water storage tank is connected to the rainwater purification device through the diverter valve device, and the rainwater purification device is connected to the purified water tank through the water pipe and the second water pump.
本实用新型雨水收集装置，从幕墙百叶表面流下的雨水，首先进入铝单板接水槽，之后流入不锈钢排水槽，经过虹吸式雨水斗收集后通过水管和第一水泵进入储水箱。下雨初期，流入储水箱的雨水污染较重时，可通过分流阀装置直接排走，不进入下一流程。当储水箱中的雨水污染变轻时则通过分流阀装置进入雨水净化装置，经过净化处理后通过第二水泵进入净化水箱，作为备用。由此实现对幕墙设备层雨水进行有效的收集和净化处理，作为非饮用水用于上述各种用水场合，达到节约城市用水的目的。In the rainwater collection device of the utility model, the rainwater flowing down from the surface of the curtain wall louvers first enters the aluminum veneer water receiving tank, then flows into the stainless steel drainage tank, and after being collected by the siphon rainwater bucket, it enters the water storage tank through the water pipe and the first water pump. In the early stage of rain, when the rainwater flowing into the water storage tank is seriously polluted, it can be directly discharged through the diverter valve device without entering the next process. When the rainwater pollution in the water storage tank becomes lighter, it enters the rainwater purification device through the diverter valve device, and enters the purified water tank through the second water pump after purification treatment, as a backup. In this way, the rainwater on the equipment layer of the curtain wall can be effectively collected and purified, and used as non-drinking water for the above-mentioned various water usage occasions to achieve the purpose of saving urban water.
附图说明 Description of drawings

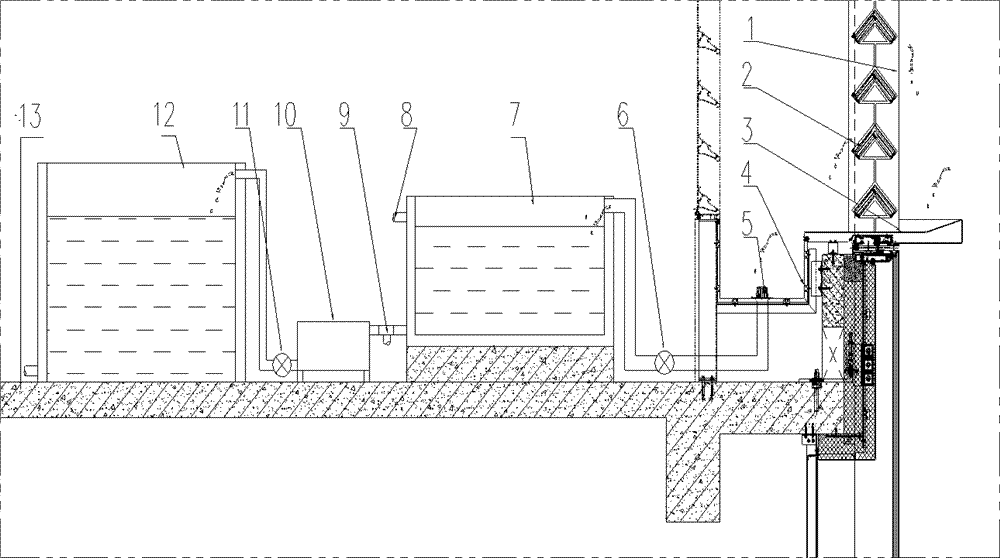

附图为本实用新型的结构和安装示意图。Accompanying drawing is the structure of the utility model and installation schematic diagram.
图中：1为幕墙表面，2为幕墙百叶，3为铝单板接水槽，4为不锈钢排水槽，5为虹吸式雨水斗，6为第一水泵，7为储水箱，8为溢水管，9为分流阀，10为雨水净化装置，11为第二水泵，12为净化水箱，13为底座。In the figure: 1 is the surface of the curtain wall, 2 is the shutter of the curtain wall, 3 is the aluminum veneer sink, 4 is the stainless steel drainage tank, 5 is the siphon rainwater bucket, 6 is the first water pump, 7 is the water storage tank, 8 is the overflow pipe, 9 is a diverter valve, 10 is a rainwater purification device, 11 is a second water pump, 12 is a purified water tank, and 13 is a base.
具体实施方式 Detailed ways
以下结合附图对本实用新型作进一步描述。Below in conjunction with accompanying drawing, the utility model is further described.
参照附图，本实用新型幕墙设备层雨水收集装置，在幕墙百叶2的下部设铝单板接水槽3，该接水槽伸出幕墙表面1一定距离，以便更多接收从百叶上流下的雨水。铝单板接水槽与位于主体后部的不锈钢排水槽4连通。不锈钢排水槽由钢构架支撑，钢构架与主体结构牢固连接。不锈钢排水槽下部规则布置虹吸式雨水斗5。虹吸式雨水斗通过水管和第一水泵6与储水箱7的进水管相接。储水箱上部有溢水管8，当进入储水箱的雨水超量时，用其将超量的雨水排出，进入建筑排水系统。位于储水箱下部的出水管与分流阀装置9相接，分流阀装置与雨水净化装置10相接。下雨初期，流入储水箱的雨水污染较重时，可通过分流阀装置直接排走，不进入下一流程。储水箱中的雨水污染变轻时则通过分流阀装置直接进入雨水净化装置，雨水净化装置由装有多层不同粒径的过滤材料(砾石，沙子和木炭)的不锈钢箱体构成。雨水净化装置通过水管和第二水泵11与净化水箱12相接。经过净化装置过滤净化的雨水由第二水泵泵入净化水箱12备用。储水箱和净化水箱置于与主体结构牢固连接的混凝土底座13上.With reference to the accompanying drawings, the rainwater collecting device of the curtain wall equipment layer of the utility model is provided with an aluminum veneer water receiving tank 3 under the curtain wall louvers 2, and the water receiving tank protrudes from the curtain wall surface 1 for a certain distance, so as to receive more rainwater flowing down from the louvers. The aluminum veneer water receiving tank communicates with the stainless steel drainage tank 4 located at the rear of the main body. The stainless steel drainage channel is supported by a steel frame, which is firmly connected with the main structure. The lower part of the stainless steel drainage tank is regularly arranged with a siphon type rainwater bucket 5. The siphon type rainwater bucket is connected with the water inlet pipe of the water storage tank 7 through the water pipe and the
本实用新型装置，在满足幕墙设备层雨水收集的同时，还可为设计师选用不同造型和材质的幕墙百叶以丰富幕墙设备层的可观赏性创造有利条件。如应用本实用新型雨水收集装置的幕墙百叶就可采用独特的玻璃百叶，使建筑物外视更加美观。The device of the utility model not only satisfies the collection of rainwater on the equipment layer of the curtain wall, but also creates favorable conditions for designers to choose curtain wall louvers of different shapes and materials to enrich the ornamental value of the equipment layer of the curtain wall. Just can adopt unique glass louver as the curtain wall louver of application rainwater harvesting device of the present utility model, make building look more attractive in appearance.
