Abstract

The utility model relates to the field of sample production, in particular to a circular saw cutting machine fixture for sample blanking, which is characterized in that it includes a depressing oil cylinder 1, a depressing oil cylinder 2, an offset baffle plate 1, and an offset baffle plate 2 1. Offset oil cylinder one and offset oil cylinder two. The depress oil cylinder one, offset baffle plate one and offset oil cylinder one are arranged on one side of the circular saw, and the action directions of depress oil cylinder one and offset oil cylinder one are perpendicular to each other. The first offset baffle and the first offset oil cylinder are respectively arranged on the opposite side of the billet sample; the second pressing cylinder, the second offset baffle and the second offset oil cylinder are arranged on the other side of the circular saw. Compared with the prior art, the utility model has the beneficial effects as follows: 1) Both the horizontal direction and the vertical direction are clamped by double jaws, which improves the cutting efficiency and precision, and the clamping is stable, ensuring the personal safety of operators. 2) Reduce the equipment vibration caused by the jumping of the sample, improve the service life of the equipment, reduce the consumption of the saw blade, and ensure the parallelism and roughness of the cut surface of the sample.

Description

A circular saw cutting machine fixture for sample billet opening

technical field

The utility model relates to the field of sample production, in particular to a circular saw cutting machine fixture for sample blanking.

Background technique

At present, iron and steel enterprises have very high requirements for sawing machines and fixtures for sawing because of their high hardness, large cutting force, difficult clamping of special shapes, and large vibration during sawing. The speed is 5 times that of ordinary circular sawing machines, which puts forward higher requirements for the firmness of the clamping fixture. Ordinary circular sawing machine clamps are mostly manually fed, the control accuracy is poor, and the labor intensity of the operator is high. The clamps are installed on the upper and lower sides of the heavy rail, and one on the left.

Contents of the invention

The purpose of the utility model is to provide a circular saw cutting machine fixture for sample blanking, which overcomes the shortcomings of the prior art, adjusts the center size, makes the sample pressing process fast, labor-saving and stable, and improves production efficiency.

For solving the problems of the technologies described above, the technical solution of the utility model is:

A fixture for a circular saw cutting machine for sample blanking, comprising a press-down oil cylinder one, a press-down oil cylinder two, an offset baffle plate one, an offset baffle plate two, an offset oil cylinder one, and an offset oil cylinder two. Oil cylinder 1, offset baffle plate 1 and offset oil cylinder 1 are arranged on one side of the circular saw. The opposite side of the sample; the depressing oil cylinder 2, offset baffle plate 2 and offset oil cylinder 2 are arranged on the other side of the circular saw, the action directions of the depressing oil cylinder 2 and offset oil cylinder 2 are perpendicular to each other, and the offset baffle plate Two and offset oil cylinder two are respectively arranged on the opposite side of the billet sample.

The first offset baffle and the second offset baffle are in contact with the blank sample with a radian matching the surface of the blank sample.

The piston ends of the first depressing cylinder, the second depressing cylinder, the first deviating cylinder and the second deviating cylinder are provided with radians matching the surface of the billet sample.

Compared with the prior art, the utility model has the beneficial effects as follows: 1) The blank sample can be accurately positioned, and the horizontal and vertical directions are clamped by double jaws, which improves the cutting efficiency and precision, and the clamping is stable , to ensure the personal safety of the operator. 2) Reduce the equipment vibration caused by the jumping of the sample, improve the service life of the equipment, reduce the consumption of the saw blade, and ensure the parallelism and roughness of the cut surface of the sample.

Description of drawings

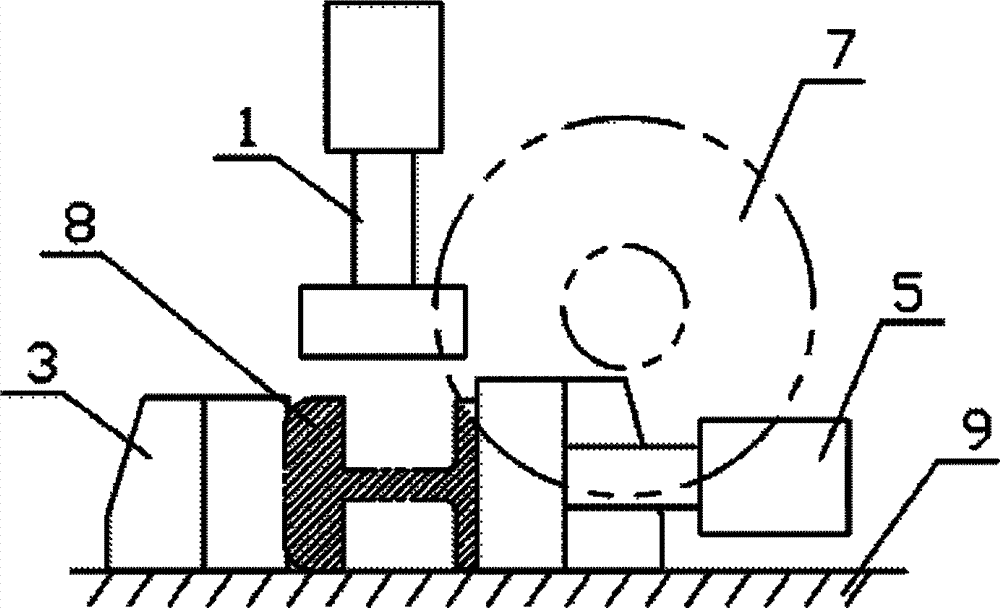

Fig. 1 is the structural representation of the utility model embodiment;

Fig. 2 is a sectional view along line A-A in Fig. 1 .

In the picture: 1-Press down cylinder 1 2-Press down cylinder 2 3-Offset baffle 1 4-Offset baffle 2 5-Offset cylinder 1 6-Offset cylinder 2 7-Circular saw 8-Bill opening test Sample 9 - Platform

Detailed ways

The specific embodiment of the utility model will be further described below in conjunction with accompanying drawing:

See Fig. 1 and Fig. 2, which are a schematic diagram of the structure of a circular saw cutting machine fixture embodiment for sample blanking of the present invention, including depressing oil cylinder 1, depressing oil cylinder 2, offset baffle plate 1, and offset Baffle plate two 4, offset oil cylinder one 5 and offset oil cylinder two 6, depress oil cylinder one 1, offset baffle plate one 3 and offset oil cylinder one 5 and are located at one side of circular saw 7, depress oil cylinder one 1 and The direction of action of offset oil cylinder one 5 is perpendicular to each other, offset baffle plate one 3 and offset oil cylinder one 5 are respectively arranged on the horizontal opposite side of billet sample 8; press down oil cylinder two 2, offset baffle plate two 4 and offset The oil cylinder 2 6 is set on the other side of the circular saw 7, and the action directions of the depressing oil cylinder 2 2 and the offset oil cylinder 6 are perpendicular to each other, and the offset baffle plate 2 4 and the offset oil cylinder 2 6 are respectively arranged at the corners of the billet sample 8 horizontally opposite side.

In order to improve the clamping force, the contact between the first offset baffle 3 and the second offset 4 and the blank sample 8 is provided with a radian matching the surface of the blank sample. The piston ends of depressing oil cylinder one 1, depressing oil cylinder two 2, offset oil cylinder one 5 and offset oil cylinder two 6 are all provided with a radian matching the surface of blank sample 8.

When in use, put the blank sample 8 such as the heavy rail on the platform 9, start the offset oil cylinder 1 5 and the offset oil cylinder 2 6 to push the blank sample 8 to the offset baffle plate 1 3 and the offset baffle plate 2 4. Start and press down cylinder one 1 and cylinder two 2, so that the blank sample 8 is firmly clamped, and then the circular saw 7 can be started to cut. Will not cause vibration, so labor efficiency is greatly improved.

Claims (3)

1. a sample cogging is with annular saw cutting machine anchor clamps; It is characterized in that; Comprise depress oil cylinder one, depress oil cylinder two, skew baffle plate one, skew baffle plate two, skew oil cylinder one and skew oil cylinder two; Said depress oil cylinder one, skew baffle plate one and skew oil cylinder one are located at a side of annular saw, and depress oil cylinder one is vertical each other with skew oil cylinder one action direction, and skew baffle plate one and the oil cylinder one that squints are located at the opposite side of cogging sample respectively; Said depress oil cylinder two, skew baffle plate two and skew oil cylinder two are located at the opposite side of annular saw, and depress oil cylinder two is vertical each other with skew oil cylinder two action directions, and skew baffle plate two and the oil cylinder two that squints are located at the opposite side of cogging sample respectively.

2. a kind of sample cogging according to claim 1 is characterized in that with annular saw cutting machine anchor clamps said skew baffle plate one is provided with the radian that coincide with the cogging specimen surface with skew baffle plate two and cogging sample contact position.

3. a kind of sample cogging according to claim 1 is characterized in that with annular saw cutting machine anchor clamps, the radian that pistons end is equipped with and the cogging specimen surface coincide of said depress oil cylinder one, depress oil cylinder two, skew oil cylinder one and skew oil cylinder two.
