Abstract

The utility model discloses a multifunctional anti-scalding glove, comprising a glove body with finger sleeves and a palm sleeve. The glove body consists of a silica gel layer, an inner fabric layer and an outer fabric layer; and the inner fabric layer and the outer fabric layer cover inside and outside the silica gel layer. The glove consisting of the inner fabric layer, the outer fabric layer and the middle silica gel layer not only has various functions of water resistance, thermal insulation, steam prevention and sliding prevention, but also is comfort to wear, and has a beautiful appearance. The multifunctional anti-scalding glove is an optimal auxiliary tool for cooking.

Description

A kind of multi-functional anti-scald gloves
Technical field
The utility model relates to a kind of daily living article, particularly a kind of gloves.
Background technology
Have the anti-scald gloves of wearing when being used in baking oven or steamer, taking out prepared food now, the mitten that rubber gloves is arranged or be made into usually by cotton, knitting wool etc.Wherein rubber gloves can effectively avoid hand to be scalded by steam, but effect of heat insulation is bad, reaches if food has just just been baked, and the bowl dish temperature of dress food is very high, and finger is easy to scalded; Though and the mitten effect of heat insulation is better than rubber gloves, and can't intercept steam, wear existing mitten and get the food of just baking or cooking, hand just is easy to scalded by steam.Therefore, existing anti-scald gloves can't protect hand not scalded fully.
The utility model content
The purpose of the utility model is the deficiency that overcomes prior art, provides a kind of easy to use, good heat-insulation effect, multi-functional anti-scald gloves that can be effectively anti-scald.
In order to solve prior art problems, the utility model comprises the glove bulk with fingerstall and palm cover, and said glove bulk is made up of silica gel layer and the inside and outside tissue layer that is covered in inside and outside of silica gel layer.
Further, said outer tissue layer outer surface is provided with the anti-scald portion that prevents that palm and wrist from being scalded of being used to.
Further, said anti-scald one end is fixed in palm cover front side, and the other end sews up or is fixed in the glove bulk back side through VELCRO.
Further, said fingerstall is provided with watertight composition outward.
Further, said watertight composition is formed by silica gel.
Further, the length of said glove bulk is 30~60cm, is preferably 33cm.
Further, said inside and outside cloth that layer is woven into by cotton thread and/or knitting wool or the nonwoven knitted made and formed.
Further, said outer tissue layer is provided with and is used to hang buckling of gloves.
Compared with prior art, the beneficial effect of the utility model is:
The glove bulk of the utility model is made up of inside and outside tissue layer and middle silica gel layer; Silica gel layer have waterproof, heat insulation, the retaining steam effect; And inside and outside tissue layer just has good effect of heat insulation; Tissue layer can also strengthen the comfort that glove bulk is worn simultaneously, and outer tissue layer also has anti-skidding effect when increasing the glove bulk aesthetic appearance.Therefore,, not only have waterproof, heat insulation, retaining steam and anti-skidding multiple function by the gloves that inside and outside tissue layer and middle silica gel layer constitute, and comfortable wearing, specious, be that apparatus is assisted a ruler in governing a country in best culinary art.
Description of drawings

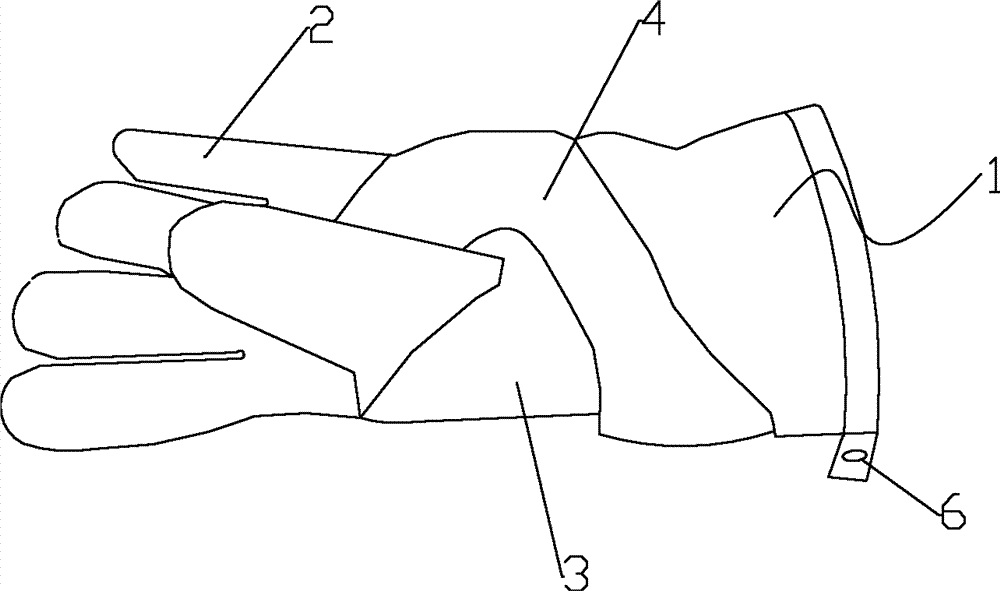

Fig. 1 is the utility model front appearance structural representation;
Fig. 2 is the utility model back appearance structural representation.
The drawing reference numeral explanation
Glove bulk 1 fingerstall 2 palm covers 3
Anti-scald 4 VELCRO 5 buckles 6
The specific embodiment
Below in conjunction with accompanying drawing the structure of the utility model is done detailed explanation and explanation, but be not to be qualification the utility model structure.
The utility model comprises the glove bulk 1 with fingerstall 2 and palm cover 3, and glove bulk 1 integral body is layer structure, specifically is made up of silica gel layer and the inside and outside tissue layer that is covered in the inside and outside surface of silica gel layer.
Referring to Fig. 1~2; In order to increase the anti-scald function of the utility model, outer tissue layer outer surface is provided with from slapping cover front side and escapes from anti-scald 4 that extend at the body back side to hand, and anti-scald 4 can be made up of inside and outside tissue layer and silica gel layer; Also can constitute by the multilayer cotton layer; One of which end and outer tissue layer sew up fixing, and the other end amplexiforms fixing through VELCRO 5 and outer tissue layer, also can directly be seamed on the outer tissue layer.On hook, buckle 6 being sewed with near the gloves afterbody to be used for gloves are hung on the outer tissue layer, with putting of convenient gloves.
Since fingerstall 2 frequent contact with water when using, the fingerstall 2 outer watertight compositions that strengthen water-proof function that are provided with, and this watertight composition is formed by the silica gel that covers with fingerstall 2 outer tissue layer outer surfaces.
Glove bulk 1 length of the utility model is 30~60cm, is preferably 33cm, thereby can effectively protect arm not scalded.
When producing the gloves of the utility model; Use the cloth of the cotton, nonwoven or the existing any suitable making clothing that are woven into by cotton thread and/or knitting wool to process glove earlier, tissue layer outer surface in then liquid silica gel being covered, attention will be smeared evenly; In silica gel layer as yet not before the condensation cure; Cover connects the outer tissue layer of preprepared, when silica gel solidifies, just can form the multi-functional anti-scald gloves with three-decker of the utility model.
Outer tissue layer proves through flame retardant test that after high temperature resistant processing resistance combustion temperature can reach 250 ℃, and temperature resistant range can reach-100~350 ℃.
The above only is the preferable case study on implementation of the utility model; Be not that the utility model is done any pro forma restriction; So every the utility model technical scheme content that do not break away from;, all still belong in the scope of the utility model technical scheme any simple modification or equivalent variations that above embodiment did according to the technical spirit of the utility model.

Claims (9)

1. multi-functional anti-scald gloves comprise the glove bulk with fingerstall and palm cover, it is characterized in that: said glove bulk is made up of silica gel layer and the inside and outside tissue layer that is covered in inside and outside of silica gel layer.
2. multi-functional anti-scald gloves according to claim 1 is characterized in that: said outer tissue layer outer surface is provided with the anti-scald portion that prevents that palm and wrist from being scalded of being used to.
3. multi-functional anti-scald gloves according to claim 2 is characterized in that: said anti-scald one end is fixed in palm cover front side, and the other end sews up or is fixed in the glove bulk back side through VELCRO.
4. multi-functional anti-scald gloves according to claim 1 and 2, it is characterized in that: said fingerstall is provided with watertight composition outward.
5. multi-functional anti-scald gloves according to claim 4, it is characterized in that: said watertight composition is formed by silica gel.
6. multi-functional anti-scald gloves according to claim 5 is characterized in that: the length of said glove bulk is 30~60cm.
7. multi-functional anti-scald gloves according to claim 6 is characterized in that: the length of said glove bulk is 33cm.
8. multi-functional anti-scald gloves according to claim 1 is characterized in that: cloth that said inside and outside tissue layer is woven into by cotton thread and/or knitting wool or nonwoven are made and are formed.
9. multi-functional anti-scald gloves according to claim 1 is characterized in that: said outer tissue layer is provided with and is used to hang buckling of gloves.
