CN202563642U - Baby bed automatic monitoring device - Google Patents
Baby bed automatic monitoring device Download PDFInfo
- Publication number
- CN202563642U CN202563642U CN2012201711967U CN201220171196U CN202563642U CN 202563642 U CN202563642 U CN 202563642U CN 2012201711967 U CN2012201711967 U CN 2012201711967U CN 201220171196 U CN201220171196 U CN 201220171196U CN 202563642 U CN202563642 U CN 202563642U
- Authority
- CN
- China
- Prior art keywords
- microcontroller
- infanette
- baby
- monitoring device
- automatic monitoring
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Accommodation For Nursing Or Treatment Tables (AREA)
Abstract
本实用新型为婴儿床自动监控装置，温度传感器置于婴儿床侧检测婴儿环境温度，微控制器按其信号控制温度调节装置电路启闭风扇加热器调节温度。温度传感器置于婴儿体表检测婴儿体表温度，温度过低微控制器控制置于家长手边的接收器经语音电路和扬声器发出语音提示，或者经蜂鸣器发声提醒。微控制器还接有置于婴儿臀下的湿度传感器、近于婴儿头部的非接触式的红外体温传感器，尿床或发烧时接收器发出提示。微控制器还接有声音传感器和声响播放电路、摇床电机电路。婴儿醒哭启动声响播放电路播放音乐或者安抚声或使婴儿床轻摇。微控制器还接有家长手边的遥控按钮和婴儿床边的呼叫按钮。本装置实时监控婴儿睡眠，减轻家长的辛劳。
The utility model is an automatic monitoring device for a baby bed. A temperature sensor is placed on the side of the baby bed to detect the ambient temperature of the baby. The temperature sensor is placed on the baby's body surface to detect the baby's body surface temperature. If the temperature is too low, the microcontroller controls the receiver placed at the parent's hand to give a voice prompt through the voice circuit and a speaker, or a buzzer to sound a reminder. The microcontroller is also connected with a humidity sensor placed under the baby's buttocks, a non-contact infrared body temperature sensor close to the baby's head, and the receiver sends out prompts when bedwetting or fever occurs. The microcontroller is also connected with a sound sensor, a sound playing circuit, and a shaker motor circuit. When the baby wakes up and cries, the sound playing circuit is started to play music or pacify the sound or make the crib shake gently. The microcontroller is also connected with a remote control button at the parent's hand and a call button at the side of the crib. The device monitors the baby's sleep in real time, reducing the hard work of the parents.
Description
(1) technical field
The utility model relates to the automatic control technology field, is specially a kind of infanette automatic monitoring device.
(2) background technology
Baby-sit for ease in the past, child be mostly with the adult with sleeping.Now for independent consciousness from little cultivation child, just have oneself from the baby child that gets up, even the room of oneself in addition.But baby and adult divide when sleeping, and father and mother or other caretaker just need get up frequently and observe child's sleep state night, as whether play by, whether wet the bed, whether wake up with a start and cry and scream etc., in time to take measures, let child sleep, also prevent sick.This just makes the head of a family can not guarantee sleep, also fails in time to take care of the baby unavoidably and neglects.Therefore need a kind of device that helps head of a family's night monitoring baby.
(3) utility model content
The purpose of the utility model is a kind of infanette automatic monitoring device of design, and microcontroller is connected to temperature sensor etc., is connected to the temperature control equipment circuit simultaneously, and when temperature anomaly, microcontroller starts corresponding temperature control equipment.
The infanette automatic monitoring device of the utility model design; Comprise microcontroller; Microcontroller is connected to temperature sensor and temperature control equipment circuit; Said temperature sensor places infanette side and/or baby's body surface, and to detect baby's environment temperature, said temperature control equipment is to be installed on infanette neighbouring fan and/or well heater.
When said temperature sensor places the infanette side, the signal of the temperature sensor that microcontroller receives is below or above the setting value at room temperature upper limit or down in limited time, microcontroller is through temperature control equipment circuit heater or fan, to regulate temperature.
Said temperature sensor places baby's body surface, to detect baby's shell temperature.Said microcontroller also is connected to and places head of a family's receiver on hand, and said receiver is furnished with sound circuit and loudspeaker, perhaps is furnished with hummer.
When the signal that receives the temperature sensor that places baby's body surface when microcontroller is lower than children's shell temperature setting value; Explain the baby play by; Microcontroller transmits a signal to head of a family's receiver on hand; Send voice suggestion through sound circuit and loudspeaker, perhaps send the sound of setting through hummer, the head of a family promptly learns and can in time handle.
Said microcontroller also is connected to humidity sensor, and said humidity sensor places under baby's stern.
The moisture signal that receives when microcontroller is during greater than humidity set point; Explain that the baby wets the bed, microcontroller transmits a signal to head of a family's receiver on hand, sends voice suggestion through sound circuit and loudspeaker; Perhaps send the sound of setting through hummer, the head of a family promptly learns and can in time handle.
Said microcontroller also is connected to contactless infrared body temperature sensor, and said infrared body temperature sensor places near the baby head.
The body temperature signal that receives when microcontroller is during greater than the body temperature setting value; Baby fever is described, microcontroller transmits a signal to head of a family's receiver on hand, sends voice suggestion through sound circuit and loudspeaker; Perhaps send the sound of setting through hummer, the head of a family promptly learns and can in time handle.
Said microcontroller also is connected to sound transducer and sound playing circuit, and said sound transducer places the infanette side.
The voice signal that receives when microcontroller is during greater than the sound setting value, explain that the baby has waken up to cry to cry, and microcontroller starts sound playing circuit, plays soft music or pacifies the voice that roars of laughter are slept, so that baby's peace and quiet are fallen asleep again.
The equipped infanette of this device is an electric cradle, and microcontroller connects the shaking table motor circuit.
The voice signal that receives when microcontroller is during greater than the sound setting value, and microcontroller starts the shaking table motor, makes the infanette jog, makes the baby sleeping as early as possible.
Said microcontroller also is connected to liquid crystal display and keyboard.Liquid crystal display can be had access to the setting value of temperature, humidity and sound, and keyboard is used for the setting and the modification of each setting value.
Said microcontroller also is connected to RPB, and RPB places the head of a family on hand, and the head of a family is start-up temperature regulating device circuit or sound playing circuit or shaking table motor circuit directly.
Microcontroller also is connected to call button,, call button is positioned at by the infanette.The baby presses this call button, and microcontroller sends corresponding signal to the head of a family's receiver, and the head of a family can know that child is looking for the people.
Said microcontroller is connected to radio receiving transmitting module, and microcontroller is through this radio receiving transmitting module and receiver, RPB wireless connections.
The advantage of the utility model infanette automatic monitoring device is: 1, can monitor sleeping condition of baby in real time, when temperature variation, baby wet the bed or wake up with a start, in time notify the head of a family; 2, the sound is play and is controlled shaking table automatically and can in time pacify the baby, reduces getting up in the night to urinate of the head of a family; 3, the supervising device of this infanette also can be installed on sick bed, helps the nurse to grasp patient's state in real time, reduces nurse's tour, protects sufferer in time to obtain nursing simultaneously; 4, simple in structure, cost is low, be suitable for applying.
(4) description of drawings

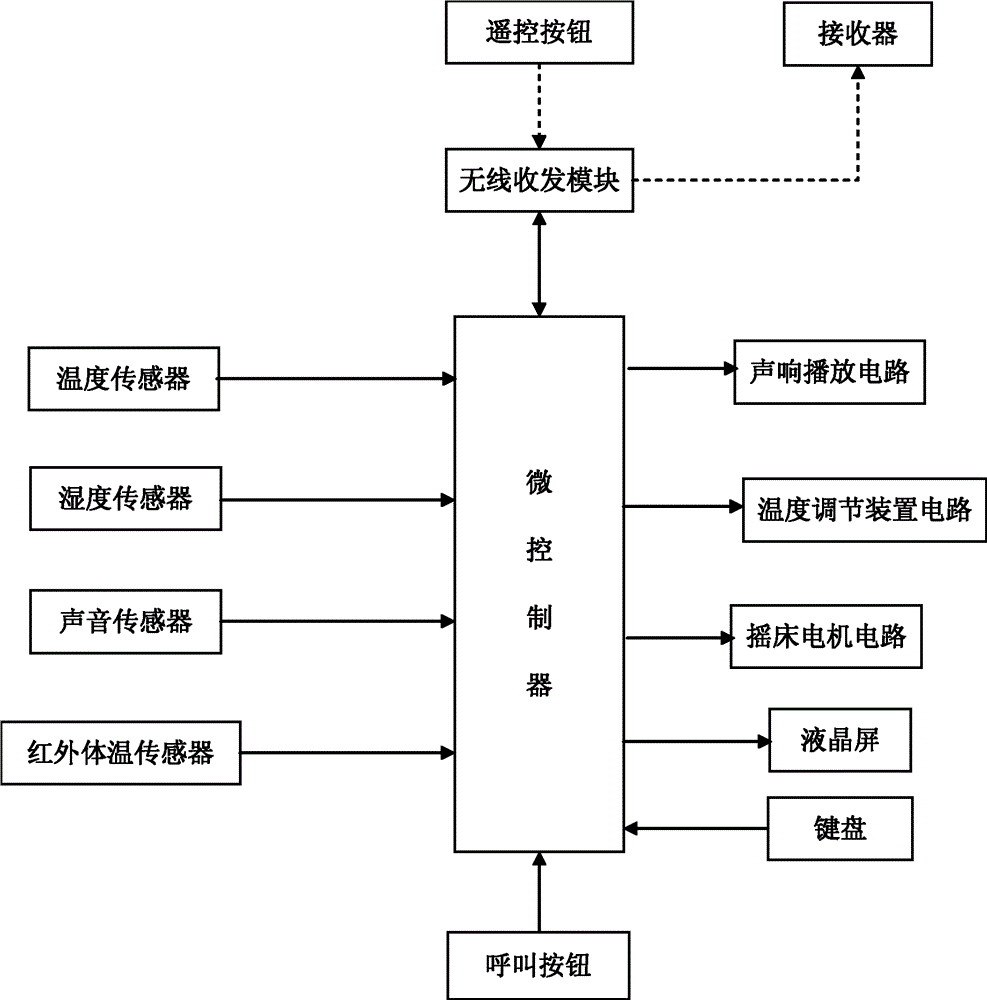

Fig. 1 is this infanette automatic monitoring device embodiment circuit structure block diagram.
(5) embodiment
Embodiment is as shown in Figure 1 for this infanette automatic monitoring device, and microcontroller is connected to temperature sensor, humidity sensor, infrared body temperature sensor, sound transducer.Said temperature sensor places infanette side and baby's body surface, and said humidity sensor places under baby's stern, and said sound transducer places the infanette side.
Microcontroller is connected to liquid crystal display and keyboard.
Microcontroller is connected to the temperature control equipment circuit, and said temperature control equipment is to be installed on infanette neighbouring fan and well heater.
Said microcontroller also is connected to sound playing circuit.
The equipped infanette of this routine device is an electric cradle, and microcontroller connects the shaking table motor circuit.
Said microcontroller is connected to radio receiving transmitting module, and microcontroller is through this radio receiving transmitting module and place head of a family's receiver, RPB wireless connections on hand.Said receiver is furnished with sound circuit and loudspeaker, the also available receiver of being furnished with hummer.
Said microcontroller also is connected to button and is positioned at the other call button of infanette.
The foregoing description is merely concrete example of purpose, technical scheme and beneficial effect further explain to the utility model, and the utility model is not to be defined in this.All any modifications of within the scope of disclosure of the utility model, being made, be equal to replacement, improvement etc., all be included within the protection domain of the utility model.
Claims (10)
1. the infanette automatic monitoring device comprises microcontroller, and microcontroller is connected to temperature sensor, it is characterized in that:
Said microcontroller is connected to the temperature control equipment circuit, and said temperature sensor places the infanette side, and said temperature control equipment is to be installed on infanette neighbouring fan and/or well heater.
2. infanette automatic monitoring device according to claim 1 is characterized in that:
Said temperature sensor places baby's body surface, and said microcontroller also is connected to and places head of a family's receiver on hand; Said receiver is furnished with sound circuit and loudspeaker, perhaps is furnished with hummer.
3. infanette automatic monitoring device according to claim 2 is characterized in that:
Said microcontroller also is connected to humidity sensor, and said humidity sensor places under baby's stern.
4. infanette automatic monitoring device according to claim 2 is characterized in that:
Said microcontroller also is connected to contactless infrared body temperature sensor, and said infrared body temperature sensor places near the baby head.
5. infanette automatic monitoring device according to claim 1 is characterized in that:
Said microcontroller also is connected to sound transducer and sound playing circuit, and said sound transducer places the infanette side.
6. infanette automatic monitoring device according to claim 5 is characterized in that:
The equipped infanette of this device is an electric cradle, and microcontroller connects the shaking table motor circuit.
7. infanette automatic monitoring device according to claim 2 is characterized in that:
Said microcontroller also is connected to RPB, and RPB places the head of a family on hand.
8. infanette automatic monitoring device according to claim 2 is characterized in that:
Said microcontroller also is connected to call button, and call button is positioned at by the infanette.
9. infanette automatic monitoring device according to claim 7 is characterized in that:
Said microcontroller is connected to radio receiving transmitting module, and microcontroller is through this radio receiving transmitting module and receiver, RPB wireless connections.
10. according to each described infanette automatic monitoring device in the claim 1 to 9, it is characterized in that:
Said microcontroller also is connected to liquid crystal display and keyboard.
