The utility model relates to an automatic detecting device for air impermeability/ air permeability of an infusion apparatus. The automatic detecting device comprises an air source and an air inlet pipeline connected with the air source. An air source cleaning handler is arranged on the air inlet pipeline. A pressure adjusting device and a pressure/flow quantity discriminant device are successively arranged on the air inlet pipeline which is disposed behind the air source cleaning handler. A port for connecting an input end of the infusion apparatus is arranged at the tail end of the air inlet pipeline. A location sensor is arranged beside the port. A signal output end of the location sensor is connected with a control device. The control device is respectively connected with the pressure/flow quantity discriminant device and an alarm device through a signal circuit. The automatic detecting device for the air impermeability/ air permeability of the infusion apparatus has the advantages of high degree of automation, convenient detection and system self-detecting function.

Description

A kind of transfusion device impermeability/aeration automatic detection device
Technical field
The utility model relates to a kind of checkout equipment, especially relates to a kind of checkout equipment of transfusion device.
Background technology
The aseptic apparatus full name is disposable use aseptic medical equipment, is meant aseptic, apyrogeneity, through being up to the standards, the medicine equipment of disposable direct use before the deadline.Disposable infusion set belongs to aseptic apparatus.
Aseptic medical equipment automated arm industry is flourish in recent years, but present stage aseptic medical equipment enterprise automaticity also very low, its automaticity also has very big room for promotion.Such as; The production assembling process of disposable infusion set is still manually-operated basically, and its main cause is owing to be flexiplast spare by dress group new product; Be difficult to realize automatic assembling than conventional products, also do not realize the whole-process automatic assembling of disposable infusion set so far.But being medical device industry, the market development megatrend generally presses for technological innovation, upgrading transition to change the labor-intensive present situation; Also be that the research and development of whole-process automatic package technique are imperative; Thereby the Automatic Measurement Technique of disposable transfusion device and Design of device exploitation, very important aspect its automatic package technique enforcement of promotion.Disposable infusion set impermeability and aeration are for must examine performance, but in the present enterprise production, this performance is main with manual detection still, is difficult to adapt to the automated production requirement.Like publication number is that the Chinese patent of CN201795901U discloses a kind of transfusion device gas and leaks detecting device, can be effective to solve conveniently, the problem of fast detecting transfusion device gas leakage.Its technical scheme is: comprise glass tube, needle tubing and air valve, needle tubing places in the glass tube, and glass tube inner aqueous layer top is air layer; Needle tubing is suitable for reading inserts in the air layer, and glass tube bottom one end is connected with source of the gas, and the other end is connected with the air valve bottom through skirt; Air valve structure is, valve gap is equipped with through connector in valve body top, and bonnet lower is equipped with spool in valve body; Valve inner hollow constitutes the inwall gas circuit; Outlet is arranged on the valve gap, and the spring that is contained in the valve body is equipped with in the spool lower end, and valve body lower portion is linked together by connector and skirt.During use, measured piece pack into valve gap suitable for reading in, depress by the side part; Its gas port links to each other with spool, and gas flows through the spool side opening and arrives gas port from the bottom, seals the valve gap outlet simultaneously; The glass tube upper end forms pressure reduction with source of the gas if assembly leaks gas then, because needle tubing is suitable for reading in air, goes into to manage top so gas divides with the bubbling form; Can conveniently check the gas leakage situation this moment: if assembly is air tight, then pressure reduction is zero up and down, and the water surface remains static; Leak hunting equally after the completion, because the effect of spring moves on the spool, O-ring seal is sealed spool side opening and whole inwall gas circuit, and system does not have pressure reduction, and the water surface also remains static.But this technical scheme is through operator's visual inspection bubbling situation, and whether device itself have problem, also is not easy to be observed, and therefore, uses this device to detect and unreliable, and automaticity is not high yet, and testing process meeting consuming time is long.
Summary of the invention
The utility model mainly is to solve existing in prior technology to detect unreliable, technical matterss such as automaticity is not high, testing process length consuming time, and kind transfusion device impermeability/aeration automatic detection device that a kind of automaticity is high, easy to detect, have the System self-test function is provided.
The above-mentioned technical matters of the utility model mainly is able to solve through following technical proposals: a kind of transfusion device impermeability/aeration automatic detection device; It is characterized in that; It comprises a source of the gas and an air inlet pipeline that links to each other with source of the gas; Air inlet pipeline is provided with source of the gas clean device; Be provided with pressure governor, pressure and flow judging device on the air inlet pipeline behind the source of the gas clearer in order, the end of air inlet pipeline is provided with an interface that is used to connect the transfusion device input end, and this interface side is provided with a position sensor; The signal output part of this position sensor links to each other with a controller, and this controller links to each other with alarming device with described pressure and flow judging device respectively through signal circuit.When using this device that transfusion device is detected, the entrance point of transfusion device is inserted interface, position sensor promptly can picked up signal at this moment, and controller knows that through this signal transfusion device is in place, and detects.The entrance point of transfusion device is bigger, and endpiece is less.Therefore, can think that the air-flow size that the situation of the endpiece of transfusion device reaches when detecting has direct influence.Under the situation of constant air pressure, when endpiece stopped up, detected air-flow can reduce; When any position before endpiece and the endpiece leaked air, detected air-flow will increase.But when the inaccurate problem of air pressure appearred in device itself, this detection also can be forbidden; So the utility model also provides the pre-detection structure to device; Be that the source of the gas clearer is handled the back, is adjusted to the transfusion device authorized pressure by pressure governor gases at high pressure, and judge by pressure and flow judging device whether pressure is suitable, if information warning appears in improper then system; The operator just can overhaul device immediately, can't therefore occur measured piece is detected improperly.
As preferably, described interface is provided with a pressure valve, and the leading end of this pressure valve links to each other with air inlet pipeline, and the outlet side is provided with a mouth that is tightly connected that is used to connect measured piece.Pressure valve is opened when air pressure reaches the appropriate value of detection; When source of the gas is closed or air pressure when reducing to certain value; Pressure valve is promptly closed, and makes extraneous gas can not flow backwards in the auto levelizer, because of a little these devices at equipment just can not polluted after this pressure valve by outside air; Can not bring pollution to measured piece because of detection yet.
As preferably; The outside of the described mouth that is tightly connected is provided with a gas leakage test chamber; This gas leakage test chamber is provided with a sealing socket coaxial with the described mouth that is tightly connected; The gas leakage test chamber is provided with an escape pipe, and this escape pipe is provided with a pneumatic detector, and the signal circuit of pneumatic detector links to each other with described controller.Be tightly connected mouth with repeatedly being connected of measured piece after, can occur sealing bad problem, leak air, will the accuracy that detect be impacted.In this programme, the entrance point of measured piece through the sealing socket, is connected with the mouth that is tightly connected earlier again; Be tightly connected between sealing socket and the measured piece, when the sealing between mouth and the measured piece of being tightly connected went wrong, gas flowed out; All or major part wherein flow out from escape pipe, when pneumatic detector had detected air-flow, explaining is tightly connected had gas leakage between mouth and the measured piece; Promptly find signal to controller, controller stops to detect through alarming device prompting operation person.
As preferably, described controller is provided with counting unit, and controller links to each other with an electronic console.When controller sent measured piece and puts signal in place, counter was about to counting and adds 1, and shows through electronic console, knows the number of packages of measurement with the handled easily person at each position sensor.
As preferably, described position sensor is an optoelectronic switch.Optoelectronic switch as position sensor have easy for installation, induction is sensitive, easy to use and can not impact fixing measured piece.
As preferably, described alarming device comprises hummer and/or pilot lamp, and described pilot lamp comprises low discharge pilot lamp, high flow capacity pilot lamp.Cross when low when gas flow, controller control low discharge pilot lamp is bright, explain that promptly measured piece has blocking problem, otherwise then the high flow capacity pilot lamp is bright, explains that promptly measured piece has the problem of gas leakage.When any fault or appearance obstruction or gas leakage problem occurring, the equal sounding of hummer, and can not go out the sound of different length, different frequency according to different problems.
As preferably, described alarming device comprises hummer and/or pilot lamp, and described pilot lamp comprises that low discharge pilot lamp, high flow capacity pilot lamp, seal leakage pilot lamp and valve stop up pilot lamp.Cross when low when gas flow, controller control low discharge pilot lamp is bright, explain that promptly measured piece has blocking problem, otherwise then the high flow capacity pilot lamp is bright, explains that promptly measured piece has the problem of gas leakage.When any fault or appearance obstruction or gas leakage problem occurring, the equal sounding of hummer, and can not go out the sound of different length, different frequency according to different problems.If when the sealing between mouth and the measured piece of being tightly connected goes wrong; Gas flows out; All or major part wherein flow out from escape pipe, when pneumatic detector had detected air-flow, explaining is tightly connected had gas leakage between mouth and the measured piece; Promptly find signal to controller, controller is through the bright caution of control seal leakage pilot lamp operator.If pressure valve breaks down, in the time of can't opening, the flow that system records is zero, and under the situation that obtains to be put in place by fitting when position sensor, this flow still is zero, and it is bright that then the controller operation valve stops up pilot lamp.
The beneficial effect that brings of the utility model is; Solve existing in prior technology and detected unreliable, technical matterss such as automaticity is not high, testing process length consuming time, the kind transfusion device impermeability/aeration automatic detection device that realized that a kind of automaticity is high, easy to detect, has the System self-test function.
Description of drawings

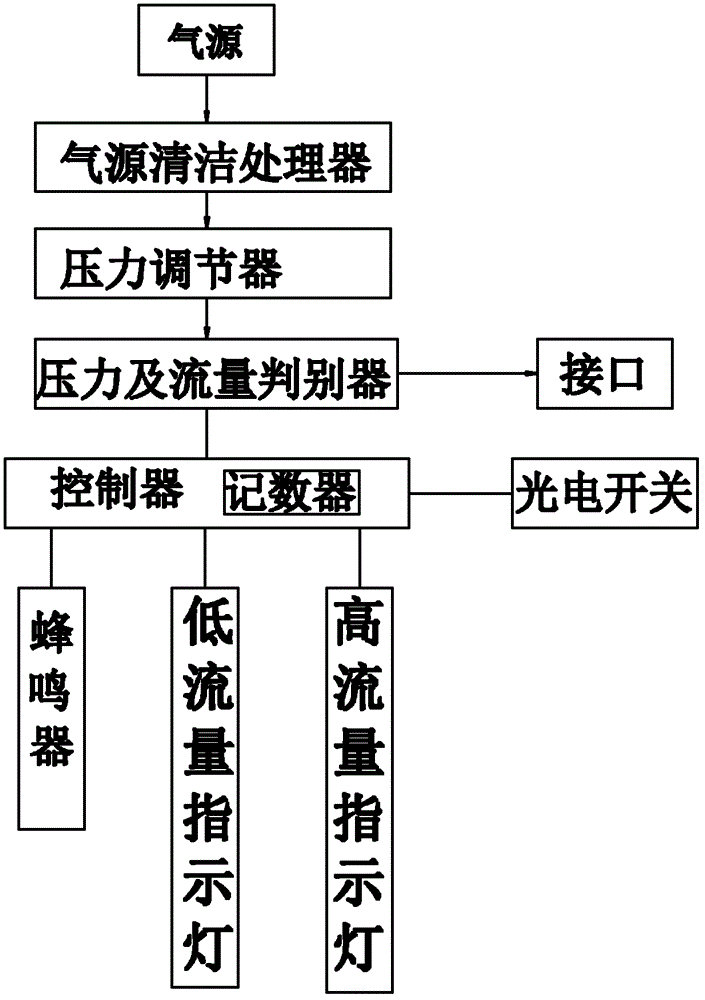

Accompanying drawing 1 is a kind of structural representation of embodiment 1;
Accompanying drawing 2 is a kind of structural representations of embodiment 2;
Accompanying drawing 3 is a kind of structural representations of the pressure valve part of the utility model.
Embodiment
Pass through embodiment below, and combine accompanying drawing, do further bright specifically the technical scheme of the utility model.
Embodiment 1:
Like Fig. 1, shown in Figure 3; A kind of transfusion device impermeability/aeration automatic detection device is characterized in that, it comprises a source of the gas and an air inlet pipeline that links to each other with source of the gas; Air inlet pipeline is provided with source of the gas clean device; Be provided with pressure governor, pressure and flow judging device on the air inlet pipeline behind the source of the gas clearer in order, the end of air inlet pipeline is provided with an interface that is used to connect the transfusion device input end, and interface is provided with a pressure valve; The leading end 1 of this pressure valve links to each other with air inlet pipeline, and the outlet side is provided with a mouth 2 that is tightly connected that is used to connect measured piece.The interface side is provided with an optoelectronic switch; The be tightly connected outside of mouth 2 is provided with a gas leakage test chamber 3; This gas leakage test chamber 3 is provided with a sealing socket 6 coaxial with the described mouth that is tightly connected, and the gas leakage test chamber is provided with an escape pipe 4, and this escape pipe is provided with a pneumatic detector 5.The signal output part of position sensor, pneumatic detector all links to each other with a controller; This controller is provided with counting unit; Controller links to each other with pressure and flow judging device, alarming device, optoelectronic switch, an electronic console respectively through signal circuit, and this alarming device comprises hummer and low discharge pilot lamp, high flow capacity pilot lamp.
Use said apparatus to accomplish the detection to transfusion device through following method, it comprises the steps:
Step 1, open source of the gas, introduce gases at high pressure to air inlet pipeline, judging air pressure when pressure and flow judging device is preset value or during for preset value, alarming device sends cue respectively;
Step 2, when alarming device prompting air pressure is preset value, insert transfusion device input end syringe needle to described interface.
Step 3, when position sensor is sensed interface and has been inserted transfusion device input end syringe needle; This position sensor promptly sends signal to controller, the signal and preset transfusion device flow value Q just often of the flow value Q that pressure that is about to receive behind this signal of control reception and flow judging device are sent 0Compare.Cross when low when gas flow, controller control low discharge pilot lamp is bright, explain that promptly measured piece has blocking problem, otherwise then the high flow capacity pilot lamp is bright, explains that promptly measured piece has the problem of gas leakage.When any fault or appearance obstruction or gas leakage problem occurring, the equal sounding of hummer, and can not go out the sound of different length, different frequency according to different problems.System judges in the gas leakage test chamber whether have gas to flow out, when gas flowed out, pneumatic detector promptly sent signal to controller through pneumatic detector, and controller is promptly judged interface gas leakage, and finds signal through alarming device, and testing process stops.
Step 4, work as Q=Q 0The time, judge that transfusion device impermeability/aeration is normal,
As Q ﹤ Q 0The time, judge that the transfusion device aeration is bad, blockage problem is arranged,
As Q ﹥ Q 0The time, judge that the transfusion device impermeability is bad, the gas leakage problem is arranged.
Embodiment 2:
As shown in Figure 2, alarming device comprises hummer and/or pilot lamp, and described pilot lamp comprises that low discharge pilot lamp, high flow capacity pilot lamp, seal leakage pilot lamp and valve stop up pilot lamp.Cross when low when gas flow, controller control low discharge pilot lamp is bright, explain that promptly measured piece has blocking problem, otherwise then the high flow capacity pilot lamp is bright, explains that promptly measured piece has the problem of gas leakage.When any fault or appearance obstruction or gas leakage problem occurring, the equal sounding of hummer, and can not go out the sound of different length, different frequency according to different problems.If when the sealing between mouth and the measured piece of being tightly connected goes wrong; Gas flows out; All or major part wherein flow out from escape pipe, when pneumatic detector had detected air-flow, explaining is tightly connected had gas leakage between mouth and the measured piece; Promptly find signal to controller, controller is through the bright caution of control seal leakage pilot lamp operator.If pressure valve breaks down, in the time of can't opening, the flow that system records is zero, and under the situation that obtains to be put in place by fitting when position sensor, this flow still is zero, and it is bright that then the controller operation valve stops up pilot lamp.Other structure is identical with embodiment 1 except that alarming device.

Claims (7)

1. transfusion device impermeability/aeration automatic detection device; It is characterized in that; It comprises a source of the gas and an air inlet pipeline that links to each other with source of the gas, and air inlet pipeline is provided with source of the gas clean device, is provided with pressure governor, pressure and flow judging device on the air inlet pipeline behind the source of the gas clearer in order; The end of air inlet pipeline is provided with an interface that is used to connect the transfusion device input end; This interface is other to be provided with a position sensor, and the signal output part of this position sensor links to each other with a controller, and this controller links to each other with alarming device with described pressure and flow judging device respectively through signal circuit.
2. transfusion device impermeability according to claim 1/aeration automatic detection device; It is characterized in that described interface is provided with a pressure valve; The leading end of this pressure valve links to each other with air inlet pipeline, and the outlet side is provided with a mouth that is tightly connected that is used to connect measured piece.
3. transfusion device impermeability according to claim 1 and 2/aeration automatic detection device; The outside that it is characterized in that the described mouth that is tightly connected is provided with a gas leakage test chamber; This gas leakage test chamber is provided with a sealing socket coaxial with the described mouth that is tightly connected; The gas leakage test chamber is provided with an escape pipe, and this escape pipe is provided with a pneumatic detector, and the signal circuit of pneumatic detector links to each other with described controller.
4. transfusion device impermeability according to claim 1/aeration automatic detection device is characterized in that described controller is provided with counting unit, and controller links to each other with an electronic console.
5. transfusion device impermeability according to claim 1/aeration automatic detection device is characterized in that described position sensor is an optoelectronic switch.
6. according to claim 1 or 2 or 4 or 5 described transfusion device impermeability/aeration automatic detection devices, it is characterized in that described alarming device comprises hummer and/or pilot lamp, described pilot lamp comprises low discharge pilot lamp, high flow capacity pilot lamp.
7. transfusion device impermeability according to claim 3/aeration automatic detection device; It is characterized in that described alarming device comprises hummer and/or pilot lamp, described pilot lamp comprises that low discharge pilot lamp, high flow capacity pilot lamp, seal leakage pilot lamp and valve stop up pilot lamp.
