CN202561635U - Solar LED (Light Emitting Diode) street lamp device for village-to-village project - Google Patents

Abstract

The utility model discloses a village-to-village solar LED street lamp device, which comprises an LED street lamp, a shell, a street lamp bracket, a solar controller, a light pole, a solar battery, an LED street lamp, a constant current source, a wireless speaker, and a monitoring camera all installed and fixed on the Inside the casing, the wireless speaker and the monitoring camera protrude through the corresponding rectangular hole on the lampshade. A backup battery is installed in the monitoring camera. The solar panel is installed and fixed on the top of the light pole, and the solar controller is installed and fixed in the middle of the light pole. The solar battery is buried in the soil next to the light pole. The utility model uses solar energy to supply power to LED street lamps, speakers and monitoring cameras. Street lights save energy and reduce costs.

Description

A village-to-village solar LED street light device

technical field

The utility model relates to the field of LED street lamps, in particular to a village-to-village solar LED street lamp device.

Background technique

In order to change the appearance of the countryside and improve the quality of life of the majority of farmers, in recent years, local governments have implemented lighting projects to benefit the people in rural areas, and installed street lights on rural roads, which is called the Village Road Lighting Project. At present, most street lights in villages are powered by AC power supply, which not only consumes power, but also has a long construction period and high cost due to the laying of cables, especially in remote rural areas, and the street lights only have a single lighting function. At present, many rural areas need rural broadcasting to publicize the party's principles and policies, scientific farming knowledge, and some rural areas need to set up surveillance cameras beside the roads due to traffic and safety management, which requires installation of speakers and surveillance cameras beside the roads. Pole, lay the corresponding cables.

Contents of the invention

In order to solve the above problems, the utility model provides a village-to-village solar LED street lamp device, which uses solar energy to supply power to the LED street lamps, and the device is also equipped with a speaker and a monitoring camera to increase broadcasting and monitoring camera functions.

In order to achieve the above object, the utility model is achieved through the following technical solutions:

The utility model is a village-to-village solar LED street lamp device, which comprises an LED street lamp, a shell, a street lamp bracket, a solar controller, a light pole, a solar battery, the LED street lamp, a constant current source, a wireless speaker, and a monitoring camera are installed and fixed. In the casing, the wireless speaker and the monitoring camera protrude out of the lampshade through the corresponding rectangular holes on the lampshade, the lampshade and the casing are connected by screws, and the casing and the street lamp bracket are connected by small bolts Connection, the street lamp bracket and the light pole are connected by large bolts.

The improvement of the utility model is also that: the solar battery panel is installed and fixed on the top of the light pole.

The further improvement of the utility model is that: the solar controller is installed and fixed in the inspection door at the lower part of the light pole.

The further improvement of the utility model lies in that the solar battery is buried in the soil beside the light pole.

The working principle of the utility model is: after the solar panel is irradiated by sunlight, the solar controller converts the light energy into electric energy, and after charging the solar battery, the solar controller also supplies power to the wireless speaker, the monitoring camera and the constant current source. The constant current source outputs low-voltage direct current to supply LED street lamp lighting, and the wireless speaker, monitoring camera and constant current source are powered by the solar battery at night. It can still work continuously for 7 days.

The beneficial effects of the utility model are: using solar energy to supply power to LED street lamps, loudspeakers and monitoring cameras, in addition to lighting, it also has the functions of broadcasting and monitoring cameras, and does not need AC power supply and laying cables, so that the street lamps in villages can save energy and reduce costs.

Description of drawings

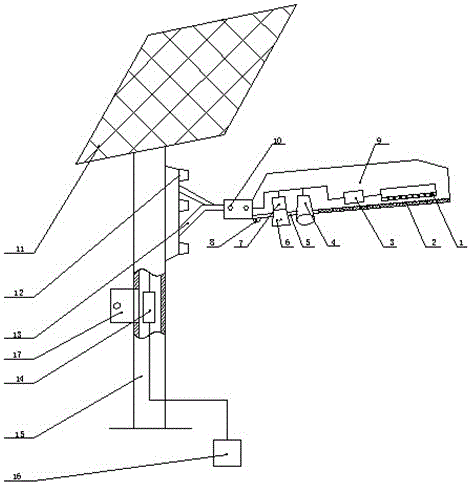

Fig. 1 is the schematic diagram of the structure of the present utility model.

Fig. 2 is a block diagram of the large solar power supply system of the present invention.

Detailed ways

In order to deepen the understanding of the utility model, the utility model will be further described below in conjunction with the embodiments and accompanying drawings. The embodiment is only used to explain the utility model, and does not constitute a limitation of the protection scope of the utility model.

As shown in Fig. 1: a kind of village-to-village solar LED street lamp device of the present utility model includes LED street lamp 1, lampshade 2, constant current source 3, wireless speaker 4, monitoring camera 6, shell 9, solar panel 11, street lamp Bracket 13, solar controller 14, light pole 15, solar battery 16, described LED street lamp 1, constant current source 3, wireless speaker 4, monitoring camera 6 are installed and fixed in the shell 9, wireless speaker 4 and monitoring camera 6 Through the corresponding rectangular hole 5 on the lampshade 2, it protrudes out of the lampshade 2, the lampshade 2 and the shell 9 are connected by screws 8, the shell 9 and the street lamp bracket 13 are connected by small bolts 10, and the street lamp bracket 13 and the light pole 15 are connected by large bolts 12 connection, the monitoring camera 6 is equipped with a backup battery 7, the solar panel 11 is installed and fixed on the top of the light pole 15, and the solar controller 14 is installed and fixed on the inspection door 17 at the bottom of the light pole 15 Inside, the solar battery 16 is buried in the soil next to the light pole 15 .

As shown in Figure 2: after the solar panel 11 is irradiated by sunlight, the solar controller 14 converts the light energy into electrical energy, and in addition to charging the solar battery 16, the solar controller 14 also transmits power to the wireless speaker 4, the monitoring camera 6 and Constant current source 3, said constant current source 3 outputs low-voltage direct current to supply LED street lamp 1 lighting, and just supplies power to wireless speaker 4, monitoring camera 6 and constant current source 3 by solar battery 16 at night, inside the monitoring camera 6 shown in Fig. 1 The backup battery 7 installed, so that it can still work continuously for 7 days under the situation that the solar battery is short of electricity.

The implementation of the utility model is to use solar energy to supply power to LED street lamps, loudspeakers and monitoring cameras. In addition to lighting, it also has the functions of broadcasting and monitoring cameras, and does not need AC power supply and laying cables, so that the street lights in every village can save energy and reduce costs.

Claims (6)

1. the logical solar LED street lamp device in village village comprises LED street lamp (1), lampshade (2); It is characterized in that: also comprise constant-current source (3), wireless speaker (4), monitoring camera (6); Shell (9), solar panel (11), street lamp bracket (13); Controller for solar (14), lamp stand (15), solar storage battery (16); Described LED street lamp (1), constant-current source (3), wireless speaker (4); Monitoring camera (6) all is fixed in the shell (9), and said wireless speaker (4) and monitoring camera (6) see through lampshade (2) and go up corresponding slot (5) and protrude from said lampshade (2), and described lampshade (2) adopts screw (8) to be connected with described shell (9); Described shell (9) adopts stove bolt (10) to be connected with street lamp bracket (13), and described street lamp bracket (13) adopts king-bolt (12) to be connected with lamp stand (15).

2. a kind of village according to claim 1 village leads to the solar LED street lamp device, it is characterized in that: described solar panel (11) is fixed on the top of lamp stand (15).

3. a kind of village according to claim 1 village leads to the solar LED street lamp device, it is characterized in that: described controller for solar (14) is fixed in the access door (17) of lamp stand (15) bottom.

4. a kind of village according to claim 1 village leads to the solar LED street lamp device, it is characterized in that: described solar storage battery (16) is embedded in the other soil of lamp stand (15).

5. a kind of village according to claim 1 village leads to the solar LED street lamp device; It is characterized in that: it is to give solar storage battery (16) charging behind the electric energy with transform light energy that described solar panel (11) receives behind the solar light irradiation by controller for solar (14) daytime; Said controller for solar (14) is also transmitted electricity and is given wireless speaker (4), monitoring camera (6) and constant-current source (3); Said constant-current source (3) output low-voltage DC supplies LED street lamp (1) illumination, and supplied power by solar storage battery (16) night.

6. a kind of village according to claim 1 village leads to the solar LED street lamp device, it is characterized in that: reserve battery (7) is installed in the described monitoring camera (6).
