CN202553627U - Small-size fruit washing device - Google Patents

Abstract

The utility model discloses a small fruit cleaning device, which comprises a box body, a cover plate, an impeller, a water inlet hole and a water outlet hole; the water inlet hole is connected with the box body and is arranged on the upper end of the box body; In the box body, the cover plate is connected with the box body and is arranged on one side of the box body. Opening the cover plate is used to take out the fruit or clean the box body, and the water outlet hole is arranged at the bottom of the box body. Open the cover, put small fruits in the box body, and flush water into the box body through the water inlet hole on the top of the box body, the impeller rotates, driving the fruit to roll up and down, and the cleaned dirty water flows outside through the water outlet hole, which solves the problem of winter When washing fruit with cold hands. The utility model has the advantages of simple structure and convenient use, and is an economical small fruit cleaning device.

Description

A small fruit cleaning device

technical field

The utility model relates to a small fruit cleaning device.

Background technique

Washing fruit in winter is very cold. If you wash it with hot water, it will affect the taste of the fruit and use hot water to waste energy.

Contents of the invention

The technical problem to be solved by the utility model is to provide a simple and practical economical small fruit cleaning device.

The utility model is realized through the following technical solutions: a small fruit cleaning device, including a box body, a cover plate, an impeller, a water inlet hole and a water outlet hole; the water inlet hole is connected with the box body and arranged on the box body The impeller is arranged in the box body, the cover plate is connected with the box body, and is arranged on one side of the box body, the cover plate is opened to take out the fruit or clean the box body, and the water outlet hole is arranged at the bottom of the box body.

Preferably, the box body is cylindrical, simple in structure, and easy to clean.

Preferably, a layer of cleaning cotton is attached to the impeller to protect the fruit from being damaged due to contact between the fruit and the impeller, and the cleaning cotton can effectively clean the fruit.

In the small fruit cleaning device of the present utility model, the cover plate is opened, the small fruit is placed in the box body, water is flushed into the box body through the water inlet hole on the top of the box body, and the impeller rotates to drive the fruit to roll up and down, and the cleaned dirty water passes through The outlet hole flows to the outside, which solves the problem of cold hands when washing fruits in winter.

Description of drawings

For ease of description, the utility model is described in detail by the following specific embodiments and accompanying drawings.

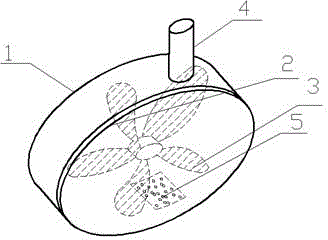

Fig. 1 is a structural schematic diagram of the practical small fruit cleaning device.

Detailed ways

As shown in Figure 1, a kind of small-sized fruit washing device of the present utility model comprises box body 1, cover plate 2, impeller 3, water inlet hole 4 and water outlet hole 5; Described water inlet hole 4 is connected with box body 1, And be arranged on the upper end of box body 1, described impeller 3 is arranged in box body 1, described cover plate 2 is connected with box body 1, and is arranged on the side of box body 1, opens cover plate 2, is used for taking out fruit or cleaning Box body 1, the water outlet hole 5 is set at the bottom of the box body 1; open the cover plate 2, put small fruits in the box body 1, and flush water into the box body 1 through the water inlet hole 4 at the upper end of the box body 1 , the impeller 3 rotates to drive the fruit to roll up and down, and the cleaned dirty water flows to the outside through the water outlet 4, which solves the problem of cold hands when washing fruit in winter.

Wherein, the box body 1 is cylindrical, simple in structure, and easy to clean. A layer of cleaning cotton is attached to the impeller 3 to protect the fruit from being damaged due to contact between the impeller 3 and the fruit, and the cleaning cotton can effectively clean the fruit. .

In the small fruit cleaning device of the present utility model, the cover plate is opened, the small fruit is placed in the box body, water is flushed into the box body through the water inlet hole on the top of the box body, and the impeller rotates to drive the fruit to roll up and down, and the cleaned dirty water passes through The outlet hole flows to the outside, which solves the problem of cold hands when washing fruits in winter.

The above-described embodiment is only an example of the utility model, and is not used to limit the implementation and scope of rights of the utility model. All technical solutions that are identical or equivalent to the claims of the utility model should be included in the utility model. within the scope of protection.

Claims (3)

1. A small fruit cleaning device, comprising a box body, a cover plate, an impeller, a water inlet hole and a water outlet hole; it is characterized in that: the water inlet hole is connected to the box body and is arranged on the top of the box body, and the impeller is set In the box body, the cover plate is connected with the box body and arranged on one side of the box body, and the water outlet hole is arranged at the bottom of the box body. 2. The small fruit cleaning device according to claim 1, characterized in that: the box body is cylindrical. 3. The small fruit cleaning device according to claim 1, characterized in that: a layer of cleaning cotton is attached to the impeller.
