Abstract

The utility model relates to a vehicle-mounted elevation solar energy power supply, which includes a vehicle (10) for transporting passengers and goods or pulling vehicles on roads or areas other than fixed rails, and a solar power supply that can convert solar energy into electric energy to supply power to a distribution box in the vehicle. The battery board (1) is characterized in that: a support (6) is provided on the top of the car (10), a horizontally placed rotating shaft (2) is provided on the support (6), and a coaxial The toothed disc (3), the upper part of the toothed disc (3) is connected with the solar panel (1), and the lower part meshes with a gear (4) driven by a motor (5). The beneficial effect of the utility model is that the solar battery panel can be rotated so that a good angle is maintained between the solar battery panel and the sun, which is beneficial for the solar battery panel to fully absorb solar energy to meet the needs of vehicle power supply.

Description

Vehicle elevation solar power supply

technical field

The utility model relates to a vehicle-mounted elevation angle solar energy power supply.

Background technique

Compared with the present invention, the previous vehicle-mounted solar power supply system patents have many shortcomings and deficiencies in terms of technical level, process structure and practicality. Solar panels In the past patents of vehicle-mounted solar power supply systems, the solar panels were fixed flat or obliquely on the roof or the left and right sides and rear of the vehicle body. During high-speed driving, the safety and stability of the battery board cannot be guaranteed. the

Utility model content

The purpose of the utility model is to provide a vehicle-mounted elevation angle solar power supply device in order to overcome the defect that the existing solar panels are tiled or obliquely placed and fixed on the roof or the left and right sides and the rear of the vehicle body. the

The technical solution adopted by the utility model to solve its technical problems is:

Vehicle-mounted elevation solar power supply, which includes vehicles that transport passengers and goods or tow vehicles on roads or areas other than fixed rails, and solar panels that can convert solar energy into electrical energy for the interior of the vehicle, power supply solar panels, and are characterized in that : There is a bracket on the top of the car, a horizontally placed rotating shaft is arranged on the bracket, a coaxial toothed disc is arranged on the rotating shaft, the upper part of the toothed disc is connected with the solar panel, and the lower part is connected with a gear driven by a motor engage.

The solar cell panels are made of polycrystalline silicon panels or monocrystalline silicon panels.

On the basis of the above-mentioned main technical solutions, the following further improved technical solutions can be added:

The bracket is a U-shaped bracket.

The upper part of the toothed disc is a plane, and the solar battery panel is fixed on the plane of the toothed disc.

The beneficial effect of the utility model is that the solar battery panel can be rotated so that a good angle is maintained between the solar battery panel and the sun, which is beneficial for the solar battery panel to fully absorb solar energy to meet the needs of vehicle power supply.

Below in conjunction with accompanying drawing and embodiment the utility model is further described.

Description of drawings:

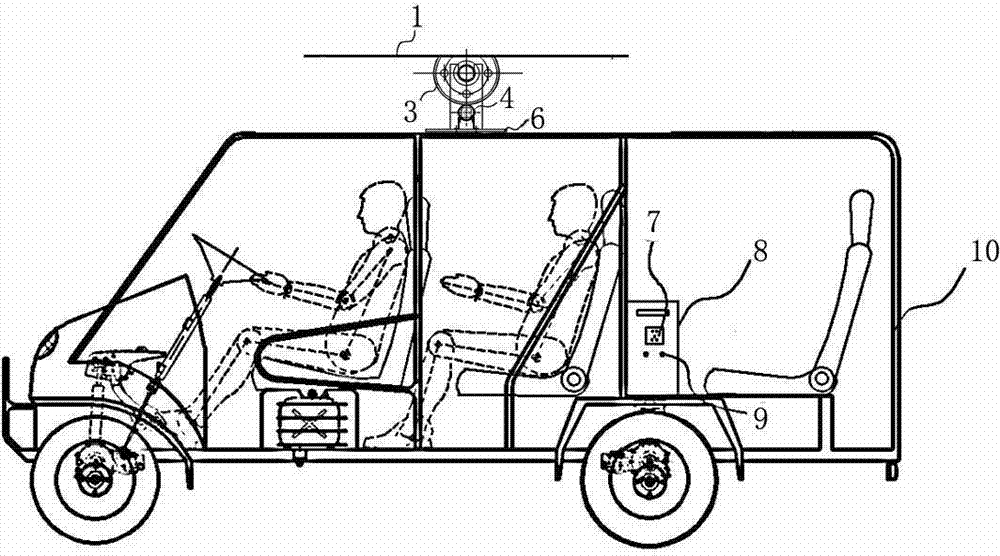

Fig. 1 is the front view of the utility model;

Fig. 2 is a partial side view of the utility model.

Detailed ways

As shown in Figures 1 and 2, the vehicle-mounted elevation angle solar power supply of the present utility model includes a vehicle 10 for transporting passengers and goods or pulling vehicles on roads or areas other than fixed rails, and can convert solar energy into electric energy for distribution in the vehicle. The solar battery panel 1 powered by the electric box is provided with a bracket 6 on the top of the car. The bracket 6 is a U-shaped bracket. The bracket 6 is provided with a horizontally placed rotating shaft 2. 3. The upper part of the toothed disc 3 is a plane, the solar panel 1 is fixed on the plane of the toothed disc 3 , and the lower part of the toothed disc 3 meshes with a gear 4 driven by a motor 5 .

A power distribution box 8 is arranged in the car, and the lower part of the power distribution box 8 is provided with two or three accumulators connected in series, and each battery is fixedly connected with the bottom of the power distribution box through a plate card, and the interior of the power distribution box above the battery is set There is a charge and discharge controller, and the two sides of the charge and discharge controller are an inverter and a DC switch respectively. The outer shell of the distribution box is provided with an AC socket 7 and a DC socket 9. The solar battery panel 1 is connected to the charge and discharge controller through the wire, and the charge and discharge controller is connected to the two series-connected batteries through the wire. At the same time, the charge and discharge controller is also connected to the inverter and the DC switch through the wire respectively. The inverter is connected to the AC socket 7 on the outer casing through wires so as to convert the direct current into alternating current output, and the DC switch is connected to the DC socket 9 outside the casing through wires to control the output of direct current.

Claims (3)

1. Vehicle-mounted elevation solar power supply, which includes vehicles (10) that transport passengers and goods or tow vehicles on roads or areas other than fixed tracks, and solar panels that can convert solar energy into electrical energy to supply power to the distribution box in the vehicle (1), characterized in that: a bracket (6) is provided on the top of the car (10), a horizontally placed rotating shaft (2) is provided on the bracket (6), and a coaxial toothed disc is provided on the rotating shaft (2) (3), the upper part of the gear plate (3) is connected with the solar panel (1), and the lower part is meshed with a gear (4) driven by a motor (5). 2. The vehicle-mounted elevation solar power supply according to claim 1, characterized in that: the bracket (6) is a U-shaped bracket. 3. The vehicle-mounted elevation solar power supply according to claim 1 or 2, characterized in that: the upper part of the toothed plate (3) is a plane, and the solar panel (1) is fixed on the plane of the toothed plate.
