Abstract
本实用新型公开了一种汽车油箱下盖检测器具，包括检具底板，所述的检具底板上设有用于检测油箱下盖轮廓的轮廓检测线和用于检测油箱下盖吊带沟的吊带沟检测型块。该检测器具能快捷准确的检测油箱下盖的外型轮廓，并能准确的检测油箱下盖的吊带沟的位置，检测准确性高，能很好的保证产品合格的一致性。
The utility model discloses a detection device for the lower cover of the fuel tank of an automobile, which comprises a bottom plate of the detection tool. The bottom plate of the detection tool is provided with a contour detection line for detecting the contour of the lower cover of the fuel tank and a sling groove for detecting the sling groove of the lower cover of the fuel tank. detection block. The detection device can quickly and accurately detect the outline of the lower cover of the fuel tank, and can accurately detect the position of the sling groove of the lower cover of the fuel tank. The detection accuracy is high, and the consistency of the product can be well guaranteed.
Description
Technical field
The utility model relates to the automotive oil tank technical field, especially relates to a kind of automotive oil tank lower cover appliance.
Background technology
Automotive oil tank is very important parts on the automobile, and dimensions and error to fuel tank during detection all have higher requirement.The outflow of defective fuel tank might cause the automotive safety accident to take place.For preventing the outflow of defective fuel tank, except that improving the quality of products, strengthening the product detection is main measure.Fuel tank comprises fuel tank loam cake and fuel tank lower cover.
In the testing process of existing automotive oil tank lower cover; Generally with gage or gauge block the fuel tank lower cover being carried out dimensional measurement detects; Since gage, gauge block can only the easy detection product size size, can not well detect the external form overall size of fuel tank lower cover, the position of product suspender belt ditch.Therefore, the poor accuracy that existing appliance detects, detecting operation is complicated.
The utility model content
The utility model technical matters to be solved provides a kind of automotive oil tank lower cover appliance, with reach detecting operation simple, detect purpose accurately.
In order to solve the problems of the technologies described above; The technical scheme that the utility model adopted is: a kind of automotive oil tank lower cover appliance; Comprise the cubing base plate, described cubing base plate is provided with the profile detection line and the suspender belt ditch detection type piece that is used to detect fuel tank lower cover suspender belt ditch that is used to detect fuel tank lower cover profile.
Described suspender belt ditch detection type piece is located at motion bar one end, and the motion bar other end is hinged on the motion bar base top, and motion bar base bottom is located on the cubing base plate.
Described cubing base plate is provided with and is used for fixation clamps that the fuel tank lower cover is compressed.
After the utility model adopts such structure; Have the following advantages: this detecting device prodigiosin quick and accurate detects the external form profile of fuel tank lower cover; And can accurately detect the position of the suspender belt ditch of fuel tank lower cover, detection accuracy is high, can well guarantee the consistance of qualified products.
Description of drawings
The mark of facing down among expressed content of each width of cloth accompanying drawing of this instructions and the figure is made brief description:

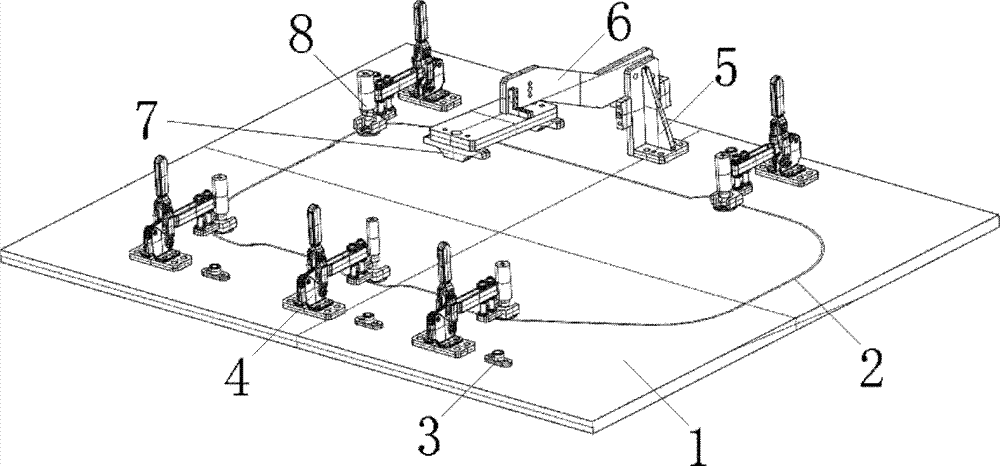

Fig. 1 is the utility model automotive oil tank lower cover appliance organigram.
Among the figure: 1. cubing base plate, 2. profile detection line, 3. hole test pin Storage tray, 4. fixation clamps, 5. motion bar base, 6. motion bar, 7. suspender belt ditch detection type piece, 8. hole test pin.
Embodiment
Contrast accompanying drawing below,, the embodiment of the utility model is done further detailed explanation through description to preferred embodiment.
As shown in Figure 1; A kind of automotive oil tank lower cover appliance; Comprise cubing base plate 1, on cubing base plate 1, be provided with the profile detection line 2 that is used to detect fuel tank lower cover profile, its profile detection line 2 is directly to carve up according to the fuel tank lower cover profile of standard size specification; On cubing base plate 1, also be provided with the suspender belt ditch detection type piece 7 that is used to detect fuel tank lower cover suspender belt ditch, its suspender belt ditch detection type piece 7 is located at motion bar 6 one ends, and motion bar 6 other ends are hinged on motion bar base 5 tops, and motion bar base 5 bottoms are located on the cubing base plate 1.Hole test pin 8 on the appliance is independent mobilizable detection part, and the hole test pin is placed in the hole test pin Storage tray 3 on the cubing base plate 1.For improving the accuracy that detects, be convenient to the fuel tank lower cover is fixed, on cubing base plate 1, be provided with five fixation clamps 4.
In the utility model; When the fuel tank lower cover is detected, earlier the fuel tank lower cover is placed on the cubing base plate, uses the hole test pin each the hole alignment on each hole of product and the cubing base plate; Through fixation clamps the fuel tank lower cover is fixed again, detects the profile of fuel tank lower cover through the profile detection line; At last, the position through the adjustment motion bar is placed into correct detection position with suspender belt ditch detection type piece, and the suspender belt ditch position that covers under the fuel tank is detected.
Combine accompanying drawing that the utility model has been carried out exemplary description above; Obviously the concrete realization of the utility model does not receive the restriction of aforesaid way; As long as adopted the design of the utility model and the improvement of the various unsubstantialities that technical scheme is carried out; Or the design of the utility model and technical scheme are directly applied to other occasion without improving, all within the protection domain of the utility model.
