Abstract

The utility model provides a drawer and a refrigerator with slide rails. A drawer with a slide rail includes a drawer and a slide rail, the front end of the drawer is provided with a positioning groove, the rear end of the drawer is provided with an insertion hole, the rear end of the slide rail is provided with a buckle, the The front end of the slide rail is inserted into the positioning slot, and the buckle is engaged in the insertion hole. By setting a positioning slot at the front of the drawer, the front end of the slide rail can be inserted into the positioning slot for positioning, thereby avoiding the upturning of the front end of the drawer, and the buckle at the rear end of the slide rail is stuck in the insertion hole at the rear end of the drawer , the drawer is assembled on the slide rail, and the drawer can be fixed on the slide rail without using screws, which simplifies the assembly process of the drawer with the slide rail and reduces the manufacturing cost of the refrigerator.

Description

Drawers and refrigerators with slides

technical field

The utility model relates to a refrigeration device, in particular to a drawer and a refrigerator with slide rails.

Background technique

At present, the refrigerator is an indispensable household appliance in people's daily life. The refrigerator is usually provided with a drawer, and items to be refrigerated can be put into the drawer for storage. The drawers in the refrigerator in the prior art are usually fixed on slide rails provided inside the refrigerator, and the drawers can move back and forth through the slide rails, which is convenient for users to take and place food. The drawers in the prior art are usually fixed on the slide rails by screws, and the assembly process of the drawers is cumbersome due to the use of screws, and the manufacturing cost of the refrigerator is relatively high.

Contents of the invention

The utility model provides a drawer and a refrigerator with slide rails, which are used to solve the defects in the prior art that the assembly process of the drawers is cumbersome and the manufacturing cost of the refrigerator is high, so as to simplify the assembly process of the drawer with slide rails and reduce the cost of refrigerators. manufacturing cost.

The utility model provides a drawer with a slide rail, which comprises the drawer and the slide rail. The front end of the drawer is provided with a positioning groove, the rear end of the drawer is provided with an insertion hole, and the rear end of the slide rail is provided with a There is a buckle, the front end of the slide rail is inserted into the positioning groove, and the buckle is locked into the insertion hole.

The utility model provides a drawer with a slide rail. By setting a positioning groove at the front of the drawer, the front end of the slide rail can be inserted into the positioning groove for positioning, thereby avoiding the upturning of the front end of the drawer and the buckling of the rear end of the slide rail. It is stuck in the insertion hole at the rear end of the drawer to realize the assembly of the drawer on the slide rail, and the drawer can be fixed on the slide rail without using screws, which simplifies the assembly process of the drawer with the slide rail and reduces the manufacturing cost of the refrigerator .

As for the above-mentioned drawer with slide rails, the two sides of the drawer are provided with positioning plates, the front end of the drawer is provided with a blocking plate, and the blocking plate is located below the positioning plate, and the blocking plate is connected with the positioning plate. The positioning slots are formed between the positioning plates, and the insertion holes are opened on the positioning plates.

As for the above-mentioned drawer with slide rails, the positioning plate is located at the lower part of the drawer.

As for the above-mentioned drawer with slide rails, the positioning plate is further provided with a positioning protrusion, the slide rail is provided with a positioning hole, and the positioning protrusion is inserted into the positioning hole.

The utility model provides a refrigerator, which includes a box body and a drawer with a slide rail; the drawer with a slide rail includes a drawer and a slide rail, the front end of the drawer is provided with a positioning groove, and the rear end of the drawer The part is provided with an insertion hole, the rear end of the slide rail is provided with a buckle, the front end of the slide rail is inserted into the positioning groove, and the buckle is stuck in the insertion hole; the slide rail installed in the box.

In the refrigerator provided by the utility model, by setting a positioning groove at the front of the drawer, the front end of the slide rail can be inserted into the positioning groove for positioning, so that the front end of the drawer can be prevented from upturning, and the buckle at the rear end of the slide rail is stuck in the drawer. The insertion hole at the rear end realizes the assembly of the drawer on the slide rail, and the drawer can be fixed on the slide rail without using screws, which simplifies the assembly process of the drawer with the slide rail and reduces the manufacturing cost of the refrigerator.

In the above-mentioned refrigerator, positioning plates are provided on both sides of the drawer, and a blocking plate is provided at the front end of the drawer, and the blocking plate is located below the positioning plate, and the gap between the blocking plate and the positioning plate is The positioning slots are formed between them, and the insertion holes are opened on the positioning plate.

As in the above-mentioned refrigerator, the positioning plate is located at the lower part of the drawer.

As for the above-mentioned refrigerator, the positioning plate is further provided with a positioning protrusion, the slide rail is provided with a positioning hole, and the positioning protrusion is inserted into the positioning hole.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention or the prior art, the following will briefly introduce the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the appended drawings in the following description The drawings are some embodiments of the utility model, and those skilled in the art can also obtain other drawings according to these drawings on the premise of not paying creative labor.

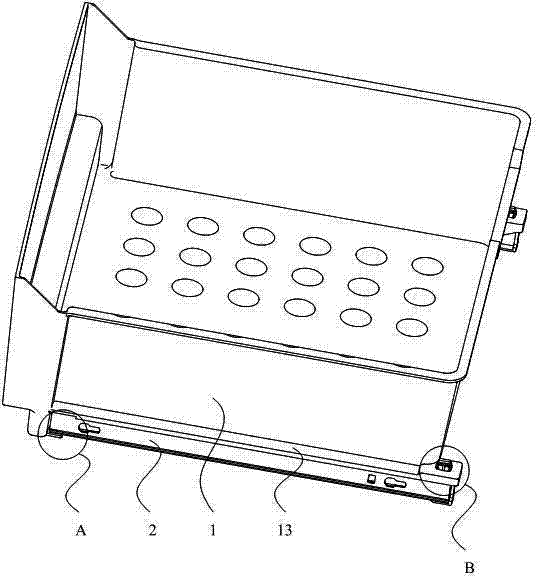

Fig. 1 is the structural representation of the embodiment of the drawer with slide rail of the utility model;

Figure 2 is a partially enlarged schematic diagram of area A in Figure 1;

Fig. 3 is a partially enlarged schematic diagram of area B in Fig. 1;

Fig. 4 is the structural representation of the drawer in the embodiment of the drawer with slide rail of the utility model;

Fig. 5 is an assembly diagram of the drawer and the slide rail in the embodiment of the drawer with slide rails of the present invention.

Detailed ways

In order to make the purpose, technical solutions and advantages of the embodiments of the utility model more clear, the technical solutions in the embodiments of the utility model will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the utility model. Obviously, the described The embodiments are some embodiments of the present utility model, but not all embodiments. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

As shown in Figures 1-5, the present embodiment has a drawer with slide rails, including a drawer 1 and a slide rail 2. The front end of the drawer 1 is provided with a positioning groove 11, and the rear end of the drawer 1 is provided with an insertion hole 12. The rear end of the rail 2 is provided with a buckle 21 , the front end of the slide rail 2 is inserted into the positioning groove 11 , and the buckle 21 is locked in the insertion hole 12 .

Specifically, in the drawer with slide rails in this embodiment, the slide rail 2 is inserted into the positioning groove 11 provided at the front end of the drawer 1, and the cooperation between the drawer 1 and the positioning groove 11 can prevent the front end of the drawer 1 from warping; at the same time, the drawer The rear end of the drawer 1 is also provided with an insertion hole 12 , and the buckle 21 at the rear end of the slide rail 2 is inserted into the insertion hole 12 so that the drawer 1 is stuck on the slide rail 2 . That is to say, for the drawer with slide rails in this embodiment, the assembly of the drawer with slide rails in this embodiment can be completed by inserting the slide rail 2 into the positioning groove 11, and then inserting the buckle 21 into the insertion hole 12, This effectively simplifies the assembly process of the drawer with slide rails in this embodiment, and at the same time, since the drawer 1 and slide rail 2 do not need to be connected by screws, the manufacturing cost of the refrigerator using the drawer with slide rails in this embodiment is effectively reduced.

Further, both sides of the drawer 1 in the present embodiment can be provided with positioning plates 13, and the front end of the drawer 1 is provided with a stopper 14, the stopper 14 is located below the positioning plate 13, between the stopper 14 and the positioning plate 13 A positioning groove 11 is formed, and an insertion hole 12 is opened on the positioning plate 13 . Specifically, the two sides of the drawer 1 in this embodiment are provided with positioning plates 13, and the front end of the drawer 1 is provided with a blocking plate 14, and the space between the blocking plate 14 and the positioning plate 13 forms a positioning groove 11, and the slide rail 2 can It is inserted into the positioning slot 11 and positioned by the blocking piece 14 and the positioning plate 13 . When the drawer 1 and the slide rail 2 are assembled together, the positioning plate 13 will be on the top of the slide rail 2, thereby effectively increasing the contact area between the slide rail 2 and the drawer 1, so that the drawer 1 can follow the slide more smoothly. Rail 2 moves. Wherein, in order to conveniently assemble the drawer with slide rails in this embodiment into the box body of the refrigerator, the positioning plate 13 in this embodiment is located at the lower part of the drawer 1 . Specifically, by arranging the positioning plate 13 at the lower part of the drawer 1, the lower part of the drawer 1 is connected with the slide rail 2, which can effectively increase the size of the opening of the drawer 1, thereby increasing the volume of the drawer 1.

Furthermore, in order to connect the drawer 1 and the slide rail 2 more firmly, the positioning plate 13 in this embodiment is also provided with a positioning protrusion 15, and the slide rail 2 is provided with a positioning hole (not shown), and the positioning The protrusion 15 is inserted in the positioning hole. Specifically, after the drawer 1 and the slide rail 2 are connected together through the insertion hole 12 and the buckle 21, the positioning projection 15 on the positioning plate 13 will be inserted into the positioning hole on the slide rail 2, so that the drawer 1 and the slide rail Rail 2 is more firmly connected together.

This embodiment has a drawer with a slide rail. By setting a positioning groove at the front of the drawer, the front end of the slide rail can be inserted into the positioning groove for positioning, so that the front end of the drawer can be prevented from being upturned, and the buckle at the rear end of the slide rail is stuck in the drawer. The rear end of the drawer is inserted into the hole to realize the assembly of the drawer on the slide rail, and the drawer can be fixed on the slide rail without using screws, which simplifies the assembly process of the drawer with the slide rail and reduces the manufacturing cost of the refrigerator.

The utility model also provides a refrigerator, which includes a box body and a drawer with a slide rail; the drawer with a slide rail includes a drawer and a slide rail, the front end of the drawer is provided with a positioning groove, and the rear end of the drawer is provided with an insertion hole , the rear end of the slide rail is provided with a buckle, the front end of the slide rail is inserted into the positioning groove, and the buckle is stuck in the insertion hole; the slide rail is arranged in the box body.

Specifically, the cabinet of the refrigerator in this embodiment is provided with drawers having slide rails, and the slide rails are assembled in the cabinet. Wherein, the drawer with slide rails in this embodiment can adopt the drawer with slide rails in the embodiment of the drawer with slide rails of the utility model, and its specific structure can refer to the embodiment of the drawer with slide rails of the utility model and the accompanying drawings The descriptions in 1 to FIG. 5 will not be repeated here. Further, both sides of the drawer in this embodiment can be provided with a positioning plate, the front end of the drawer is provided with a blocking plate, the blocking plate is located below the positioning plate, a positioning groove is formed between the blocking plate and the positioning plate, and a positioning plate is set on the positioning plate. There is an insertion hole. Wherein, the positioning plate can be located at the lower part of the drawer. Preferably, the positioning plate in this embodiment may also be provided with a positioning protrusion, the slide rail is provided with a positioning hole, and the positioning protrusion is inserted into the positioning hole.

In the refrigerator of this embodiment, by providing a positioning groove at the front of the drawer, the front end of the slide rail can be inserted into the positioning groove for positioning, thereby preventing the front end of the drawer from upturning, and the buckle at the rear end of the slide rail is stuck at the rear end of the drawer The drawer can be assembled on the slide rail through the insertion hole of the part, and the drawer can be fixed on the slide rail without using screws, which simplifies the assembly process of the drawer with the slide rail and reduces the manufacturing cost of the refrigerator.

Finally, it should be noted that: the above embodiments are only used to illustrate the technical solutions of the present utility model, and are not intended to limit it; although the utility model has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand that: It is still possible to modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements for some of the technical features; and these modifications or replacements do not make the essence of the corresponding technical solutions deviate from the spirit of the technical solutions of the various embodiments of the present invention. and range.

Claims (8)

1. A drawer with a slide rail, comprising a drawer and a slide rail, characterized in that, the front end of the drawer is provided with a positioning groove, the rear end of the drawer is provided with an insertion hole, and the rear end of the slide rail The front end of the slide rail is inserted into the positioning groove, and the buckle is engaged in the insertion hole. 2. The drawer with slide rails according to claim 1, wherein positioning plates are provided on both sides of the drawer, and a stopper is provided at the front end of the drawer, and the stopper is positioned on the positioning plate Below, the positioning groove is formed between the blocking piece and the positioning plate, and the insertion hole is opened on the positioning plate. 3. The drawer with sliding rails according to claim 2, wherein the positioning plate is located at the lower part of the drawer. 4. The drawer with slide rails according to claim 2, characterized in that, the positioning plate is also provided with a positioning protrusion, the slide rail is provided with a positioning hole, and the positioning protrusion is inserted into the positioning in the hole. 5. A refrigerator, comprising a box, characterized in that it also includes a drawer with slide rails; the drawer with slide rails includes a drawer and slide rails, the front end of the drawer is provided with a positioning groove, the drawer The rear end is provided with an insertion hole, the rear end of the slide rail is provided with a buckle, the front end of the slide rail is inserted into the positioning groove, and the buckle is stuck in the insertion hole; The slide rail is arranged in the box body. 6. The refrigerator according to claim 5, wherein positioning plates are provided on both sides of the drawer, and a blocking piece is provided at the front end of the drawer, and the blocking piece is located below the positioning plate, so that The positioning groove is formed between the blocking piece and the positioning plate, and the insertion hole is opened on the positioning plate. 7. The refrigerator according to claim 6, wherein the positioning plate is located at the lower part of the drawer. 8 . The refrigerator according to claim 6 , wherein the positioning plate is further provided with a positioning protrusion, the slide rail is provided with a positioning hole, and the positioning protrusion is inserted into the positioning hole.
