Abstract
本实用新型公开了一种便携酒水袋，包括带空腔的袋体，及设置在袋体顶部的注水口和排水口，及与袋体连接的两根手拎条，所述袋体顶部设有凹槽；当酒放置在袋体中时，通过采用空腔及注水口，可将冷水灌入袋体中，让酒的移动更加方便，且在夏天室外存放的时间更加长，还不会影响酒的品质。
The utility model discloses a portable wine bag, which comprises a bag body with a cavity, a water injection port and a drain port arranged on the top of the bag body, and two hand straps connected with the bag body. There are grooves; when the wine is placed in the bag, cold water can be poured into the bag through the use of the cavity and the water injection port, which makes the movement of the wine more convenient, and it can be stored outdoors in summer for a longer period of time. affect the quality of wine.
Description
Technical field
The utility model relates to a kind of portable drinks bag.
Background technology
Tradition is placed drinks or when moving drinks, all is directly drinks to be exposed in the air, and drinks generally all need refrigeration under the specific occasion, if in the hot climate, influence the quality of wine easily.
Summary of the invention
The technical matters that the utility model will solve provides a kind of conveniently moving, can suitably increase the portable drinks bag of drinks in the outdoor resting period in summer.
The utility model is to realize through following technical scheme: a kind of portable drinks bag comprises the bag of being with cavity, and is arranged on the filling pipe end and the discharge port at bag top, and carry bar with two hands of bag bonded assembly that said bag top is provided with groove.
As optimized technical scheme, said filling pipe end is connected with cavity respectively with discharge port.
The beneficial effect of the portable drinks bag of the utility model is: through adopting cavity and filling pipe end, can cold water be poured in the bag, let the mobile convenient of wine, and more extend in the outdoor time of depositing in summer, also can not influence the quality of wine.
Description of drawings

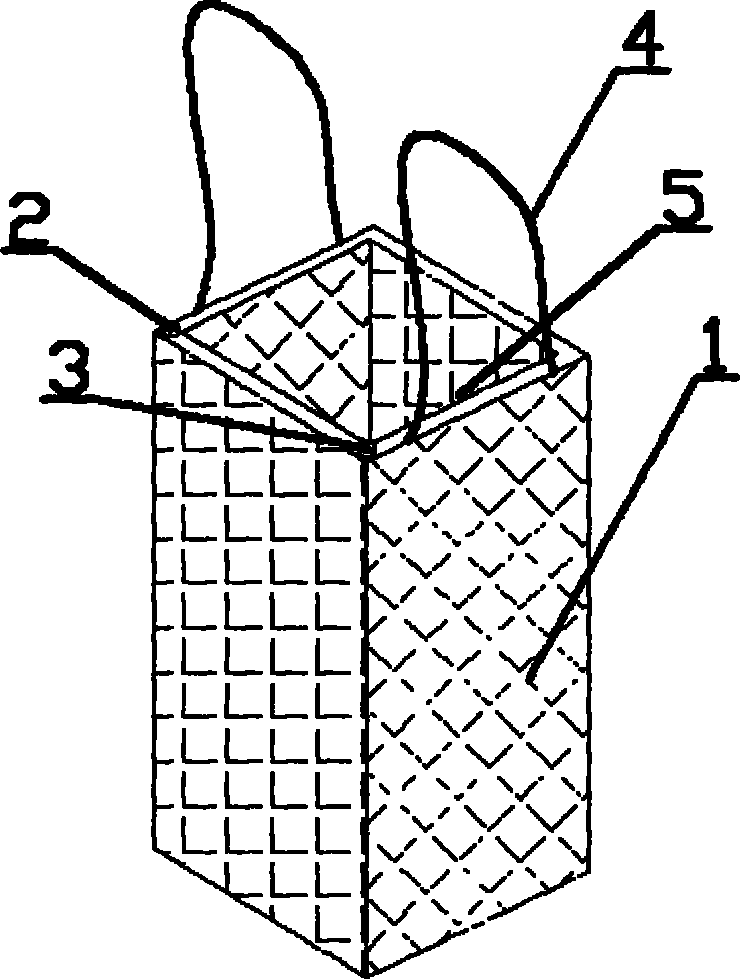

Fig. 1 is the block diagram of the portable drinks bag of the utility model.
The specific embodiment
See also shown in Figure 1ly, a kind of portable drinks bag of the utility model comprises the bag 1 of being with cavity; And be arranged on the filling pipe end 2 and discharge port 3 at bag 1 top; Reach with two hands of bag 1 bonded assembly and carry bar 4, hand is carried bar 4 for being oppositely arranged, and can play the effect that people are convenient for carrying that gives; Said bag 1 top is provided with groove 5; When people when moving drinks, can wine be placed in the groove 5 of bag 1, through adopting cavity and filling pipe end 2, can cold water be poured in the bag 1, let the mobile convenient of wine, and more extend in the outdoor time of depositing in summer, also can not influence the quality of wine.
Wherein, said filling pipe end 2 is connected with cavity respectively with discharge port 3.
The beneficial effect of the portable drinks bag of the utility model is: through adopting cavity and filling pipe end, can cold water be poured in the bag, let the mobile convenient of wine, and more extend in the outdoor time of depositing in summer, also can not influence the quality of wine.
The above is merely the specific embodiment of the utility model, but the protection domain of the utility model is not limited thereto, and any variation or replacement of expecting without creative work all should be encompassed within the protection domain of the utility model.Therefore, the protection domain of the utility model should be as the criterion with the protection domain that claims were limited.
