CN202535769U - Corn shelling threshing filtering machine - Google Patents
Corn shelling threshing filtering machine Download PDFInfo
- Publication number
- CN202535769U CN202535769U CN2012201469465U CN201220146946U CN202535769U CN 202535769 U CN202535769 U CN 202535769U CN 2012201469465 U CN2012201469465 U CN 2012201469465U CN 201220146946 U CN201220146946 U CN 201220146946U CN 202535769 U CN202535769 U CN 202535769U
- Authority
- CN
- China
- Prior art keywords
- threshing
- shelling
- corn
- top cover
- transfer roller
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Lifetime
Links
Abstract
The utility model relates to a corn shelling threshing filtering machine, which comprises a machine frame, wherein a rotating roll is arranged on the machine frame through a rotating shaft, a top cover is arranged above the rotating roll, a sieve plate is arranged under the rotating roll, a top cover and the sieve plate are surrounded into a space used for shelling and threshing, a plurality of threshing ribs are arranged on the outer wall of the middle part of the rotating roll, shelling hooks are arranged at two ends of the rotating roll, one end of the top cover is provided with a material inlet, the other end of the top cover is provided with a shell and core outlet, and the middle part inner wall is provided with a rubbing rail. The utility model provides the corn shelling threshing filtering machine, which can realize the one-step completion of corn shelling, threshing, screening and winnowing.
Description
Technical field
The utility model relates to the thresher in the miniature farm machinery, and particularly a kind of have the threshing of shelling of multi-functional corn and divide filter.
Background technology
Corn when the husker sheller in the existing miniature farm machinery uses need pass through preliminary treatment, promptly need remove the shell of corn earlier, just can carry out the corn threshing operation, and is not too convenient.And the mechanical treatment of corn shell comparatively bothers, and adopts manual work to shell usually, and production efficiency is low.
Summary of the invention
The utility model technical problem to be solved provides the threshing of shelling of a kind of corn and divides filter, can realize that the shelling of corn, threshing and selection by winnowing operation once accomplish, and has reduced labour intensity.
For solving the problems of the technologies described above, the technical scheme that the utility model adopted is: the threshing of shelling of a kind of corn divides filter, comprises frame; Transfer roller is installed on the frame through rotating shaft; Transfer roller top is provided with top cover, and the below is provided with sieve plate, and top cover and sieve plate surround one and be used to shell and the space of threshing;
The middle part outer wall of transfer roller is provided with a plurality of threshing muscle, and the transfer roller two ends are provided with the shelling hook;
One end of top cover is provided with charging aperture, and the other end is provided with shell, core outlet, and the middle part inwall is provided with the stranding rail.
The sieve plate below also is provided with air separating bin, and a side of air separating bin is provided with fan.
In the described shelling hook, near charging aperture one end be the elbow hook, the other end is the jaw hook.
Described threshing muscle adopts the structure of bending.
The two ends of described bending structure are again to the direction bending of leaving the transfer roller outer wall.
Described stranding rail is many, arranges by the mode of spiral.
Rotating shaft one end is provided with powered pulley, and powered pulley is connected with fan through belt.
A kind of corn that the utility model provides threshing of shelling divides filter, can realize that corn shells, threshing, screening and the disposable completion of selection by winnowing.
Description of drawings
Below in conjunction with accompanying drawing and embodiment the utility model is described further:

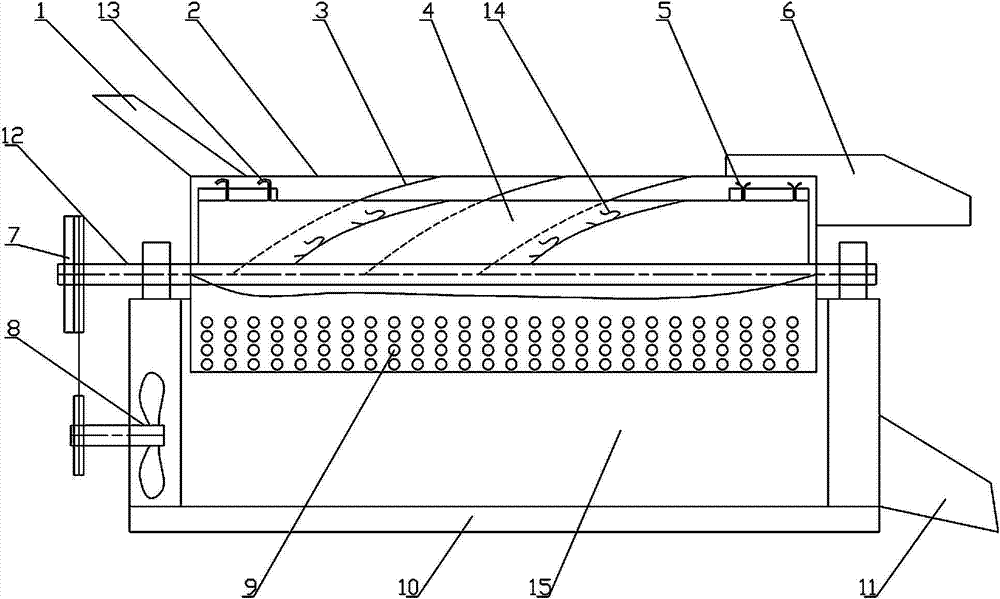

Fig. 1 is the overall structure sketch map of the utility model.
Among the figure: charging aperture 1, top cover 2 is rubbed rail 3 with the hands, transfer roller 4, jaw hook 5, shell, core outlet 6, powered pulley 7, fan 8, sieve plate 9, frame 10, dust export 11, rotating shaft 12, elbow hook 13, threshing muscle 14, air separating bin 15.
Embodiment
In Fig. 1, the threshing of shelling of a kind of corn divides filter, comprises frame 10, and transfer roller 4 is installed on the frame 10 through rotating shaft 12, and transfer roller 4 tops are provided with top cover 2, and the below is provided with sieve plate 9, and top cover 2 and sieve plate 9 surround a space that is used to shell with threshing;
The middle part outer wall of transfer roller 4 is provided with a plurality of threshing muscle 14, and transfer roller 4 two ends are provided with the shelling hook;
One end of top cover 2 is provided with charging aperture 1, and the other end is provided with shell, core outlet 6, and the middle part inwall is provided with rubs rail 3 with the hands.Rotating shaft 12 1 ends are provided with powered pulley 7, and powered pulley 7 is connected with fan 8 through belt.In the scheme of optimizing, described stranding rail 3 is many, arranges by the mode of spiral.
During use; Start the machine, 7 rotations of driven by motor powered pulley, powered pulley 7 drives transfer roller 4 rotations; Put into corn from charging aperture 1; At first removed crust, realize threshing down at the threshing muscle 14 of rotation and the acting in conjunction of the stranding rail 3 that is fixed on top cover 2 then by the shelling hook, another effect of rubbing rail 3 with the hands be make corn from charging aperture 1 one end motions to shell, core exports an end of 6.Last corncob and shell are thrown out of shell, core outlet 6 under the effect of shelling hook.
In the scheme of optimizing, sieve plate 9 belows also are provided with air separating bin 15, and a side of air separating bin 15 is provided with fan 8.Structure drops in the process in the air separating bin 15 through sieve plate 9 at iblet thus, and dust wherein separates with iblet under the effect of fan 8 with corn stigma, is discharged from from dust export 11.
In the scheme of optimizing, in the described shelling hook, near charging aperture 1 one ends be elbow hook 13, the other end is a jaw hook 5.Wherein elbow hook 13 is beneficial to the shell of corn is peeled off, and jaw hook 5 is beneficial to corncob and the shell space from threshing is thrown away.
In the scheme of optimizing, described threshing muscle 14 adopts the structure of bending, and the two ends of described bending structure are again to the direction bending of leaving transfer roller 4 outer walls.The structure of optimizing thus, mostly the position that contacts with corn is level and smooth curved surface, thereby avoids in threshing course, iblet being smashed.
Claims (7)
1. the corn threshing of shelling divides filter; Comprise frame (10); It is characterized in that: transfer roller (4) is installed on the frame (10) through rotating shaft (12); Transfer roller (4) top is provided with top cover (2), and the below is provided with sieve plate (9), and top cover (2) and sieve plate (9) surround one and be used to shell and the space of threshing;
The middle part outer wall of transfer roller (4) is provided with a plurality of threshing muscle (14), and transfer roller (4) two ends are provided with the shelling hook;
One end of top cover (2) is provided with charging aperture (1), and the other end is provided with shell, core outlet (6), and the middle part inwall is provided with rubs rail (3) with the hands.
2. a kind of corn according to claim 1 threshing of shelling divides filter, it is characterized in that: sieve plate (9) below also is provided with air separating bin (15), and a side of air separating bin (15) is provided with fan (8).
3. a kind of corn according to claim 1 threshing of shelling divides filter, it is characterized in that: in the described shelling hook, near charging aperture (1) one end be elbow hook (13), the other end is jaw hook (5).
4. a kind of corn according to claim 1 threshing of shelling divides filter, it is characterized in that: described threshing muscle (14) adopts the structure of bending.
5. a kind of corn according to claim 4 threshing of shelling divides filter, it is characterized in that: the two ends of described bending structure are again to the direction bending of leaving transfer roller (4) outer wall.
6. a kind of corn according to claim 1 threshing of shelling divides filter, and it is characterized in that: described stranding rail (3) is many, arranges by the mode of spiral.
7. a kind of corn according to claim 1 threshing of shelling divides filter, and it is characterized in that: rotating shaft (12) one ends are provided with powered pulley (7), and powered pulley (7) is connected with fan (8) through belt.
