CN202529438U - Sorted garbage bin - Google Patents
Sorted garbage bin Download PDFInfo
- Publication number
- CN202529438U CN202529438U CN2012200563277U CN201220056327U CN202529438U CN 202529438 U CN202529438 U CN 202529438U CN 2012200563277 U CN2012200563277 U CN 2012200563277U CN 201220056327 U CN201220056327 U CN 201220056327U CN 202529438 U CN202529438 U CN 202529438U
- Authority
- CN
- China
- Prior art keywords
- utility
- garbage
- model
- hooks
- reducing
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02W—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO WASTEWATER TREATMENT OR WASTE MANAGEMENT
- Y02W30/00—Technologies for solid waste management
- Y02W30/10—Waste collection, transportation, transfer or storage, e.g. segregated refuse collecting, electric or hybrid propulsion
Landscapes
- Refuse Receptacles (AREA)
Abstract
本实用新型公开了一种分类垃圾桶，包括桶身，桶内设置有隔板，并将桶身分成两部分，所述隔板两侧的桶身侧面，纵向各设有两排挂钩或挂棒。本实用新型采用了两个内桶，可同时装载可回收和不可回收垃圾，避免了垃圾混装，降低了城市垃圾处理难度，同时本实用新型在桶身侧面设置有多排挂钩，能对不同大小规格的方便袋重复利用，降低塑料袋的使用量，减少了环境污染，提高了经济效益。
The utility model discloses a sorting trash can, which comprises a bucket body. A partition is arranged inside the bucket, and the bucket body is divided into two parts. The sides of the bucket body on both sides of the partition are respectively provided with two rows of hooks or hooks in the longitudinal direction. Great. The utility model adopts two inner barrels, which can be loaded with recyclable and non-recyclable garbage at the same time, avoiding mixed loading of garbage, and reducing the difficulty of urban garbage disposal. The convenience bag of the specification can be reused, reducing the usage of plastic bags, reducing environmental pollution and improving economic benefits.
Description
Technical field
The utility model relates to a kind of sewage disposer, particularly a kind of classification garbage can.
Background technology
In life, people habitually are placed on all rubbish in the sewage disposer, so the refuse classification processing is hindered.On-site investigation from some city garbage specifications processing of China; The most difficult classification be family kitchen, visit the catering trade and gourd, fruit and vegetable country fair gained rubbish; For example: the leftover bits and pieces of mashed dish, meat; Organic wastes such as inorganic refuses such as melon, pericarp, residue food, waste paper, dust and plastic film bag, disposable lunch box also have old and useless battery, the classification of Harmful Waste such as circuit card.Its root is: (1) classification garbage can quantity on the market very little; Generally be distributed on each big street; And each family, restaurant and country fair do not have special classification garbage can; All be the general sewage disposer of mono-, scrappy, the dirty and bad classification of these rubbish, people load in mixture these rubbish in the plastic bag of a sewage disposer for fear of trouble conveniently.Refuse classification is handled and is hindered.(2) there are design defect such as bung is big in general sewage disposer, can only utilize the refuse bag of certain specification, can not can not make full use of existing resource to the convenient bag recycling of all size specification in the life, causes unnecessary economic waste.
Summary of the invention
In order to overcome above-mentioned defective, the utility model provides a kind of classification garbage can, has avoided all kinds of rubbish to load in mixture, and has reduced the treatment of urban garbage difficulty.Can reduce the use amount of plastic bag to the convenient bag recycling of different size specifications in the life simultaneously, reduce environmental pollution, improve economic benefit.
The utility model is realized through following technical scheme:
A kind of classification garbage can comprises ladle body, is provided with dividing plate in the bucket, and with the ladle body separated into two parts.
The further improved technical scheme of the utility model is: the ladle body side of said dividing plate both sides vertically respectively is provided with two row's hooks or hangs rod.
The further improved technical scheme of the utility model is: the dividing plate upper edge of said sewage disposer separately.
The utility model compared with prior art has following advantage:
1. the utility model has adopted bucket in two, can load recyclable and not recyclable rubbish simultaneously, has avoided rubbish to load in mixture, and has reduced the treatment of urban garbage difficulty.
2. the utility model is provided with many row's hooks in the ladle body side, can reduce the use amount of plastic bag to the convenient bag recycling of different size specifications, has reduced environmental pollution, has improved economic benefit.
Description of drawings
Fig. 1 is the utility model schematic top plan view;
Fig. 2 looks scheme drawing for the utility model master;

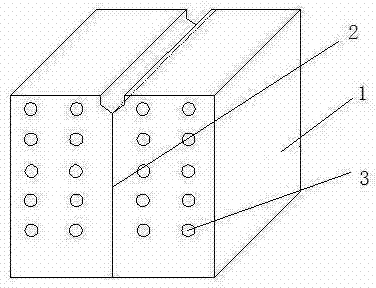

Fig. 3 is the utility model schematic perspective view.
The specific embodiment
Like Fig. 1,2, shown in 3, the utility model comprises ladle body 1, and its bung length of side is the square of 30cm, is provided with dividing plate 2 in the bucket, and with ladle body 1 separated into two parts; Ladle body 1 side of said dividing plate 2 both sides vertically respectively is provided with two row's hooks or hangs rod 3.Still like Fig. 1,2, shown in 3, dividing plate 2 upper edges of said sewage disposer are separately.
When the utility model uses,,, and bag is positioned over corresponding ladle body 1 inside if big convenient bag hangs over big convenient bag handle on second or three row's hooks 3 if little convenient bag hangs over little convenient bag handle on first row's hook 3.
Claims (3)
1. a classification garbage can comprises ladle body (1), it is characterized in that: be provided with dividing plate (2) in the bucket, and with ladle body (1) separated into two parts.
2. a kind of classification garbage can according to claim 1 is characterized in that: ladle body (1) side of said dividing plate (2) both sides vertically respectively is provided with two row's hooks or hangs rod (3).
3. a kind of classification garbage can according to claim 1 is characterized in that: the dividing plate of said sewage disposer (2) upper edge separately.
