Abstract

A word memory board for English learning. It mainly solves the problem that it is inconvenient and wastes paper to carry a vocabulary book and blank paper in the existing word memory. It is characterized in that: the upper part on the left side of the base plate (1) is a word book storage area (2), the lower part is provided with a blank paper storage area (9), and the bottom of the blank paper storage area (9) is provided with a pen storage slot (8 ), the right side of the bottom plate (1) is fixed with a magnetic plate (3) through the frame (4), and one side of the magnetic plate (3) is provided with a magnetic pen storage slot (6). The word memory board used for English learning has the characteristics of being easy to carry, saving paper and convenient to use.

Description

word memory board for english learning

technical field

The utility model relates to a learning tool, specifically a vocabulary memory board for English learning.

Background technique

In the process of learning English, memorizing words has always been a difficult problem for everyone. In order to enhance the effect of memory, most people are used to writing silently on paper with a pen while reciting words. It is inconvenient, and it also wastes paper for a long time to study.

Contents of the invention

In order to overcome the inconvenient and wasteful problems of carrying word books and blank paper in the existing word memory, the utility model provides a word memory board for English learning. The word memory board for English learning is easy to carry, It saves paper and is easy to use.

The technical scheme of the utility model is: a word memory board for English learning, including a base plate, the upper left side of the base plate is a word book storage area, the lower part is provided with a blank paper storage area, and the bottom of the blank paper storage area is provided with There is a pen storage slot, the right side of the bottom plate is fixed with a magnetic plate through the frame, and one side of the magnetic plate is provided with a magnetic pen storage slot.

The frame bottom of the magnetic board is provided with a slider, which is connected with the sliding magnetic strip on the back of the magnetic board.

Clips are fixed on the top of the word book storage area and the blank paper storage area.

The top of the magnetic pen storage tank is provided with a magnetic pen fixing ring, and the magnetic pen is connected to the magnetic pen fixing ring through a string.

The utility model has the following beneficial effects: due to the adoption of the above scheme, the base plate is respectively provided with a word book storage area and a magnetic board, so that when memorizing words, a magnetic pen can be used to write silently on the magnetic board, and the slider can be slid after the magnetic board is full Just can conveniently erase text, not only saves paper, but also is convenient to use. At the same time, the blank paper storage area can store blank paper for recording some important information, and ordinary pens or carbon pens can also be placed on the bottom plate. Therefore, the word memory board integrates vocabulary books and exercise books, and is easy to carry and use. convenient. the

Description of drawings

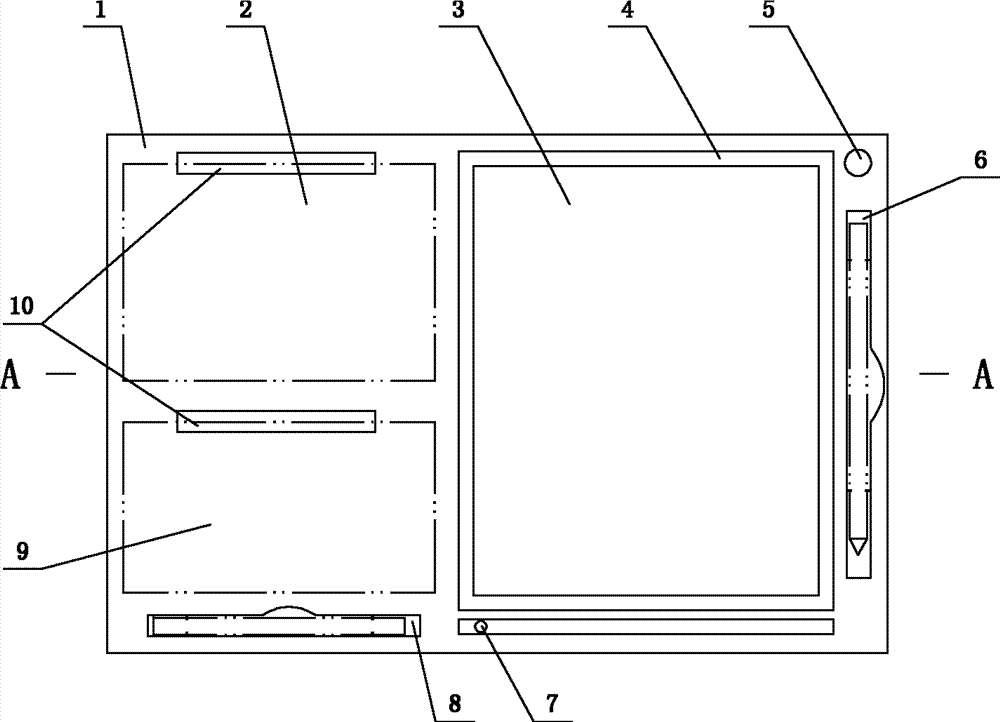

Fig. 1 is the structural representation of the utility model;

Fig. 2 is a sectional view along A-A in Fig. 1 .

In the picture, 1-bottom plate, 2-book storage area, 3-magnetic board, 4-frame, 5-magnetic pen fixing ring, 6-magnetic pen storage slot, 7-slider, 8-pen storage slot, 9-blank Paper storage area, 10-clip. the

Detailed ways

Below in conjunction with accompanying drawing, the utility model is further described:

Shown in Fig. 1 and Fig. 2, a kind of word memory board that is used for English study comprises base plate 1, and described base plate 1 left upper part is vocabulary book storage area 2, and the bottom is provided with blank paper storage area 9, and described The top of word book storage area 2 and blank paper storage area 9 are all fixed with clip 10, and clip 10 can be the folder of fast clamping, can change word book or blank paper at any time. The blank paper storage area clips some blank papers with clip 10, which can be used as a notepad to record some important information, and some words that are easy to forget and confuse can also be recorded on it to enhance memory.

The bottom of the blank paper storage area 9 is provided with a pen storage slot 8, which can be used to store pens, carbon pens or pencils, etc. There are blocks on both sides of the pen storage slot 8, which can block the pen and prevent it from falling off. The pen storage slot 8 There is also an arc-shaped handle on one side of the edge, and you can insert your finger into the handle when taking the pen, which is convenient to take. The right side of the bottom plate 1 is provided with a magnetic board 3, which is fixed by the surrounding frame 4, and one side of the magnetic board 3 is provided with a magnetic pen storage slot 6 for storing magnetic pens, and the slot is also provided with a block and a handle , the magnetic pen can write on the magnetic board 3 . The frame 4 bottom of described magnetic plate 3 is provided with slide block 7, and slide block 7 is connected with the sliding magnetic strip on the magnetic plate 3 back side, after writing on the magnetic plate 3 is full, slide slide block 7, the magnetic plate 3 back side The writing on the surface of the magnetic board 3 is eliminated by sliding the magnetic strip, and can be written again afterwards, which is convenient to use. In order to avoid loss of the magnetic pen, the top of the magnetic pen storage tank 6 can be provided with a magnetic pen fixing ring 5, and the magnetic pen is connected to the magnetic pen fixing ring 5 by a string.

Claims (4)

1. A word memory board for English learning, comprising a base plate (1), characterized in that: the upper left side of the base plate (1) is a word book storage area (2), and the lower part is provided with a blank paper storage area ( 9), the bottom of the blank paper storage area (9) is provided with a pen storage slot (8), the right side of the bottom plate (1) is fixed with a magnetic plate (3) through the frame (4), and one side of the magnetic plate (3) is provided with Magnetic pen storage slot (6). 2. The word memory board for English learning according to claim 1, characterized in that: the bottom of the frame (4) of the magnetic board (3) is provided with a slider (7), and the slider (7) is connected to Attached by the sliding magnetic strip on the back of the magnetic plate (3). 3. The word memory board for English learning according to claim 2, characterized in that: clips (10) are fixed on the tops of the word book storage area (2) and the blank paper storage area (9). 4. The word memory board for English learning according to claim 3, characterized in that: the top of the magnetic pen storage tank (6) is provided with a magnetic pen fixing ring (5), and the magnetic pen is connected by a string on the magnetic pen holder (5).
