Abstract

The multifunctional patient trousers of the utility model belong to the field of medical supplies, and are composed of a trouser body and a zipper and a pocket connected thereto. There are vertical seams on the side of the left or right trouser legs of ordinary patient trousers near the knee joint, and are equipped with A zipper, a rectangular pocket for placing a drainage bag is sewn on the trouser legs at the lower end of the zipper, and the upper edge of the pocket is higher than the lower end of the zipper. A button tab is sewn on the middle part of the upper edge of the pocket, and the middle part of the lower edge of the pocket is incompletely sewn with a pipe hole, and snap buttons are installed on the trouser legs at the pipe hole and the inner side of the pocket. A tie is sewn into each leg on either side of the zipper. Wearing the multifunctional patient trousers is convenient for treatment, elegant and safe, and can effectively prevent urinary tract retrograde infection caused by urine reflux, which improves patient satisfaction and fully embodies the "people-oriented" nursing concept.

Description

multifunctional hospital pants

technical field

The multifunctional patient trousers of the utility model belong to the field of medical supplies, in particular to a patient suit. the

Background technique

During hospitalization, patients need to wear the hospital trousers provided by the hospital. For patients who need to indwell the urinary catheter, the current patient trousers have the following defects: When the patient lies on his back, the drainage tube originally placed in the trousers needs to be raised to the patient’s abdomen and removed from the patient’s abdomen. Taking out the waist of the trousers and fixing the drainage bag on the bedside often leads to bending and compression of the drainage tube, causing urine reflux and increasing the chance of urinary tract retrograde infection. When the patient goes to the ground for activities, he needs to carry the drainage bag, which is inconvenient, hygienic and not elegant. The solution is that the nursing staff hangs the drainage bag outside the trousers with pins, but it increases the hidden danger of the patient suffering from accidental injury caused by sharp objects. In view of the above, some patients do not wear hospital trousers in order to save trouble, and their privacy cannot be protected, which limits their freedom of movement. the

Contents of the invention

The purpose of the utility model is to provide a multifunctional patient trousers which are convenient, beautiful and safe, and can effectively prevent urinary tract retrograde infection caused by urine reflux. the

The purpose of this utility model is achieved like this: the multi-functional patient trousers are made up of trouser body and the zipper and the pocket that are installed on it, there is a vertical seam near the knee joint on the side of the left or right trouser leg of ordinary patient trousers, There is a zipper, and a rectangular pocket for placing a drainage bag is sewn on the trouser legs at the lower end of the zipper. The middle part of the upper edge of the pocket is sewed with buckle loops, the middle part of the lower edge of the pocket is incompletely sewn, and there are pipe holes, and snap buttons are installed on the trouser legs at the pipe holes and the inner side of the pocket. the

Due to the implementation of the above-mentioned technical scheme, the multifunctional patient trousers are convenient for treatment, elegant and safe for patients to wear, and can effectively prevent urinary tract retrograde infection caused by urine reflux, which improves the satisfaction of patients and fully embodies the "people-oriented" principle Nursing concept. the

Description of drawings: the concrete structure of the present utility model is provided by following accompanying drawing and embodiment:

Fig. 1 is a schematic diagram of the side view structure of the multifunctional patient pants;

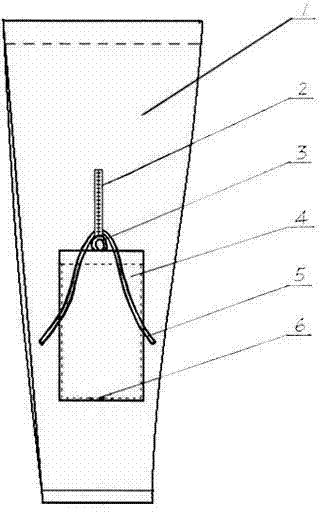

Fig. 2 is a front view of the multifunctional patient pants.

Legend: 1. Pants body, 2. Zipper, 3. Buckle tab, 4. Pocket, 5. Lace, 6. Pipe hole. the

Detailed ways:

The utility model is not limited by the following examples, and the specific implementation manner can be determined according to the technical scheme of the utility model and actual conditions.

Embodiment: as shown in Fig. 1, 2, multifunctional patient's trousers is made up of trousers body 1 and the zipper 2 and the pocket 4 that are installed on it, and is opened at the side near knee joint place of common patient's trousers left or right trouser leg Vertical seam, slide fastener 2 is housed, is connected with the rectangular pocket 4 that places drainage bag on the trouser legs of 2 lower parts of zipper, and pocket 4 upper edge is higher than 2 lower ends of zipper. The middle part of the upper edge of the pocket 4 is sewed with a buckle loop 3, and the middle part of the lower edge of the pocket 4 is incompletely sewn, and has a tube hole 6, and snap buttons are installed on the trouser legs at the tube hole 6 place and the pocket 4 inner side. Each seam is connected with a drawstring 5 on the trouser legs on both sides of the slide fastener 2. the

Let the patient with indwelling urinary catheter wear multi-functional patient pants. Before going to the ground for activities, first unzip 2, open the snap button, stuff the drainage bag connected with the drainage tube from zipper 2 into pocket 4, and then put the drainage bag into pocket 4. The urination tube at the lower edge of the bag stretches out from the pipe hole 6. One frenulum 5 passes through the suspension ring on the drainage bag, and the other frenulum 5 passes through the buckle loop 3, and the two belts are tied together to avoid the drainage tube being pulled too tightly by the drainage bag, while ensuring that the drainage bag is Fit and comfort during use. the

When the patient is lying in bed, take out the drainage bag from the pocket 4, hang it on the side of the bed, close the zipper 2, and lift the upper end of the patient trousers to the waist, so as to avoid the bending and pressure of the drainage tube, and prevent urine reflux from causing urinary tract congestion. retrograde infection. the

When discharging the urine in the drainage bag, just unscrew the cap of the tube. the

Patients who do not leave a drainage tube can place their small items in the pocket 4, and then wear a frenulum 5 from the buckle loop 3, tie a knot with the other frenulum 5, and fasten the snap button. The upper edge of the pocket 4 is higher than the lower end of the zipper 2 in order to block the zipper 2, so that the pocket 4 and the trousers are integrated, elegant in appearance. the

The above technical features constitute the best embodiment of the utility model, which has strong adaptability and best implementation effect, and non-essential technical features can be increased or decreased according to actual needs to meet the needs of different situations. the

Claims (3)

1. A kind of multifunctional patient trousers, which is composed of a trouser body and a zipper and a pocket connected thereto, characterized in that: there is a vertical seam near the knee joint on the side of the left or right trouser legs of ordinary patient trousers, and a Zipper, a rectangular pocket for drainage bag is sewn on the trouser legs at the lower end of the zipper, a buckle tab is sewn in the middle of the upper edge of the pocket, the middle of the lower edge of the pocket is incompletely sewn, and there are pipe holes, and the trouser legs at the pipe holes and Snap buttons are attached to the inner side of the pocket. 2. The multifunctional patient trousers according to claim 1, characterized in that: a tie is connected to each leg of the trousers on both sides of the zipper. 3. The multifunctional patient trousers according to claim 1, characterized in that: the upper edge of the pocket is higher than the lower end of the zipper.
