Abstract
本实用新型提供一种玻璃管制瓶机制底平台升降转向机构，其结构包括升降滑板，升降滑板的四角端均通过滑动套固定在滑动轴内，所述升降滑板连接有升降机构，该升降机构包括一固定在升降滑板下侧的蜗轮蜗杆驱动器，该蜗轮蜗杆驱动器通过驱动轴与驱动机构相连接，在蜗轮蜗杆驱动器的左右侧安装有转向机构。该玻璃管制瓶机制底平台升降转向机构和现有技术相比，具有设计合理、结构简单、使用方便等特点，保证运动的输入和输出运动平稳，结构紧凑，易于制造加工，使用调整更加方便，性能更加稳定，因而具有很好的推广使用价值。
The utility model provides an elevating and steering mechanism for a bottom platform of a glass control bottle mechanism. The structure includes an elevating slide plate. The four corners of the elevating slide plate are fixed in the sliding shaft through sliding sleeves. The elevating slide plate is connected with an elevating mechanism. The elevating mechanism includes A worm gear driver fixed on the lower side of the lifting slide plate, the worm gear driver is connected with the driving mechanism through a drive shaft, and a steering mechanism is installed on the left and right sides of the worm gear driver. Compared with the existing technology, this glass tube bottle machine bottom platform lifting and steering mechanism has the characteristics of reasonable design, simple structure, and convenient use, which ensures stable input and output of motion, compact structure, easy manufacturing and processing, and more convenient use and adjustment. The performance is more stable, so it has a good promotion value.
Description
Technical field
The utility model relates to a kind of hoisting appliance, a kind of specifically easy to use, Glass tubing bottle-making machine system end lifting platform turning device.
Background technology
Platform often needs to go up and down at work at the bottom of the system of bottle-making machine, and going up and down at present is to carry out through manual work, and its lifting device mainly is made up of platform, elevating lever and driving mechanism; Through a wind rotating drive mechanism, lifting rod is risen or decline, and then the Platform Implementation on top is gone up and down; The up-down precision is inaccurate, and speed is inhomogeneous, and labour intensity is big; And the up-down of existing bottle-making machine system end platform and transmission turning mechanism all belong to various parts, and structure is disperseed, and manufacturing cost is high; Use inconvenience, and the equipment performance less stable.Especially the dovetail-indent slide mechanism is adopted in the up-down of lower chuck portion, and processing and fabricating is difficulty, and it is not too convenient to adjust, and manufacturing cost is higher.
Summary of the invention
The technical assignment of the utility model is the deficiency that solves prior art, and a kind of easy to use, Glass tubing bottle-making machine system end lifting platform turning device is provided.
The technical scheme of the utility model realizes by following mode; Glass tubing bottle-making machine system end lifting platform turning device, its structure comprises lifter slide, four jiaos of ends of lifter slide all are fixed in the slide shaft through slip cap; Said lifter slide is connected with hoisting appliance; This hoisting appliance comprises that one is fixed on the worm and gear driving mechanism of lifter slide downside, and this worm and gear driving mechanism is connected with driving mechanism through drive shaft, at the left and right sides of worm and gear driving mechanism turning device is installed.
Said up-down turning device is installed in the frame.
Said turning device comprises follower gear, the driving toothed gear that is installed in frame top, and driving toothed gear is connected through the top of transmission shaft with the worm and gear driving mechanism.
The bottom of said worm and gear driving mechanism connects a transmission shaft, a fixing driving nut between this transmission shaft and the frame bottom.
The beneficial effect that the utility model is compared with prior art produced is:
Characteristics such as that the Glass tubing bottle-making machine system end lifting platform turning device of the utility model has is simple in structure, easy to use, be skillfully constructed; The up-down of system end platform is the adjustment of carrying out for the height that adapts to different bottles; Transmission turning is the horizontal direction transmission with motor output; Be converted into the vertical direction transmission, realize each chuck spinning motion.The import and export campaign that guarantees motion is steady, changes and problems such as platform is loosening to prevent toothing, and compact construction is easy to make processing, and it is convenient that use is adjusted, and performance is more stable.
Description of drawings

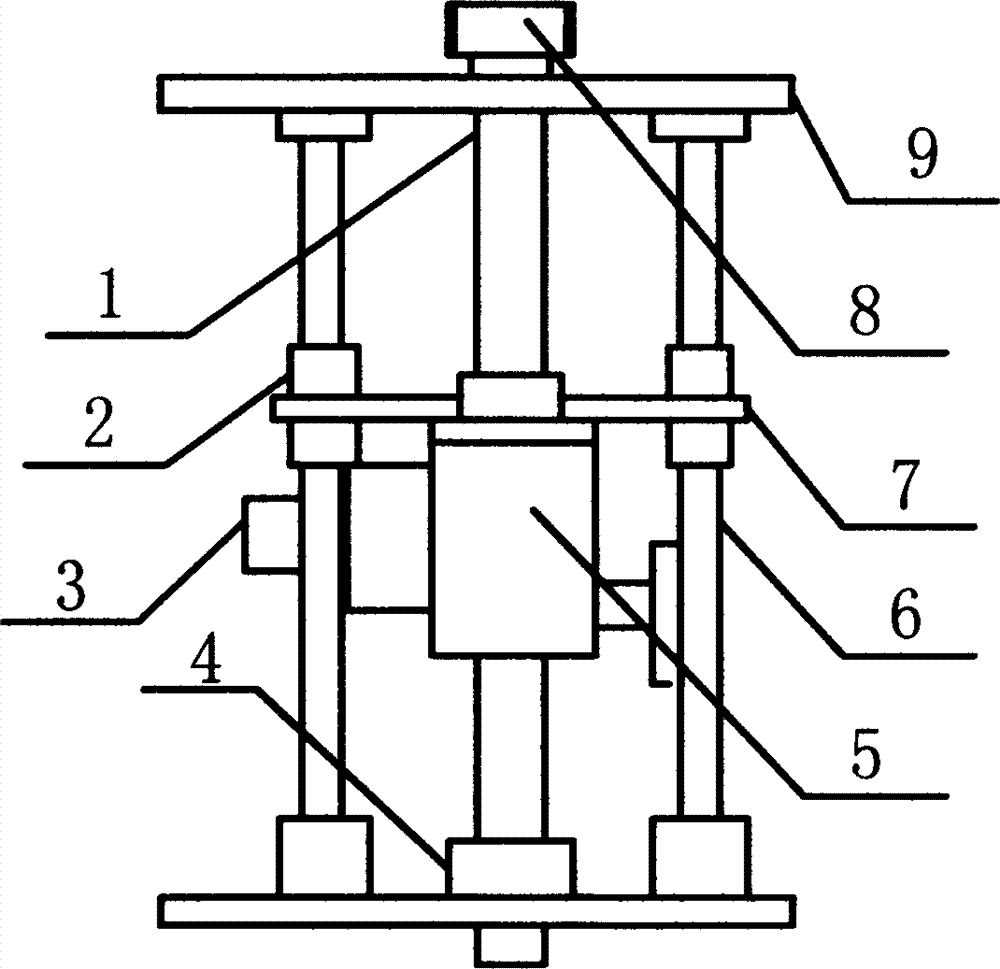

Accompanying drawing 1 is the structural representation of the utility model.
Accompanying drawing 2 is left views of the utility model.
Mark in the accompanying drawing is represented respectively:
1, transmission shaft, 2, slip cap, 3, drive shaft, 4, driving nut, 5, the worm and gear driving mechanism, 6, slide shaft, 7, lifter slide, 8, driving toothed gear, 9, frame, 10, follower gear.
Embodiment
Below in conjunction with specifying below the Glass tubing bottle-making machine system end lifting platform turning device work of accompanying drawing to the utility model.
Like accompanying drawing 1, shown in Figure 2; Glass tubing bottle-making machine system end lifting platform turning device, its structure comprises lifter slide 7, four jiaos of ends of lifter slide 7 all are fixed in the slide shaft 6 through slip cap 2; Said lifter slide 7 is connected with hoisting appliance; This hoisting appliance comprises that one is fixed on the worm and gear driving mechanism 5 of lifter slide 7 downsides, and this worm and gear driving mechanism 5 is connected with driving mechanism through drive shaft 3, at the left and right sides of worm and gear driving mechanism 5 turning device is installed.Said up-down turning device is installed in the frame 9; Said turning device comprises follower gear 10, the driving toothed gear 8 that is installed in frame 9 tops, and driving toothed gear 8 is connected through the top of transmission shaft 1 with worm and gear driving mechanism 5; The bottom of said worm and gear driving mechanism 5 connects a transmission shaft 1, a fixing driving nut 4 between this transmission shaft 1 and frame 9 bottoms.
In practical implementation, the material of frame 9 adopts cast steel ZG200-400, sand mold casting; Processing units is a numerical control borer; The material of driving toothed gear 8, follower gear 10 is 40Cr, hobbing machine processing, tooth portion quench treatment; In the worm-and-wheel gear, the worm gear material is a brass, gear hobbing processing; The worm screw material is 40Cr, engine lathe processing; Other component adopt general-purpose equipment processing, and precision is prone to guarantee.
Except that the described technical characterictic of specification sheets, be the known technology of those skilled in the art.
Claims (4)
1. Glass tubing bottle-making machine system end lifting platform turning device; It is characterized in that its structure comprises lifter slide; Four jiaos of ends of lifter slide all are fixed on the slide shaft through slip cap, and said lifter slide is connected with hoisting appliance, and this hoisting appliance comprises that one is fixed on the worm and gear driving mechanism of lifter slide downside; This worm and gear driving mechanism is connected with driving mechanism through drive shaft, at the left and right sides of worm and gear driving mechanism turning device is installed.
2. Glass tubing bottle-making machine system end lifting platform according to claim 1 turning device is characterized in that said up-down turning device is installed in the frame.
3. Glass tubing bottle-making machine system end lifting platform according to claim 2 turning device; It is characterized in that said turning device comprises follower gear, the driving toothed gear that is installed in frame top, driving toothed gear is connected through the top of transmission shaft with the worm and gear driving mechanism.
4. Glass tubing bottle-making machine system end lifting platform according to claim 3 turning device is characterized in that the bottom of said worm and gear driving mechanism connects a transmission shaft, a fixing driving nut between this transmission shaft and the frame bottom.
