CN202513593U - Solar energy and vibration generator grid-connected generating system for station - Google Patents
Solar energy and vibration generator grid-connected generating system for station Download PDFInfo
- Publication number
- CN202513593U CN202513593U CN2012201746650U CN201220174665U CN202513593U CN 202513593 U CN202513593 U CN 202513593U CN 2012201746650 U CN2012201746650 U CN 2012201746650U CN 201220174665 U CN201220174665 U CN 201220174665U CN 202513593 U CN202513593 U CN 202513593U
- Authority
- CN
- China
- Prior art keywords
- grid
- station
- distribution box
- power supply
- power
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 230000005611 electricity Effects 0.000 claims description 19
- 238000010248 power generation Methods 0.000 abstract 1
- 230000001172 regenerating effect Effects 0.000 description 2
- 230000009286 beneficial effect Effects 0.000 description 1
- 230000007812 deficiency Effects 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 238000005286 illumination Methods 0.000 description 1
Images
Landscapes
- Supply And Distribution Of Alternating Current (AREA)
- Photovoltaic Devices (AREA)
Abstract
本实用新型公开了一种车站太阳能与振动发电机并网发电系统，包括太阳能电池组件、振动发电机机组、并网逆变器、配电箱、市电交流电源、车站供电系统和计算机。太阳能电池组件和振动发电机机组的输出端与配电箱输入端连接。配电箱分别与市电交流电源、并网逆变器、车站供电系统连接。计算机与并网逆变器输出端连接。配电箱为DYG-PSD-交直流配电箱，内含直流配电单元和交流配电单元。计算机输入端连接并网逆变器的输出端，对并网逆变器的输出进行监控，确保整个系统正常工作。本实用新型利用太阳能电池组件和振动发电机机组产生的电能给车站供电系统供电，或经处理后输出给市电电网，清洁廉价，无污染，取之不尽，用之不竭。
The utility model discloses a station solar energy and vibration generator grid-connected power generation system, which comprises a solar cell assembly, a vibration generator set, a grid-connected inverter, a power distribution box, a commercial AC power supply, a station power supply system and a computer. The output ends of the solar battery module and the vibration generator set are connected with the input ends of the distribution box. The distribution box is respectively connected with the mains AC power supply, the grid-connected inverter, and the station power supply system. The computer is connected with the output end of the grid-connected inverter. The distribution box is DYG-PSD-AC-DC distribution box, which contains DC power distribution unit and AC power distribution unit. The input terminal of the computer is connected to the output terminal of the grid-connected inverter, and the output of the grid-connected inverter is monitored to ensure the normal operation of the whole system. The utility model utilizes the electric energy generated by the solar cell assembly and the vibrating generator unit to supply power to the power supply system of the station, or output it to the mains power grid after being processed, which is clean, cheap, pollution-free and inexhaustible.
Description
Technical field
The utility model belongs to regenerative resource lighting system technical field, relates to a kind of station solar energy and vibrating electricity generator grid-connected system.
Background technology
Along with social progress and sustainable development of economy, human also increasing to demands for energy.In order to satisfy increasing energy breach, regenerative resource is the important means that solves energy crisis.The station is the intensive place of the stream of people and car, and illumination needs to consume a large amount of electric energy.Abundant solar radiant energy is an important energy, and is inexhaustible, nexhaustible.Simultaneously AT STATION in the intensive stream of people produce the vibration mechanical energy that enriches with car.Utilizing the generating of solar energy and vibration mechanical energy, is energy-saving consumption-reducing, solves a kind of important channel of energy crisis.
The utility model content
The utility model technical problem to be solved is the deficiency that overcomes prior art, and a kind of station solar energy and vibrating electricity generator grid-connected system are provided, and the electric energy that can utilize solar module and vibrating electricity generator unit to produce is given station electric power system power supply; Or export to utility grid after treatment; Also can directly utilize the mains ac power supply to give station electric power system power supply, clean and cheap, pollution-free; Inexhaustible.
The technical solution of utility model is following:
A kind of station solar energy and vibrating electricity generator grid-connected system comprise solar module, vibrating electricity generator unit, combining inverter, distribution box, mains ac power supply, station electric power system and computer.The output of solar module and vibrating electricity generator unit is connected with the distribution box input.Distribution box is connected with mains ac power supply, combining inverter, station electric power system respectively.Computer is connected with the combining inverter output.
Distribution box is the alternating current-direct current distribution box.
Beneficial effect:
The utility model station solar energy and vibrating electricity generator grid-connected system; The electric energy that can utilize solar module and vibrating electricity generator unit to produce is given station electric power system power supply, or exports to utility grid after treatment, also can directly utilize the mains ac power supply to give station electric power system power supply; Clean and cheap; Pollution-free, inexhaustible.
Description of drawings

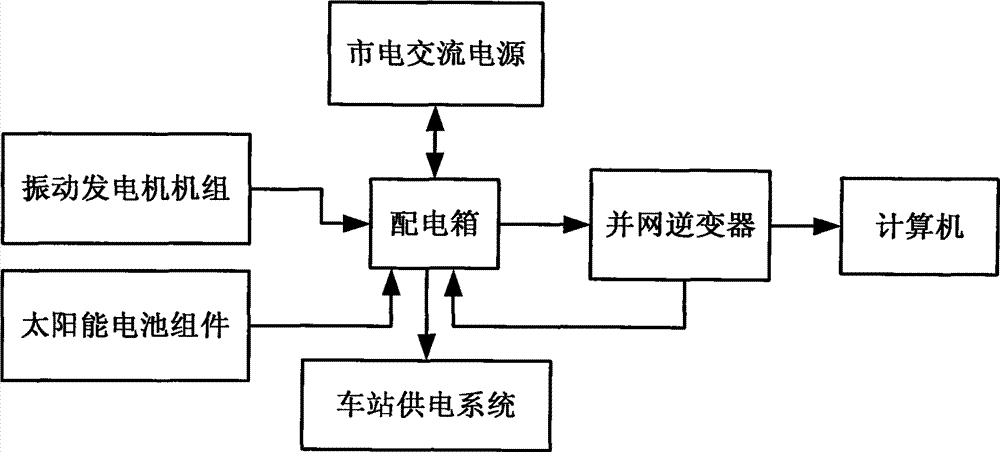

Fig. 1 is the utility model station solar energy and vibrating electricity generator grid-connected system structural representation.
Embodiment
Below will combine accompanying drawing and specific embodiment that the utility model is explained further details:
As shown in Figure 1, the utility model station solar energy and vibrating electricity generator grid-connected system comprise solar module, vibrating electricity generator unit, combining inverter, distribution box, mains ac power supply, station electric power system and computer.The output of solar module and vibrating electricity generator unit is connected with the distribution box input.Distribution box is connected with mains ac power supply, combining inverter, station electric power system respectively.Computer is connected with the combining inverter output.Distribution box is a DYG-PSD-alternating current-direct current distribution box, includes Direct Current Distribution Unit and Alternating Current Unit.The computer input connects the output of combining inverter, and the output of combining inverter is monitored, and guarantees the whole system operate as normal.
The electric energy that the utility model station solar energy and vibrating electricity generator grid-connected system can utilize solar module and vibrating electricity generator unit to produce is given station electric power system power supply; Or export to utility grid after treatment; Also can directly utilize the mains ac power supply to give station electric power system power supply, clean and cheap, pollution-free; Inexhaustible.
Claims (2)
1. station solar energy and vibrating electricity generator grid-connected system is characterized in that, comprise solar module, vibrating electricity generator unit, combining inverter, distribution box, mains ac power supply, station electric power system and computer; The output of said solar module and vibrating electricity generator unit is connected with said distribution box input; Said distribution box is connected with mains ac power supply, combining inverter, station electric power system; Said computer is connected with the combining inverter output.
2. station as claimed in claim 1 solar energy and vibrating electricity generator grid-connected system is characterized in that, said distribution box is the alternating current-direct current distribution box.
