CN202509837U - Multi-functional adjustable concrete rod reinforcing device - Google Patents
Multi-functional adjustable concrete rod reinforcing device Download PDFInfo
- Publication number
- CN202509837U CN202509837U CN201220135859XU CN201220135859U CN202509837U CN 202509837 U CN202509837 U CN 202509837U CN 201220135859X U CN201220135859X U CN 201220135859XU CN 201220135859 U CN201220135859 U CN 201220135859U CN 202509837 U CN202509837 U CN 202509837U
- Authority
- CN
- China
- Prior art keywords
- hoops
- cement
- adjustable concrete
- reinforcing device
- stiffener
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Lifetime
Links
Images
Landscapes
- Reinforcement Elements For Buildings (AREA)
Abstract
本实用新型属于输变电线路用具，特别涉及一种多功能可调式砼杆加固器，包括紧固螺栓（3）、紧固螺母（4），两个箍固定架（2）之间上、中、下横向等距固定连接三个加固器箍（1），三个加固器箍（1）内径分别与所箍处水泥杆外径相吻合，两对箍固定架（2）之间用紧固螺栓（3）和紧固螺母（4）连接箍在水泥杆裂纹处外围，多功能可调式砼杆加固器解决了输配电线路水泥杆裂纹加固问题，是应急抢修不可缺少的一种工具，极大地提高了抢修工作效率，及时、安全、稳定保证了线路的安全运行，在无法更换的前提下，节省了人力物力。
The utility model belongs to appliances for power transmission and transformation lines, in particular to a multi-functional adjustable concrete rod reinforcement, which includes fastening bolts (3), fastening nuts (4), and two hoop fixing frames (2). The middle and lower sides are equidistantly fixedly connected with three stiffener hoops (1), the inner diameters of the three stiffener hoops (1) respectively match the outer diameters of the cement rods where the hoops are placed, and the two pairs of hoop fixing frames (2) are tightened The fastening bolt (3) and the fastening nut (4) are connected to the periphery of the crack of the cement rod. The multi-functional adjustable concrete rod reinforcement solves the problem of cement rod crack reinforcement in power transmission and distribution lines, and is an indispensable tool for emergency repairs , greatly improving the efficiency of emergency repair work, timely, safe and stable to ensure the safe operation of the line, and save manpower and material resources on the premise that it cannot be replaced.
Description
Technical field
The utility model belongs to the power transmission and transformation line apparatus, particularly a kind of multifunctional adjustable concrete bar reinforcing device.
Background technology
Crackle appears in the past cement pole, adopts line outage to change, according to physical features and environment always; The cement pole that has is arranged in the paddy field, the cement pole that has be arranged on the high mountain with the depression in, it is very inconvenient that the cement pole in these environment is changed construction; Cause line outage; Need several days time to change, the manpower and materials expense is very high, and has guaranteed not safety.
Summary of the invention
The purpose of the utility model is to overcome above-mentioned technical deficiency, provides a kind of simple in structure, easy to use, can guarantee the multifunctional adjustable concrete bar reinforcing device of line security operation.
The technical scheme that the utility model technical solution problem adopts is: multifunctional adjustable concrete bar reinforcing device comprises fastening bolt, clamp nut; Be characterized in that the horizontal equidistance in upper, middle and lower is fixedly connected three reinforcing device hoops between two hoop fixed mounts; Three reinforcing device hoop internal diameters match with institute hoop place cement pole external diameter respectively, are connected with clamp nut with fastening bolt between two pairs of hoop fixed mounts and bind round in periphery, Crackle on Cement Poles place.
The beneficial effect of the utility model is: multifunctional adjustable concrete bar reinforcing device has solved the electric line Crackle on Cement Poles and has reinforced problem; It is the indispensable a kind of instrument of emergency first-aid repair; Greatly improved the repairing operating efficiency; In time, safety, the stable safe operation that has guaranteed circuit, under the prerequisite that can't change, saved manpower and materials.
Description of drawings
Specify with embodiment below in conjunction with accompanying drawing.

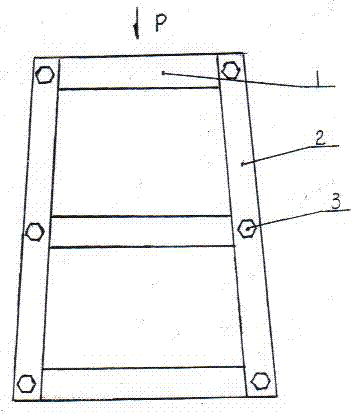

Fig. 1 is a multifunctional adjustable concrete bar reinforcing device structural front view.
Fig. 2 is that the P of Fig. 1 is to view.
Among the figure, 1-reinforcing device hoop; 2-binds round fixed mount; The 3-fastening bolt; The 4-clamp nut.
The specific embodiment
Embodiment, with reference to accompanying drawing 1,2, the horizontal equidistance in upper, middle and lower is fixedly connected three reinforcing device hoops 1 between two hoop fixed mounts 2 that multifunctional adjustable concrete bar reinforcing device is processed with angle steel.Three reinforcing device hoop 1 internal diameters match with institute hoop place cement pole external diameter respectively, are connected with clamp nut 4 with fastening bolt 3 between two pairs of hoop fixed mounts 2 and bind round in periphery, Crackle on Cement Poles place.
