CN202509300U - Automatic elevating clothes pick-up device - Google Patents
Automatic elevating clothes pick-up device Download PDFInfo
- Publication number
- CN202509300U CN202509300U CN2012201489365U CN201220148936U CN202509300U CN 202509300 U CN202509300 U CN 202509300U CN 2012201489365 U CN2012201489365 U CN 2012201489365U CN 201220148936 U CN201220148936 U CN 201220148936U CN 202509300 U CN202509300 U CN 202509300U
- Authority
- CN
- China
- Prior art keywords
- motor
- top plate
- connecting rod
- motor cases
- motor case
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Abstract
The utility model discloses an automatic elevating clothes pick-up device. The automatic elevating clothes pick-up device comprises a frame body, a top plate which is arranged at the upper end of the frame body, connecting rods which are arranged at the front end of the top plate, motor cases arranged at the rear end of the frame body and hooks arranged at the lower end of the frame body, wherein the other end of each connecting rod is connected with the motor case; and a solar panel is arranged on the upper surface of the top plate and is connected with the motor cases. When the automatic elevating clothes pick-up device is used, clothes are hung on the hooks at the lower end of the top plate; the motor cases are opened, the solar panel at the upper end of each motor case operates, the motor cases are electrified and drive the connecting rods of the motor cases to extend upwards, and the top plate is strutted by the connecting rods; when the connecting rods extend to the maximum limit, the motor cases keep operating; and when sunshine disappears, the motor cases are powered off, the connecting rods of the motor cases are retracted under the condition that bracing force disappears, and the top plate moves downwards, so that the aim of picking up clothes automatically is fulfilled by automatic elevating.
Description
Technical field
The utility model has related to a kind of automatic lifting and has received apparatus of laundry.
Background technology
In the life, receive clothing and shine the pretty troublesome often thing of clothing, go on a journey outside, like the burst thunderstorm weather, the unmanned clothing of receiving of family has then become a thorny problem.
Summary of the invention
The technical problem that the utility model will solve provides an a kind of automatic apparatus of laundry of receiving realizing up-down through the solar energy effect.
The utility model is realized through following technical scheme: a kind of automatic lifting is received apparatus of laundry, comprises framework, and is arranged on the top board of framework upper end; And be arranged on the connecting rod of top board front end; And be arranged on the motor case of framework rear end, and be arranged on the hook of framework lower end, the said connecting rod other end links to each other with the motor case; Said cover top surface is provided with solar panels, and said solar panels link to each other with cabinet.
As preferably, said connecting rod is a rack.
As preferably, include motor in the said motor case, and be arranged on the gear on the motor, and the connecting rod that is meshed with gear, said gear links to each other with motor through gear shaft, during work, and motor running, driven gear rotates, and the gear driven connecting rod is realized the up-down purpose.
The automatic lifting of the utility model is received apparatus of laundry, during use, clothes is hung on the hook of top board lower end, opens the motor case; Its upper end solar panels work, the energising of motor case drive its connecting rod and upwards stretch, and through connecting rod top board are strutted, when connecting rod is stretched over to greatest extent; Motor case maintenance work, when sunlight does not have, the outage of motor case, its connecting rod loses support force toward retraction; Be that top board moves down,, realized the purpose of automatic receipts clothing through automatic lifting.
Description of drawings
In order to be easy to explanation, the utility model is done to describe in detail by following specific embodiment and accompanying drawing.

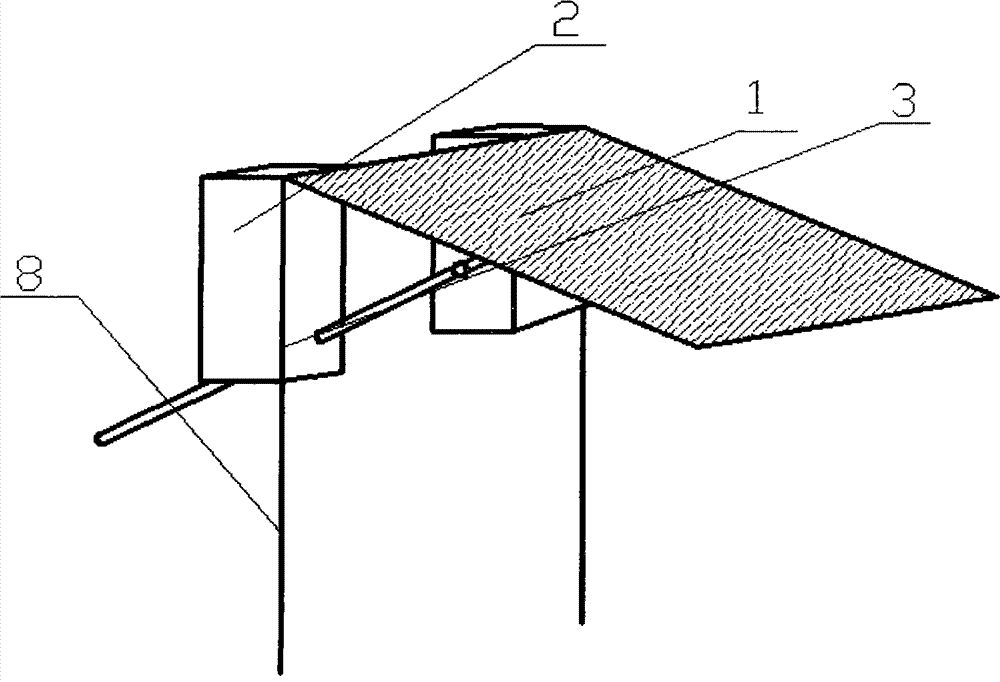

Fig. 1 is the structural representation that this practical automatic lifting is received apparatus of laundry;
Fig. 2 is the internal structure sketch map of motor case among Fig. 1;
Fig. 3 is the structural representation that this practical automatic lifting is received apparatus of laundry.
The specific embodiment
Like Fig. 1, Fig. 2 and shown in Figure 3, a kind of automatic lifting of the utility model is received apparatus of laundry, comprises framework 7; And be arranged on the top board 1 of framework 7 upper ends, and be arranged on the connecting rod 3 of top board 1 front end, and be arranged on the motor case 2 of framework 7 rear ends; And be arranged on the hook 4 of framework 7 lower ends; Said connecting rod 3 other ends link to each other with motor case 2, and said top board 1 upper surface is provided with solar panels 8, and said solar panels 8 link to each other with motor case 2; During use, clothes is hung on the hook 4 of top board lower end, opens motor case 2, its upper end solar panels 8 work; 2 energisings of motor case drive its connecting rod 3 and upwards stretch, and through connecting rod 3 effects, top board 1 is strutted, when connecting rod 3 is stretched over to greatest extent; The 2 maintenance work of motor case, when sunlight does not have, 2 outages of motor case, its connecting rod 3 loses support force toward retraction; Be that top board 1 moves down,, realized the purpose of automatic receipts clothing through automatic lifting.
Wherein, said connecting rod 3 is a rack, includes motor 5 in the said motor case; And be arranged on the gear 6 on the motor 5, and the connecting rod 3 that is meshed with gear 6, said gear 6 links to each other with motor 5 through gear shaft (not shown); During work; Motor 5 runnings, driven gear 6 rotates, and gear 6 drivening rods 3 are realized the automatic lifting purpose.
The automatic lifting of the utility model is received apparatus of laundry, during use, clothes is hung on the hook of top board lower end, opens the motor case; Its upper end solar panels work, the energising of motor case drive its connecting rod and upwards stretch, and through connecting rod top board are strutted, when connecting rod is stretched over to greatest extent; Motor case maintenance work, when sunlight does not have, the outage of motor case, its connecting rod loses support force toward retraction; Be that top board moves down,, realized the purpose of automatic receipts clothing through automatic lifting.
The foregoing description; It is an instance of the utility model; Be not enforcement and the interest field that is used for limiting the utility model, all or technical schemes of being equal to identical with the said content of the utility model claim all should be included in the utility model protection domain.
Claims (3)
1. an automatic lifting is received apparatus of laundry, it is characterized in that: comprise framework, and be arranged on the top board of framework upper end; And be arranged on the connecting rod of top board front end; And be arranged on the motor case of framework rear end, and be arranged on the hook of framework lower end, the said connecting rod other end links to each other with the motor case; Said cover top surface is provided with solar panels, and said solar panels link to each other with the motor case.
2. automatic lifting according to claim 1 is received apparatus of laundry, and it is characterized in that: said connecting rod is a rack.
3. automatic lifting according to claim 1 is received apparatus of laundry, it is characterized in that: include motor in the said motor case, and be arranged on the gear on the motor, and the connecting rod that is meshed with gear, said gear links to each other with motor through gear shaft.
