Abstract
本实用新型公开了一种密码门，包括电子密码锁、电磁铁、固定块、弹簧拉杆、螺钉、门把、门和墙体；所述电子密码锁安装在墙体上，所述电磁铁安装在墙体上，所述固定块通过所述螺钉安装在门上，所述弹簧拉杆安装在门的顶端且在固定块的右边，所述门把安装在门的左边中间位置，可以通过正确的密码给电子密码锁从而断开电源，电磁铁磁场消失，门通过弹簧拉杆的拉力能轻松的打开，以达到操作简单，安全可靠，不需要随身携带大量钥匙的目的。
The utility model discloses a combination door, which comprises an electronic combination lock, an electromagnet, a fixed block, a spring pull rod, a screw, a door handle, a door and a wall; the electronic combination lock is installed on the wall, and the electromagnet is installed on the wall. On the wall, the fixed block is installed on the door through the screws, the spring pull rod is installed on the top of the door and on the right side of the fixed block, and the door handle is installed on the left middle position of the door, which can pass through the right The password is given to the electronic combination lock to disconnect the power supply, the magnetic field of the electromagnet disappears, and the door can be easily opened by the pulling force of the spring pull rod, so as to achieve the purpose of simple operation, safety and reliability, and no need to carry a large number of keys with you.
Description
Technical field
A kind of password door that the utility model relates to.
Background technology
The raising that the standard of living of Along with people's, life taste are maked rapid progress, traditional mechanical lock is owing to simple structure, and the incident of being prized also takes place time and again; Can arbitrarily open, safety not at all is when going out usually; Also need wear a large amount of keys, problems such as worry losing, forget to take, very trouble.
Summary of the invention
The technical problem that the utility model will solve provides a kind of simple to operate, and is safe and reliable, need not carry the password door of a large amount of keys.
The utility model is realized through following technical scheme: a kind of password door comprises electronic password lock, electromagnet, fixed block, spring pull bar, screw, door knob, door and body of wall; Said electronic password lock is installed on the body of wall, and said electromagnet is installed on the body of wall, and said fixed block is installed on the door through said screw, and said spring pull bar is installed in the top of door and on the right of fixed block, said door knob is installed in the centre position, the left side of door.
As optimized technical scheme, be provided with tumbler between the right-hand member of said door and the body of wall.
The beneficial effect of the password door of the utility model is: thus can give the electronic password lock deenergization through correct password; Electromagnet magnetic field disappears, and door can be opened through the pulling force of spring pull bar easily, to reach simple to operate; Safe and reliable, need not carry the purpose of a large amount of keys.
Description of drawings
In order to be easy to explanation, the utility model has following specific embodiment and accompanying drawing to do to describe in detail.

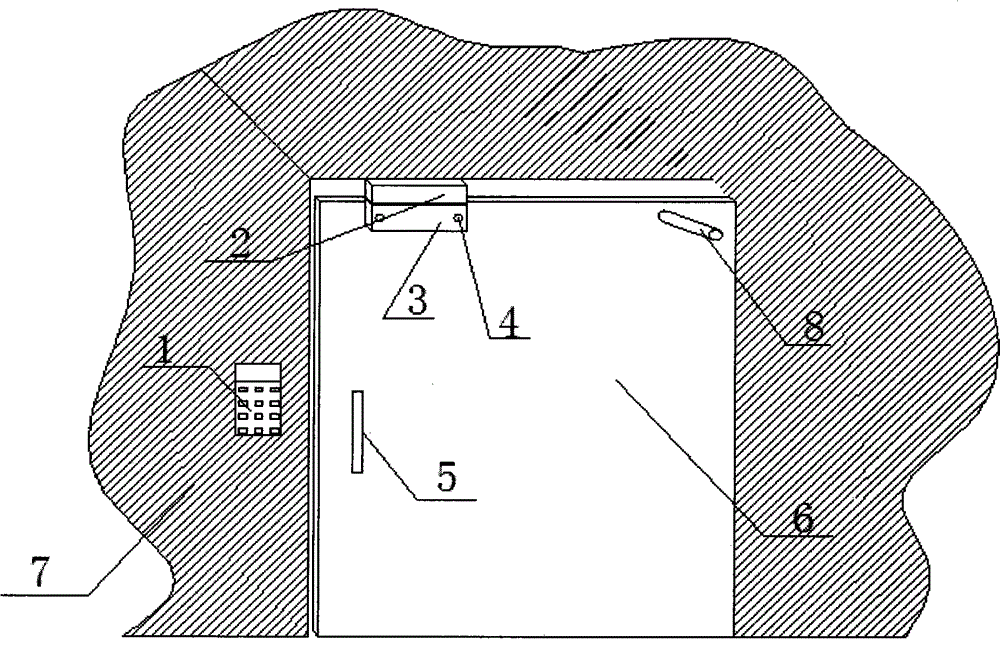

Fig. 1 is the structural representation of this practical password door;
Fig. 2 is the circuit block diagram of this practical password door.
The specific embodiment
As depicted in figs. 1 and 2, a kind of password door of the utility model comprises electronic password lock 1, electromagnet 2, fixed block 3, spring pull bar 8, screw 4, door knob 5, door 6 and body of wall 7; Said electronic password lock 1 is installed on the body of wall 7; Said electromagnet 2 is installed on the body of wall 7; Said fixed block 3 is installed on the door 6 through said screw 4, and said spring pull bar 8 is installed in the top of door 6 and on the right of fixed block 3, said door knob 5 is installed in the centre position, the left side of door 6.
Wherein, be provided with tumbler (not shown) between the right-hand member of said door 6 and the body of wall 7.
The beneficial effect of the password door of the utility model is: thus can give the electronic password lock deenergization through correct password; Electromagnet magnetic field disappears, and door can be opened through the pulling force of spring pull bar easily, to reach simple to operate; Safe and reliable, need not carry the purpose of a large amount of keys.
The foregoing description; It is an instance of the utility model; This is not enforcement and the interest field that is used for limiting the utility model, and all or technical schemes of being equal to identical with the said content of the utility model claim all should be included in the utility model protection domain.
Claims (2)
1. a password door comprises electronic password lock, electromagnet, fixed block, spring pull bar, screw, door knob, door and body of wall; It is characterized in that: said electronic password lock is installed on the body of wall; Said electromagnet is installed on the body of wall; Said fixed block is installed on the door through said screw, and said spring pull bar is installed in the top of door and on the right of fixed block, said door knob is installed in the centre position, the left side of door.
2. password door according to claim 1 is characterized in that: be provided with tumbler between the right-hand member of said door and the body of wall.
