CN202500277U - Solar power generation tile - Google Patents

Abstract

The utility model discloses a solar power generation tile, which comprises a tile main body, a tile front, a tile back, a groove, a packaged solar power generation board, a glass plate and an installation hole. The tile main body is wave-shaped, and the The groove is arranged on the front of the tile, that is, it is arranged on the side facing the sunlight, and the encapsulated solar power generation panel is placed inside the groove for receiving sunlight, and the glass plate is installed above the encapsulated solar power generation panel for To protect the encapsulated solar panels from the sun and rain, the mounting holes pass through the front and back of the tile. The utility model has unique conception, simple structure, strong applicability, can be integrated with buildings, saves installation area, effectively utilizes solar energy, saves energy, and converts absorbed solar energy into electric energy for use. These benefits are beneficial to Better promotion of solar energy.

Description

A solar power tile

technical field

The utility model relates to a tile, in particular to a solar power generation tile. the

Background technique

With the rapid development of science and technology, people now have a deeper understanding of the earth's energy crisis. How to effectively use the sun is a research and development direction to solve the energy crisis. In this research field, how to reduce the occupied space, make full use of solar energy, and more It is the focus of scientific research. For example, to improve the tiles of buildings, the tiles receive longer sunshine hours, which can not only effectively use solar energy, but also play a role in decorating buildings. the

Utility model content

The purpose of this utility model arises from this, to propose a solar power generation tile that can effectively utilize solar photovoltaics to generate electricity and save space. the

In order to achieve the above purpose, the utility model is achieved through the following technical solutions, a solar power generation tile, including a tile body, a tile front, a tile back, a groove, a packaged solar power generation panel, a glass plate and an installation hole, the The main body of the tile is wave-shaped, and the groove is set on the front of the tile, that is, on the side facing the sunlight. The solar power generation panel packaged is placed inside the groove for receiving sunlight, and the glass plate is installed Above the packaged solar power generation panel, used to protect the packaged solar power generation panel from the sun and rain, the installation holes pass through the front and back of the tile. the

The utility model has unique conception, simple structure, strong applicability, can be integrated with buildings, saves installation area, effectively utilizes solar energy, saves energy, and converts absorbed solar energy into electric energy for use. These benefits are beneficial to Better promotion of solar energy. the

Description of drawings

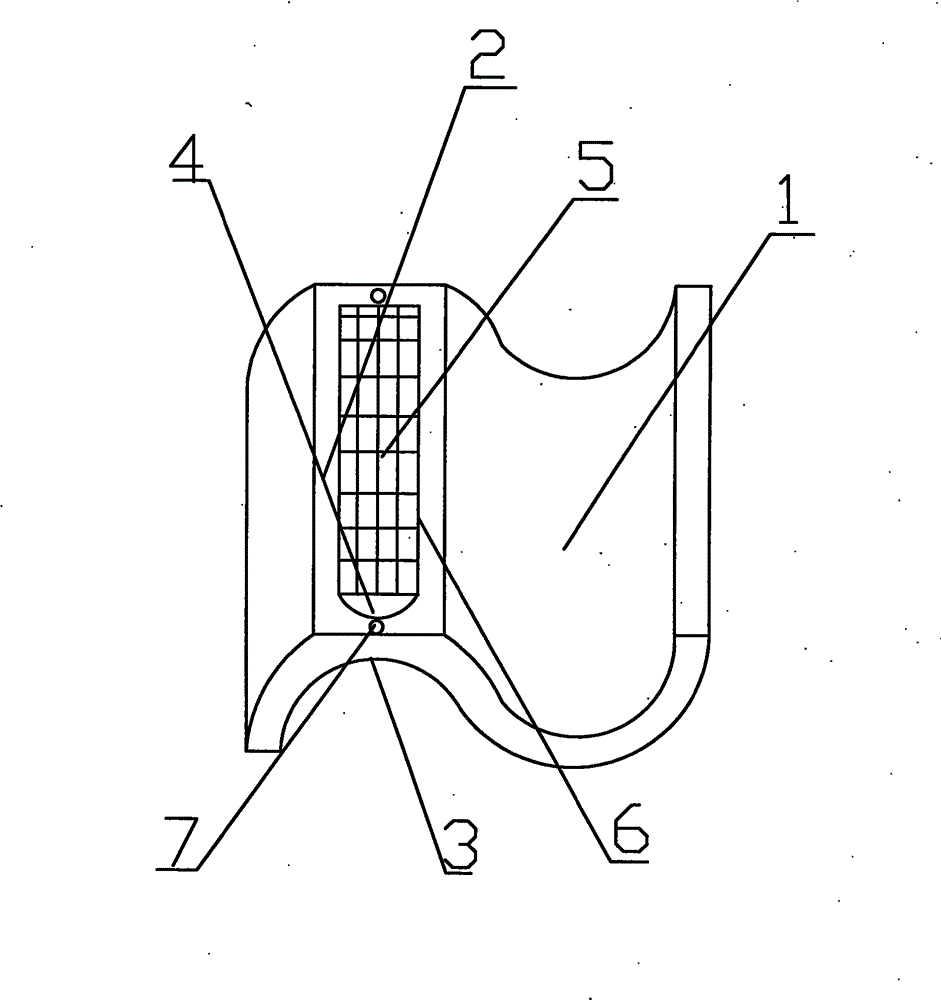

Fig. 1 is a structural schematic diagram of a solar power generation tile of the present invention. the

Among them: 1-tile body, 2-tile front, 3-tile back, 4-groove, 5-encapsulated solar power generation panel, 6-glass plate, 7-installation hole. the

Detailed ways

In conjunction with Fig. 1, provide the embodiment of the present utility model as follows:

As shown in the figure: a solar power generation tile of the utility model includes a tile main body 1, a tile front 2, a tile back 3, a groove 4, a packaged solar power generation panel 5, a glass plate 6 and an installation hole 7. The main body 1 of the tile is wave-shaped, and the groove 4 is arranged on the front surface 2 of the tile, that is, on the side facing the sunlight, and the inside of the groove 4 places a packaged solar power generation panel 4 for receiving sunlight, The glass plate 6 is installed above the packaged solar power generation panel 5 for protecting the packaged solar power generation panel 5 from the sun and rain, and the installation hole 7 passes through the tile front 2 and the tile back 3 . the

Finally, it should be noted that the above embodiments are only used to illustrate the utility model rather than limit the technical solutions described in the utility model; However, those of ordinary skill in the art should understand that the utility model can still be modified or equivalently replaced; and all technical solutions and improvements that do not depart from the spirit and scope of the utility model should be covered by the rights of the utility model within the required range. the

Claims (1)

1. a solar electrical energy generation watt; Comprise solar panel, glass plate and the installing hole of tile body, tile front, the tile back side, groove, encapsulation, it is characterized in that: said tile body is corrugated, and said groove is arranged on the tile front; Promptly be arranged on one side towards sunshine; Said inside grooves is placed the solar panel of encapsulation, and said glass plate is installed in the solar panel top of encapsulation, and said installing hole passes the positive and tile back side of tile.
