Abstract

The utility model provides a portable computer bracket table, which at least includes a desktop, a bracket body and bracket legs. The bracket body includes a lower bracket and an upper bracket. The lower bracket is in the shape of a polygonal frame. The support includes at least two vertical bars and a horizontal bar, the bottom end of the vertical bar is fixedly connected to one side of the lower bracket in the shape of a polygonal frame, and is perpendicular to the lower bracket, and the horizontal bar is fixedly connected to the top of the vertical bar and connected to the The lower bracket is parallel, the two ends of the cross bar are bent towards the direction of the desktop, and the legs of the bracket are installed below the desktop through hinges. The portable computer bracket table is not only small in size and portable, but also can be used to carry a notebook computer, and can also be used as a computer desk.

Description

A portable computer stand table

technical field

The utility model relates to a notebook computer desk, in particular to a portable bracket structure computer desk, which belongs to the field of daily necessities.

Background technique

With the increasing popularity of notebook computers, notebook computers have become an indispensable companion in most people's outdoor work, leisure and entertainment, and notebook computer bags are currently the only choice for most people to carry notebook computers. The laptop bag is portable and not easy to lose. But the notebook computer bag can only provide the function of carrying, and cannot satisfy people's requirements when using it. Simultaneously there are a lot of notebook computer desks on the market, although these desks are relatively small and exquisite in volume, use is also more convenient, but not easy to carry. As people's activities such as outdoor work, travel, and leisure mountaineering become more and more frequent, the demand for using notebook computers outdoors is also becoming more and more intense. The tool has become an urgent problem to be solved.

Contents of the invention

The utility model provides a portable computer support table, which solves the deficiency in the background technology. The portable computer support table is not only small in size and portable, but also can be used to carry a notebook computer and can also be used as a computer table.

The technical scheme adopted to realize the above-mentioned purpose of the utility model is:

A portable computer support table, at least including a desktop, a support body and support legs, the support body includes a lower support and an upper support, the lower support is in the shape of a polygonal frame, the desktop is fixedly installed on the lower support, and the upper support includes at least two A vertical rod and a horizontal rod, the bottom end of the vertical rod is fixedly connected to one side of the lower bracket in the shape of a polygonal frame, and is perpendicular to the lower bracket, the horizontal rod is fixedly connected to the top of the vertical rod and parallel to the lower bracket, and the horizontal Both ends of the rod are bent toward the direction of the desktop, and the support legs are installed under the desktop through hinges.

The desktop is rectangular, and there are two pull-out plates on the rectangular desktop. The two pull-out plates are respectively located on the left half and the right half of the desktop. The outer edge of the drawing plate is provided with a stop piece perpendicular to the drawing plate.

A handle is installed on the lower bracket. The cross bar is a hollow circular tube, the two ends of the cross bar are equipped with rotating baffles, the tail of the rotating baffles is provided with a rotating shaft, and the rotating shaft is located in the cross bar. The bottom ends of the support legs are all equipped with fine-tuning devices.

The portable computer support table provided by the utility model has the following advantages: 1. Simple structure, convenient processing and manufacturing, and low cost. 2. The portable computer stand table can be used to hold a laptop when it is folded, and it can be carried by the handle; when it is unfolded, it can be used as a computer table and can be adjusted according to the size of the laptop. And easy to use.

Description of drawings

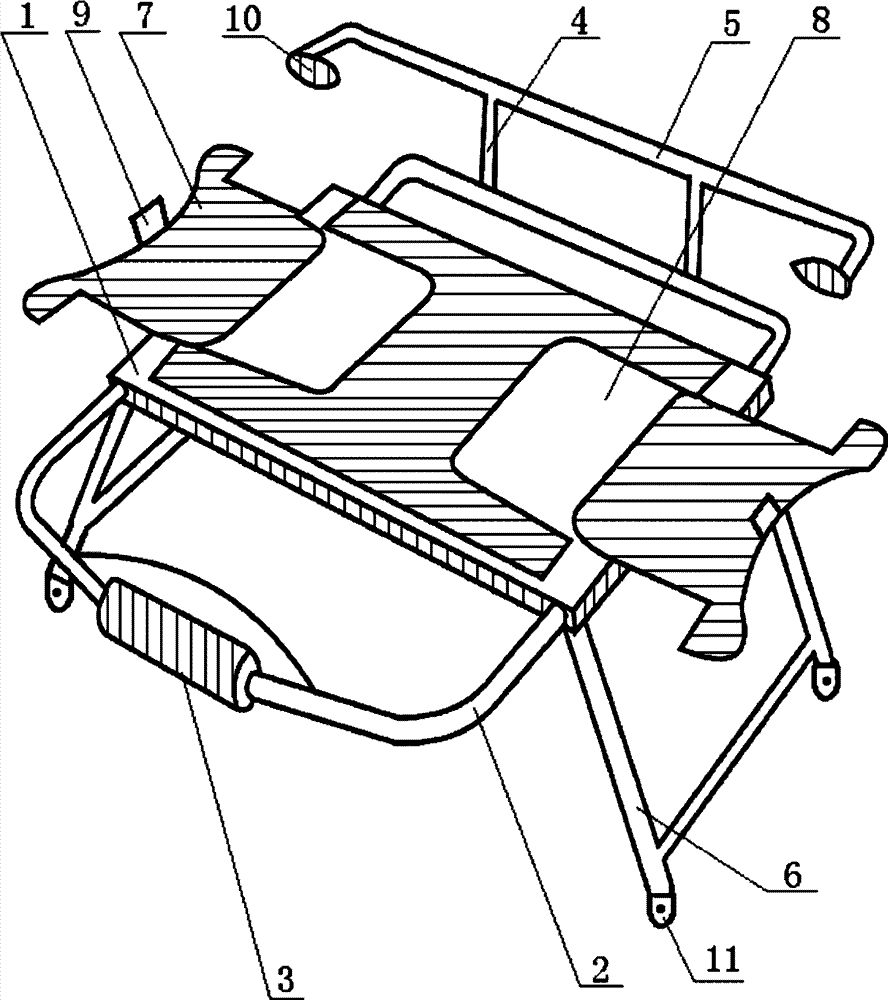

Fig. 1 is the structural representation of the portable computer support desk that the utility model provides;

Fig. 2 is a schematic diagram of the use state of the portable computer support table provided by the utility model;

Fig. 3 is a schematic diagram of the state when the portable computer support table provided by the utility model is folded;

In the figure: 1-desktop, 2-lower bracket, 3-handle, 4-vertical bar, 5-horizontal bar, 6-bracket leg, 7-drawing plate, 8-chute, 9-stopper, 10- Rotating shutter, 11-fine-tuning device, 12-notebook computer.

Detailed ways

Below in conjunction with accompanying drawing, the utility model is described in detail.

The structure of the portable computer support table provided by the utility model is as shown in Figure 1. It is composed of a desktop 1, a support main body, a support leg 6, a handle 3 and a rotating block 10. The support main body is composed of a lower support 2 and an upper support. The lower support 2 is in the shape of a polygonal frame. In this embodiment, the lower bracket 2 is a rectangular frame. The rods on both sides of the lower bracket 2 pass through the desktop 1, so that the desktop 1 is fixed on the lower bracket 2, and the handle 3 is installed on the front side of the lower bracket 2. in the middle of the rod. The material of the desktop 1 is plastic, and the desktop 1 is rectangular. The rectangular desktop 1 is provided with two pull-out plates 7 . The set chute 8 is installed on the desktop 1 , the drawer plate 7 can be twitched in the chute 8 , and the outer edge of the drawer plate 7 is provided with a stop piece 9 perpendicular to the drawer plate 7 .

The upper support includes at least two vertical bars 4 and a horizontal bar 5, and there are two vertical bars 4 in this embodiment. The bottom ends of the two vertical bars 4 are fixedly connected to one side of the lower bracket 2 by welding. In this embodiment, the vertical bars 4 are welded to the rear side bar of the lower bracket 2, and the vertical bars 4 are perpendicular to the lower bracket 2. The cross bar 5 is fixedly connected to the top of the vertical bar 4 by welding and is parallel to the lower bracket 2 , and both ends of the cross bar 5 are bent towards the direction of the desktop 1 . The main body of the bracket is made of a hollow tube, wherein the two ends of the cross bar 5 of the upper bracket are equipped with a rotating block 10, and the tail of the rotating block 10 is provided with a rotating shaft. Rotate inward, thereby driving the rotating blocking plate 10 to rotate.

The support leg 6 is installed under the desktop 1 through a hinge, and the bottom end of the support leg 6 is equipped with a fine-tuning device 11. The fine-tuning device 11 can adjust its length, so that the support leg 6 can stand firmly on the uneven surface. on the ground without sloshing.

The use state of the portable computer support table provided by the utility model is shown in Figure 2. Open the support legs below the desktop to prop up the desktop. Since the bottom of the support legs is equipped with a fine-tuning device, the desktop will not rock. At the same time, pull out the pull-out plate, on which you can place a mouse, power supply, data cable or U disk, etc. The rotating baffle is located in front of the screen, which can ensure the stability of the notebook computer 12 .

When the notebook computer 12 needs to be put away and carried after being used, the rotating catch is first dialed up to close the computer screen, and then the rotating catch is dialed to the level. Push the pull-out plates on both sides of the desktop inward, so that the stoppers at the edge of the draw-out plate just catch on both sides of the laptop to limit its movement. Finally, put the legs of the bracket inward and attach them to the back of the desktop, as shown in Figure 3. Since the desktop, the vertical bar, the horizontal bar, the rotating block and the stop sheet together form a chamber at this time, the notebook computer Can be placed in it stably. At this time, the laptop can be carried by lifting the handle.

Claims (6)

1. portable computer supporter table, it is characterized in that: comprise desktop, rack body and rack leg at least, described rack body comprises lower carriage and upper bracket; Lower carriage is the polygonal frame shape; Desktop is fixedly installed on the lower carriage, and upper bracket comprises two montants and a cross bar at least, and the bottom of montant is fixedly connected on the limit of the lower carriage that is the polygonal frame shape; And it is vertical with lower carriage; Cross bar is fixedly connected on the top of montant and parallel with lower carriage, and the two ends of cross bar are all crooked towards the direction of desktop, and rack leg is installed on the below of desktop through hinge.

2. portable computer supporter table according to claim 1; It is characterized in that: described desktop is rectangular; The rectangle desktop is provided with two pull plates, and two pull plates lay respectively at left side and the right-hand part on the desktop, and all is installed on the desktop through the chute that is provided with on the desktop.

3. portable computer supporter table according to claim 2 is characterized in that: the outward flange of described pull plate is provided with the stop tab vertical with pull plate.

4. portable computer supporter table according to claim 1 is characterized in that: handle is installed on the lower carriage.

5. portable computer supporter table according to claim 1 is characterized in that: cross bar is a hollow circular-tube, and the two ends of cross bar are equipped with the rotation catch, and the afterbody of rotation catch is provided with rotating shaft, and rotating shaft is positioned at cross bar.

6. portable computer supporter table according to claim 1 is characterized in that: the bottom of rack leg all is equipped with micromatic setting.
