Abstract
本实用新型的海水淡化装置是一种具有小型降膜蒸发器的设备，具体是一种利用太阳能进行横管降膜蒸发的装置，包括海水预处理系统、蒸发器、自激淋横管降膜蒸发-冷凝器、冷凝器、槽式太阳能装置等。槽式太阳能装置收集的热量经过换热传递至所述的蒸发器中，为整个装置提供动力源。本实用新型设置了压力调节装置，解决了蒸发器和自激淋横管降膜蒸发-冷凝器中压力差的控制问题，预处理后的海水经过进一步过滤避免了降膜后的海水堵塞管道的问题，提出一种结构简单、方便使用的淡水收集槽，避免了蒸汽在室内壁面冷凝造成产水量低的问题。相比现有技术可以达到减少蒸汽在壁面冷凝的浪费效果，从而提高产水量。
The seawater desalination device of the present invention is a device with a small falling film evaporator, specifically a device for horizontal tube falling film evaporation using solar energy, including a seawater pretreatment system, an evaporator, a self-excited horizontal tube falling film Evaporator-condenser, condenser, trough solar device, etc. The heat collected by the trough solar device is transferred to the evaporator through heat exchange to provide a power source for the entire device. The utility model is equipped with a pressure regulating device, which solves the control problem of the pressure difference between the evaporator and the self-excited horizontal tube falling film evaporation-condenser, and the pretreated seawater is further filtered to avoid the seawater after the falling film from clogging the pipeline. The problem is to propose a fresh water collection tank with simple structure and convenient use, which avoids the problem of low water production caused by steam condensation on the indoor wall. Compared with the prior art, it can achieve the effect of reducing the waste of steam condensed on the wall, thereby increasing the water production.
Description
技术领域 technical field
本实用新型属于海水处理装置技术领域，尤其涉及一种海水淡化装置。The utility model belongs to the technical field of seawater treatment devices, in particular to a seawater desalination device.
背景技术 Background technique
海水淡化即利用海水脱盐生产淡水。是实现水资源利用的开源增量技术，可以增加淡水总量，且不受时空和气候影响，水质好、价格渐趋合理，可以保障沿海居民饮用水和工业锅炉补水等稳定供水。从海水中取得淡水的过程谓海水淡化。Seawater desalination is the use of seawater desalination to produce fresh water. It is an open-source incremental technology to realize the utilization of water resources. It can increase the total amount of fresh water without being affected by time, space and climate. The water quality is good and the price is becoming more and more reasonable. It can ensure stable water supply such as drinking water for coastal residents and supplementary water for industrial boilers. The process of obtaining fresh water from sea water is called desalination.
目前，全球海水淡化日产量约3500万立方米左右，其中80％用于饮用水，解决了1亿多人的供水问题，即世界上1/50的人口靠海水淡化提供饮用水。全球有海水淡化厂1.3万多座，海水淡化作为淡水资源的替代与增量技术，愈来愈受到世界上许多沿海国家的重视；全球直接利用海水作为工业冷却水总量每年约6000亿立方米左右替代了大量宝贵的淡水资源；全世界每年从海洋中提盐5000万吨、镁及氧化镁260多万吨、溴20万吨等。At present, the global daily output of seawater desalination is about 35 million cubic meters, 80% of which is used for drinking water, which solves the water supply problem of more than 100 million people, that is, 1/50 of the world's population relies on seawater desalination to provide drinking water. There are more than 13,000 seawater desalination plants in the world. As an alternative and incremental technology for fresh water resources, seawater desalination has attracted more and more attention from many coastal countries in the world; the global direct use of seawater as industrial cooling water totals about 600 billion cubic meters per year Left and right replace a large number of valuable fresh water resources; the world extracts 50 million tons of salt, more than 2.6 million tons of magnesium and magnesium oxide, and 200,000 tons of bromine from the ocean every year.
蒸馏法为海水淡化最直接和常见的方法，现有技术中，采用大型的横管降膜设备作为换热设备，设备大型结构比较复杂。同时，在进行海水淡化处理过程中，还存在降膜后的海水堵塞管道的问题，以及蒸汽在室内壁面冷凝造成产水量低的问题。Distillation is the most direct and common method for seawater desalination. In the prior art, large-scale horizontal tube falling film equipment is used as heat exchange equipment, and the large-scale structure of the equipment is relatively complicated. At the same time, in the process of seawater desalination treatment, there are also problems that the seawater after falling film clogs the pipeline, and the steam condenses on the indoor wall surface to cause low water production.
发明内容 Contents of the invention
本实用新型的目的在于提供一种海水淡化装置，避免了降膜后的海水堵塞管道的问题，产水率高。The purpose of the utility model is to provide a seawater desalination device, which avoids the problem of pipeline blockage by seawater after falling film, and has a high water production rate.
本实用新型是通过以下技术方案来实现的：The utility model is achieved through the following technical solutions:
海水淡化装置，包括有：热水处理装置、蒸发器、自激淋横管降膜蒸发-冷凝器以及冷凝器；其中，所述蒸发器采用一种降膜装置，包括有布液器和位于布液器下方的降膜管；热水处理装置通过连接水管与降膜管连接，降膜管、连接水管与热水处理装置形成封闭的热水循环通道；所述蒸发器与自激淋横管降膜蒸发-冷凝器通过蒸汽管道和海水连接水管分别连接，所述蒸汽管道中设置有压力调节装置；所述自激淋横管降膜蒸发-冷凝器与冷凝器通过淡水管道连接。The seawater desalination device includes: a hot water treatment device, an evaporator, a self-excited horizontal tube falling film evaporation-condenser and a condenser; wherein, the evaporator adopts a falling film device, including a liquid distributor and a The falling film tube below the liquid distributor; the hot water treatment device is connected with the falling film tube through the connecting water pipe, and the falling film tube, the connecting water pipe and the hot water treatment device form a closed hot water circulation channel; the evaporator and the self-excited shower horizontal The tube falling film evaporation-condenser is respectively connected to the seawater connecting water pipe through a steam pipeline, and a pressure regulating device is arranged in the steam pipeline; the self-excited horizontal tube falling film evaporation-condenser is connected to the condenser through a fresh water pipeline.
所述降膜管采用蛇形管道结构。The falling film tube adopts a serpentine pipeline structure.
所述热水处理装置为一种槽式太阳能装置，所述槽式太阳能装置与海水入水管道连接；所述海水入水管道中，设置有第一过滤器。The hot water treatment device is a trough solar device, and the trough solar device is connected to a seawater inlet pipeline; a first filter is arranged in the seawater inlet pipeline.
所述蒸发器的布液器，与待淡化海水入水管道连接，沿着待淡化海水的流向，所述待淡化海水入水管道中依次设置有海水预处理系统和第二过滤器。The liquid distributor of the evaporator is connected with the seawater inlet pipeline to be desalinated, and along the flow direction of the seawater to be desalinated, a seawater pretreatment system and a second filter are sequentially arranged in the seawater inlet pipeline to be desalinated.
所述压力调节装置包括有真空泵、第一阀门和第二阀门；连接所述蒸发器与自激淋横管降膜蒸发-冷凝器的蒸汽管道包括有：连接蒸发器和真空泵的第一蒸汽管、连接自激淋横管降膜蒸发-冷凝器和真空泵的第二蒸汽管、以及同样连接自激淋横管降膜蒸发-冷凝器和真空泵的第三蒸汽管；第一阀门位于第一蒸汽管中，第二阀门位于第二蒸汽管中，第三蒸汽管为一连续管道。The pressure regulating device includes a vacuum pump, a first valve and a second valve; the steam pipe connecting the evaporator and the self-excited horizontal tube falling film evaporation-condenser includes: the first steam pipe connecting the evaporator and the vacuum pump , the second steam pipe connected to the self-excited horizontal tube falling film evaporation-condenser and the vacuum pump, and the third steam pipe also connected to the self-excited horizontal tube falling film evaporation-condenser and the vacuum pump; the first valve is located at the first steam In the pipe, the second valve is located in the second steam pipe, and the third steam pipe is a continuous pipeline.
所述冷凝器包括冷凝室和冷却装置，所述冷凝室和冷却装置通过冷却水管连接，冷凝室中设置有换热管装置；所述连接自激淋横管降膜蒸发-冷凝器的淡水管道与冷凝室中设置的换热管装置连接；所述换热管装置的出口为淡水出口。The condenser includes a condensation chamber and a cooling device, the condensation chamber and the cooling device are connected through a cooling water pipe, and a heat exchange tube device is arranged in the condensation chamber; the fresh water pipeline connected to the self-excited horizontal tube falling film evaporation-condenser It is connected with the heat exchange tube device arranged in the condensation chamber; the outlet of the heat exchange tube device is a fresh water outlet.
所述蒸发器的内壁面设置有第一淡水收集槽。The inner wall of the evaporator is provided with a first fresh water collection tank.
所述自激淋横管降膜蒸发-冷凝器的内壁面设置有第二淡水收集槽。The inner wall of the self-excited horizontal tube falling film evaporation-condenser is provided with a second fresh water collection tank.
本实用新型的有益效果如下：The beneficial effects of the utility model are as follows:
本实用新型的海水淡化装置是一种具有小型降膜蒸发器的设备，具体是一种利用太阳能进行横管降膜蒸发的装置，包括海水预处理系统、蒸发器、自激淋横管降膜蒸发-冷凝器、冷凝器、槽式太阳能装置等。槽式太阳能装置收集的热量经过换热传递至所述的蒸发器中，为整个装置提供动力源。本实用新型设置了压力调节装置，解决了蒸发器和自激淋横管降膜蒸发-冷凝器中压力差的控制问题，预处理后的海水经过进一步过滤避免了降膜后的海水堵塞管道的问题，提出一种结构简单、方便使用的淡水收集槽，避免了蒸汽在室内壁面冷凝造成产水量低的问题。相比现有技术可以达到减少蒸汽在壁面冷凝的浪费效果，从而提高产水量。The seawater desalination device of the present invention is a device with a small falling film evaporator, specifically a device for horizontal tube falling film evaporation using solar energy, including a seawater pretreatment system, an evaporator, a self-excited horizontal tube falling film Evaporator-condenser, condenser, trough solar device, etc. The heat collected by the trough solar device is transferred to the evaporator through heat exchange to provide a power source for the entire device. The utility model is equipped with a pressure regulating device, which solves the problem of pressure difference control between the evaporator and the self-excited horizontal tube falling film evaporation-condenser, and the pretreated seawater is further filtered to avoid the seawater after the falling film from clogging the pipeline. The problem is to propose a fresh water collection tank with simple structure and convenient use, which avoids the problem of low water production caused by steam condensation on the indoor wall. Compared with the prior art, it can achieve the effect of reducing the waste of steam condensing on the wall, thereby increasing the water production.
更进一步解释为：Further explained as:
本实用新型的海水淡化装置，从三个方面去提高装置运行效率和产水量。一是预处理过的海水通过进一步过滤避免了降膜后的海水堵塞管道；二是通过真空泵等压力调节装置从蒸发器和自激淋横管降膜蒸发-冷凝器装置中抽取蒸汽后返回蒸汽至后者，这样方便的调节两者的压差；三是由于蒸发器和自激淋横管降膜蒸发-冷凝器中蒸汽在壁面冷凝导致淡水浪费，设置了淡水收集槽收集此部分淡水，大大提高了淡水的产量。The seawater desalination device of the utility model improves the operating efficiency and water production of the device from three aspects. One is that the pretreated seawater is further filtered to prevent the seawater after the falling film from clogging the pipeline; the other is to use a pressure regulating device such as a vacuum pump to extract steam from the evaporator and self-excited horizontal tube falling film evaporation-condenser device and return it to the steam To the latter, it is convenient to adjust the pressure difference between the two; the third is that the steam in the evaporator and the self-excited horizontal tube falling film evaporation-condenser condenses on the wall to cause waste of fresh water, and a fresh water collection tank is set to collect this part of fresh water. Greatly increased the production of fresh water.
附图说明 Description of drawings

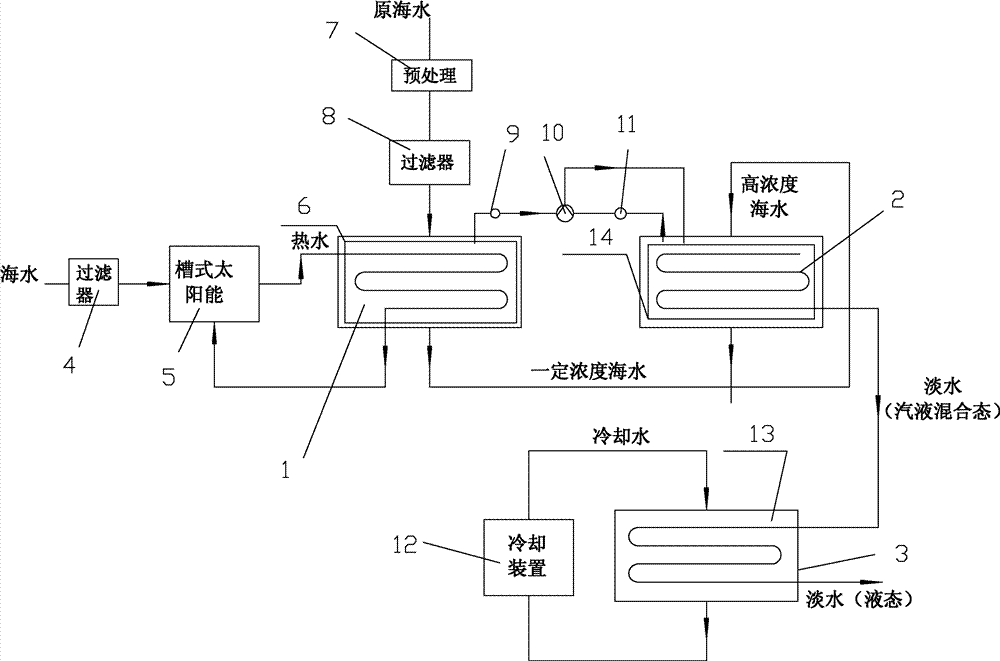

图1是本实用新型的海水淡化装置的结构原理示意图。Fig. 1 is a schematic diagram of the structure and principle of the seawater desalination device of the present invention.
附图标记说明：Explanation of reference signs:
1、蒸发器，2、自激淋横管降膜蒸发-冷凝器，3、冷凝器，4、第一过滤器，5、槽式太阳能装置，6、第一淡水收集槽，7、海水预处理系统，8、第二过滤器，9、第一阀门，10、真空泵，11、第二阀门，12、冷却装置，13、冷凝室，14、第二淡水收集槽。1. Evaporator, 2. Self-excited horizontal tube falling film evaporation-condenser, 3. Condenser, 4. The first filter, 5. Trough solar device, 6. The first fresh water collection tank, 7. Seawater pretreatment Processing system, 8, second filter, 9, first valve, 10, vacuum pump, 11, second valve, 12, cooling device, 13, condensation chamber, 14, second fresh water collection tank.
具体实施方式 Detailed ways
下面结合附图对本实用新型进一步详细说明：Below in conjunction with accompanying drawing the utility model is described in further detail:
请见图1，本实用新型公开了一种海水淡化装置，包括有：热水处理装置、蒸发器1、自激淋横管降膜蒸发-冷凝器2以及冷凝器3；其中，所述蒸发器1采用一种降膜装置，包括有布液器和位于布液器下方的降膜管；热水处理装置通过连接水管与降膜管连接，降膜管、连接水管与热水处理装置形成封闭的热水循环通道；所述蒸发器1与自激淋横管降膜蒸发-冷凝器2通过蒸汽管道和海水连接水管分别连接，所述蒸汽管道中设置有压力调节装置；所述自激淋横管降膜蒸发-冷凝器2与冷凝器3通过淡水管道连接。Please see Figure 1, the utility model discloses a seawater desalination device, including: a hot water treatment device, an evaporator 1, a self-excited horizontal tube falling film evaporation-condenser 2 and a
所述降膜管采用蛇形管道结构。The falling film tube adopts a serpentine pipeline structure.
所述降膜管为一种铜管。The falling film tube is a copper tube.
所述热水处理装置为一种槽式太阳能装置5，所述槽式太阳能装置与海水入水管道连接；所述海水入水管道中，设置有第一过滤器4。The hot water treatment device is a trough
所述蒸发器1的布液器，与待淡化海水入水管道连接，沿着待淡化海水的流向，所述待淡化海水入水管道中依次设置有海水预处理系统7和第二过滤器8。The liquid distributor of the evaporator 1 is connected with the seawater inlet pipeline to be desalinated, and along the flow direction of the seawater to be desalinated, the
所述压力调节装置包括有真空泵10、第一阀门9和第二阀门11；连接所述蒸发器1与自激淋横管降膜蒸发-冷凝器2的蒸汽管道包括有：连接蒸发器1和真空泵10的第一蒸汽管、连接自激淋横管降膜蒸发-冷凝器2和真空泵10的第二蒸汽管、以及同样连接自激淋横管降膜蒸发-冷凝器2和真空泵10的第三蒸汽管；第一阀门9位于第一蒸汽管中，第二阀门11位于第二蒸汽管中，第三蒸汽管为一连续管道。Described pressure regulating device comprises
所述冷凝器包括冷凝室13和冷却装置12，所述冷凝室13和冷却装置12通过冷却水管连接，冷凝室13中设置有换热管装置；所述连接自激淋横管降膜蒸发-冷凝器2的淡水管道与冷凝室13中设置的换热管装置连接；所述换热管装置的出口为淡水出口。The condenser includes a
所述蒸发器1的内壁面设置有第一淡水收集槽6。The inner wall of the evaporator 1 is provided with a first fresh water collection tank 6 .
所述自激淋横管降膜蒸发-冷凝器2的内壁面设置有第二淡水收集槽14。The inner wall of the self-excited horizontal tube falling film evaporation-condenser 2 is provided with a second fresh
本实用新型的海水淡化装置，其工作原理为：系统中动力的来源是利用槽式太阳能装置加热海水，加热的海水流进蒸发器内的铜管中，热水经铜管流至槽式太阳能装置继续加热循环利用。经过过滤的海水，通过布液器布液后润湿蒸发器中的铜管，与铜管中流动的热水进行换热，控制蒸发器内的压力，过滤后的海水在蒸发器内进行降膜蒸发，降膜后的海水在自激淋横管降膜蒸发-冷凝器中重复蒸发器的过程，而蒸汽进入自激淋横管降膜蒸发-冷凝器进行冷凝，部分冷凝水和部分蒸汽从自激淋横管降膜蒸发-冷凝器进入到冷凝器进行冷凝。The working principle of the seawater desalination device of the present invention is: the source of power in the system is to use the trough solar device to heat seawater, the heated seawater flows into the copper tube in the evaporator, and the hot water flows to the trough solar energy through the copper tube. The device continues to heat and recycle. The filtered seawater wets the copper tube in the evaporator after distributing liquid through the liquid distributor, exchanges heat with the hot water flowing in the copper tube, controls the pressure in the evaporator, and the filtered seawater is reduced in the evaporator. Film evaporation, the seawater after the falling film repeats the process of the evaporator in the self-excited horizontal tube falling film evaporation-condenser, and the steam enters the self-excited horizontal tube falling film evaporation-condenser for condensation, part of the condensed water and part of the steam From the self-excited horizontal tube falling film evaporation-condenser into the condenser for condensation.
一定适量的海水经过预处理后，流经槽式太阳能装置集热加温水，此热水流到蒸发器中蛇形管道中与降膜的海水换热循环回到槽式太阳能集热系统中，此热水循环为整个装置提供能量来源。装置的海水进水口的原海水经过预处理再经过第二过滤器过滤后，第二过滤器把水中的大颗微粒进一步过滤，这样避免了降膜后的海水堵塞管道，提高了海水淡化装置中水循环的效率，原海水经一效蒸发器中降膜蒸发后，产生的蒸汽进入自激淋横管降膜蒸发-冷凝器的横管中，降膜后一定浓度的海水经过二效降膜蒸发兼顾冷却一效进入横管的蒸汽，充分利用了降膜后海水的余热，与自激淋横管降膜蒸发-冷凝器的横管中的蒸汽换热后进一步蒸发，蒸汽进入冷凝室与冷却水换热冷凝，自激淋横管降膜蒸发-冷凝器横管中未冷凝的气体经冷凝室进一步冷却。合理调节蒸发器、自激淋横管降膜蒸发-冷凝器、冷凝器的压力，经降膜蒸发后的水蒸气，由真空泵同时抽取蒸发器和自激淋横管降膜蒸发-冷凝器，后返回到自激淋横管降膜蒸发-冷凝器，在真空泵抽取的过程中，采取两个阀门去调节两室之间的压力，这样解决了蒸发器中蒸汽没有压力差的作用很难到自激淋横管降膜蒸发-冷凝器中的问题；在蒸发和冷凝的物理过程中，一部分蒸汽在壁面冷凝成水，与降膜后的海水混为一起，造成浪费，因此在蒸发器和自激淋横管降膜蒸发-冷凝器的内壁面设置淡水收集槽收集此部分凝结的淡水。After a certain amount of seawater is pretreated, it flows through the trough solar device to collect heat and heat water, and the hot water flows into the serpentine pipe in the evaporator to exchange heat with the falling film seawater and return to the trough solar heat collection system. This hot water circulation provides the energy source for the entire unit. The raw seawater at the seawater inlet of the device is pretreated and then filtered through the second filter. The second filter further filters the large particles in the water, which avoids the seawater after falling film from clogging the pipeline and improves the efficiency of the seawater desalination device. The efficiency of the water cycle, the original seawater is evaporated by the falling film in the first effect evaporator, and the steam generated enters the horizontal tube of the self-excited horizontal tube falling film evaporation-condenser, and the seawater with a certain concentration after the falling film is evaporated by the second effect falling film Taking into account both cooling and one effect, the steam entering the horizontal tube makes full use of the waste heat of seawater after the falling film, and exchanges heat with the steam in the horizontal tube of the self-excited horizontal tube falling film evaporation-condenser to further evaporate, and the steam enters the condensation chamber and the cooling chamber The water is heat-exchanged and condensed, and the self-excited horizontal tube falling film evaporation-the uncondensed gas in the horizontal tube of the condenser is further cooled by the condensation chamber. Reasonably adjust the pressure of the evaporator, the self-excited shower horizontal tube falling film evaporation-condenser, and the condenser. After returning to the self-excited horizontal tube falling film evaporation-condenser, in the process of vacuum pump extraction, two valves are used to adjust the pressure between the two chambers, which solves the problem that the steam in the evaporator has no pressure difference and is difficult to achieve Self-excited horizontal tube falling film evaporation-a problem in the condenser; in the physical process of evaporation and condensation, a part of the steam condenses into water on the wall and mixes with the seawater after the falling film, causing waste, so in the evaporator and A fresh water collection tank is arranged on the inner wall of the self-excited horizontal tube falling film evaporation-condenser to collect the partially condensed fresh water.
上述所列具体实现方式为非限制性的，对本领域的技术人员来说，在不偏离本实用新型范围内，进行的各种改进和变化，均属于本实用新型的保护范围。The specific implementation methods listed above are non-restrictive. For those skilled in the art, various improvements and changes made within the scope of the present utility model all belong to the protection scope of the present utility model.
